The DANFOSS VICKERS DG4V-3-6C-M-U-H7-60-EN210 is a heavy-duty industrial solenoid directional valve engineered for precise control of hydraulic fluid flow direction in demanding mobile and industrial applications. This CETOP 3 (NG6) valve features a robust wet-pin armature design and a high-performance solenoid coil, ensuring reliable shifting and long service life under continuous duty cycles.
DANFOSS VICKERS DG4V-3-6C-M-U-H7-60-EN210 Technical Specifications
| Valve Type | Solenoid Operated Directional Control Valve |
| Mounting Interface | CETOP 3 / ISO 4401-03 / NG6 |
| Spool Configuration | 6C (Closed Center, All Ports Blocked in Neutral) |
| Actuation | Single Solenoid, Spring Return |
| Coil Voltage | EN210 (210V AC, 50/60 Hz) |
| Max Operating Pressure | 350 bar (5075 psi) at P, A, B ports |
| Max Flow Rate | 60 L/min (15.8 gpm) |
| Fluid Temperature Range | -20°C to +70°C (-4°F to +158°F) |
| Seal Material | NBR (Buna-N) |
| Weight | Approx. 1.5 kg (3.3 lbs) |
Key Engineering Features
- Wet-pin armature design eliminates side loading and ensures consistent solenoid performance.
- High-strength cast iron body for durability and minimal pressure drop.
- Spring return mechanism provides fail-safe spool positioning on power loss.
- Hardened, precision-ground spool and sleeve for low leakage and long life.
- Coil rated for continuous duty and high ambient temperatures.
- Standard CETOP 3 mounting for easy integration into existing manifolds.
Industrial Applications
- Mobile hydraulic systems (construction, agriculture, material handling).
- Industrial power units and machine tool clamping circuits.
- Presses, injection molding machines, and die-casting equipment.
- Marine and offshore hydraulic control systems.
- Automated assembly lines and test stands.
For technical inquiries, dimensional drawings, or replacement support for DANFOSS VICKERS DG4V-3-6C-M-U-H7-60-EN210, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

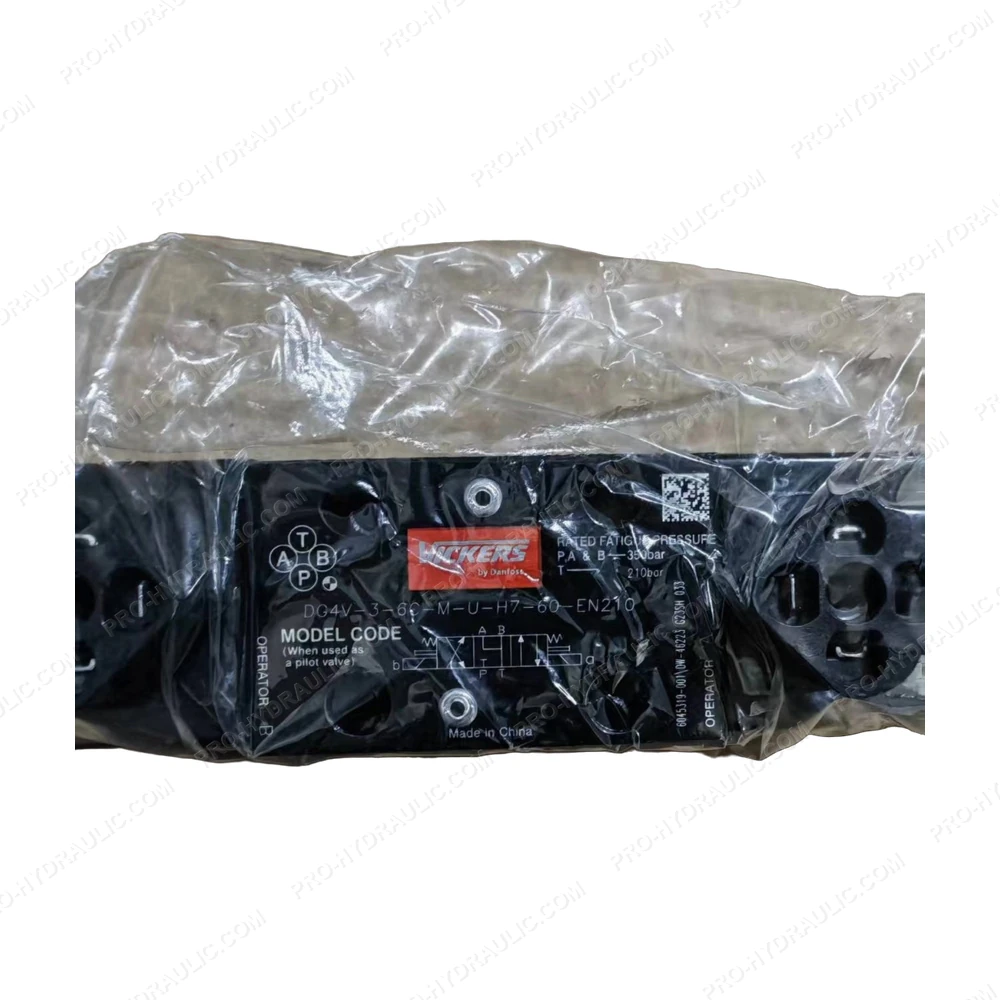

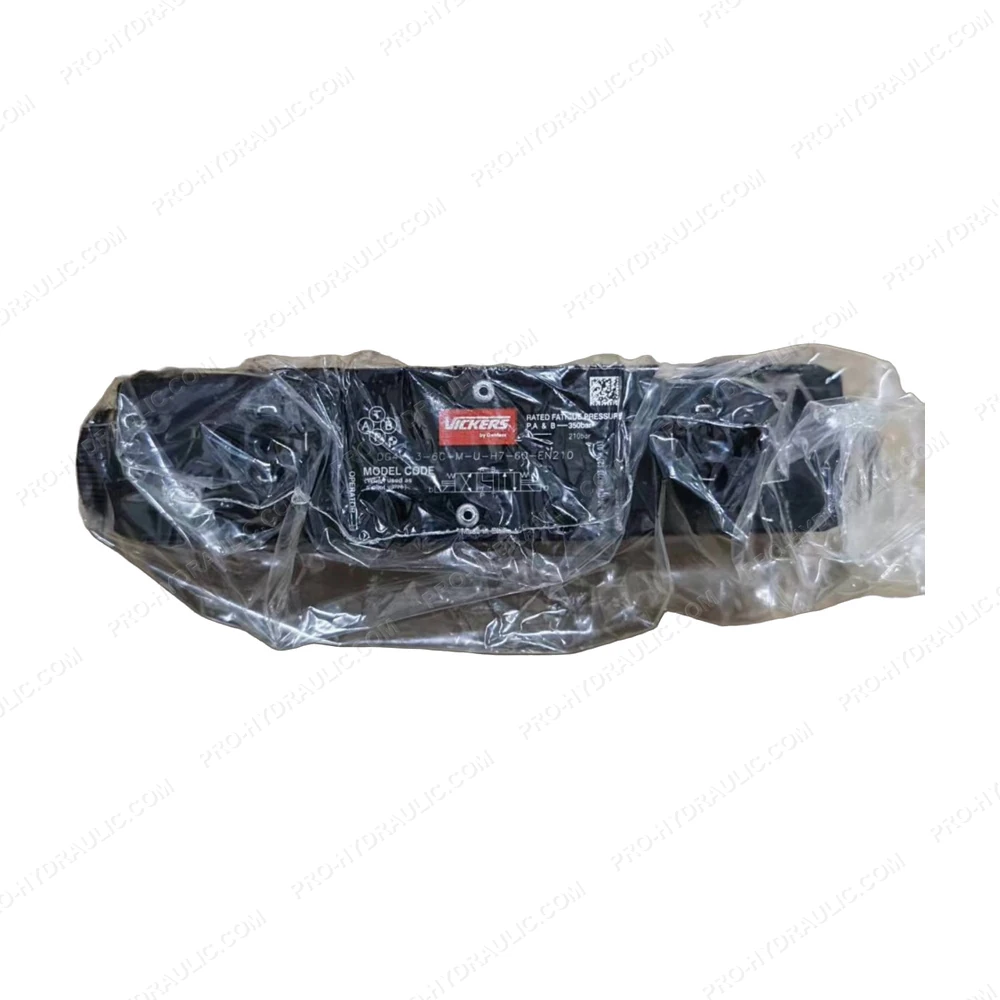

DANFOSS VICKERS DG4V-3-6C-M-U-H7-60-EN210 Solenoid Directional Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the DANFOSS VICKERS DG4V-3-6C-M-U-H7-60-EN210 Solenoid Directional Valve. This precision-engineered industrial component delivers reliable performance and tight fluid control for heavy-duty systems.
