Product Overview
The DENISON T7BS B07 1R02 A1M1 / 024-03113-013S is a high-performance industrial hydraulic vane pump manufactured by Parker Denison, a global leader in fluid power technology. This pump belongs to the renowned T7 series, which is engineered for demanding industrial applications requiring reliable, continuous-duty operation. The T7BS designation indicates a single vane pump configuration with a nominal displacement of 7.9 cm³/rev (B07), featuring a standard pressure rating and a clockwise rotation direction. The pump operates on the proven vane pumping principle, where a rotor with radially sliding vanes rotates within a cam ring, creating variable volume chambers that draw in and pressurize hydraulic fluid. This design ensures smooth, low-pulsation flow delivery, making it ideal for precision hydraulic systems. The model code 024-03113-013S represents the specific factory configuration, including mounting flange, shaft type, and port connections. As a direct replacement for original Denison components, this pump offers exceptional volumetric efficiency, quiet operation, and long service life in the most challenging industrial environments.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Hydraulic Vane Pump |
| Model Designation | T7BS B07 1R02 A1M1 / 024-03113-013S |
| Manufacturer | Parker Denison |
| Displacement | 7.9 cm³/rev (nominal, B07 designation) |
| Operating Pressure | Up to 210 bar continuous, 250 bar intermittent (standard T7 series rating) |
| Speed Range | 600 – 3600 RPM (dependent on fluid viscosity and pressure) |
| Mounting & Connection | SAE 2-bolt flange, splined or keyed shaft, SAE ports (per model code) |
| Rotation | Clockwise (viewed from shaft end) |
| Fluid Compatibility | Mineral oil, fire-resistant fluids, water-glycol (depending on seal options) |
Engineering Features & Advantages
- Precision Performance: The T7BS vane pump utilizes a precision-machined rotor, vanes, and cam ring to deliver smooth, low-pulsation flow with exceptional volumetric efficiency, ensuring stable operation of downstream hydraulic actuators and valves.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, the pump features a robust cast iron housing, durable bearing system, and wear-resistant internal components that extend service life and reduce downtime.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original DENISON standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
As a direct replacement for original Denison components, this pump offers exceptional volumetric efficiency, quiet operation, and long service life in the most challenging industrial environments.
PRODUCT IMAGES

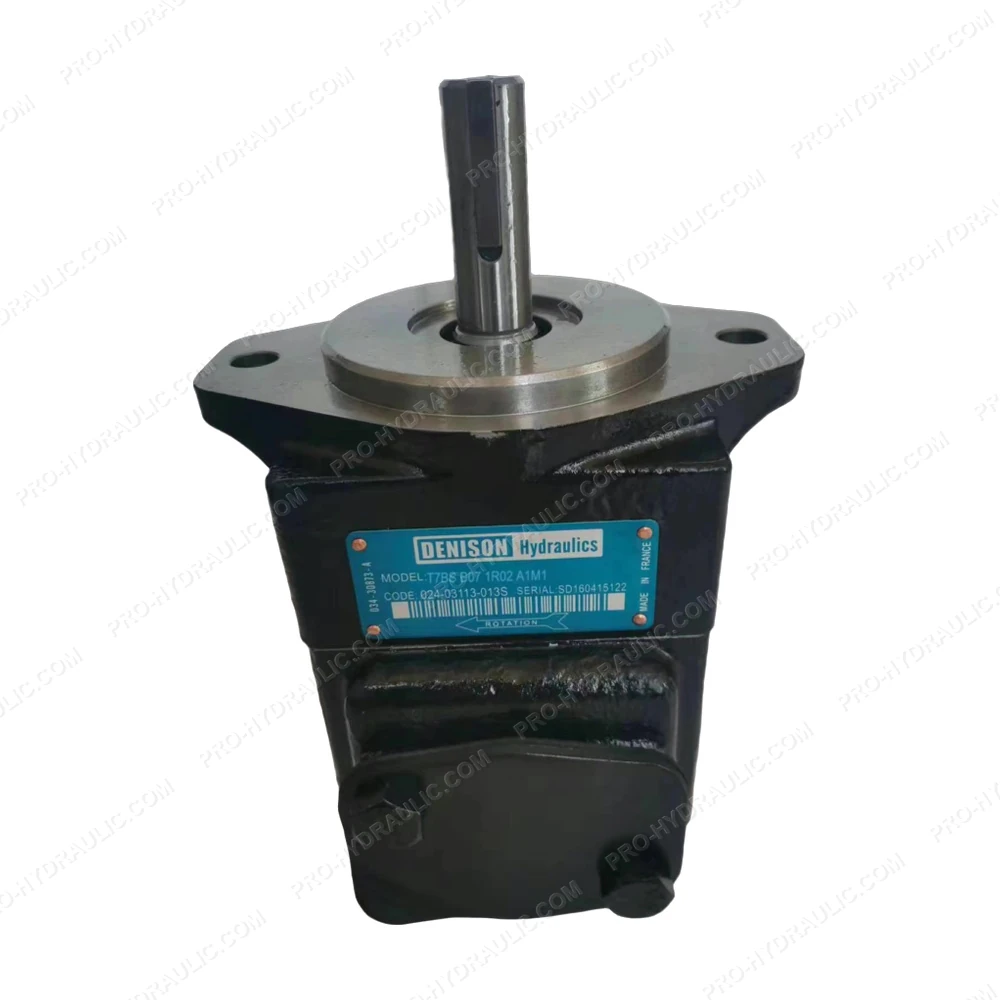

DENISON T7BS B07 1R02 A1M1 / 024-03113-013S Hydraulic Vane Pump
