The DK-LOK V15C-D-10M-A-S is a heavy-duty industrial needle valve engineered for precise flow regulation in high-pressure instrumentation and process piping systems. This manual valve features a robust union bonnet design and a non-rotating stem tip for repeatable, tight shutoff in demanding fluid control applications.
DK-LOK V15C-D-10M-A-S Technical Specifications
| Valve Type | Instrumentation Needle Valve |
| Body Material | 316 Stainless Steel |
| Connection Size | 10 mm |
| Connection Type | DK-LOK Tube Fitting |
| Orifice Size | 4.0 mm |
| Maximum Working Pressure | 413 bar (6000 psig) |
| Temperature Range | -54°C to 232°C (-65°F to 450°F) |
| Flow Coefficient (Cv) | 0.37 |
| Stem Type | Non-rotating, blunt tip |
| Handle | Aluminum bar handle |
| Mounting | Panel mountable |
Key Engineering Features
- Two-piece stem design prevents galling and ensures smooth actuation
- Backseat sealing allows safe packing replacement under pressure
- Precision-machined threads for fine flow control
- DK-LOK tube fitting ends provide leak-tight connections without flaring
- Panel mount nut included for secure installation
Industrial Applications
- Oil and gas instrumentation systems
- Chemical processing and petrochemical plants
- Power generation sampling lines
- Analytical and laboratory equipment
- Hydraulic and pneumatic control panels
For technical inquiries, dimensional drawings, or replacement support for DK-LOK V15C-D-10M-A-S, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

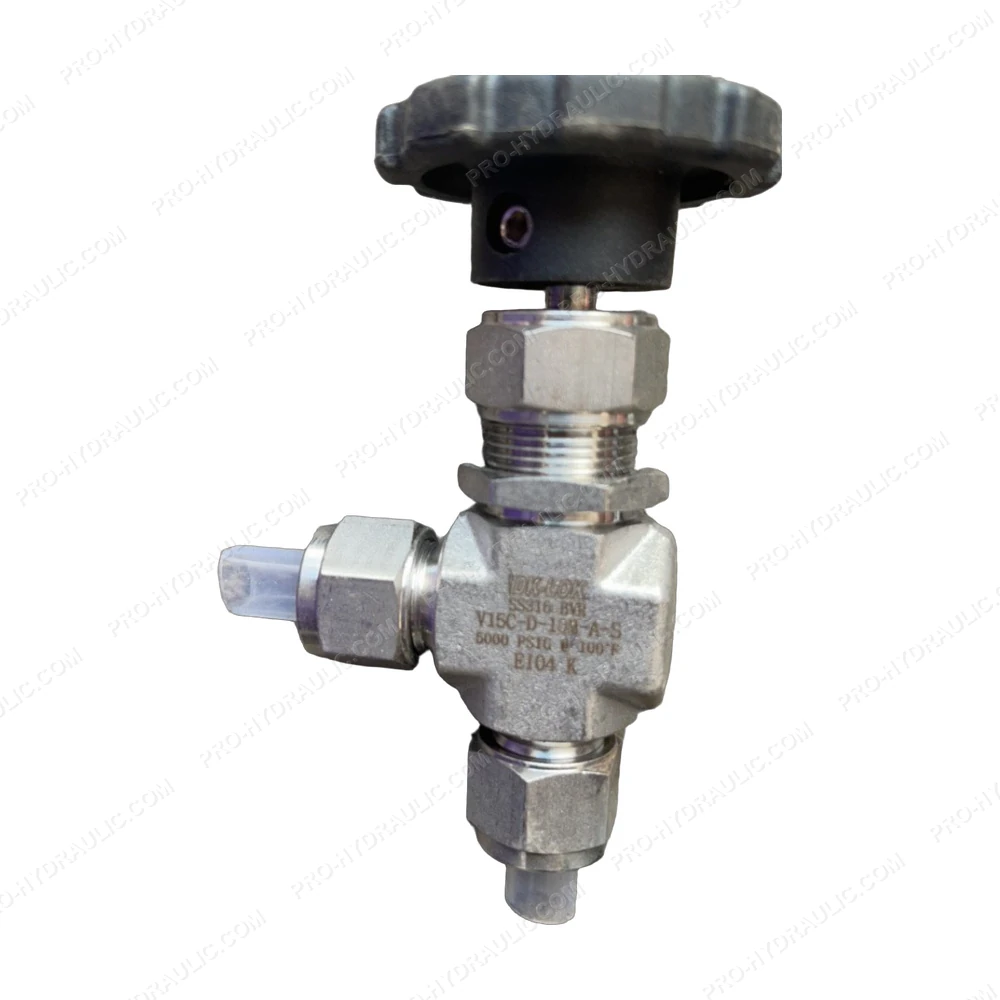

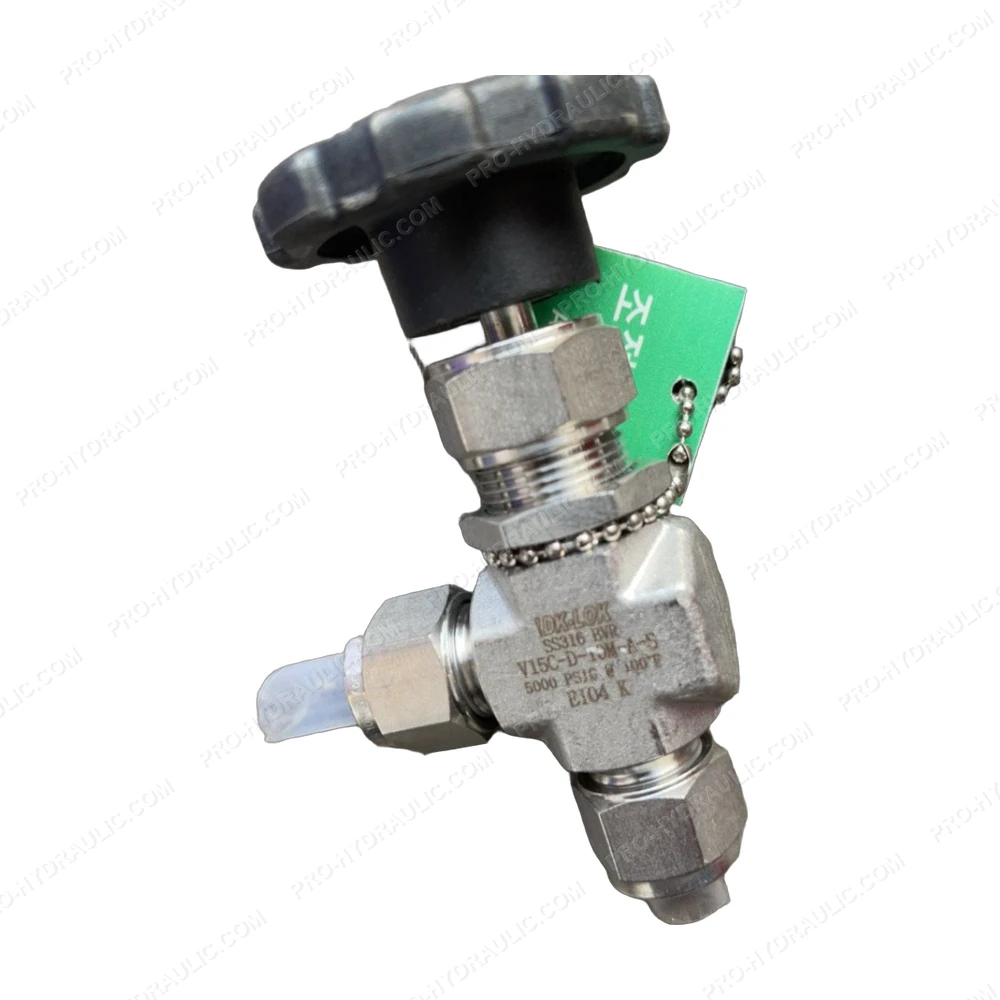

DK-LOK V15C-D-10M-A-S Needle Valve
