The DUNGS FRM-NOC 10015 HD is a heavy-duty industrial gas pressure regulator engineered for precise downstream pressure control in commercial and industrial gas trains. It operates as a spring-loaded, diaphragm-actuated regulator with a balanced valve disc, providing stable outlet pressure independent of inlet pressure fluctuations and flow rate variations.
DUNGS FRM-NOC 10015 HD Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Gas Pressure Regulator |
| Series | FRM-NOC |
| Model | 10015 HD |
| Nominal Size | DN 100 (4″) |
| Inlet Pressure Range | Up to 500 mbar |
| Outlet Pressure Range | 5–100 mbar (adjustable via spring) |
| Operating Temperature | -20 °C to +60 °C |
| Body Material | Aluminium alloy |
| Diaphragm Material | NBR / FKM |
| Connection Type | Flanged per ISO 7005 / DIN 2501 |
| Mounting Position | Horizontal or vertical |
| Compliance | EN 334, EN 88-1 |
Key Engineering Features
- Balanced valve disc design ensures stable outlet pressure across varying inlet pressures and flow demands.
- Large diaphragm area provides high sensitivity and accurate pressure regulation.
- Adjustable spring setpoint with external access for on-site calibration.
- Integral safety shut-off function (optional) for overpressure protection.
- Robust aluminium body with corrosion-resistant internal components for long service life.
- Compatible with natural gas, LPG, and other non-aggressive gases.
Industrial Applications
- Gas pressure regulation in industrial burner systems and boiler plants.
- Commercial and industrial gas supply networks requiring precise downstream pressure control.
- Gas trains for furnaces, kilns, and process heating equipment.
- Pressure reduction stations in manufacturing facilities.
- Biogas and landfill gas utilisation systems.
For technical inquiries, dimensional drawings, or replacement support for DUNGS FRM-NOC 10015 HD, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

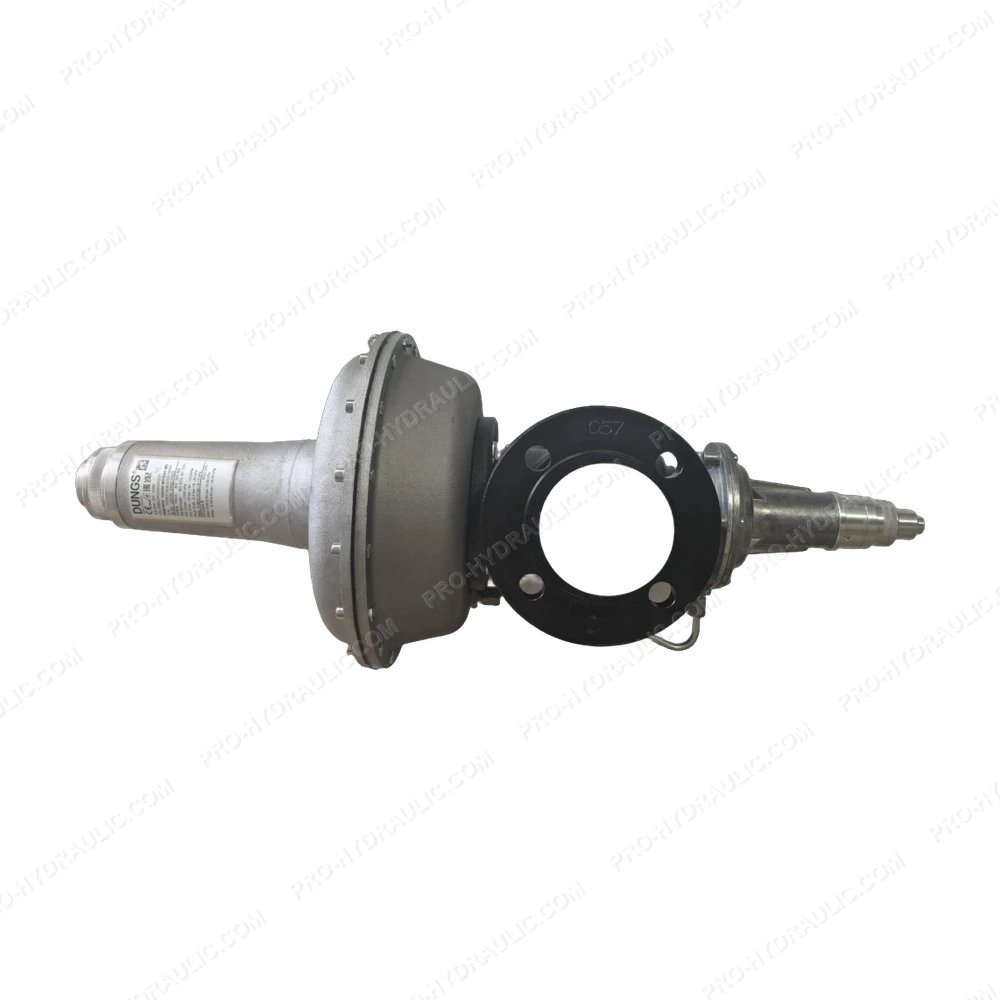

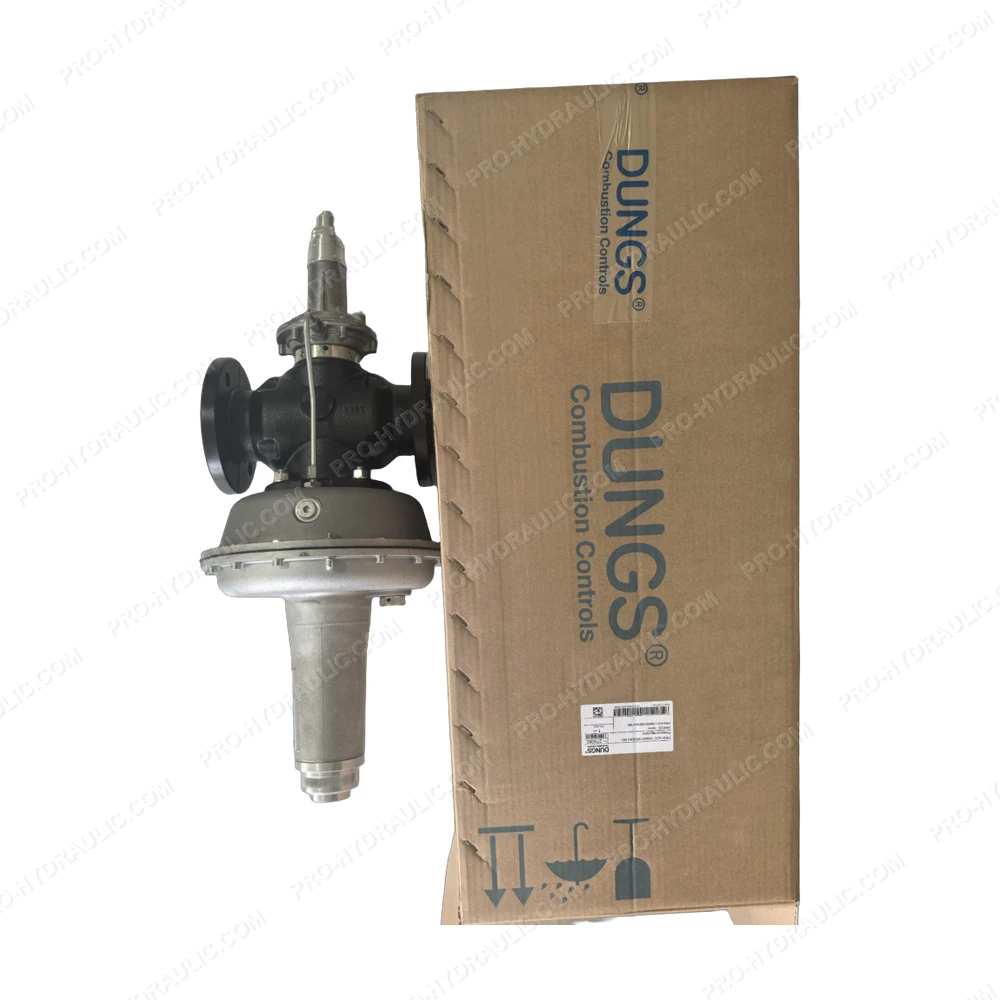

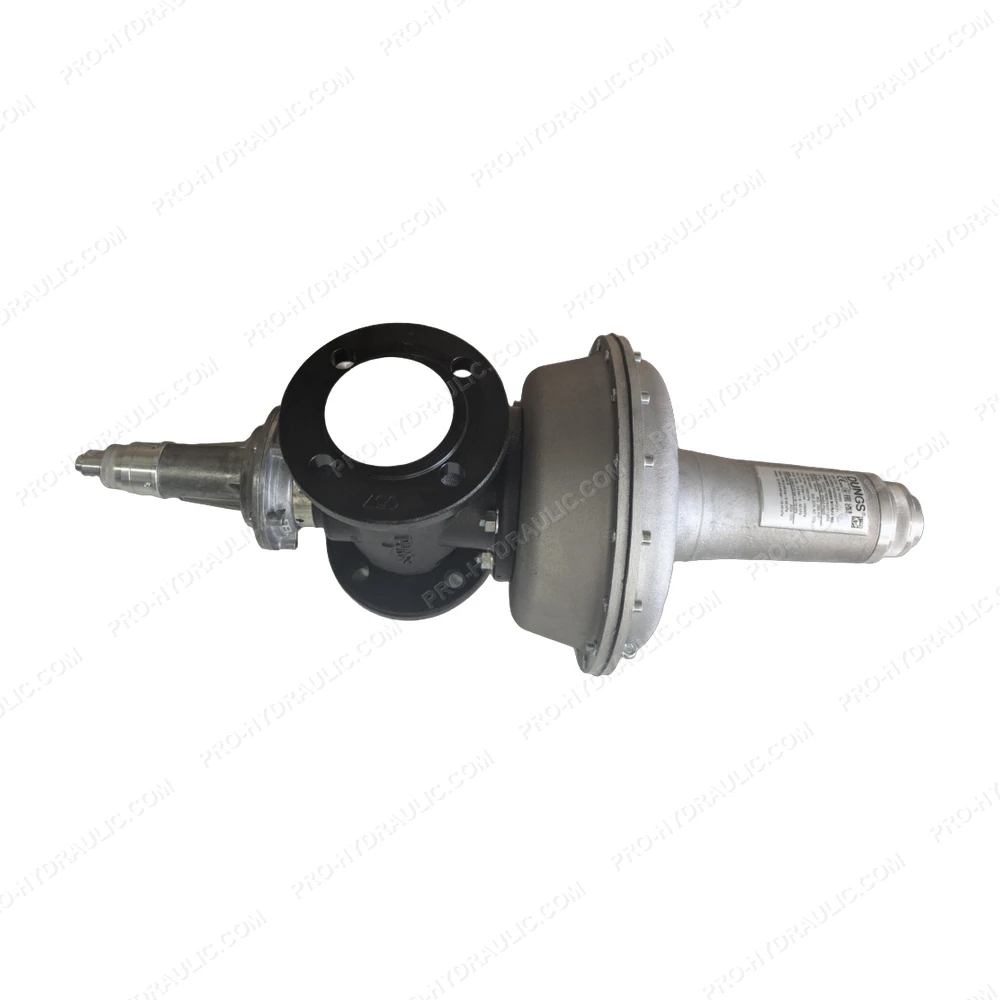

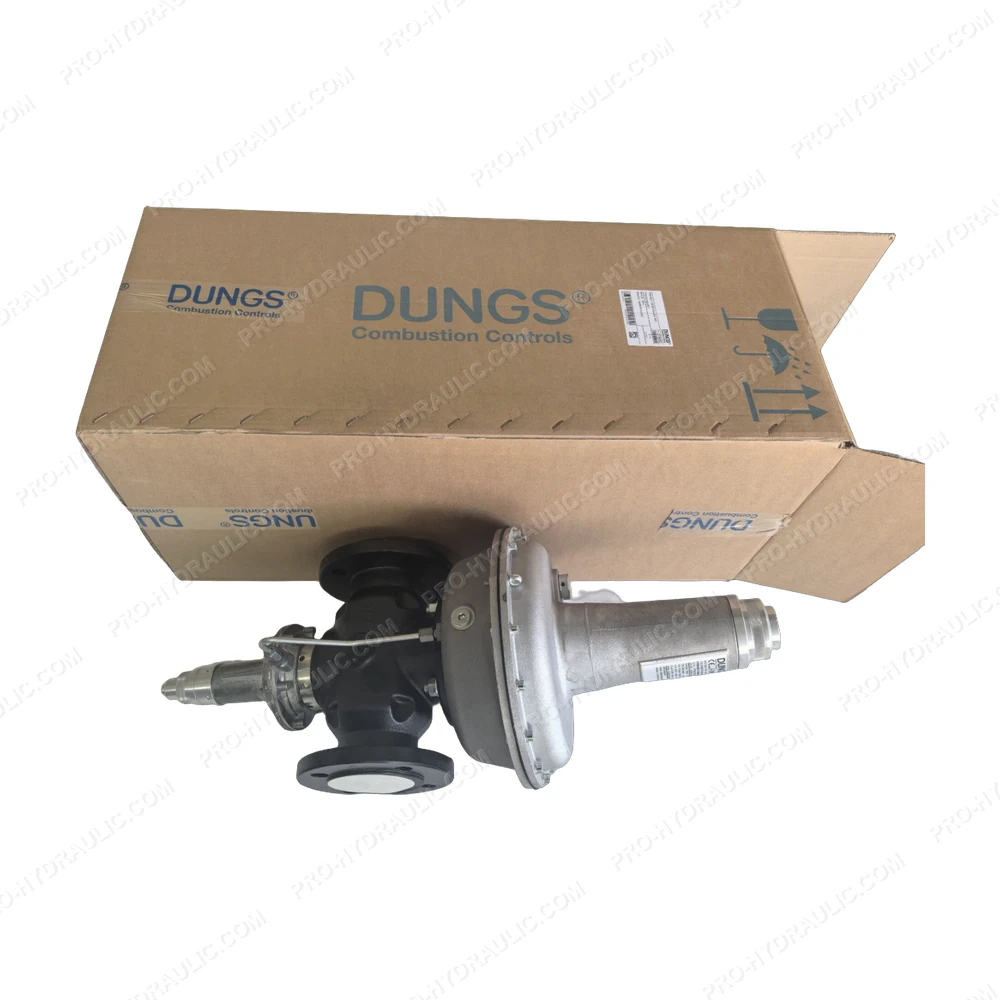

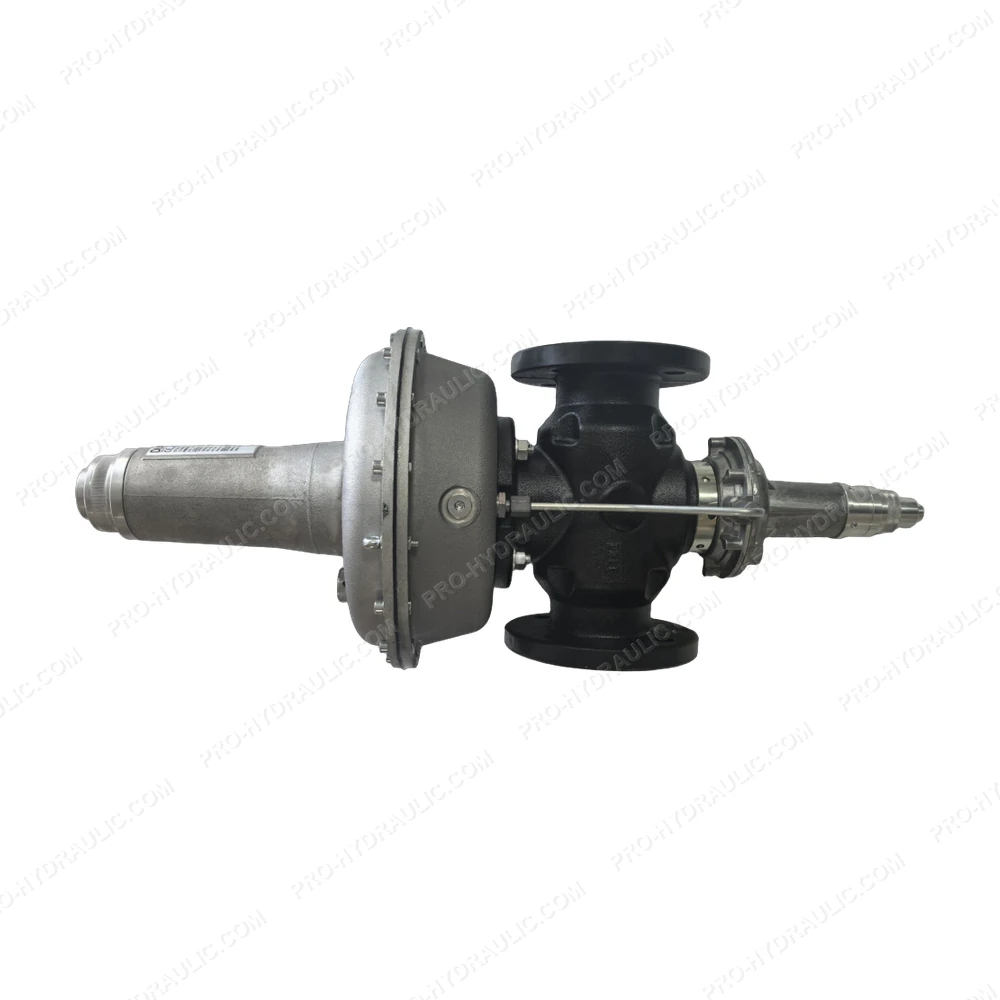

DUNGS FRM-NOC 10015 HD Gas Pressure Regulator
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the DUNGS FRM-NOC 10015 HD Gas Pressure Regulator. This precision-engineered industrial component delivers reliable fluid control for heavy-duty systems.
