The DUNGS MB-DLE 415 B01 S50 is a heavy-duty industrial gas multiblock valve engineered for the safe control and regulation of fuel gas trains in commercial and industrial combustion systems. Combining a double solenoid shut-off valve, a pressure regulator, and a low gas pressure switch in a single compact housing, this multiblock assembly provides a complete, space-saving safety solution for gas-fired equipment.
DUNGS MB-DLE 415 B01 S50 Technical Specifications
| Manufacturer | DUNGS |
| Model | MB-DLE 415 B01 S50 |
| Product Type | Gas Multiblock Valve |
| Nominal Diameter | DN 15 (Rp 1/2) |
| Max. Operating Pressure | 500 mbar (50 kPa) |
| Voltage | 230 V AC 50/60 Hz |
| Valve Class | Class A, double solenoid shut-off |
| Regulator Type | Pressure regulator with adjustable setpoint |
| Pressure Switch | Low gas pressure switch, adjustable |
| Body Material | Aluminium die-cast |
| Seal Material | NBR / FKM |
| Mounting Position | Vertical or horizontal |
| Approvals | EN 161 Class A, CE |
Key Engineering Features
- Integrated double solenoid shut-off valve (Class A) for reliable gas safety shut-off
- Built-in pressure regulator with adjustable outlet pressure
- Low gas pressure switch for burner safety interlock
- Compact multiblock design reduces installation space and piping connections
- Fast opening and closing times for precise gas train control
- Robust aluminium die-cast body for industrial environments
- Simple commissioning and maintenance via accessible test points
Industrial Applications
- Industrial burners and boilers
- Commercial and industrial gas-fired furnaces
- Gas engines and turbines
- Process heating and drying systems
- Combustion systems requiring EN 161 Class A safety shut-off
For technical inquiries, dimensional drawings, or replacement support for DUNGS MB-DLE 415 B01 S50, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

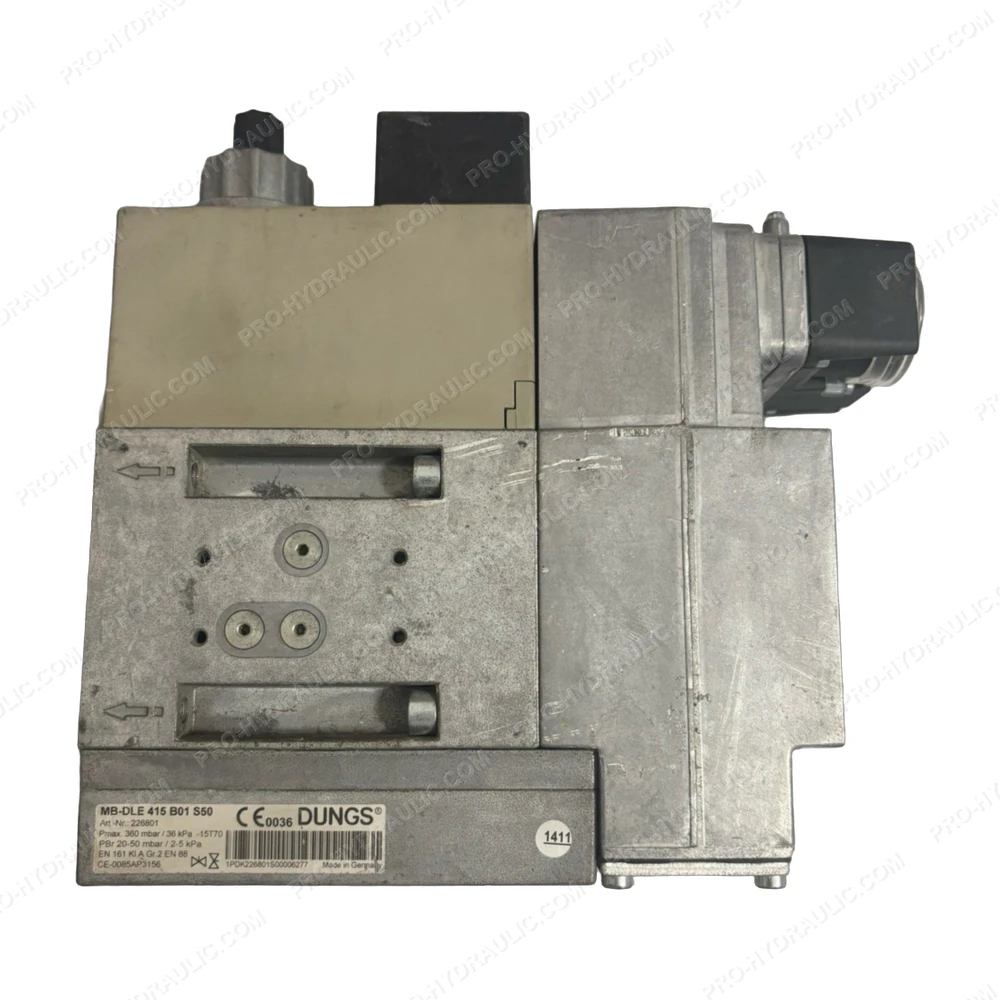

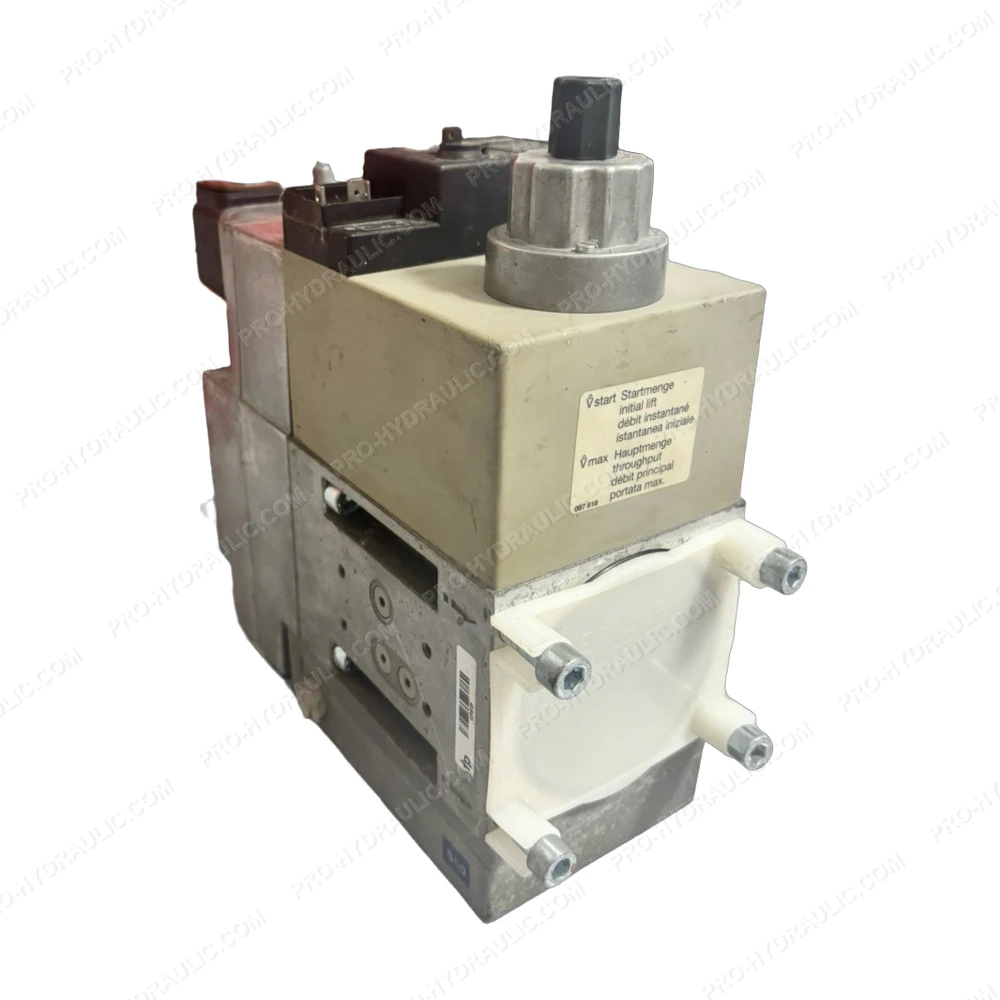

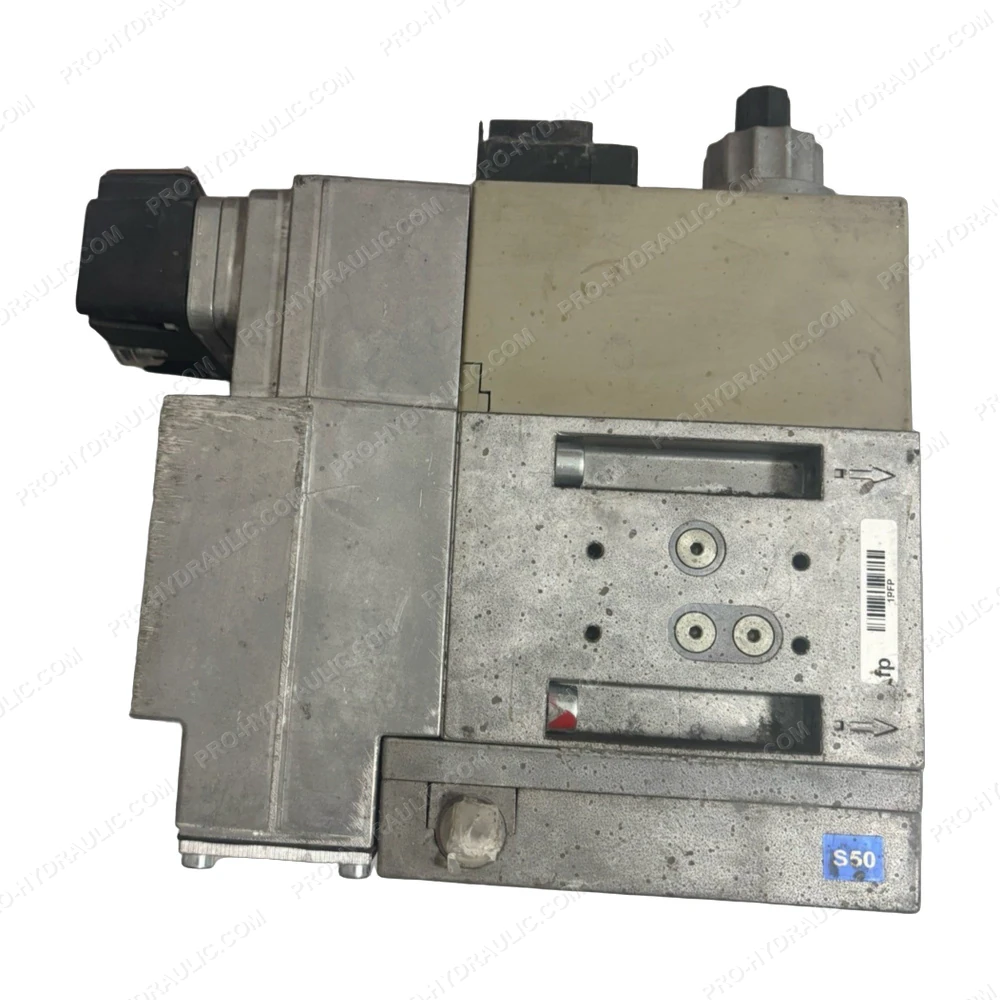

DUNGS MB-DLE 415 B01 S50 Gas Multiblock Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the DUNGS MB-DLE 415 B01 S50 Gas Multiblock Valve. This precision-engineered industrial component delivers reliable fluid control for heavy-duty systems.
