The DUPLOMATIC ZC5-P3/50NL/A082 is a heavy-duty industrial pressure control valve engineered for precise regulation of hydraulic system pressure in modular circuit configurations. It functions as a pilot-operated pressure relief valve, limiting maximum system pressure and protecting downstream components from overload.
DUPLOMATIC ZC5-P3/50NL/A082 Technical Specifications
| Manufacturer | DUPLOMATIC |
| Model | ZC5-P3/50NL/A082 |
| Product Type | Pressure Control Valve |
| Function | Pilot-operated pressure relief |
| Mounting Interface | Modular, ISO 4401 / CETOP 3 (NG6) |
| Nominal Size | NG6 |
| Pressure Adjustment | Adjustable, screw with locknut |
| Max Working Pressure | Up to 350 bar (dependent on configuration) |
| Nominal Flow | Up to 50 L/min |
| Hydraulic Fluid | Mineral oil based, ISO VG 10-68 |
| Fluid Temperature Range | -20 °C to +80 °C |
| Seal Material | NBR (Buna-N) |
| Body Material | Cast iron / steel |
| Port Connections | Modular subplate mounting |
Key Engineering Features
- Pilot-operated relief design for stable pressure control across varying flow rates
- Modular CETOP 3 / NG6 interface for direct sandwich mounting under directional valves
- Adjustable pressure setting with locknut to prevent drift under vibration
- Hardened and ground internal spool and seat for extended service life
- Low pressure override characteristic for accurate system protection
- Compatible with standard mineral hydraulic fluids and common seal compounds
Industrial Applications
- Machine tool hydraulic power units
- Presses and forming equipment
- Injection molding machine circuits
- Modular manifold assemblies in mobile and industrial hydraulics
- System overload protection in test stands and power packs
For technical inquiries, dimensional drawings, or replacement support for DUPLOMATIC ZC5-P3/50NL/A082, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

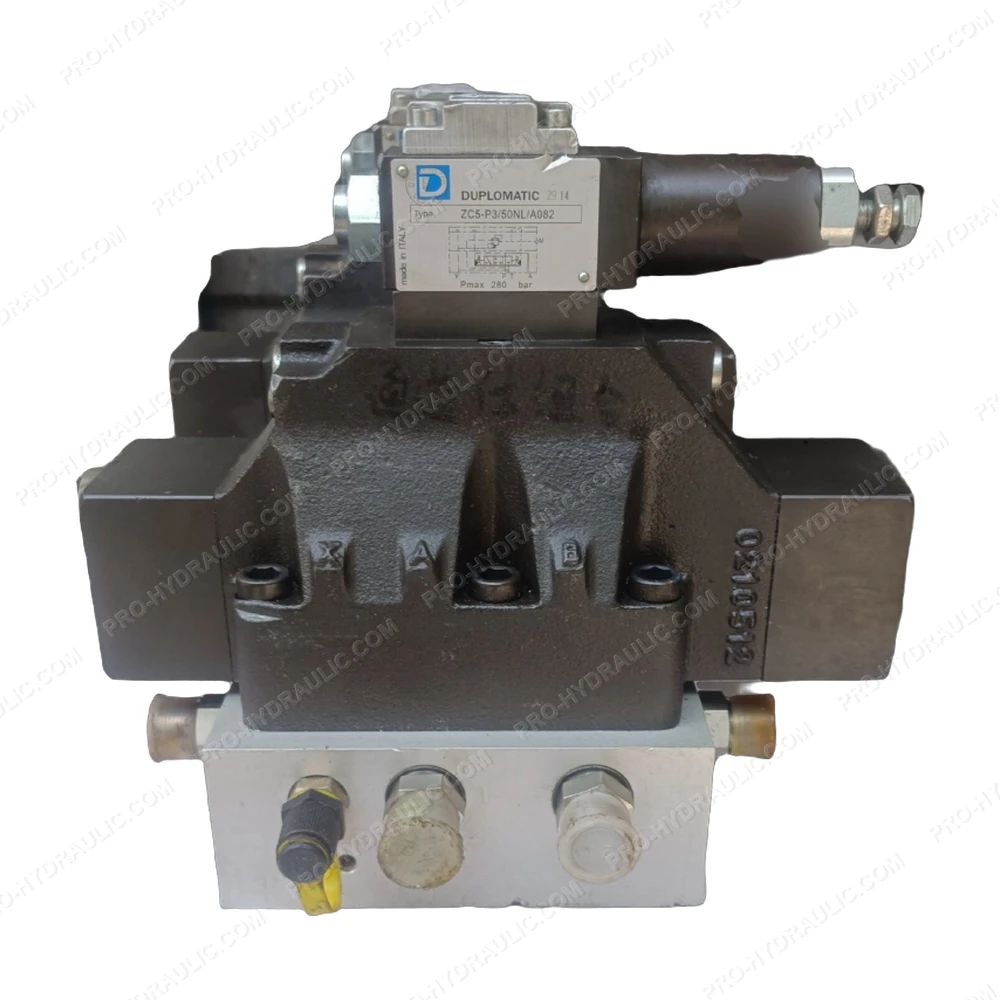

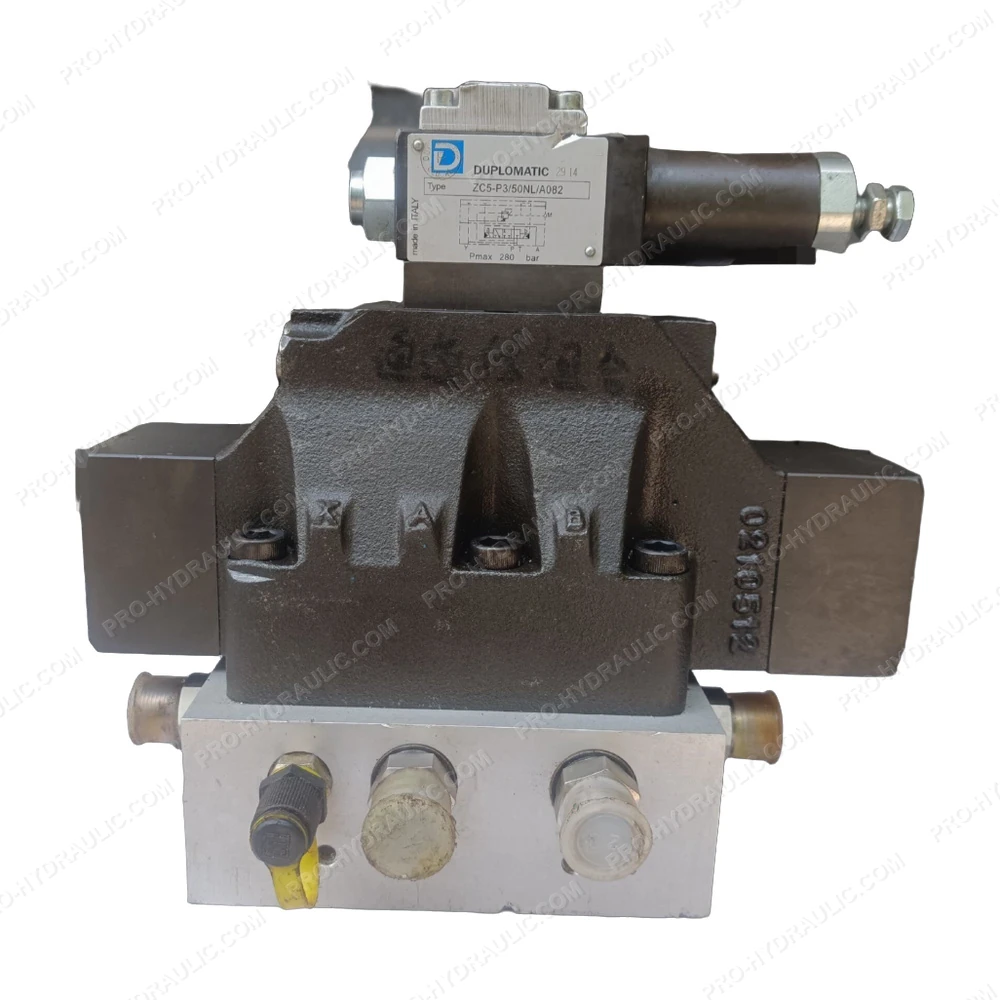

DUPLOMATIC ZC5-P3/50NL/A082 Pressure Control Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the DUPLOMATIC ZC5-P3/50NL/A082 Pressure Control Valve. This precision-engineered industrial component delivers reliable fluid control for heavy-duty systems.
