Product Overview
The DVC Type 1311 is a high-pressure process ball valve engineered for DN20/15 nominal bore pipelines operating at PN125 pressure class. Manufactured by DVC (a recognized brand in industrial flow control), this valve utilizes a quarter-turn floating or trunnion-mounted ball mechanism to provide tight shut-off and unobstructed flow in demanding process and hydraulic circuits. Its robust body construction and precision-machined ball and seat assembly make it suitable for isolation, switching, and flow diversion duties in high-pressure industrial systems where bubble-tight sealing and long service life are critical.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Process Ball Valve (Quarter-Turn Isolation Valve) |
| Model Designation | DVC Type 1311 |
| Nominal Size | DN20 / DN15 (reducible bore configuration) |
| Pressure Rating | PN125 (125 bar nominal pressure class) |
| Operating Pressure | Standard Industrial Grade (Up to 125 bar rated) |
| Mounting & Connection | Standard ISO / Manufacturer Interface (threaded or flanged per model variant) |
| Actuation | Manual lever / handle (quarter-turn operation) |
| Sealing Principle | Ball-to-seat contact with resilient or metal seat options |
Engineering Features & Advantages
- Precision Performance: Precision-lapped ball and seat surfaces deliver bubble-tight shut-off and low operating torque, ensuring reliable isolation in high-pressure process lines.
- High-Pressure Capability: Rated to PN125, the valve body and trim are designed to withstand elevated system pressures without deformation or leakage.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with durable body materials and corrosion-resistant internal components.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards, allowing drop-in replacement without pipeline modification.
- Quarter-Turn Actuation: Rapid 90-degree operation enables fast isolation and switching, reducing downtime in critical process circuits.
Typical Industrial Applications
This DVC Type 1311 high-pressure process ball valve is commonly deployed in plastic injection molding machines, metallurgical presses, hydraulic power units, and CNC machine tool coolant or hydraulic circuits. It is also suitable for general process and pneumatic isolation duties where DN15/DN20 lines require reliable high-pressure shut-off, including test benches, marine hydraulics, and industrial automation manifolds.
PRODUCT IMAGES

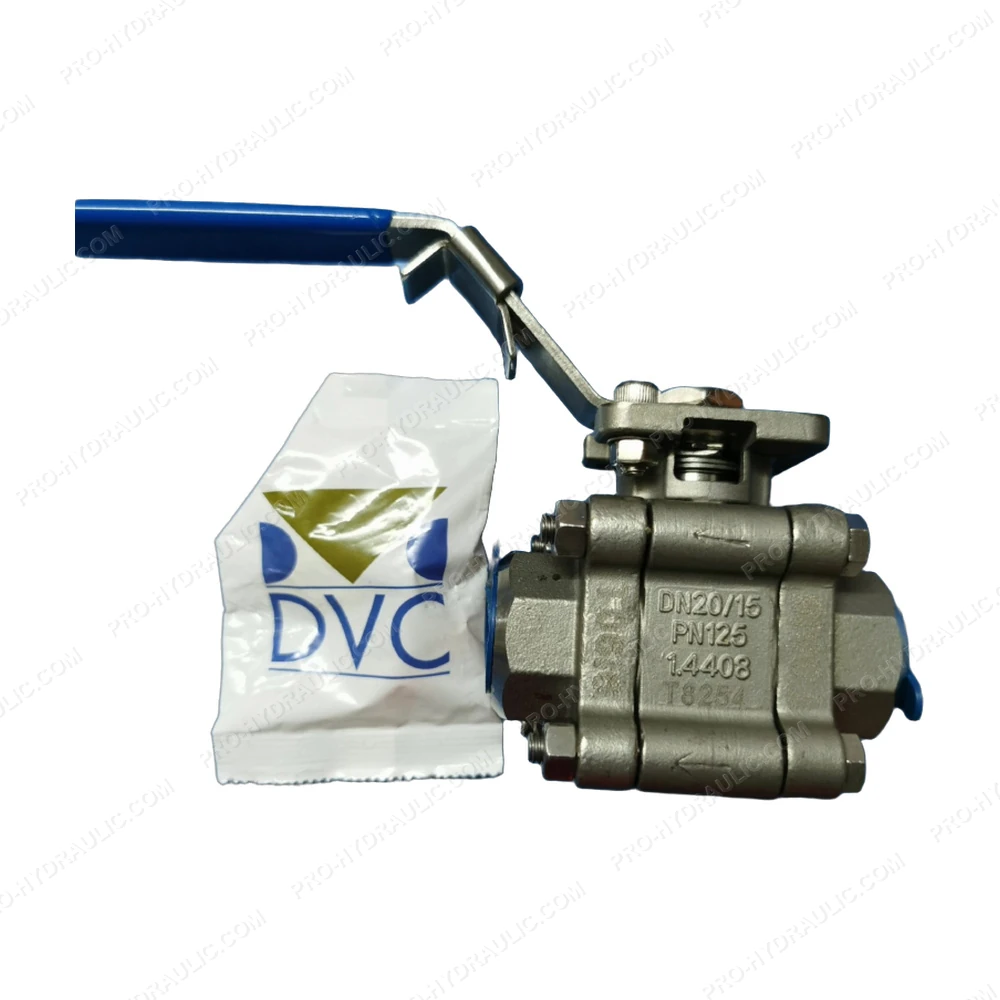

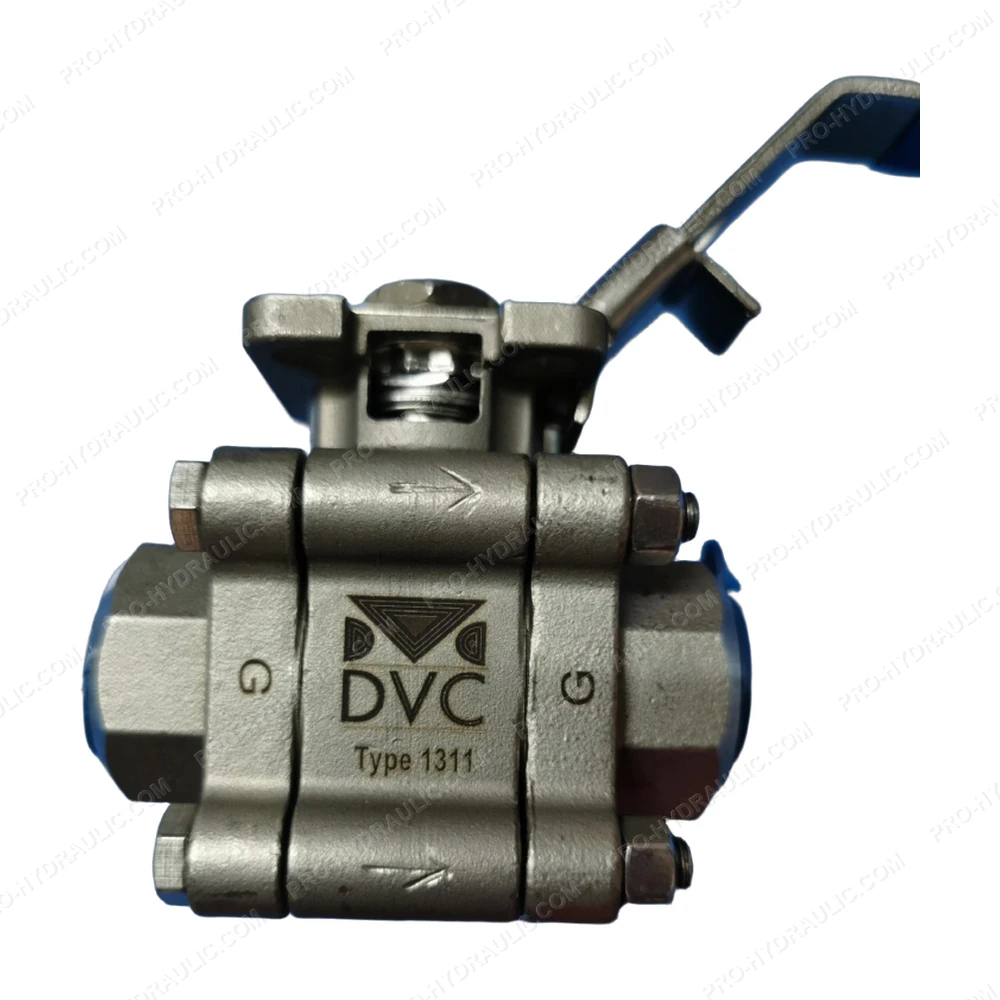

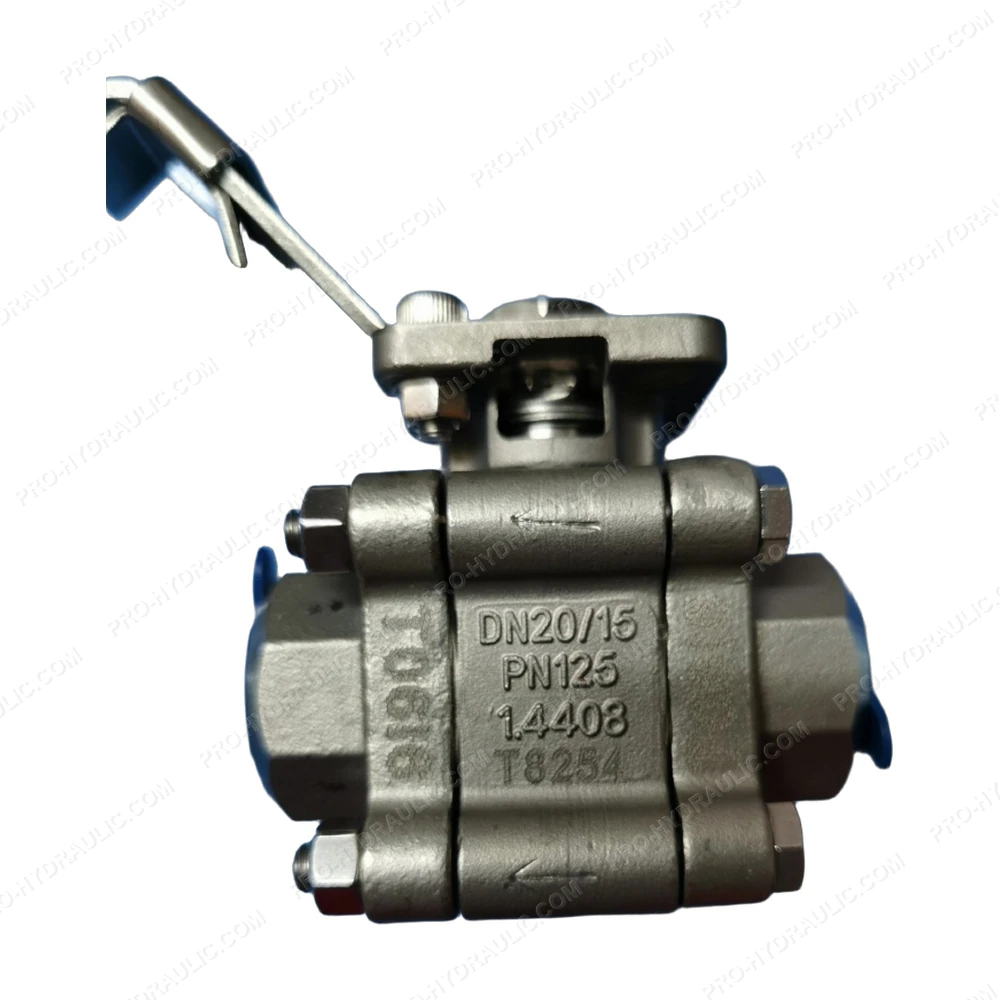

DVC Type 1311 DN20/15 PN125 High-Pressure Process Ball Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine DVC Type 1311 DN20/15 PN125 High-Pressure Hydraulic Valve. This Italy-made PN125 hydraulic component features a robust piston design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
