Product Overview
The DYMATRIX DALHR-07005 is a high purity diaphragm valve engineered for critical process and pneumatic fluid handling systems where media isolation and contamination control are paramount. Manufactured by DYMATRIX, this valve utilizes a flexible diaphragm as the sole wetted moving element, effectively isolating the actuation mechanism from the process media. This design eliminates packing, seats, and other leak paths common in traditional globe or ball valves, making it ideal for high purity applications in semiconductor, pharmaceutical, biotechnology, and fine chemical processing. The DALHR-07005 is configured for reliable on/off isolation and is compatible with both pneumatic actuation and manual override configurations depending on system requirements.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | High Purity Diaphragm Valve (Process & Pneumatic Valve) |
| Model Designation | DALHR-07005 |
| Operating Pressure | Standard Industrial Grade (Up to rated bar per manufacturer specification) |
| Mounting & Connection | Standard ISO / Manufacturer Interface (High Purity Tube Weld or Flanged Connections) |
| Actuation Type | Pneumatic (Air-to-Open / Air-to-Close) or Manual Override |
| Body Material | High Purity Stainless Steel (316L / 316L VIM-VAR) |
| Diaphragm Material | PTFE / EPDM / Viton (Application Dependent) |
| Flow Configuration | 2-Way Straight Through |
Engineering Features & Advantages
- Precision Performance: The diaphragm sealing principle provides bubble-tight shutoff and excellent repeatability, ensuring precise flow isolation without the wear and particle generation associated with sliding stem or ball valve designs.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, the DALHR-07005 features a robust actuator housing and high-cycle diaphragm life, minimizing maintenance intervals and unplanned downtime.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards ensures drop-in replacement without modification to existing high purity piping systems.
- Contamination-Free Operation: The isolation of the actuation mechanism from the process fluid prevents cross-contamination and maintains media purity, critical for semiconductor and pharmaceutical applications.
- Superior Cleanability: Smooth, crevice-free internal surfaces and minimal dead volume allow for effective CIP/SIP (Clean-In-Place / Sterilize-In-Place) procedures.
Typical Industrial Applications
The DYMATRIX DALHR-07005 high purity diaphragm valve is widely deployed in semiconductor fabrication for ultra-pure water and chemical delivery, pharmaceutical and biotechnology processes requiring sterile fluid handling, fine chemical and specialty gas systems, and food and beverage production lines where hygiene and media isolation are essential. Its pneumatic actuation capability also makes it suitable for automated
PRODUCT IMAGES

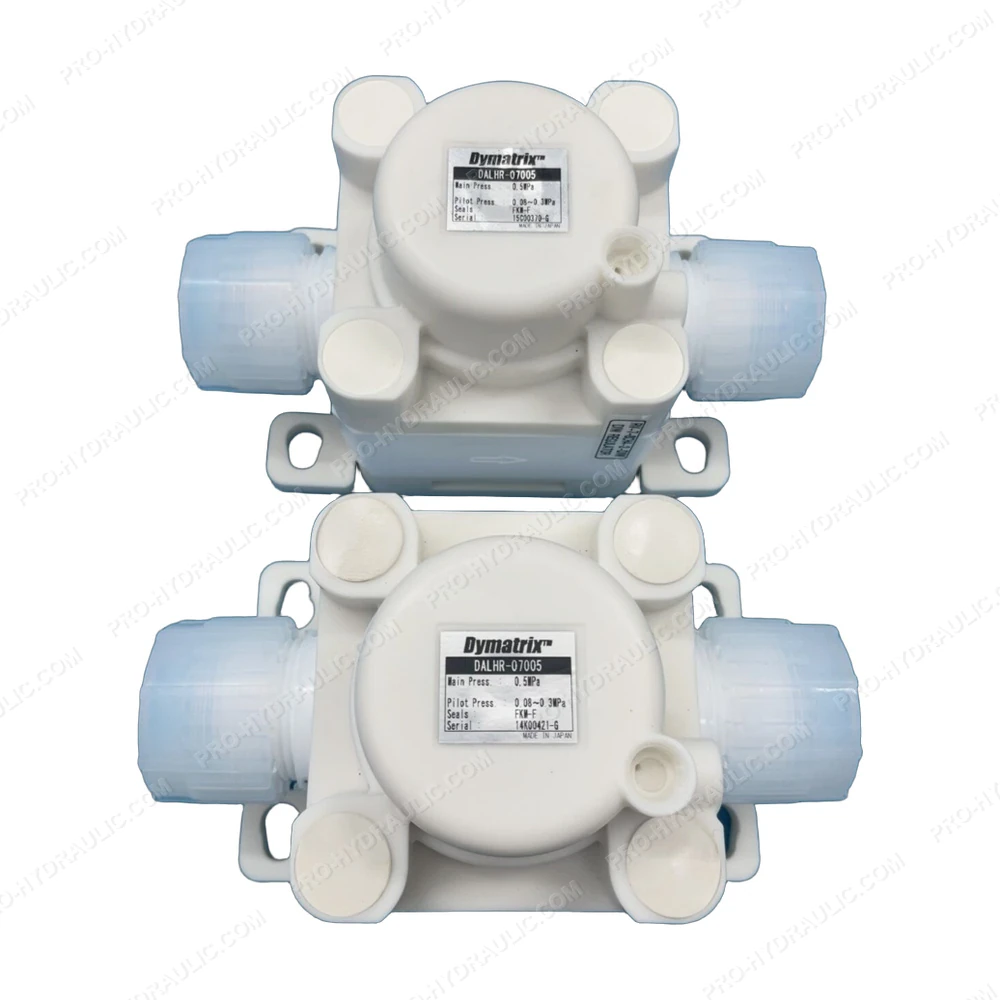

DYMATRIX DALHR-07005 High Purity Diaphragm Valve
