The EALY 50T-36FRL-10 is a heavy-duty industrial hydraulic vane pump engineered for continuous high-pressure operation in demanding fluid power circuits. It is a fixed-displacement, intra-vane design in which the rotor, vanes, and cam ring form the pumping chamber, with hydraulic balance of the internal pressure loads minimizing bearing stress and extending service life.
EALY 50T-36FRL-10 Technical Specifications
| Parameter | Specification |
|---|---|
| Pump Type | Fixed-displacement hydraulic vane pump |
| Series | 50T (industrial vane pump series) |
| Nominal Displacement | 36 cm³/rev (36 mL/rev) |
| Mounting Interface | SAE 2-bolt flange, keyed shaft |
| Port Connections | SAE flange / threaded ports (suction and pressure) |
| Rotation | Clockwise (viewed from shaft end), other rotations on request |
| Drive Speed Range | 600–1800 rpm (continuous) |
| Operating Pressure | Up to 175 bar continuous, 210 bar intermittent |
| Fluid | Mineral hydraulic oil, ISO VG 32–68 |
| Filtration | ISO 4406 18/16/13 or better |
| Mounting Position | Any orientation |
Key Engineering Features
- Intra-vane rotor design with hydraulic balancing for low bearing loads and quiet operation
- Hardened cam ring and precision-ground vanes for stable volumetric efficiency across the pressure range
- Replaceable cartridge assembly for simplified field service and reduced downtime
- Compact SAE 2-bolt mounting footprint for direct drop-in replacement on standard power units
- Low pressure ripple and smooth flow output suitable for proportional and servo-controlled circuits
Industrial Applications
- Machine tool hydraulic power units and clamping circuits
- Injection molding and die-casting machine hydraulic systems
- Presses, shears, and metalforming equipment
- Mobile and industrial power packs requiring continuous fixed-displacement flow
- Test stands and industrial automation hydraulic manifolds
For technical inquiries, dimensional drawings, or replacement support for EALY 50T-36FRL-10, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

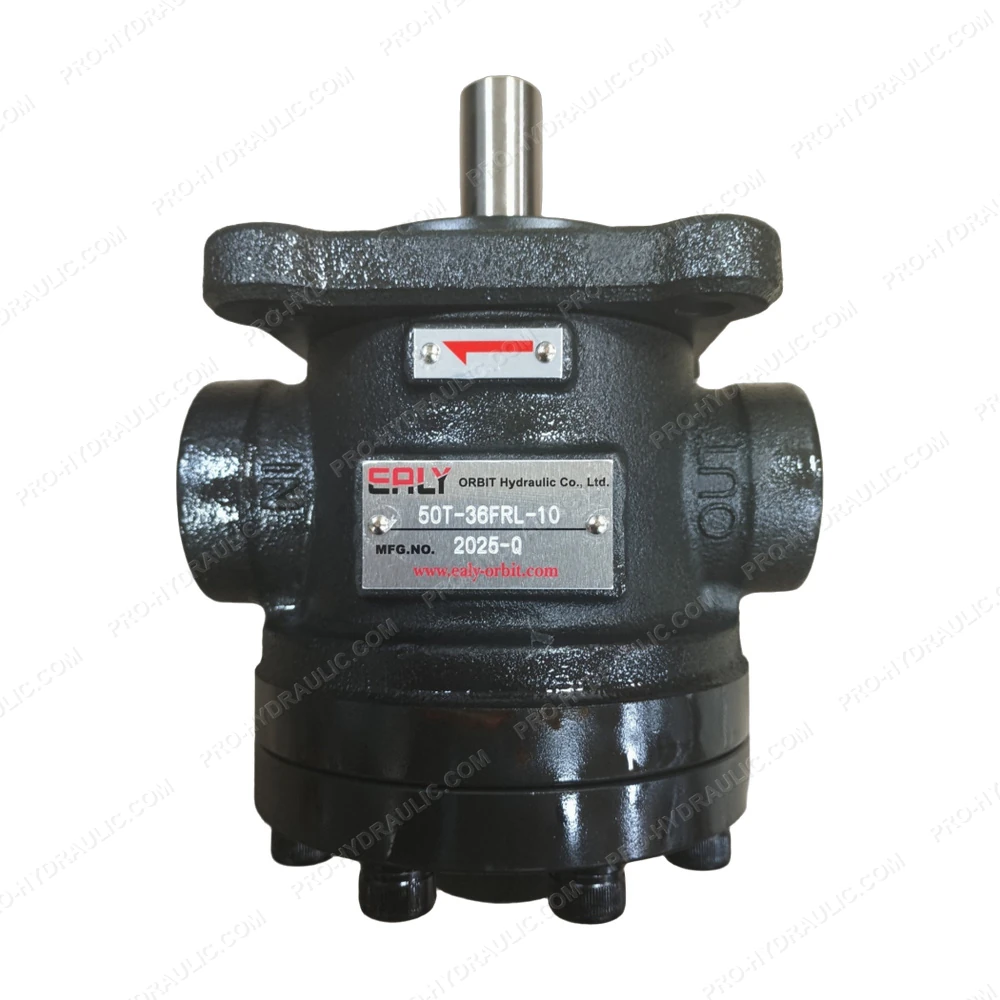

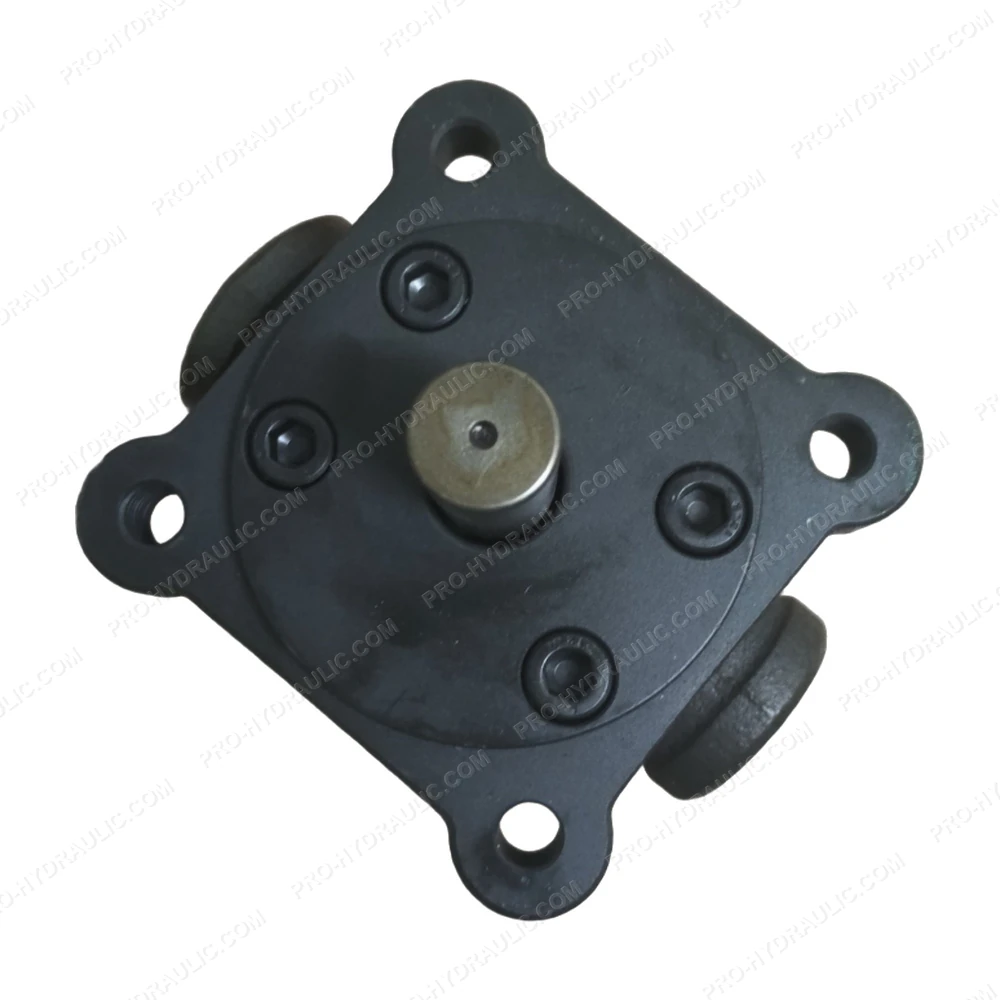

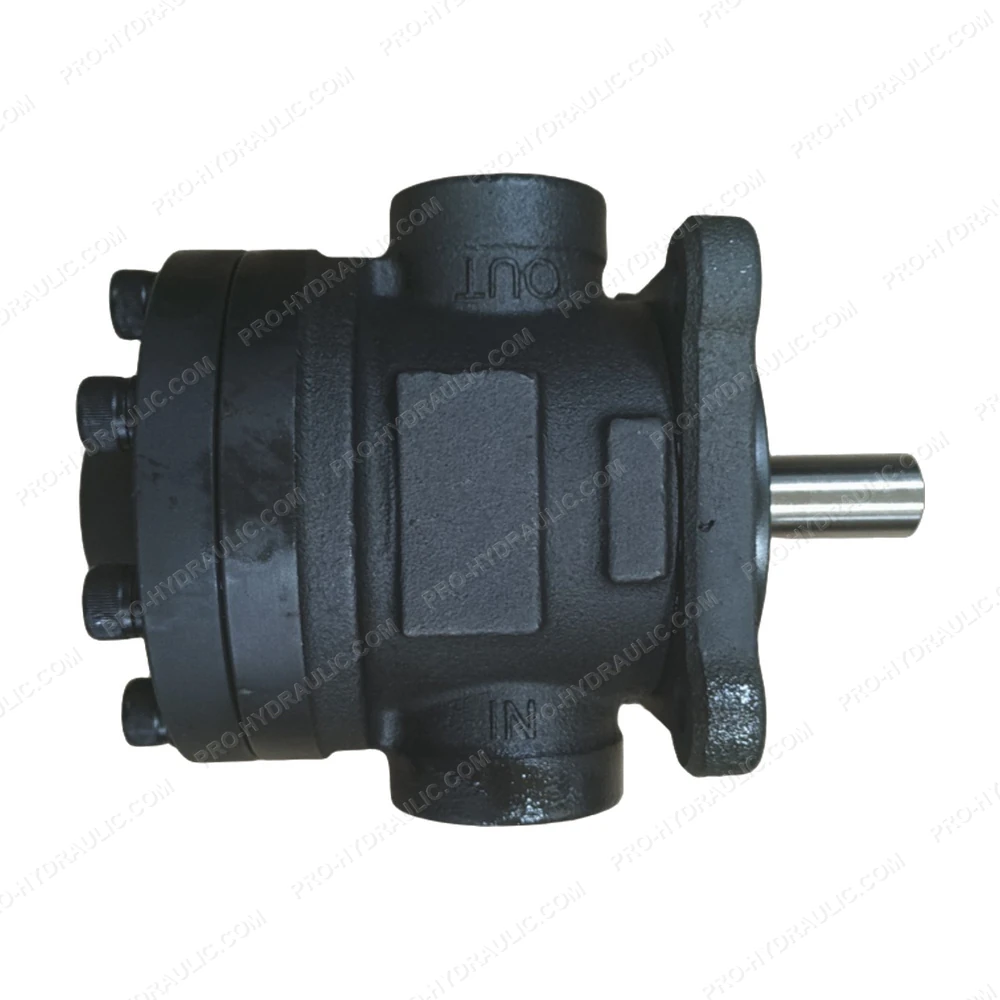

EALY 50T-36FRL-10 Hydraulic Vane Pump
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the EALY 50T-36FRL-10 Hydraulic Vane Pump. This precision-engineered industrial component delivers reliable fluid control for heavy-duty systems.
