Product Overview
The EASTONE M413A-CAA-DM-DFFJ-1JB is a pneumatically actuated solenoid directional control valve engineered for precise air and inert gas flow management in automated industrial processes. Operating on a solenoid-pilot working principle, the valve uses an electrical signal to shift an internal spool, directing compressed air through its ports with fast, repeatable response. Its 5/2 (five-port, two-position) configuration makes it a direct drop-in solution for double-acting cylinder control, actuator sequencing, and general process automation where reliable directional switching is critical. As part of the M413A series, this unit is built for panel or manifold mounting in demanding factory environments, offering dependable performance across a wide range of pneumatic circuits.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Solenoid Valve (Directional Control Valve) |
| Model Designation | M413A-CAA-DM-DFFJ-1JB |
| Valve Function | 5/2 Way, 2-Position Directional Control |
| Actuation Type | Solenoid Pilot Operated (Electrical Signal Actuation) |
| Operating Pressure | Standard Industrial Grade (0.15 – 0.8 MPa typical pneumatic range) |
| Mounting & Connection | Standard ISO / Manufacturer Interface (Manifold or Sub-base Mounted) |
Engineering Features & Advantages
- Precision Performance: Fast solenoid response and consistent spool shifting ensure accurate directional control and repeatable cycle timing in high-speed pneumatic circuits.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust sealing and durable coil construction for extended service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards, allowing straightforward replacement without modification to existing manifolds or piping.
Typical Industrial Applications
This pneumatic solenoid valve is widely used in automated assembly and packaging lines, plastic injection molding machines, CNC machine tool clamping and tool-change circuits, and general factory automation systems requiring reliable directional control of double-acting pneumatic actuators and process air circuits.
PRODUCT IMAGES

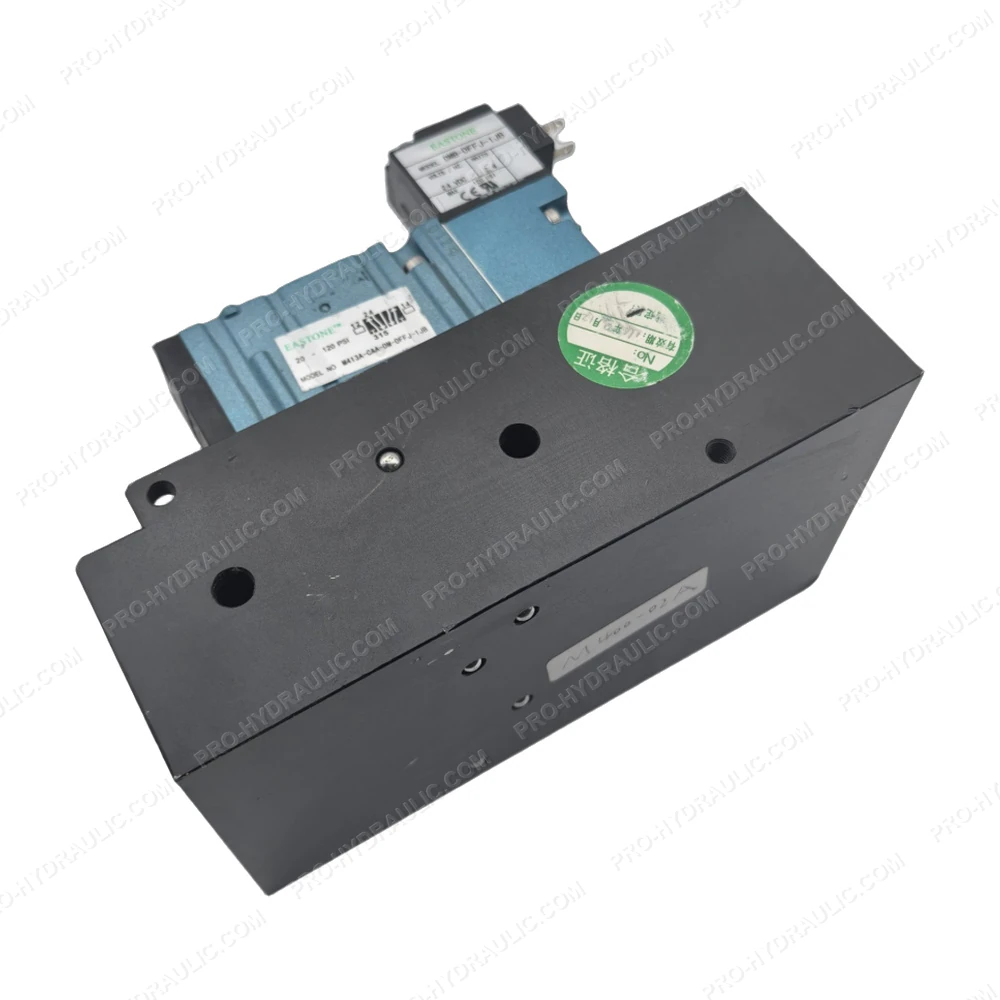

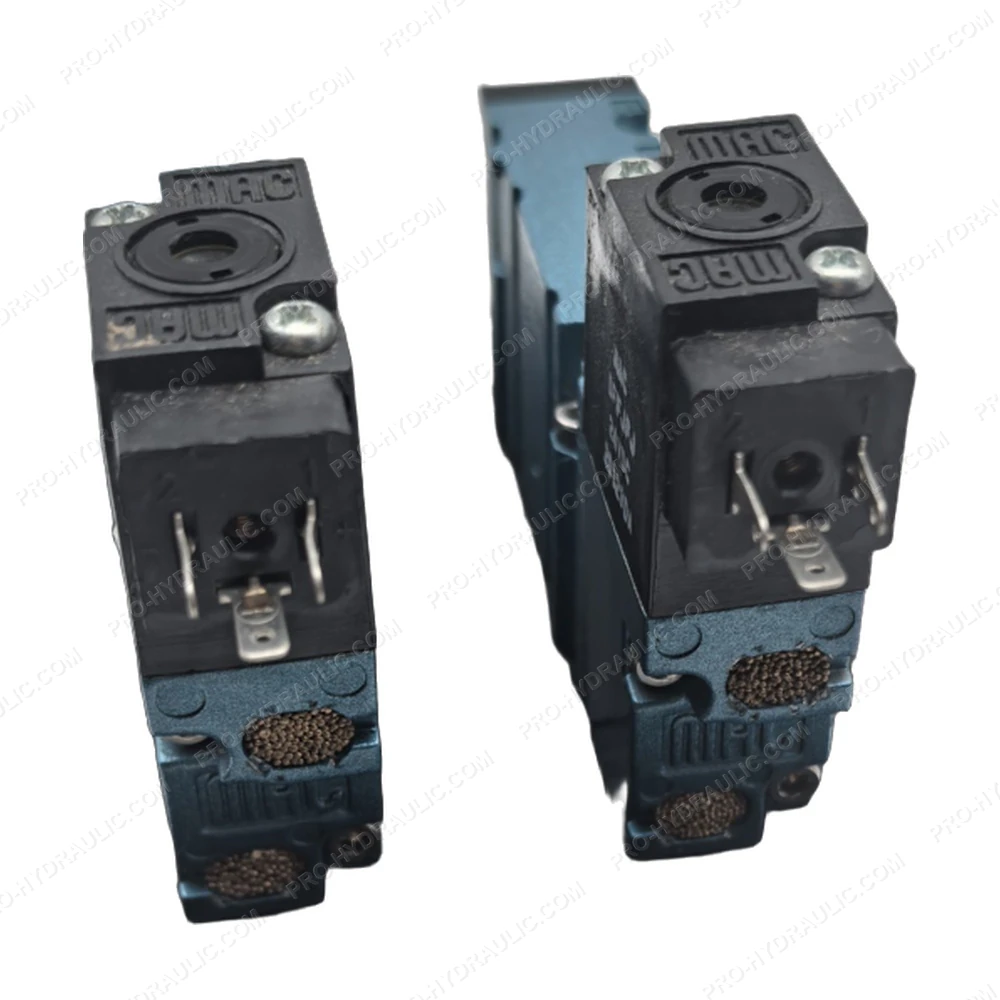

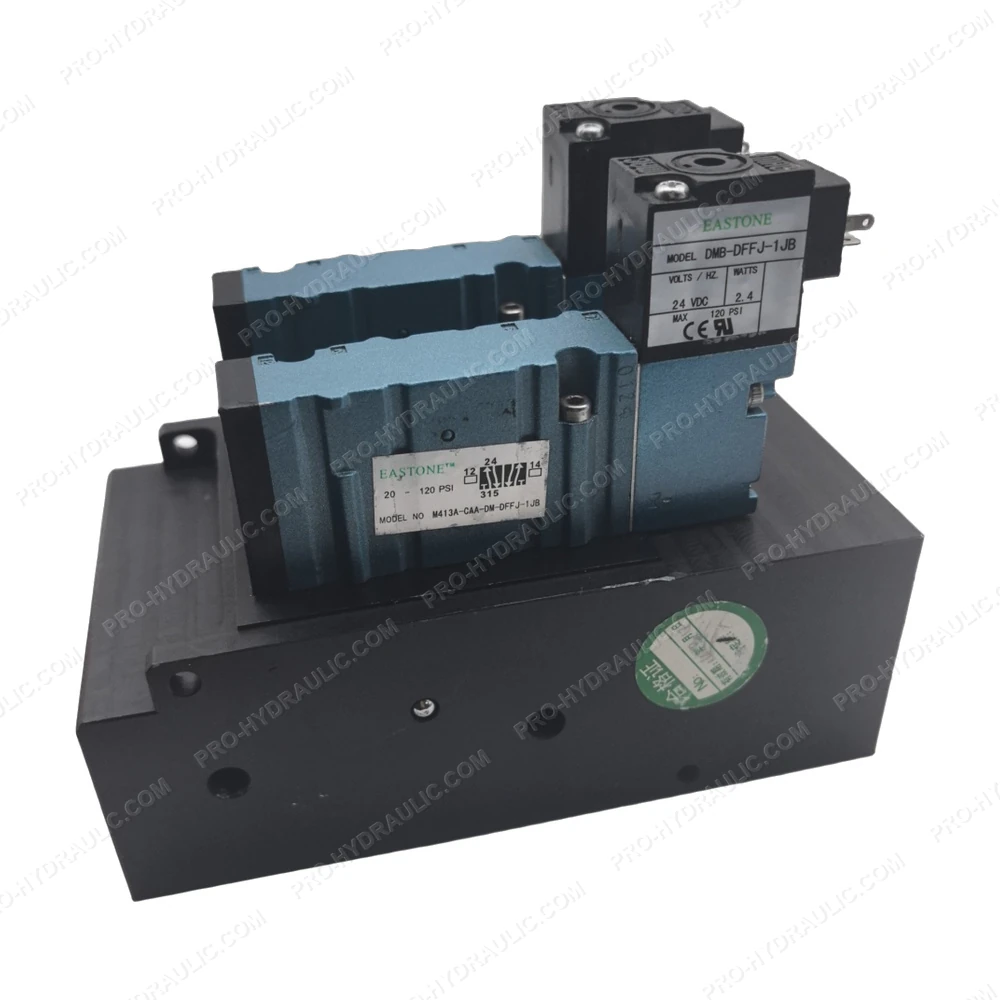

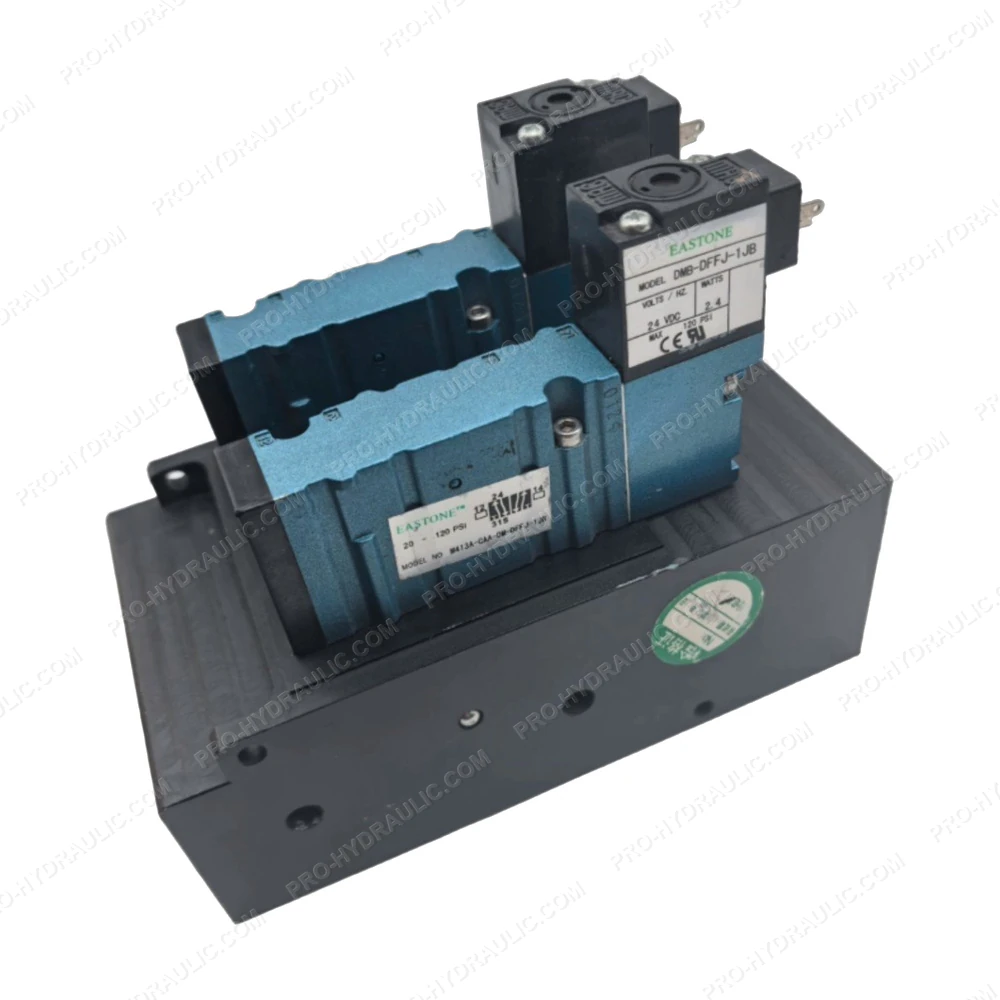

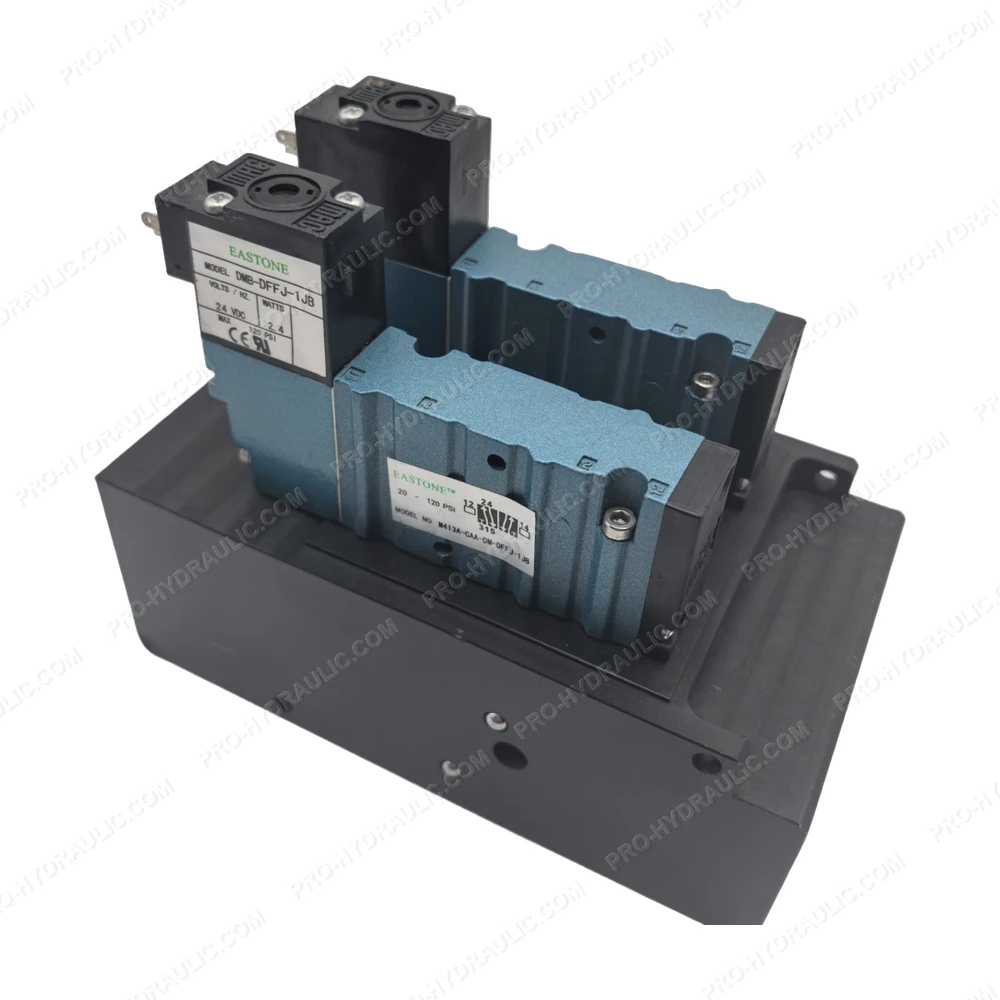

EASTONE M413A-CAA-DM-DFFJ-1JB Pneumatic Solenoid Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine EASTONE M413A-CAA-DM-DFFJ-1JB Solenoid Directional Control Valve. This German-made 24V DC hydraulic component features a spool-type design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
