Product Overview
The Eaton 02-336340 is a high-performance hydraulic directional control valve engineered for precise flow management in demanding industrial hydraulic circuits. As part of the Vickers solenoid directional valve family, this component utilizes a solenoid-actuated spool design to direct pressurized fluid flow between ports, enabling controlled extension, retraction, and holding functions of hydraulic actuators. The valve is manufactured to Eaton’s stringent quality standards, ensuring reliable shifting performance, minimal internal leakage, and long service life in continuous-duty applications. Its robust construction and standardized interface make it a direct-fit replacement for OEM installations across a wide range of industrial machinery.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Hydraulic Directional Control Valve (Solenoid Actuated) |
| Model Designation | Eaton 02-336340 |
| Series / Family | Vickers Solenoid Directional Valve |
| Actuation Type | Electrical Solenoid with Spring Return / Detent Options |
| Spool Configuration | Standard Industrial Spool Types (Open Center, Closed Center, Tandem, Float) |
| Operating Pressure | Up to 350 bar (5075 psi) Rated Working Pressure |
| Flow Capacity | Up to 80 L/min (21 GPM) Nominal Flow |
| Mounting & Connection | Standard ISO 4401 / CETOP Subplate Mounting Interface |
| Electrical Supply | Standard Industrial Solenoid Voltage (12V DC, 24V DC, 110V AC, 220V AC Options) |
| Seal Material | Nitrile (NBR) / Fluorocarbon (FKM) for High-Temperature Service |
Engineering Features & Advantages
- Precision Spool Metering: The hardened and precision-ground spool delivers accurate flow control with minimal internal leakage, ensuring consistent actuator response and reduced system heat generation.
- Fast Solenoid Response: High-efficiency solenoid coils provide rapid shifting times, enabling precise sequencing and high-cycle-rate operation in automated hydraulic systems.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust coil encapsulation and wear-resistant spool bore for extended service intervals.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM Vickers and Eaton valve standards, ensuring drop-in installation without modification.
- Direct Fit Replacement: Precision-manufactured to original Eaton specifications for direct replacement, minimising downtime and eliminating fitment issues.
Typical Industrial Applications
Its robust construction and standardized interface make it a direct-fit replacement for OEM installations across a wide range of industrial machinery.
PRODUCT IMAGES

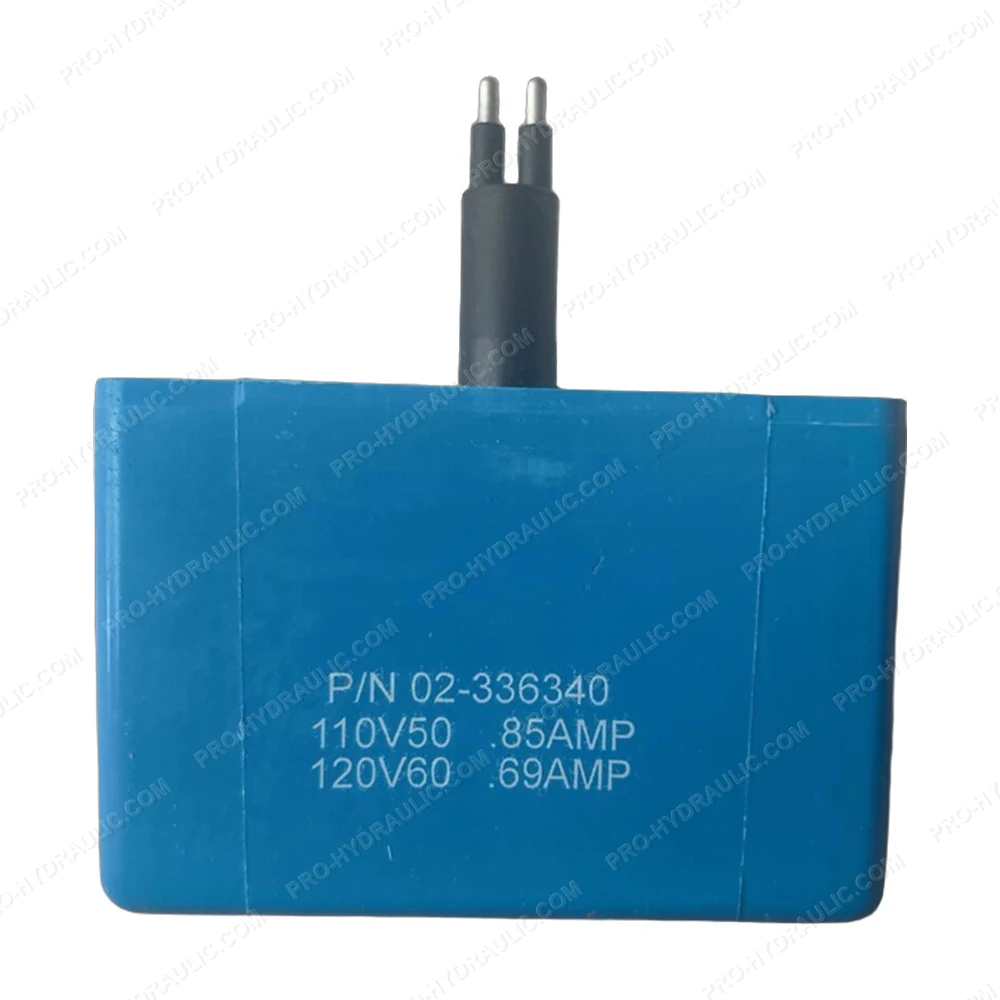

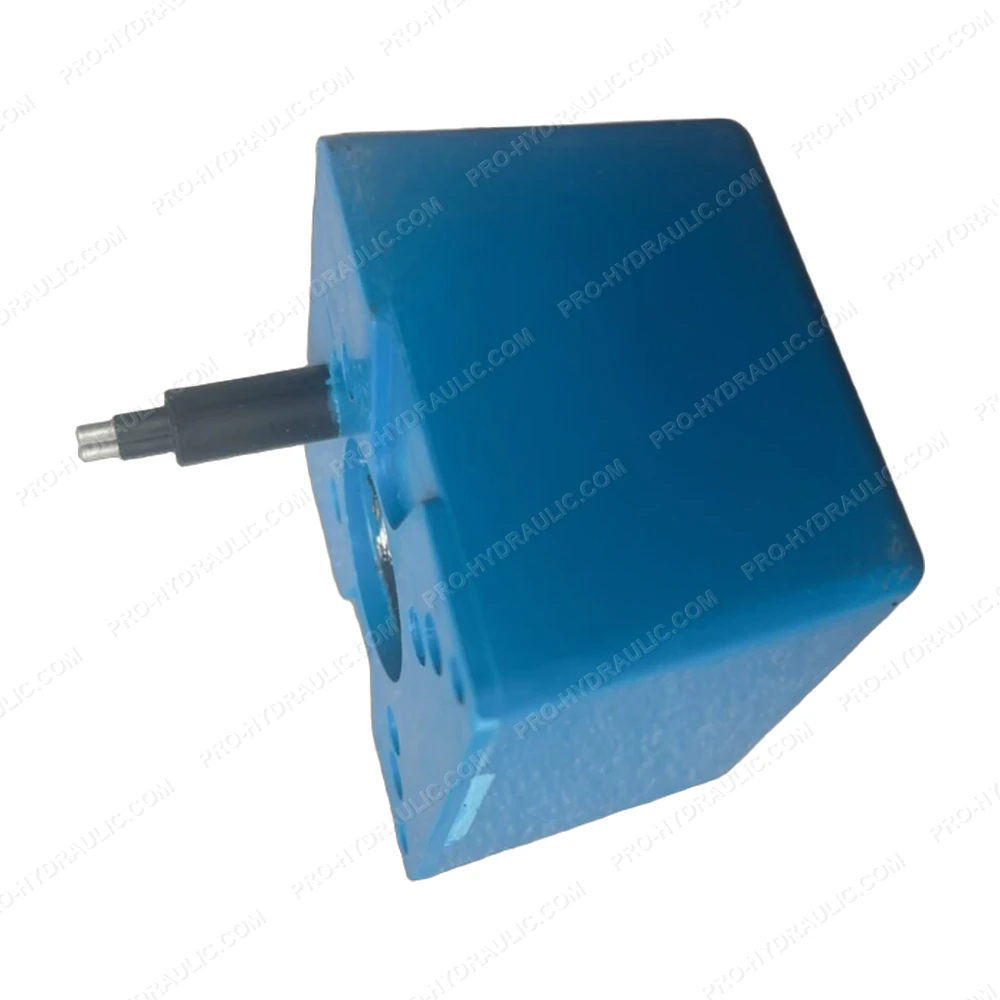

Eaton 02-336340 Hydraulic Directional Control Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Eaton 02-336340 Hydraulic Directional Control Valve. This US-made 24V DC hydraulic component features a solenoid-operated spool design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
