Product Overview
The EATON 1011250-F is a high-performance hydraulic directional control valve engineered for precise flow management in demanding industrial hydraulic circuits. As part of the Vickers solenoid-operated directional valve family, this component utilizes a solenoid-actuated spool design to direct pressurized fluid flow between ports, enabling controlled extension, retraction, and holding of hydraulic actuators. The valve serves as a critical control element in systems requiring reliable directional switching, load holding, and rapid response cycling. Its robust construction and precision-machined spool-to-bore clearances ensure minimal internal leakage and consistent performance across the full rated pressure range.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Hydraulic Directional Control Valve (Solenoid Operated) |
| Model Designation | EATON 1011250-F |
| Manufacturer Series | Vickers Solenoid Directional Valve Series |
| Actuation Method | Electrical Solenoid with Spring Return / Detent Options |
| Operating Pressure | Standard Industrial Grade (Up to 315 bar rated) |
| Spool Configuration | Precision-Machined Spool with Multiple Flow Positions |
| Mounting & Connection | Standard ISO / Vickers Interface, Subplate Mounting |
| Seal Type | Nitrile (Buna-N) / Fluorocarbon Options Available |
Engineering Features & Advantages
- Precision Spool Metering: The hardened, precision-ground spool and honed bore deliver accurate flow control with minimal internal leakage, ensuring repeatable actuator positioning and efficient system performance.
- Rapid Solenoid Response: High-force solenoid actuators provide fast, reliable shifting for demanding cycle times, with optional manual override for emergency operation and system diagnostics.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust coil insulation and durable spool return springs rated for millions of cycles.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM Vickers solenoid directional valve standards, ensuring drop-in installation without system modification.
- Versatile Circuit Integration: Compatible with a wide range of hydraulic fluids and system pressures, suitable for both open-loop and closed-loop industrial circuits.
Typical Industrial Applications
The EATON 1011250-F directional control valve is widely deployed in heavy industrial scenarios including plastic injection molding machines requiring precise mold clamping and ejection control, metallurgical presses for directional force application, construction and marine hydraulic systems for boom and steering circuit management, and CNC machine tools where accurate tool positioning and rapid traverse switching are essential. Its robust solenoid actuation and reliable spool design make it equally suited for automated production lines, material handling equipment, and mobile hydraulic power packs demanding consistent directional flow control under continuous duty cycles.
PRODUCT IMAGES

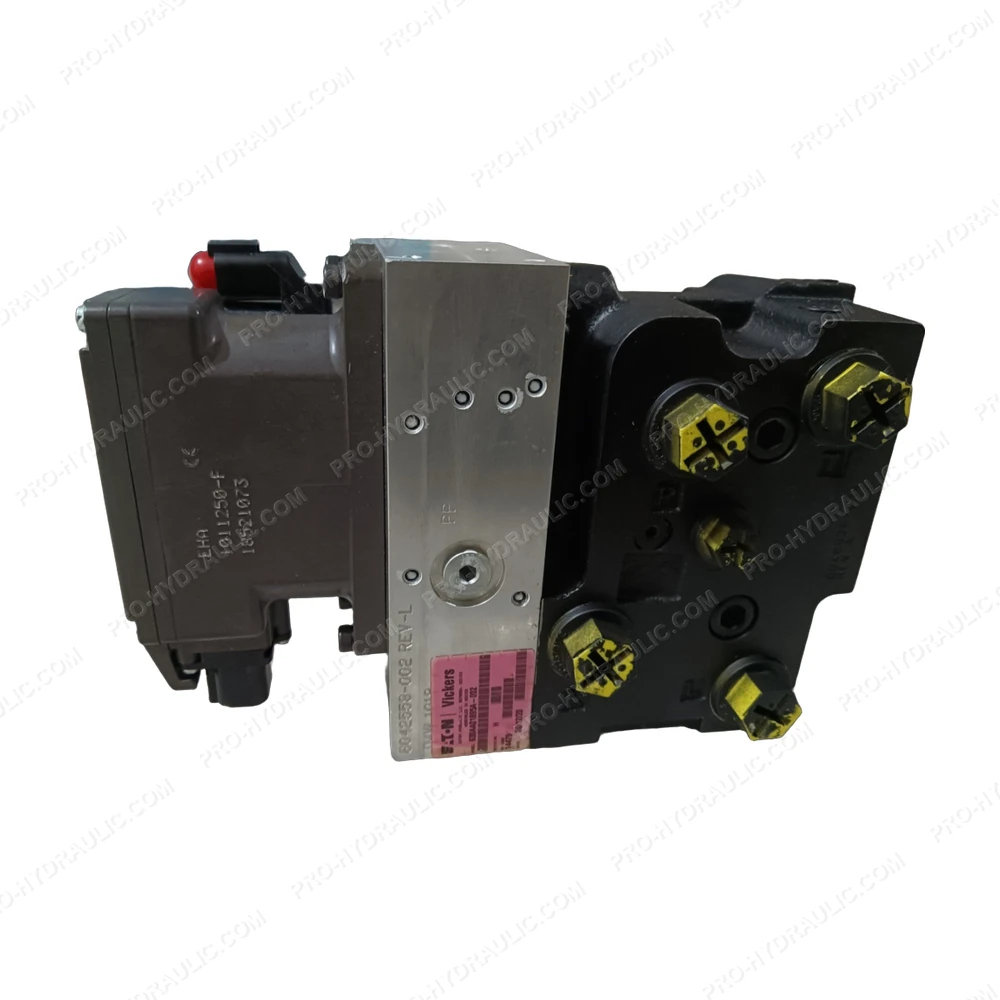

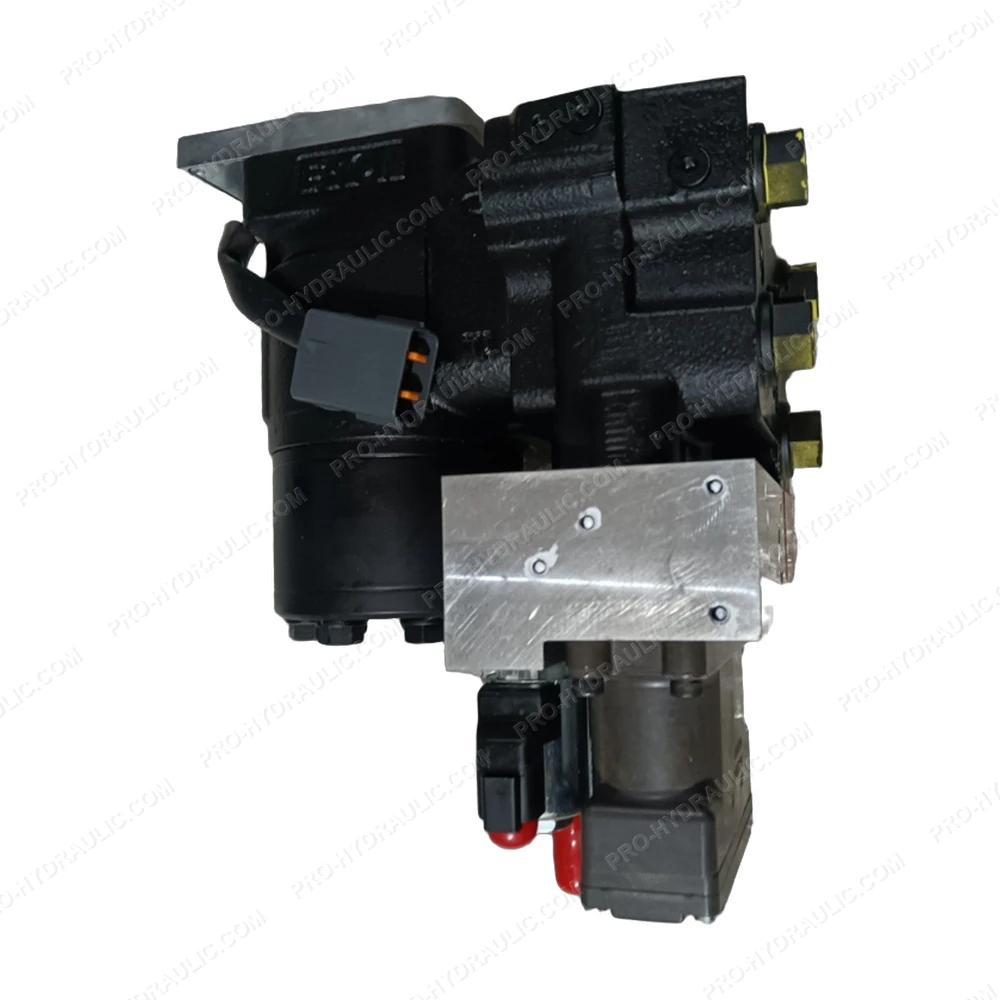

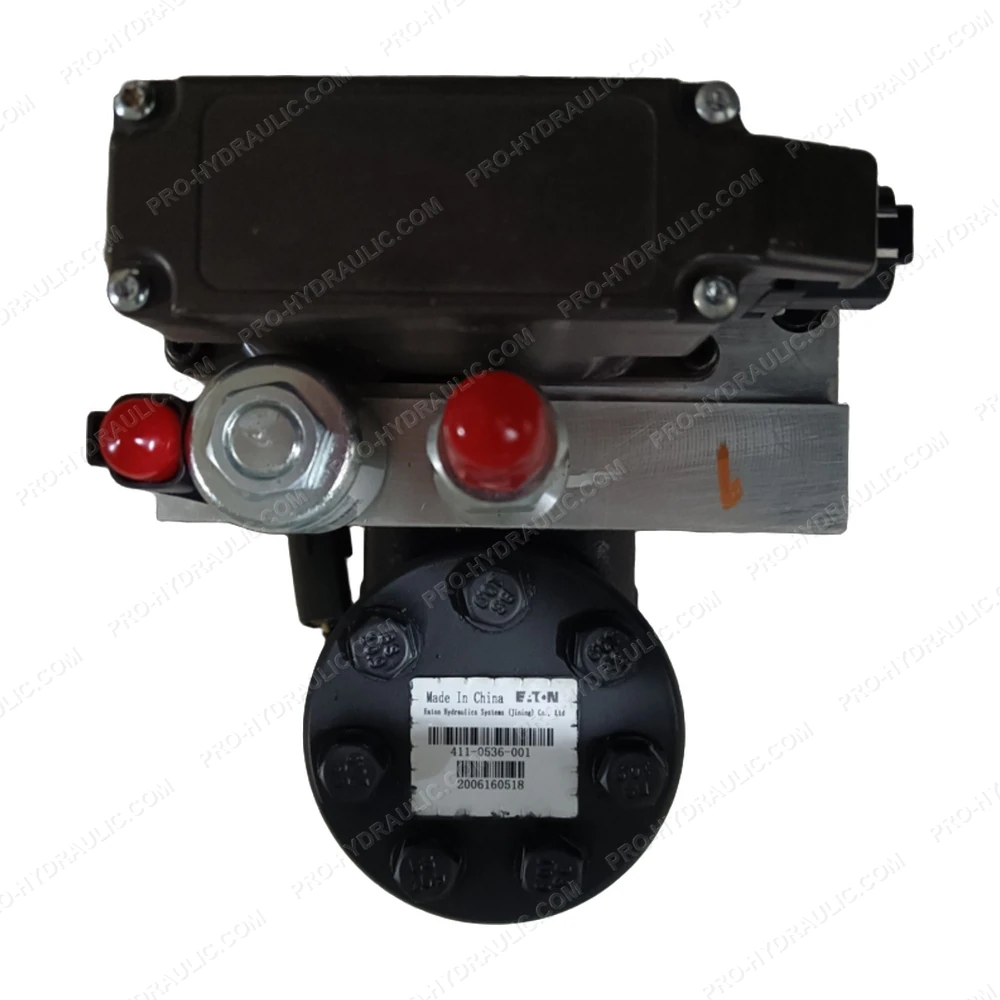

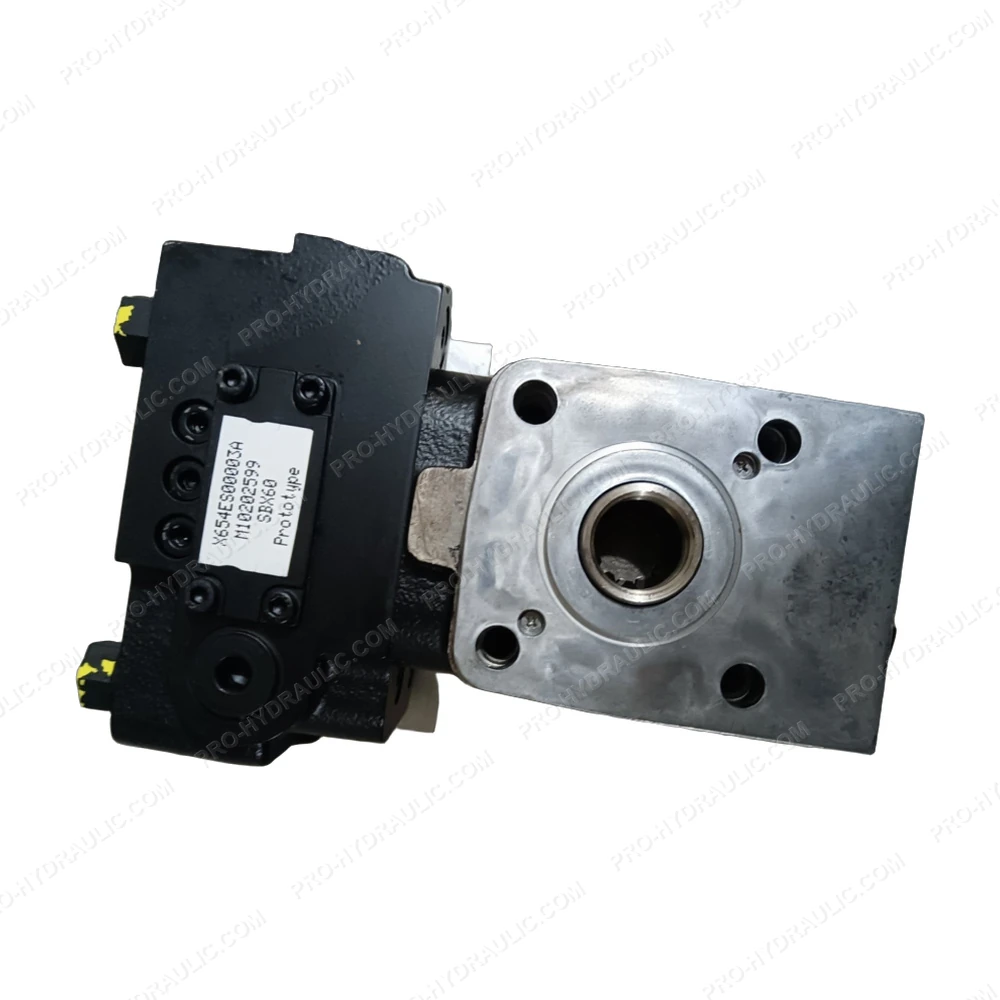

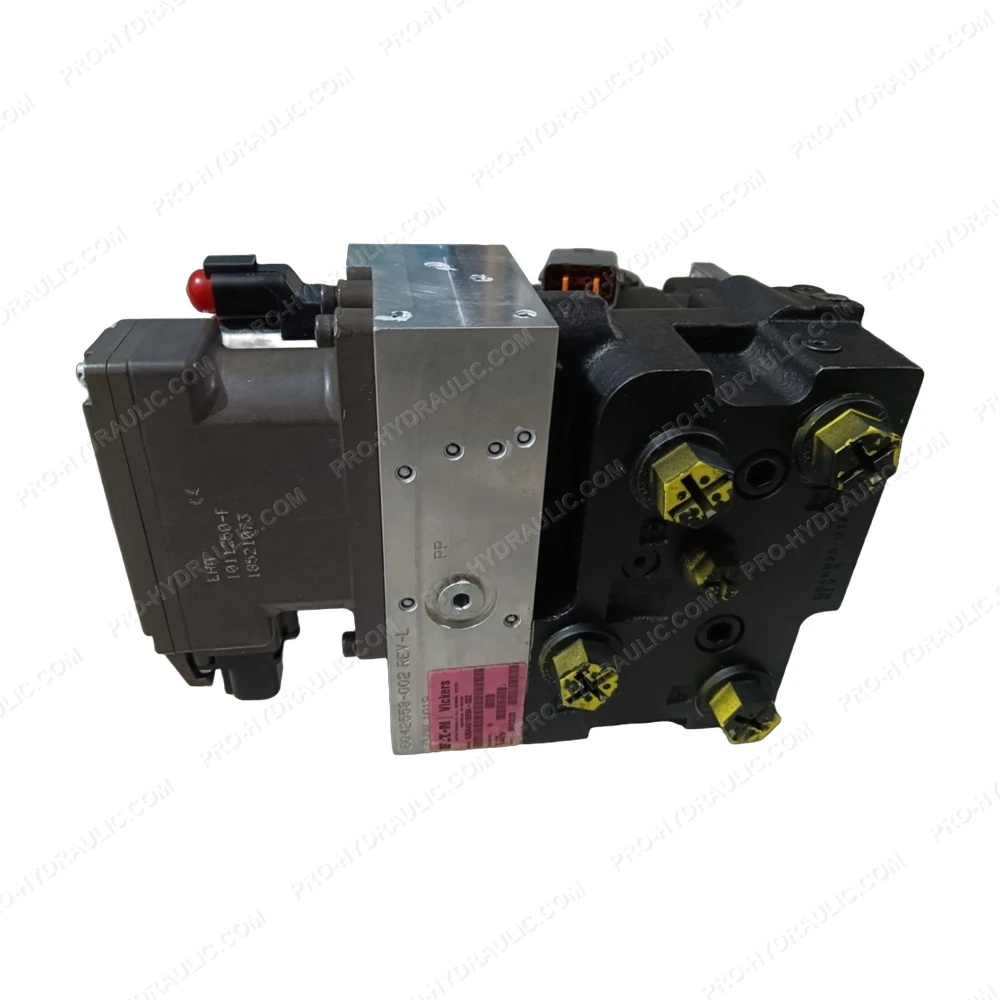

EATON 1011250-F Hydraulic Directional Control Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Eaton 1011250-F Hydraulic Directional Control Valve. This US-made 24V DC hydraulic component features a solenoid-operated spool design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
