Product Overview
The EATON 1SE30F35S10 / 406AA00050A is a high-performance solenoid operated cartridge valve engineered within the Vickers by Eaton hydraulic valve family. As a direct-acting directional control valve, it utilizes a precision-machined spool and sleeve assembly actuated by a wet-armature solenoid to direct hydraulic flow with rapid response and minimal pressure drop. This cartridge-style configuration is designed for manifold or integrated block mounting, providing a compact, leak-free solution for controlling actuator motion, load holding, and circuit selection in demanding industrial hydraulic systems. The valve is widely specified in applications requiring reliable two-position or three-position directional control with high cycle rates and consistent shift performance.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Operated Cartridge Directional Control Valve |
| Model Designation | 1SE30F35S10 / 406AA00050A |
| Manufacturer | Eaton (Vickers Series) |
| Actuation Type | Solenoid Operated, Wet Armature, Spring Return / Detented Options |
| Operating Pressure | Standard Industrial Grade (Up to rated bar per Vickers cartridge specification) |
| Mounting & Connection | Cartridge / Slip-in Style, Standard ISO / Manufacturer Cavity Interface |
| Spool Configuration | Precision-Metered Spool & Sleeve Assembly |
| Seal Material | Nitrile (Buna-N) / Fluorocarbon Options Available |
Engineering Features & Advantages
- Precision Spool & Sleeve Metering: The hardened, precision-ground spool and sleeve assembly ensures accurate flow control, minimal internal leakage, and repeatable shift characteristics across the full operating pressure range.
- Fast Solenoid Response: Wet-armature solenoid design delivers rapid actuation and de-actuation, reducing cycle times in high-speed industrial sequencing and positioning circuits.
- Compact Cartridge Configuration: Slip-in cartridge design minimizes manifold space requirements, simplifies system integration, and reduces potential leak paths compared to traditional subplate-mounted valves.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction that withstands pressure spikes, contamination, and demanding duty cycles.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM Vickers / Eaton specifications, ensuring drop-in replacement without manifold modification.
Typical Industrial Applications
This solenoid operated cartridge directional valve is commonly deployed in plastic injection molding machines for mold open/close and ejector sequencing, metallurgical presses for ram direction and pressure control, construction and marine hydraulic systems for actuator selection and load holding, and CNC machine tools for tool clamping, pallet changing, and spindle orientation circuits. Its cartridge format is particularly suited to manifold-integrated systems where space efficiency and reliable directional control are
PRODUCT IMAGES

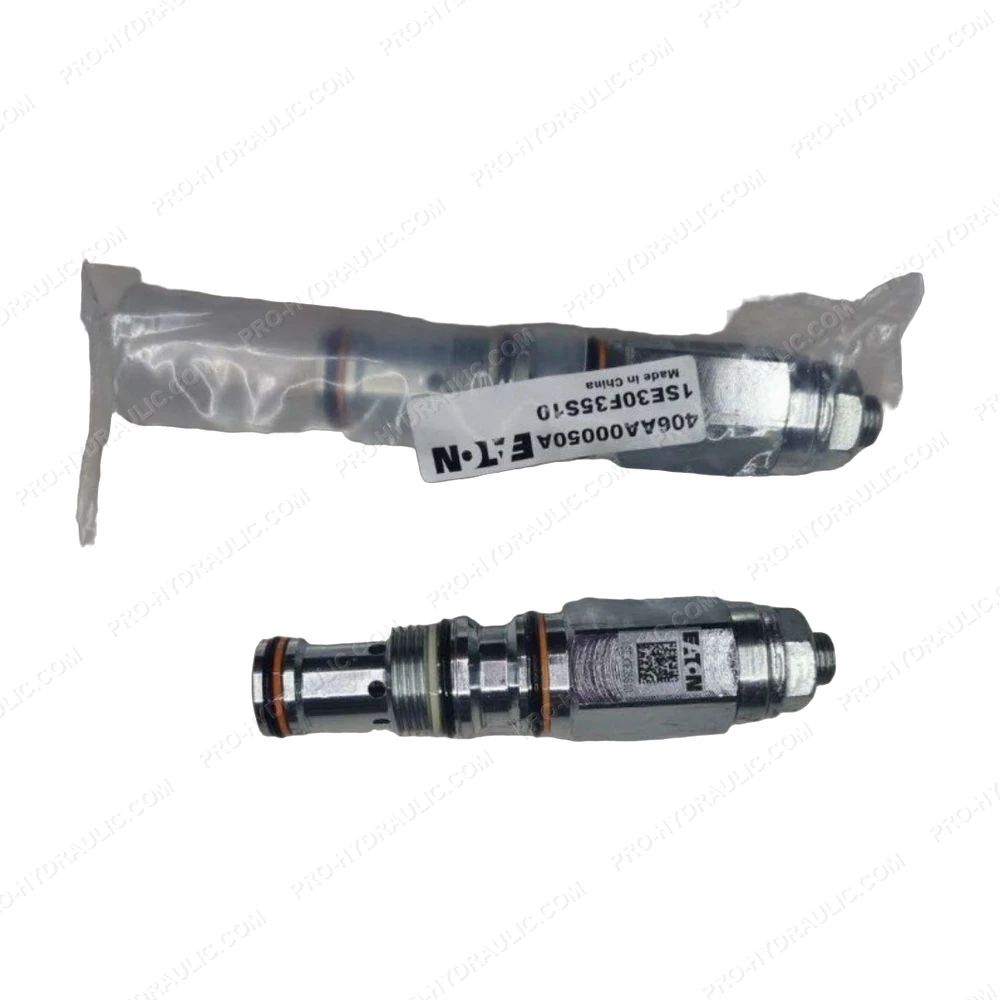

EATON 1SE30F35S10 / 406AA00050A Solenoid Operated Cartridge Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Eaton 1SE30F35S10 / 406AA00050A Solenoid Directional Valve. This US-made 24V DC hydraulic component features a 4-way 3-position design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
