Product Overview
The EATON 26004-RZG is a high-performance hydraulic directional control valve engineered within the renowned Vickers by Eaton solenoid valve platform. Operating on a precision spool-and-sleeve principle, this valve directs the flow of pressurized hydraulic fluid to actuate cylinders, motors, and rotary actuators in response to an electrical signal. As a solenoid-operated directional control valve, it serves as the central command interface in industrial hydraulic circuits, enabling precise start, stop, and reversal of machine motion. Its robust construction and proven Vickers design heritage make it a direct-fit replacement for OEM systems requiring dependable, repeatable directional control under continuous duty cycles.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Operated Directional Control Valve |
| Model Designation | 26004-RZG |
| Manufacturer | EATON (Vickers Series) |
| Actuation Type | Electrical Solenoid with Spring Return / Detent Options |
| Operating Pressure | Standard Industrial Grade (Up to 350 bar rated) |
| Spool Configuration | 4-Way, 3-Position (Closed Center / Tandem / Float variants) |
| Mounting & Connection | Standard ISO / Vickers Subplate Interface (NG6 / CETOP 3 equivalent) |
| Seal Material | Nitrile (Buna-N) / Fluorocarbon options for fluid compatibility |
Engineering Features & Advantages
- Precision Spool Metering: Hardened, precision-ground spool and sleeve assembly ensures minimal internal leakage and accurate flow metering for responsive actuator control.
- High-Cycle Solenoid Durability: Encapsulated solenoid coils resist moisture, contaminants, and thermal stress, delivering millions of reliable switching cycles in demanding industrial environments.
- Fast Response & Low Hysteresis: Optimized solenoid force characteristics provide rapid shift times and consistent repeatability, critical for high-speed sequencing and safety interlock circuits.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, including high pressure, vibration, and wide temperature fluctuations.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Vickers and Eaton OEM standards, ensuring drop-in installation without modification.
Typical Industrial Applications
The EATON 26004-RZG directional control valve is widely deployed in heavy industrial hydraulic systems, including plastic injection molding machines, metallurgical presses and rolling mills, construction and marine hydraulic power units, and CNC machine tool clamping and tool-change circuits. Its robust solenoid actuation and precise spool control make it equally suited for automated assembly lines, material handling equipment, and any application requiring reliable, high-cycle directional flow control of hydraulic actuators.
PRODUCT IMAGES

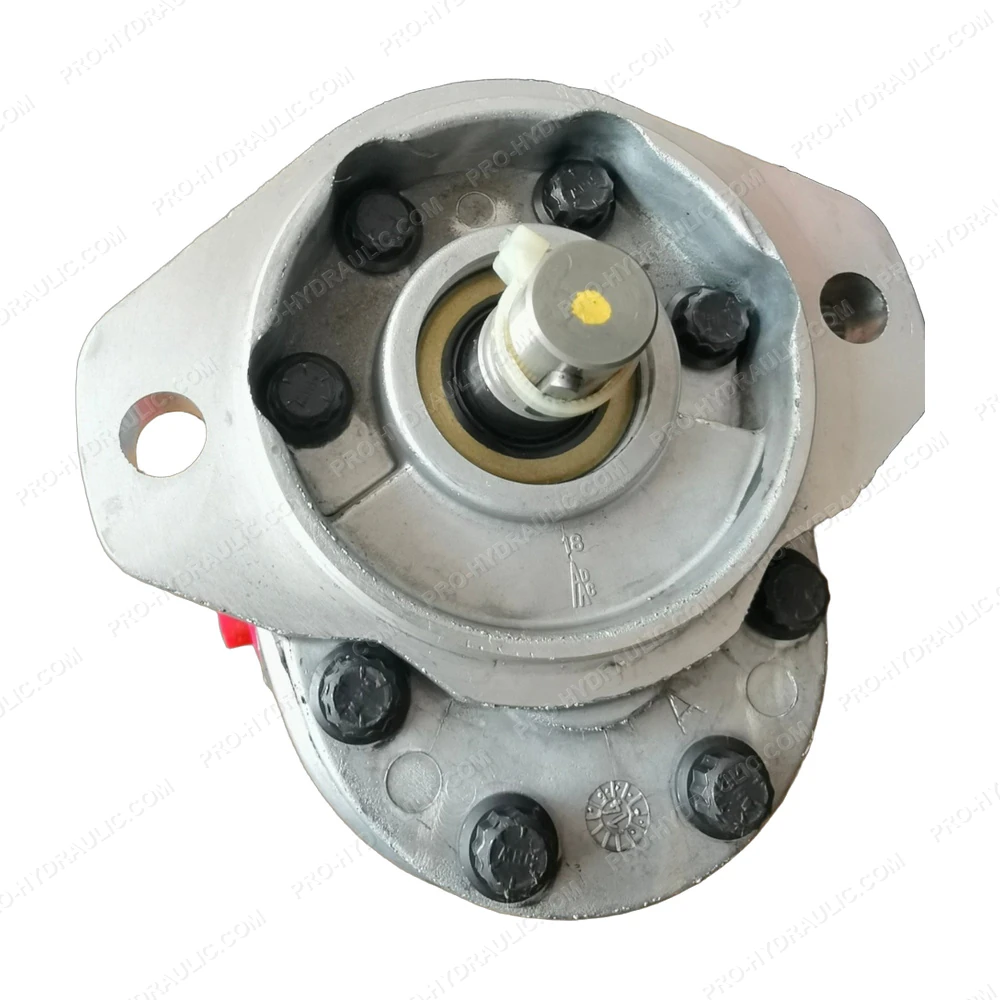

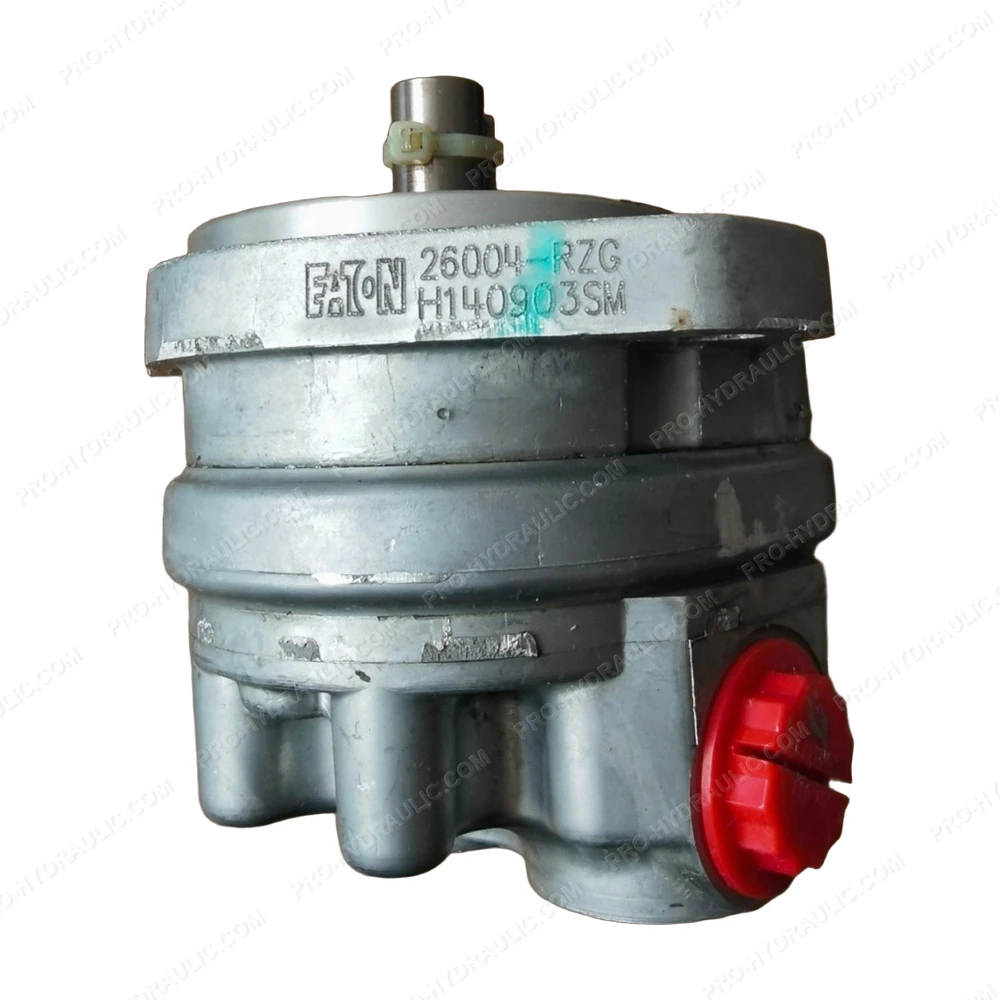

EATON 26004-RZG Hydraulic Directional Control Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine EATON 26004-RZG Hydraulic Directional Control Valve. This US-made 24V DC hydraulic component features a solenoid-operated spool design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
