Product Overview
The EATON 300AA00024A / MCSCS012BN000010 is a high-performance solenoid-operated directional control valve engineered within the Vickers by Eaton hydraulic valve platform. This valve functions as a pilot-operated, two-stage directional control component that manages the start, stop, and direction of hydraulic fluid flow within a circuit. By utilizing a wet-armature solenoid pilot stage to shift a robust main spool, it delivers precise flow routing for demanding industrial machinery. The MCSCS012BN000010 designation indicates a specific spool configuration and solenoid rating designed for reliable, high-cycle operation in complex hydraulic power units and manifold systems.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Directional Control Valve (Pilot Operated) |
| Model Designation | 300AA00024A / MCSCS012BN000010 |
| Operating Pressure | Up to 315 bar (Standard Industrial Grade) |
| Mounting & Connection | Standard ISO 4401 / CETOP Subplate Interface |
| Actuation Type | High-Force Wet Armature Solenoid |
| Spool Configuration | Spring Centered / Spring Offset (Model Dependent) |
Engineering Features & Advantages
- Precision Spool Metering: The precision-ground main spool and sleeve assembly ensures minimal internal leakage and precise flow metering, providing accurate actuator control and reduced system heat generation.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, featuring a robust cast iron body and a wet-armature solenoid design that protects internal components from environmental contaminants.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Vickers by Eaton OEM standards, ensuring drop-in replacement without the need for manifold modification or adapter plates.
- Fast Response Dynamics: Optimized pilot flow paths and high-force solenoid actuation deliver rapid spool shifting, minimizing cycle times in high-speed manufacturing processes.
Typical Industrial Applications
This solenoid directional valve is critical in heavy industrial scenarios requiring reliable flow direction control, including plastic injection molding machines, metallurgical presses, CNC machine tools, and construction & marine hydraulics. It is particularly suited for manifold-mounted systems where space efficiency and high-pressure capability are essential.
PRODUCT IMAGES

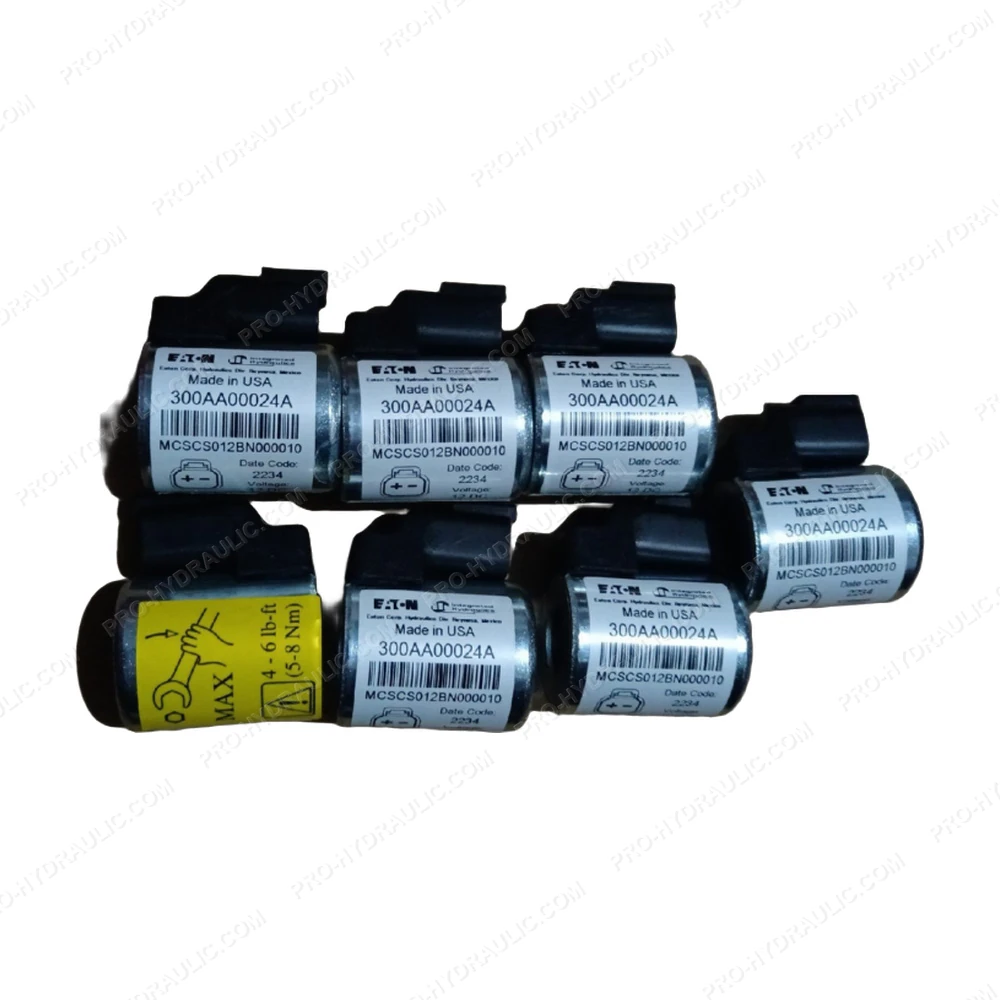

EATON 300AA00024A / MCSCS012BN000010 Solenoid Directional Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine EATON 300AA00024A / MCSCS012BN000010 Solenoid Directional Valve. This USA-made 12V DC hydraulic component features a 4-way 3-position design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
