Product Overview
The EATON 300AA00082A / MCSCJ024DG00010 is a high-performance solenoid-operated directional control valve engineered within the Vickers by Eaton hydraulic valve platform. This 4-way, 3-position (4/3) spool valve is designed to direct and control the flow of hydraulic fluid to actuators, cylinders, and motors in demanding industrial circuits. The MCSCJ024DG00010 designation identifies a direct-acting, wet-armature solenoid configuration with a spring-centered, tandem or closed-center spool, providing precise directional control and reliable load holding. As a core component in the Vickers solenoid directional valve family, this unit delivers consistent spool actuation, low internal leakage, and rapid response, making it a direct-fit replacement for OEM systems requiring dependable directional control in continuous-duty hydraulic power units.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Directional Control Valve (4-Way, 3-Position) |
| Model Designation | EATON 300AA00082A / MCSCJ024DG00010 |
| Manufacturer Series | Vickers by Eaton — MCSC Series Solenoid Directional Valves |
| Actuation Type | Dual Solenoid, Spring-Centered / Spring-Return |
| Spool Configuration | 4-Way, 3-Position (4/3) — Tandem, Closed, or Float Center Options |
| Operating Pressure | Standard Industrial Grade (Up to 350 bar / 5,000 psi rated) |
| Rated Flow Capacity | Up to 40 L/min (10.5 GPM) nominal per Vickers MCSC sizing |
| Solenoid Voltage | 24 VDC (standard industrial coil, other voltages available) |
| Mounting & Connection | Standard ISO 4401 / CETOP 3 (NG6) Subplate Interface |
| Seal Material | NBR / FKM (Viton) — compatible with mineral-based hydraulic fluids |
| Fluid Temperature Range | -20°C to +80°C (-4°F to +176°F) |
Engineering Features & Advantages
- Precision Performance: The solenoid directional control valve (4-way, 3-position) delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
- Direct Fit Replacement: Precision-manufactured to original EATON specifications for direct replacement, minimising downtime and eliminating fitment issues.
Typical Industrial Applications
As a core component in the Vickers solenoid directional valve family, this unit delivers consistent spool actuation, low internal leakage, and rapid response, making it a direct-fit replacement for OEM systems requiring dependable directional control in continuous-duty hydraulic power units.
PRODUCT IMAGES

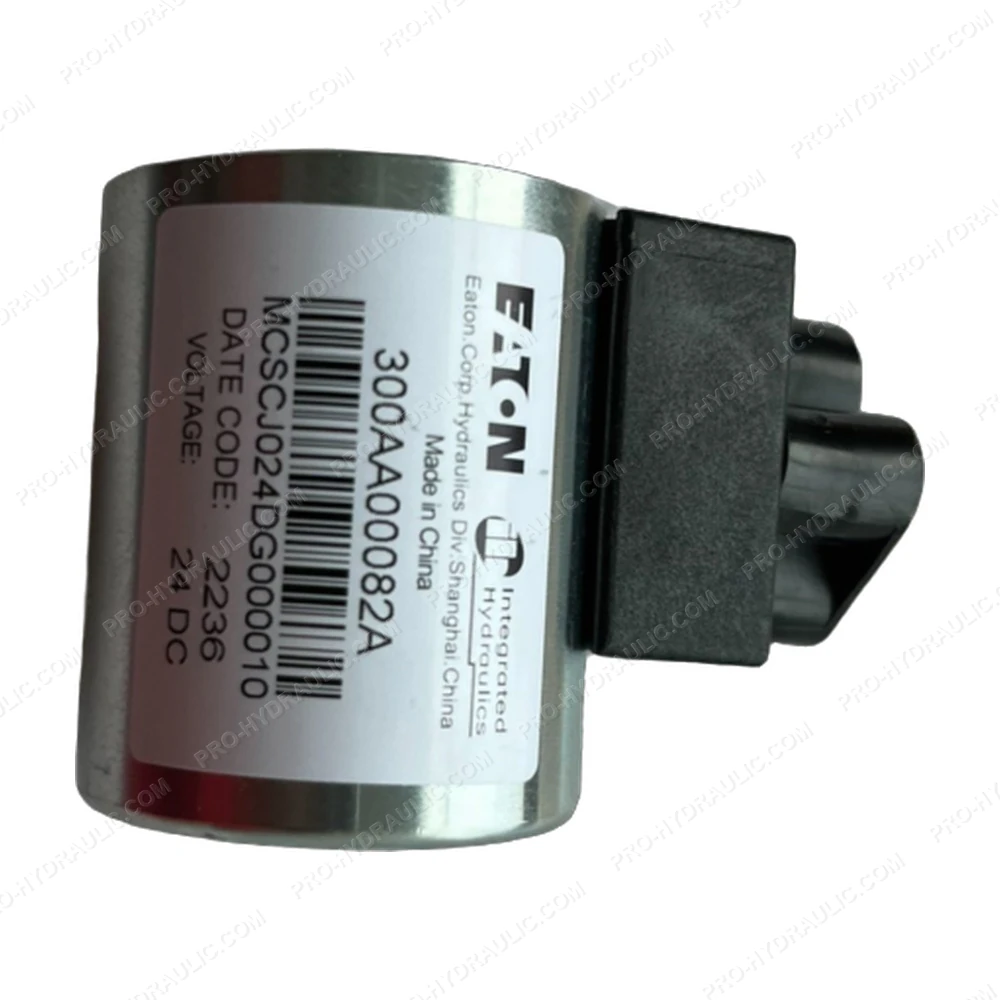

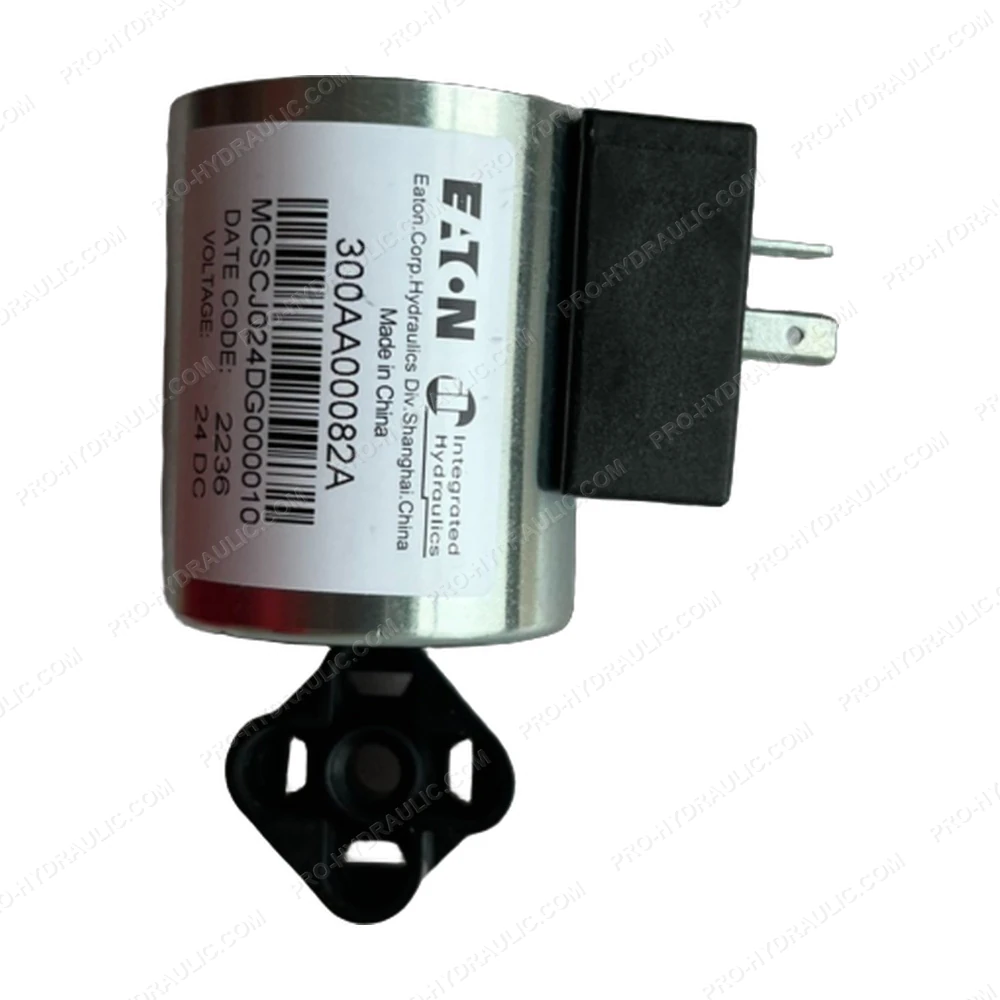

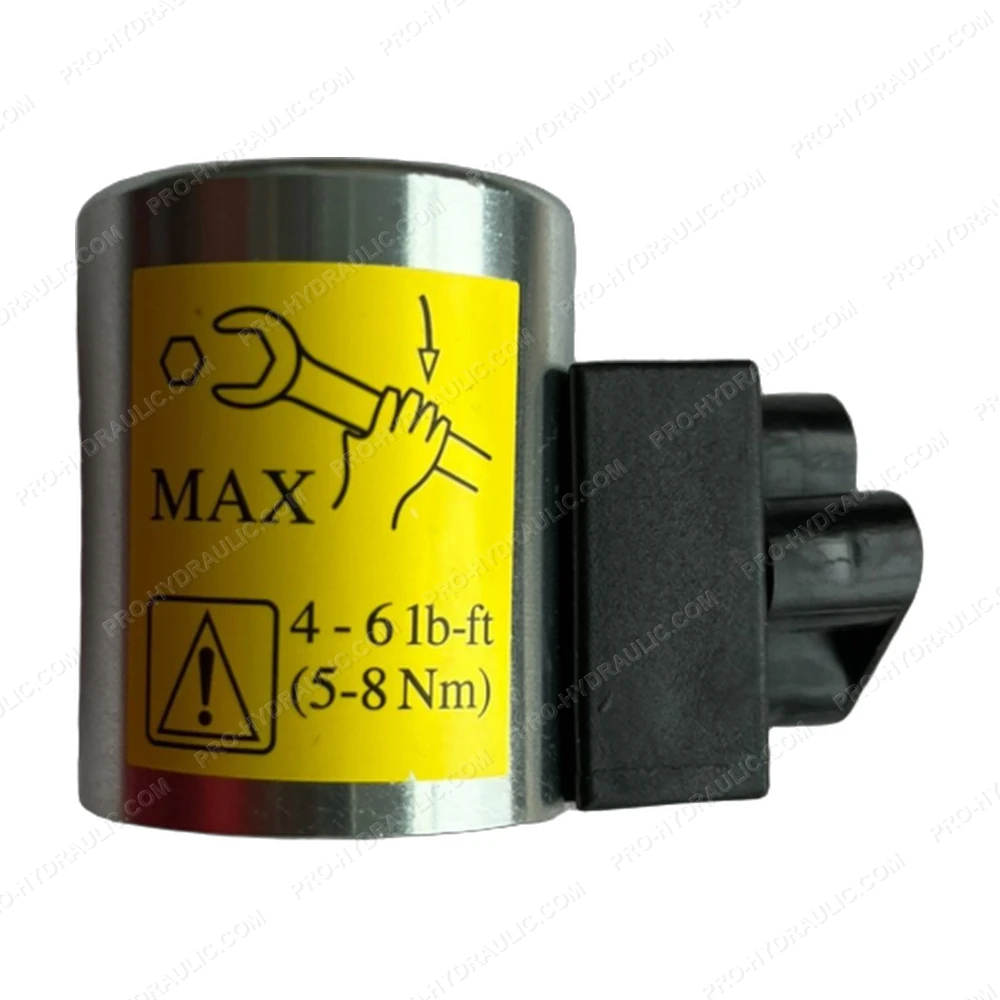

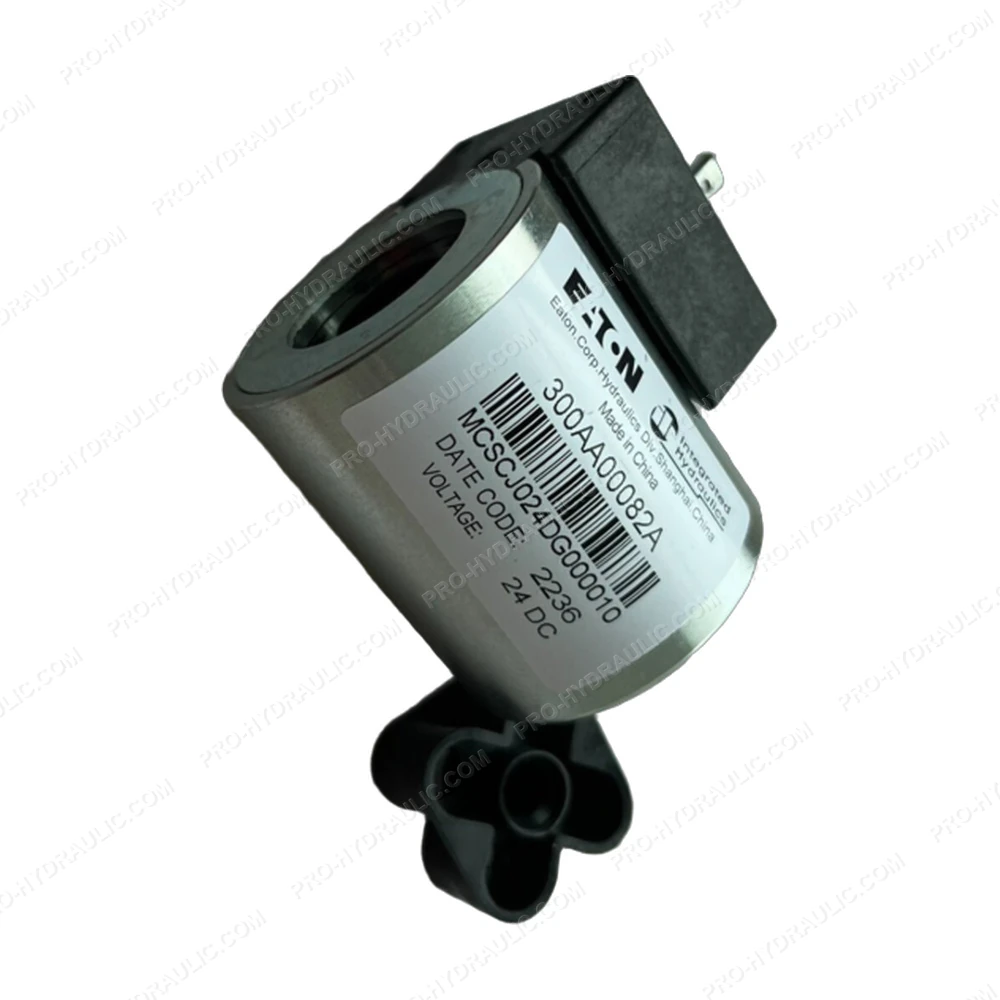

EATON 300AA00082A / MCSCJ024DG00010 Solenoid Directional Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine EATON 300AA00082A / MCSCJ024DG00010 Solenoid Directional Valve. This USA-made 24V DC hydraulic component features a 4-way 3-position design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
