Product Overview
The EATON 300AA00086A / MCSCJ230AG00010 is a high-performance solenoid-operated directional control valve engineered within the Vickers by Eaton hydraulic valve platform. This valve functions as a four-way, three-position (4/3) directional control component, utilizing a precision-machined spool and spring-centered actuation to direct hydraulic flow between ports in response to electrical signals. The MCSCJ230AG00010 designation identifies a specific spool configuration and solenoid voltage rating designed for industrial duty. As a critical interface in hydraulic circuits, this valve manages the start, stop, and direction of fluid flow to actuators, ensuring precise control in complex industrial machinery. Its robust construction and proven Vickers design heritage make it a reliable choice for demanding B2B hydraulic applications requiring high cycle rates and consistent metering.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Directional Control Valve (4-Way, 3-Position) |
| Model Designation | 300AA00086A / MCSCJ230AG00010 |
| Operating Pressure | Standard Industrial Grade (Up to 350 bar / 5075 psi rated) |
| Mounting & Connection | Standard ISO 4401 / CETOP 3 / NG6 Interface |
| Actuation Type | Solenoid Actuated, Spring Centered / Spring Offset |
| Flow Rate Capacity | Up to 80 L/min (Nominal) |
| Spool Configuration | Precision-ground spool for minimal leakage and precise metering |
Engineering Features & Advantages
- Precision Spool & Sleeve Design: The valve features a hardened, precision-ground spool matched to a honed sleeve, ensuring minimal internal leakage, low hysteresis, and accurate flow metering for precise actuator control.
- High-Cycle Solenoid Reliability: Equipped with robust, industrial-grade solenoids designed for high-frequency switching and continuous duty, ensuring long service life in automated production environments.
- Direct Fit Replacement: Manufactured to exact Vickers by Eaton dimensional and functional standards, providing seamless drop-in compatibility with original OEM part numbers 300AA00086A and MCSCJ230AG00010.
- Optimized Flow Paths: Internal casting and machining optimize flow paths to minimize pressure drop and energy loss, contributing to overall system efficiency.
- Robust Environmental Protection: Designed with industry-standard sealing and coil encapsulation to withstand harsh industrial environments, including exposure to dust, moisture, and vibration.
Typical Industrial Applications
This solenoid directional valve is engineered for a wide range of heavy-duty industrial hydraulic systems. Common applications include plastic injection molding machines where precise sequencing of clamp and injection cylinders is critical; metallurgical presses and rolling mills requiring reliable directional control under high pressure; construction and marine hydraulics for controlling outriggers, winches, and steering systems; and CNC machine tools where accurate tool positioning and clamping operations are essential. Its robust design also makes it suitable for automated assembly lines, material handling equipment, and general industrial
PRODUCT IMAGES

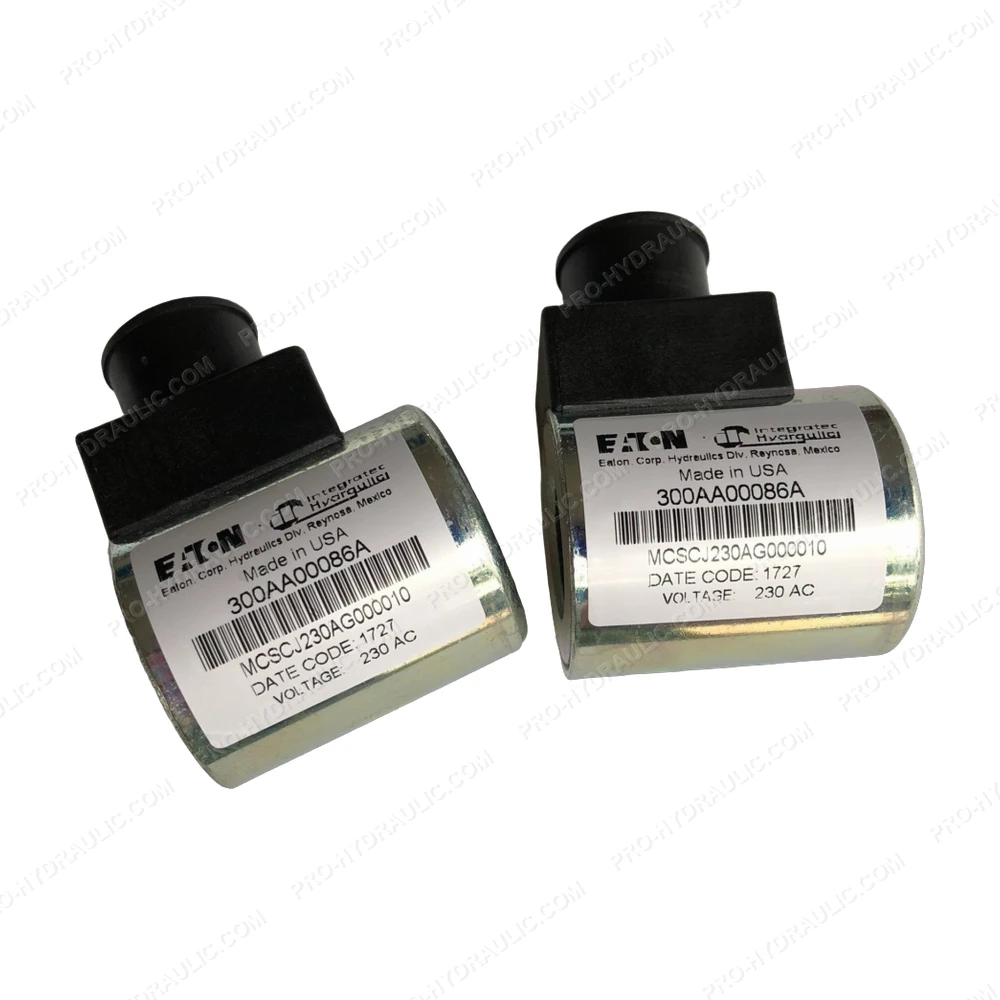

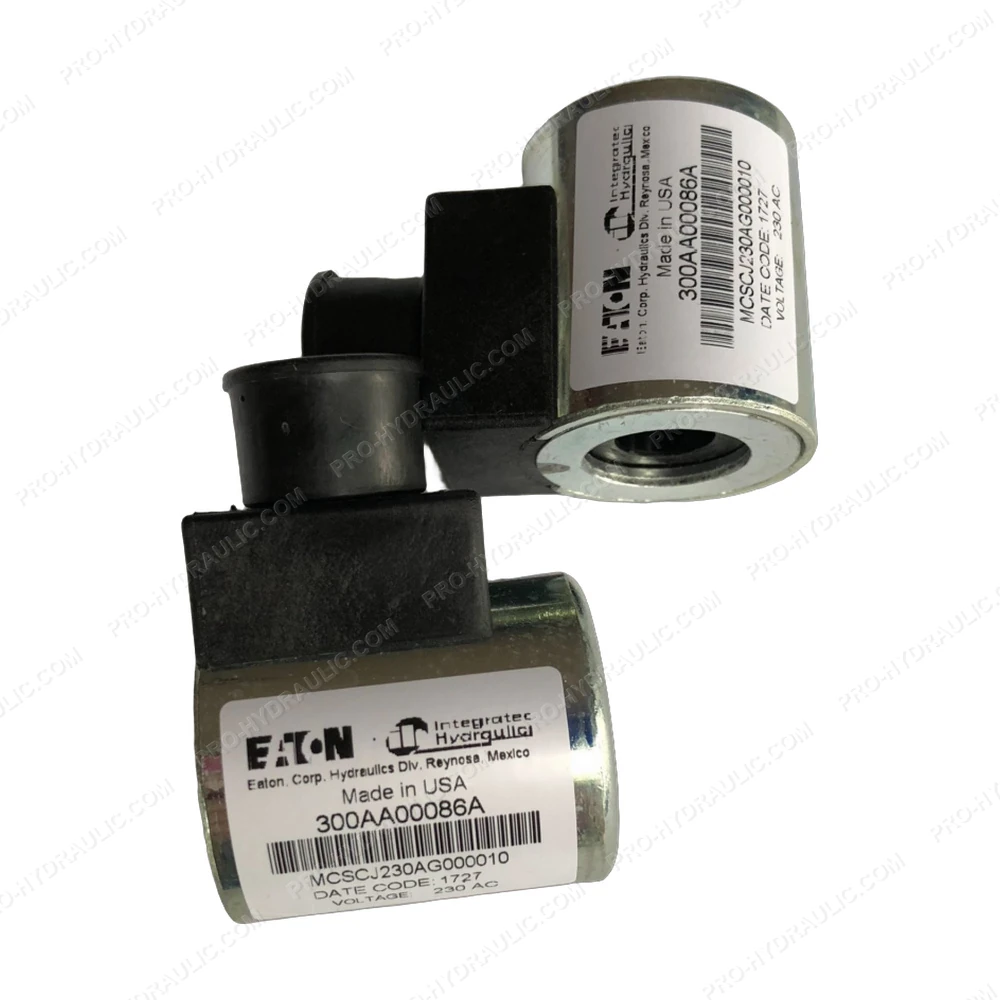

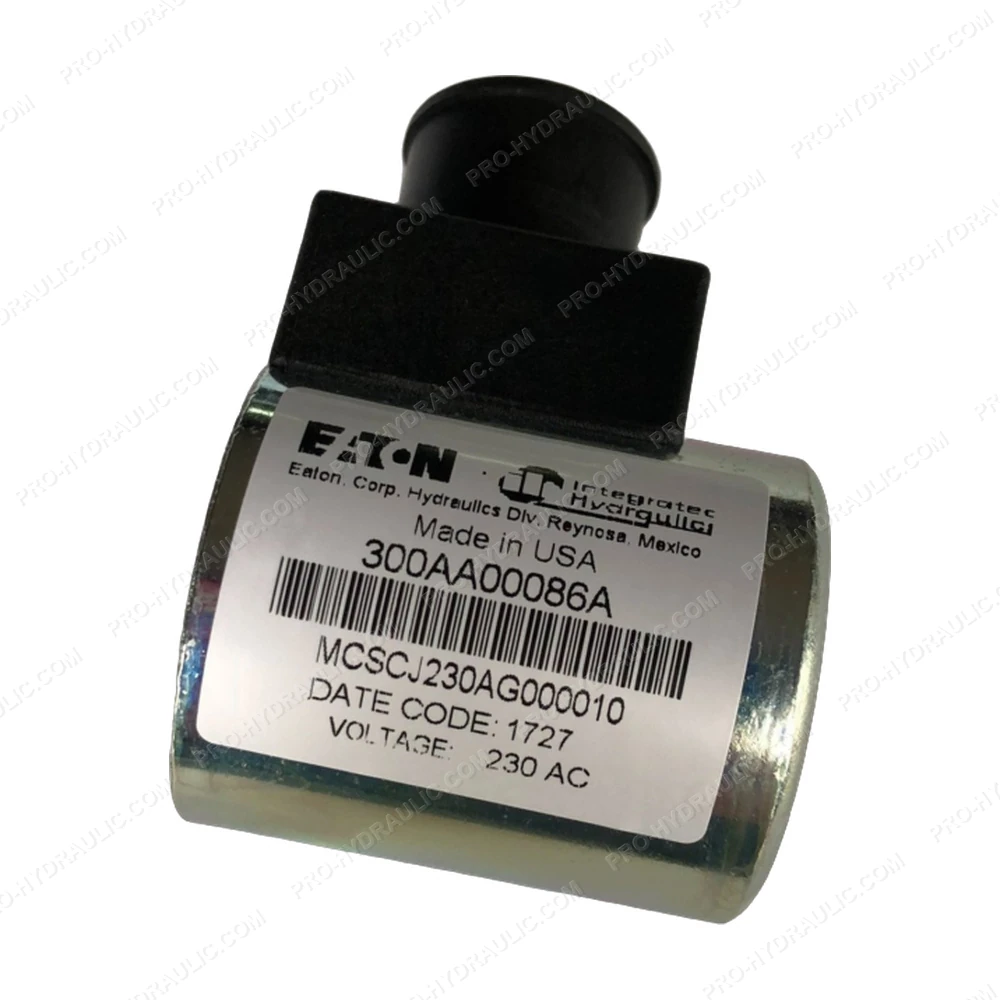

EATON 300AA00086A / MCSCJ230AG00010 Solenoid Directional Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Eaton 300AA00086A / MCSCJ230AG00010 Solenoid Directional Valve. This USA-made 230 VAC hydraulic component features a 4-way 3-position design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
