Product Overview
The EATON 300AA00309A is a high-performance solenoid-operated directional control valve engineered within the renowned Vickers by Eaton hydraulic valve platform. Designed to direct, stop, and regulate the flow path of hydraulic fluid in industrial circuits, this valve utilizes a precision-machined spool and sleeve assembly actuated by a wet-armature AC/DC solenoid. The 300AA00309A serves as a critical control element in demanding hydraulic systems, providing reliable switching logic for cylinder extension/retraction, motor reversal, and circuit isolation. Its robust construction and proven Vickers design lineage ensure consistent response times, minimal internal leakage, and long service life in continuous-duty industrial environments.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Directional Control Valve (Vickers Series) |
| Model Designation | 300AA00309A |
| Manufacturer | EATON (Vickers) |
| Actuation Type | Solenoid Actuated (Wet Armature) |
| Operating Pressure | Standard Industrial Grade (Up to 350 bar rated) |
| Mounting & Connection | Standard ISO / Vickers Subplate Interface |
| Spool Configuration | Precision-Machined Spool & Sleeve Assembly |
| Response Time | Fast Switching (Millisecond Range) |
Engineering Features & Advantages
- Precision Spool Metering: The hardened, precision-ground spool and sleeve assembly ensures accurate flow direction control with minimal internal leakage and excellent repeatability.
- Wet Armature Solenoid Design: The solenoid operates in hydraulic fluid, providing superior heat dissipation, reduced wear, and quieter operation compared to dry-armature alternatives.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, including high cycle rates, pressure spikes, and contaminated environments.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM Vickers solenoid directional valve standards, ensuring drop-in installation without modification.
- Robust Construction: High-strength cast iron body and corrosion-resistant internal components deliver long service life and stable performance across wide temperature ranges.
Typical Industrial Applications
The EATON 300AA00309A solenoid directional valve is widely deployed in heavy industrial hydraulic systems, including plastic injection molding machines, metallurgical presses, CNC machine tools, construction and marine hydraulic equipment, and automated material handling systems. It is particularly suited for applications requiring precise directional control, rapid cycle times, and reliable performance under high-pressure continuous-duty operation.
PRODUCT IMAGES

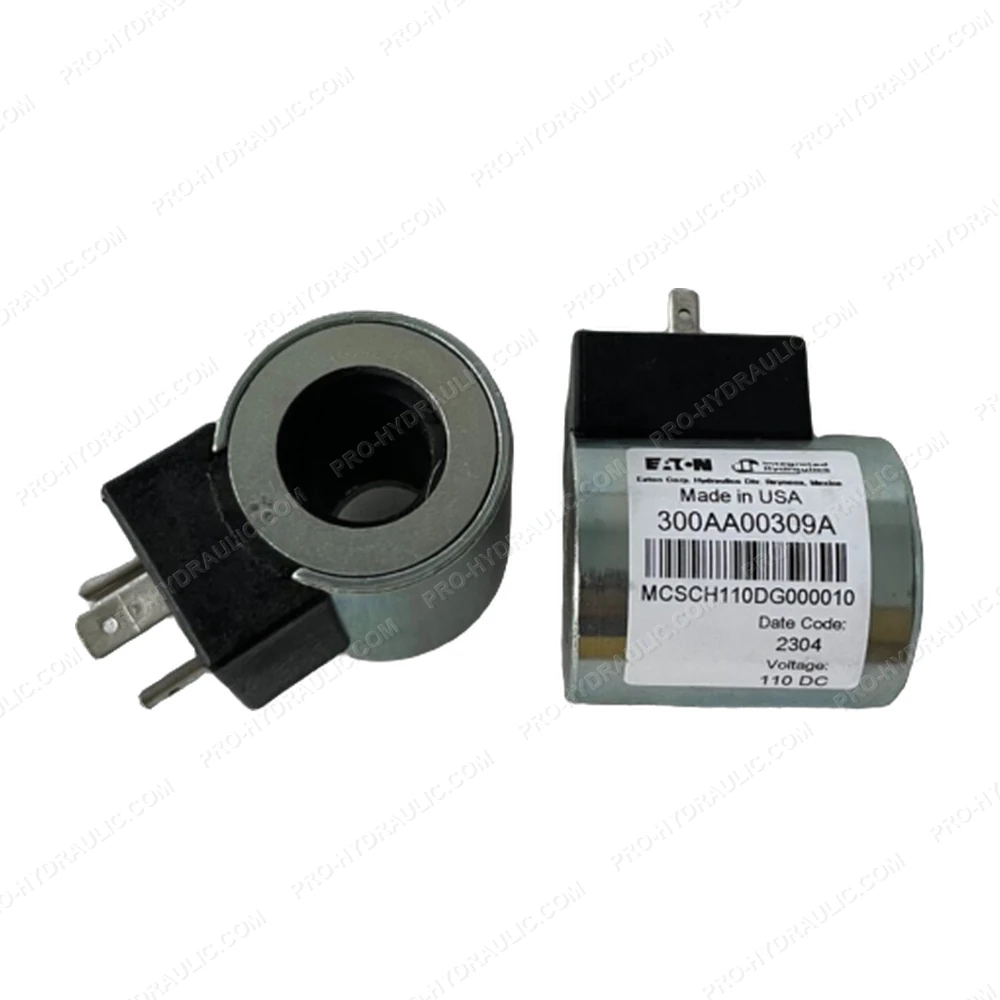

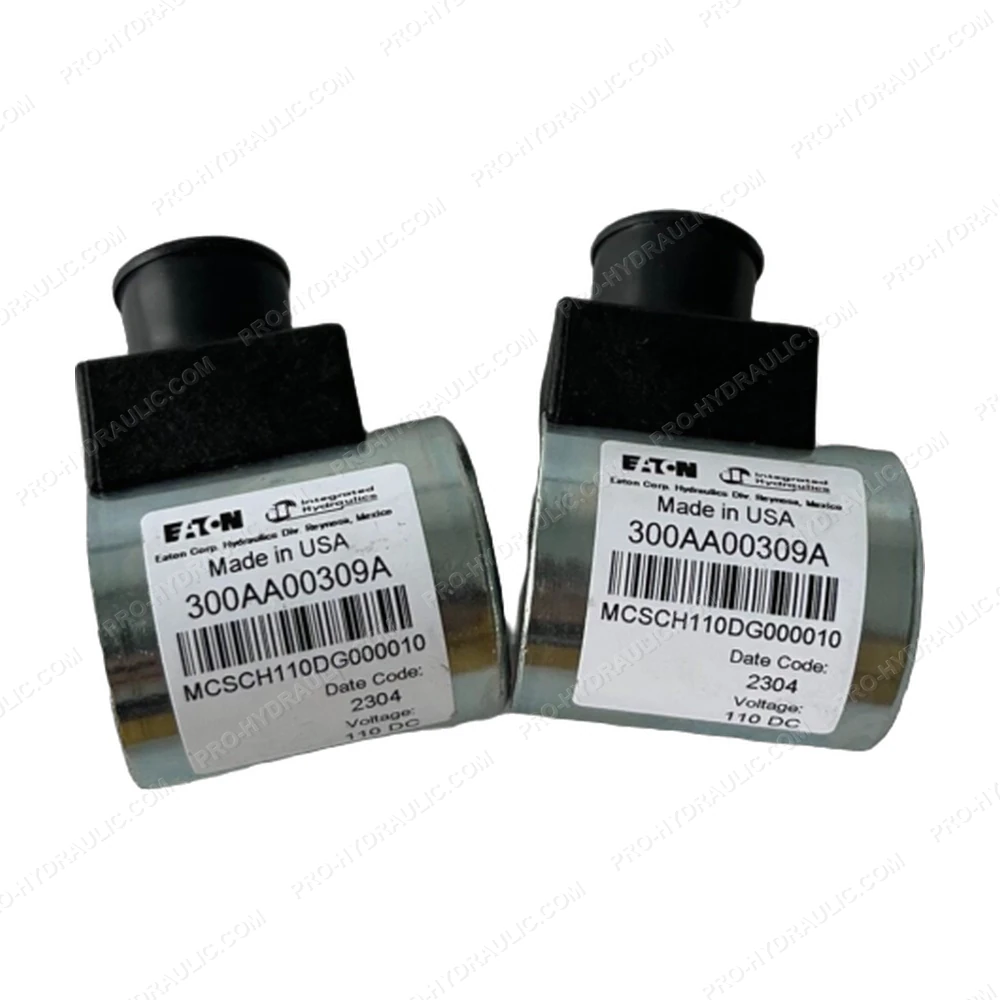

EATON 300AA00309A Solenoid Directional Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Eaton 300AA00309A Hydraulic Directional Control Valve. This USA-made 24V DC hydraulic component features a solenoid-operated spool design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
