Product Overview
The Eaton CV3-8-P-0-010 (02-171257) is a precision-engineered screw-in cartridge check valve designed for direct integration into hydraulic manifolds and integrated circuit blocks. As part of Eaton’s CV3 series, this cartridge-style valve provides reliable one-way flow control, permitting free flow in one direction while positively blocking reverse flow to protect system components and maintain circuit integrity. The “8” size designation corresponds to an 8-size cavity (nominally 3/4″ interface), and the “P” porting configuration denotes a specific port arrangement for manifold installation. With a zero-leakage poppet seating design and a nominal cracking pressure of approximately 0.3 bar (010 designation), this valve is ideally suited for load-holding, anti-siphon, and directional blocking functions in demanding industrial hydraulic circuits. Its compact cartridge format allows high-density manifold packaging, reducing external piping, potential leak points, and overall system footprint.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Hydraulic Check Valve (Screw-in Cartridge, Flow Control & Modular Valve) |
| Model Designation | CV3-8-P-0-010 / 02-171257 |
| Series / Cavity Size | CV3 Series, Size 8 Cartridge Cavity |
| Porting Configuration | “P” Port Arrangement (Manifold / Cartridge Mounted) |
| Cracking Pressure | Approx. 0.3 bar (010 designation, low cracking pressure) |
| Operating Pressure | Standard Industrial Grade (Up to rated bar, typically 350 bar max) |
| Flow Direction | Free flow one direction, positive shut-off reverse |
| Sealing Principle | Poppet / seat metal-to-metal or soft-seat zero-leak design |
| Mounting & Connection | Screw-in cartridge, standard Eaton Size 8 cavity interface |
| Fluid Compatibility | Mineral-based hydraulic oils, standard industrial fluids |
Engineering Features & Advantages
- Precision Performance: Poppet-and-seat check valve geometry delivers fast, positive closure with minimal pressure drop in the free-flow direction and reliable reverse-flow blocking, ensuring accurate circuit isolation and load holding.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and wear-resistant internal components for extended service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original EATON standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
With a zero-leakage poppet seating design and a nominal cracking pressure of approximately 0.3 bar (010 designation), this valve is ideally suited for load-holding, anti-siphon, and directional blocking functions in demanding industrial hydraulic circuits.
PRODUCT IMAGES

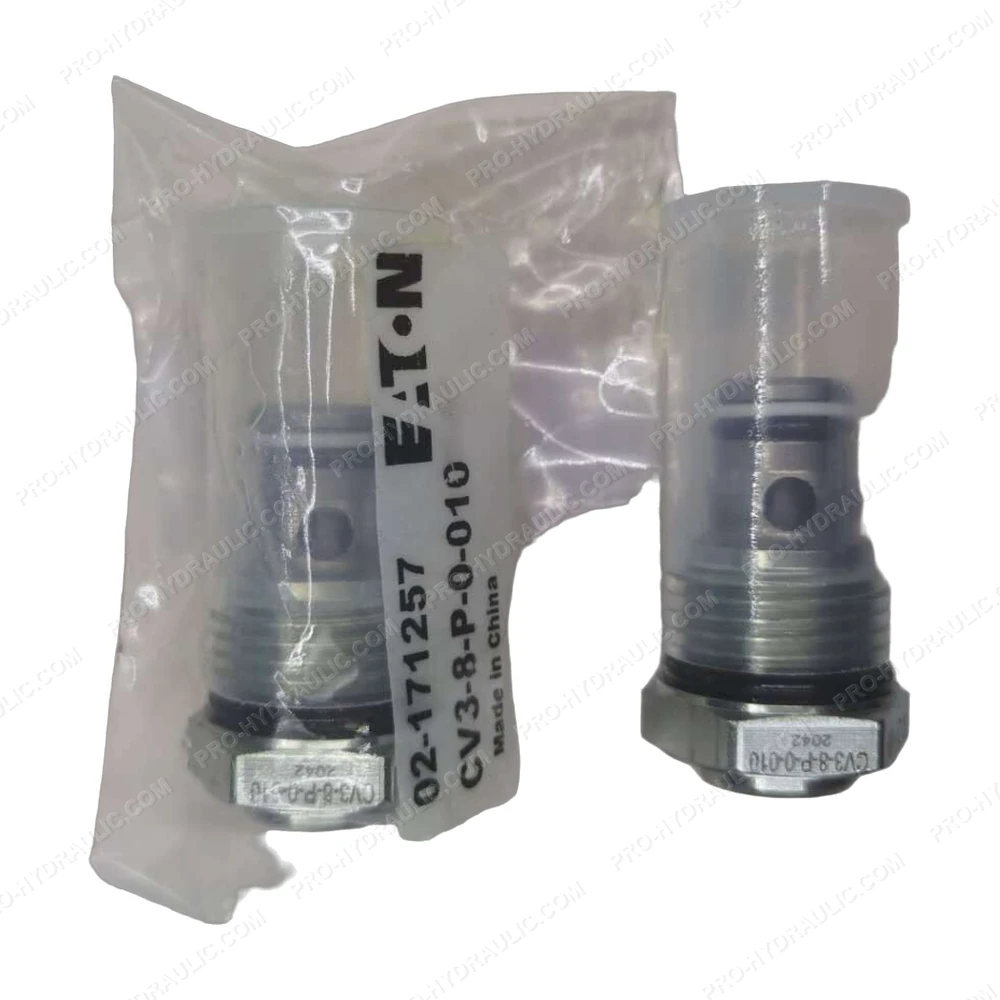

EATON CV3-8-P-0-010 / 02-171257 Cartridge Check Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Eaton CV3-8-P-0-010 / 02-171257 Check Valve. This Germany-made hydraulic component features a poppet-type design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
