Product Overview

The Eaton DG4V 3S 6C M U B5 60 is a high-performance solenoid-operated directional control valve from the Vickers DG4V series, engineered for precise control of hydraulic fluid flow direction in industrial power systems. Utilizing a wet-armature solenoid design and a robust sliding spool mechanism, this valve delivers reliable, repeatable shifting performance with minimal internal leakage. The DG4V 3S configuration features a size 3 (NG6 / CETOP 3) interface and is designed for subplate mounting, making it a direct-fit solution for a wide range of industrial hydraulic circuits requiring dependable directional control.

Technical Specifications

ParameterSpecification / Feature
Component TypeSolenoid Directional Control Valve
Model DesignationDG4V 3S 6C M U B5 60
SeriesVickers DG4V Series
Size / InterfaceNG6 / CETOP 3 (Size 3)
Spool Configuration6C — Spring-Centered, All Ports Blocked in Neutral
Actuation TypeSolenoid Actuated (Wet Armature Design)
Operating PressureUp to 350 bar (5075 psi) rated
Rated FlowUp to 40 L/min (10.5 GPM) nominal
Mounting & ConnectionSubplate Mounting per ISO 4401 / CETOP 3 Standard
Electrical ConnectionB5 — DIN 43650 Connector, Standard Voltage Coil

Engineering Features & Advantages

  • Precision Spool Metering: The 6C spool configuration ensures all ports are positively blocked in the centered position, providing safe load-holding capability and precise directional control during actuation.
  • Wet Armature Solenoid Design: Hydraulically dampened solenoid armatures reduce wear, minimize noise, and ensure consistent shifting force throughout the valve’s service life.
  • High-Pressure Capability: Rated for continuous operation up to 350 bar, suitable for demanding high-pressure industrial hydraulic circuits.
  • Low Internal Leakage: Precision-ground spool and bore tolerances minimize bypass leakage, improving system efficiency and reducing heat generation.
  • Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and wear-resistant internal components for extended service life.
  • Direct Fit Replacement: Exact dimensional and functional compatibility with original EATON OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.

Typical Industrial Applications

The DG4V 3S configuration features a size 3 (NG6 / CETOP 3) interface and is designed for subplate mounting, making it a direct-fit solution for a wide range of industrial hydraulic circuits requiring dependable directional control.

PRODUCT IMAGES

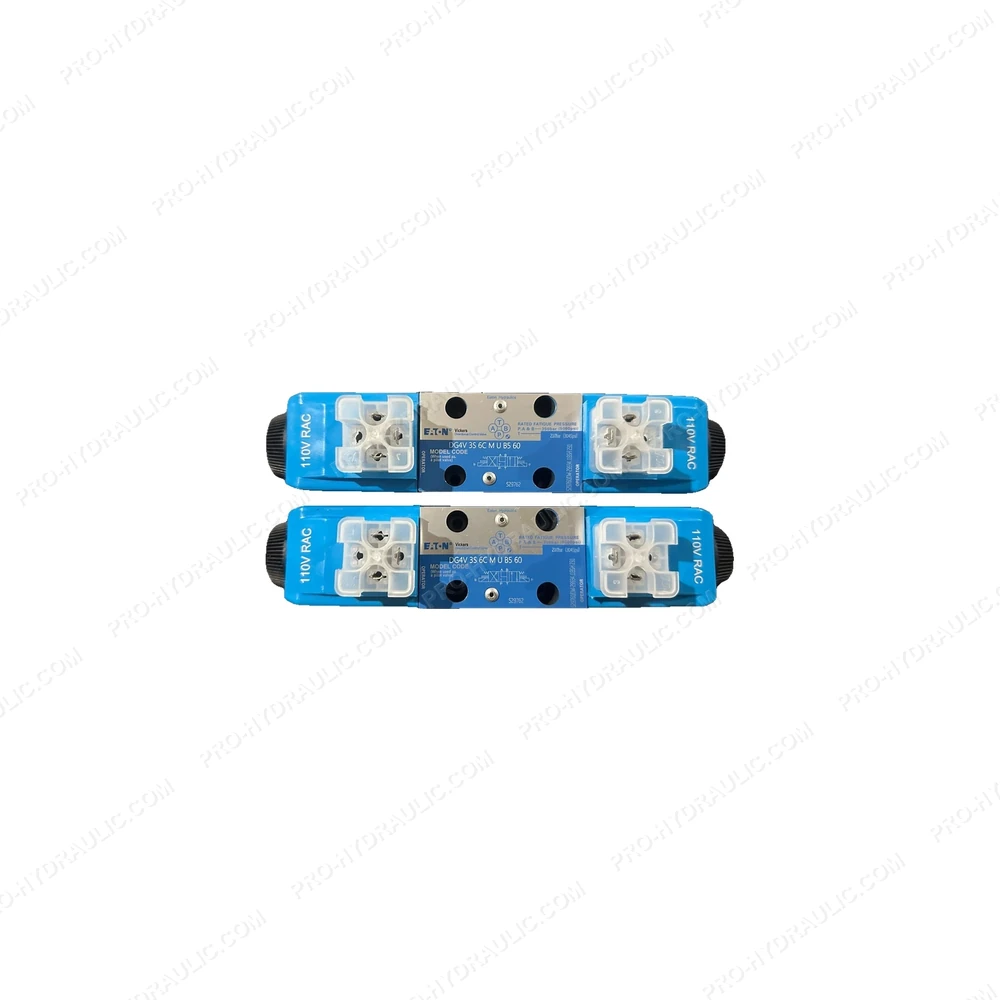

EATON DG4V 3S 6C M U B5 60

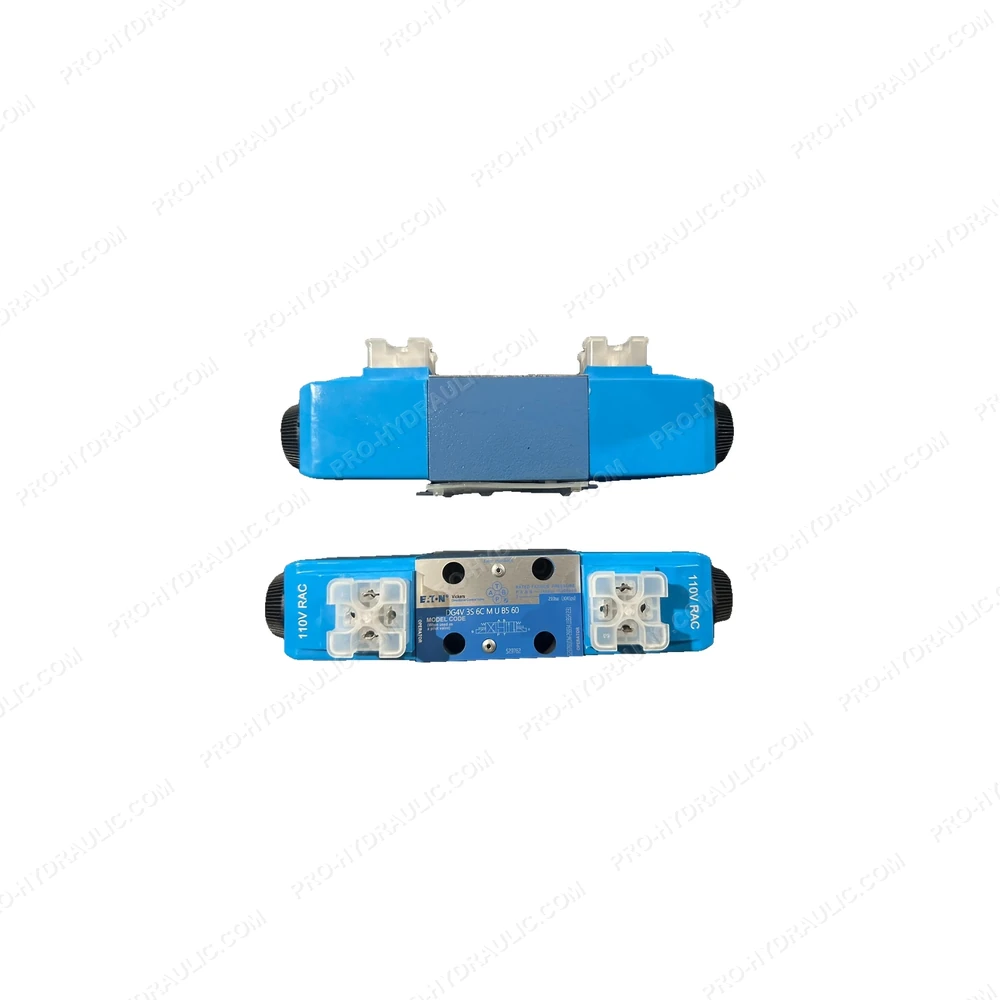

EATON DG4V 3S 6C M U B5 60

EATON DG4V 3S 6C M U B5 60 Solenoid Directional Control Valve

⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:

  • Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
  • Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
  • Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
  • Peace of Mind: Covered by our 12-Month Replacement Warranty.

Shop the genuine EATON DG4V 3S 6C M U B5 60 Solenoid Directional Valve. This US-made hydraulic component features a wet-pin AC solenoid design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
