The EATON DG4V 5M 2AJ M KUPS H6 EN194 is a heavy-duty industrial solenoid directional valve engineered for precise control of hydraulic fluid flow direction in demanding mobile and industrial applications. This Vickers DG4V series valve features a robust wet-pin armature design, high-flow capacity, and reliable spool positioning for consistent system operation.
EATON DG4V 5M 2AJ M KUPS H6 EN194 Technical Specifications
| Valve Type | Solenoid Operated Directional Control Valve |
| Series | Vickers DG4V |
| Mounting Standard | ISO 4401 / CETOP 5 / NFPA D05 |
| Spool Function | 5M (Closed Center, All Ports Blocked) |
| Actuation | Wet-Pin Solenoid, Single or Dual |
| Coil Rating | KUPS (High Performance, 110V AC / 120V AC 50/60 Hz) |
| Electrical Connection | H6 (DIN 43650 Connector, IP65) |
| Seal Material | Nitrile (Buna-N) / FKM Optional |
| Max Operating Pressure | 350 bar (5075 psi) at P, A, B Ports |
| Max Flow Rate | 80 L/min (21 gpm) Nominal |
| Fluid Temperature Range | -20°C to +70°C (-4°F to +158°F) |
| Compliance | EN194 (European Standard) |
Key Engineering Features
- Wet-pin solenoid design eliminates dynamic seals for extended service life and reduced leakage.
- High-force solenoid coils provide reliable shifting under high pressure and flow conditions.
- Precision-ground spool and sleeve assembly ensures minimal internal leakage and precise flow control.
- Standard ISO 4401 / CETOP 5 mounting pattern allows direct interchangeability with common manifold and subplate systems.
- H6 DIN connector with IP65 rating protects electrical connections in harsh industrial environments.
- EN194 compliance ensures compatibility with European machinery directives and safety standards.
Industrial Applications
- Mobile hydraulic systems: excavators, loaders, cranes, and agricultural equipment.
- Industrial presses, injection molding machines, and die-casting equipment.
- Material handling systems: lifts, conveyors, and automated guided vehicles.
- Marine and offshore hydraulic control circuits.
- Power units and central hydraulic systems requiring directional control of actuators.
For technical inquiries, dimensional drawings, or replacement support for EATON DG4V 5M 2AJ M KUPS H6 EN194, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

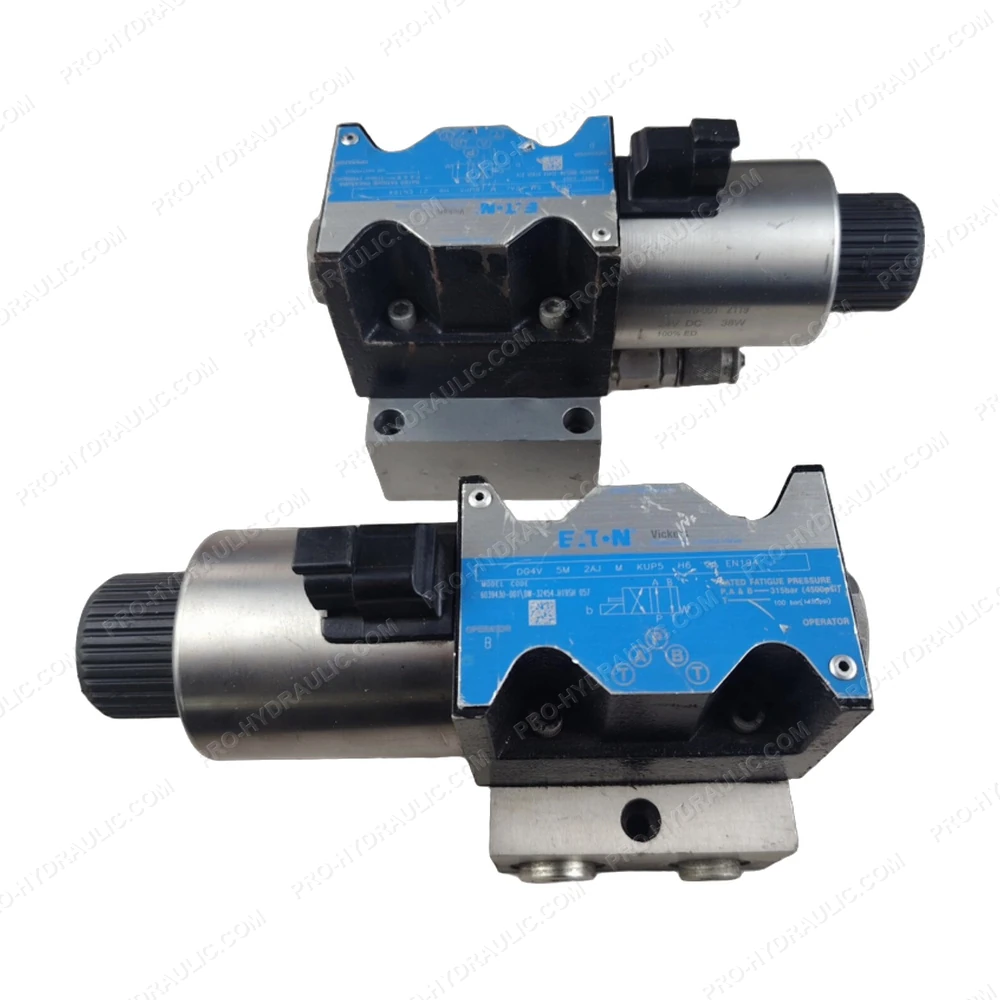

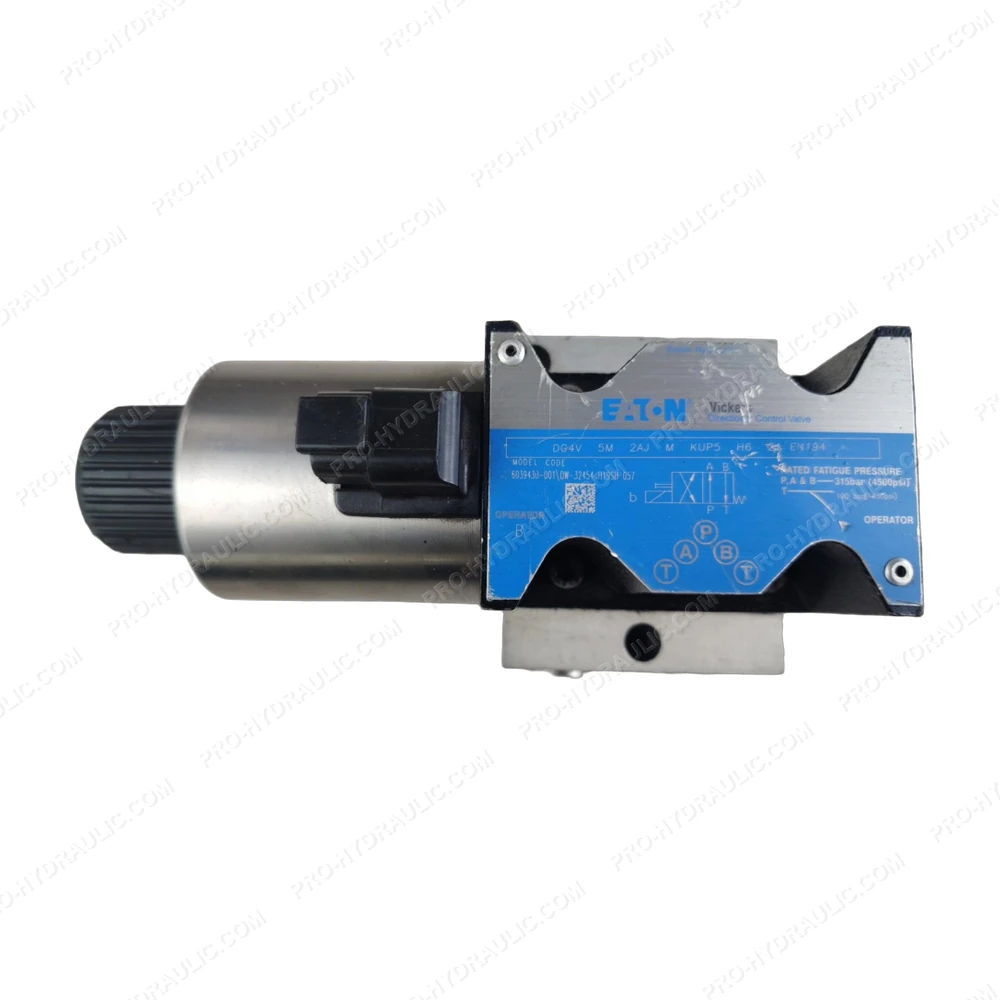

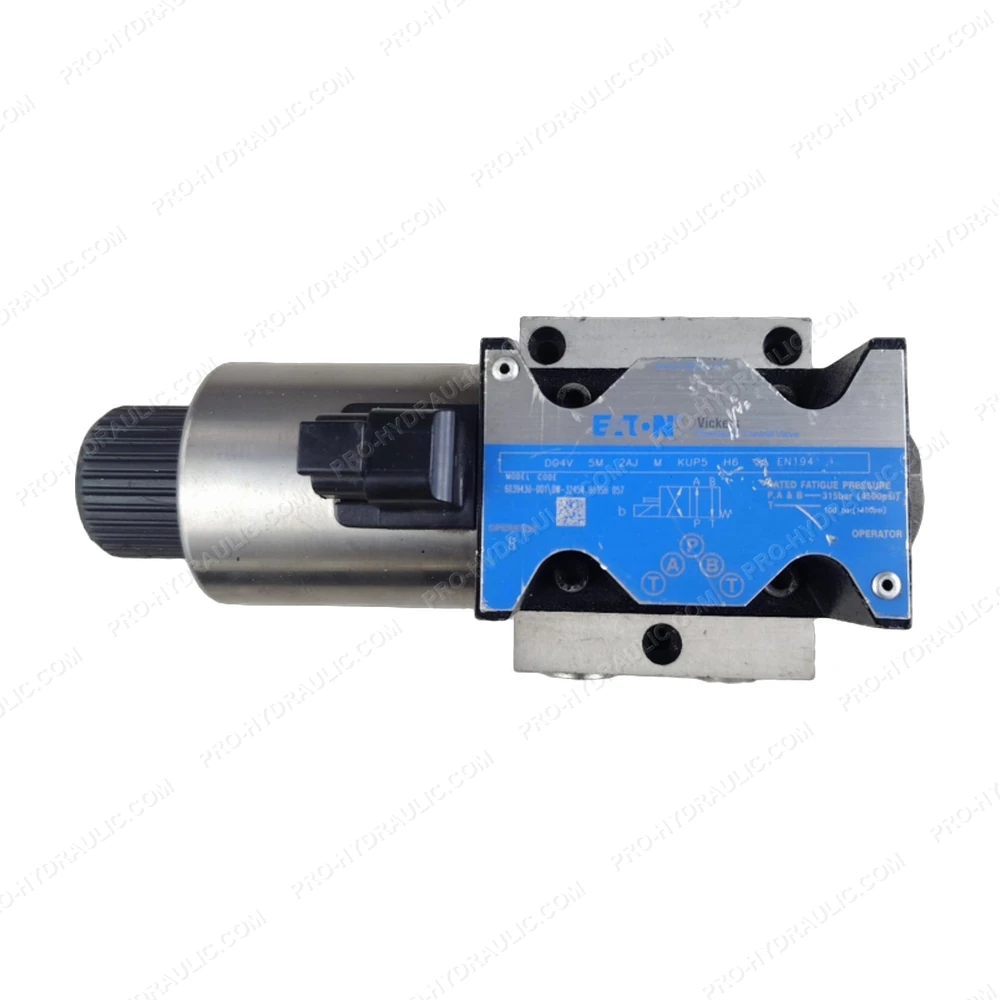

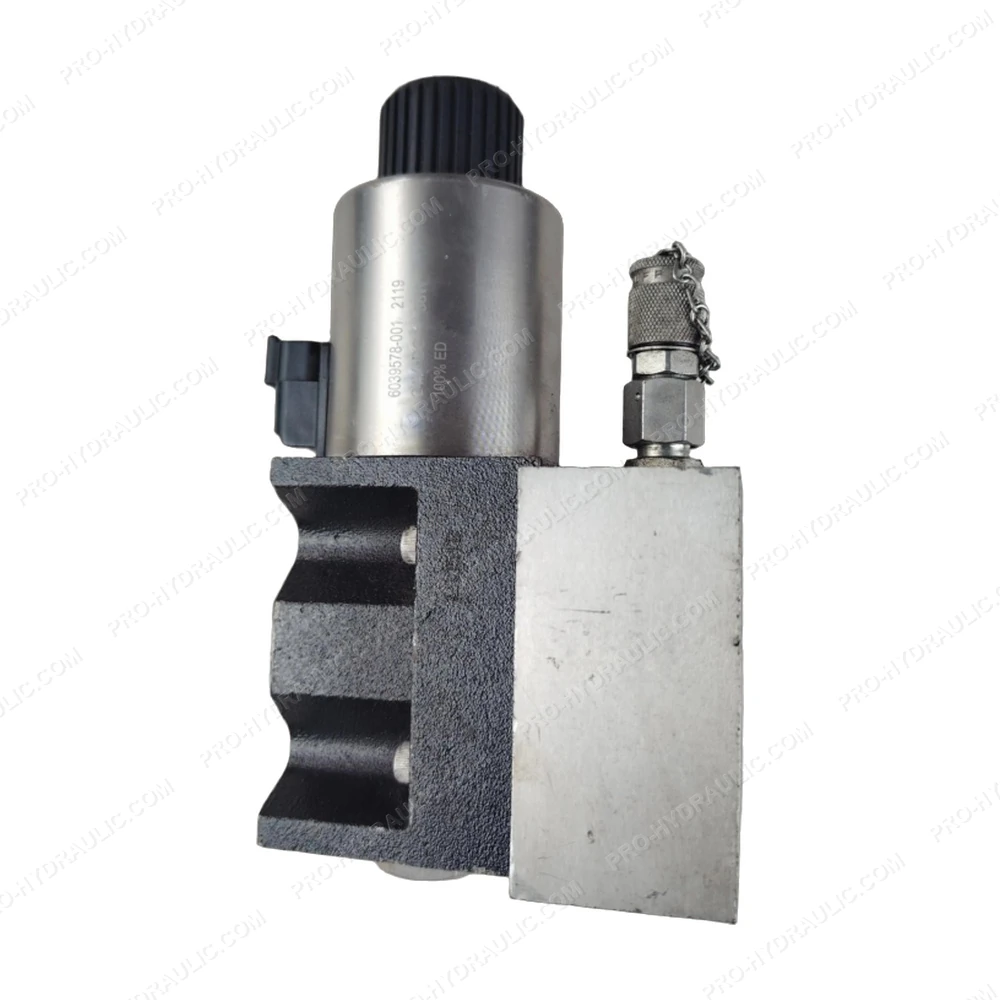

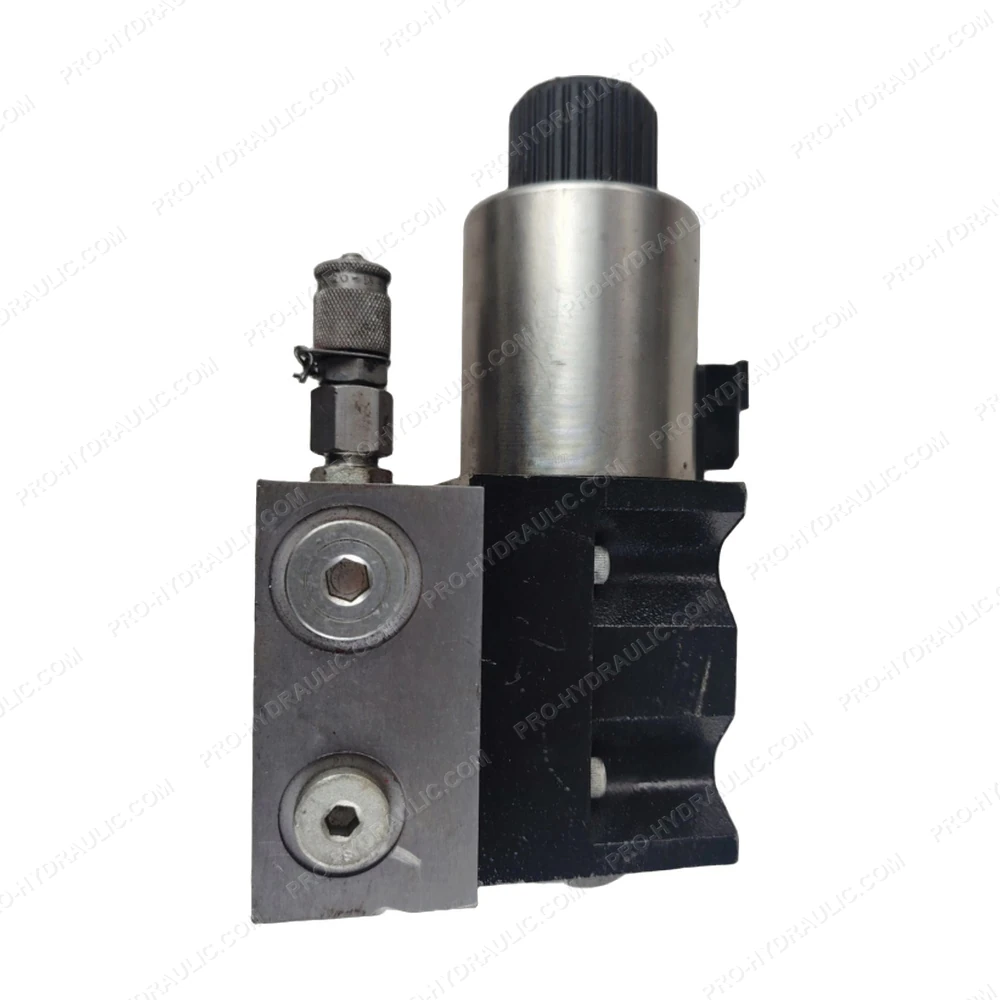

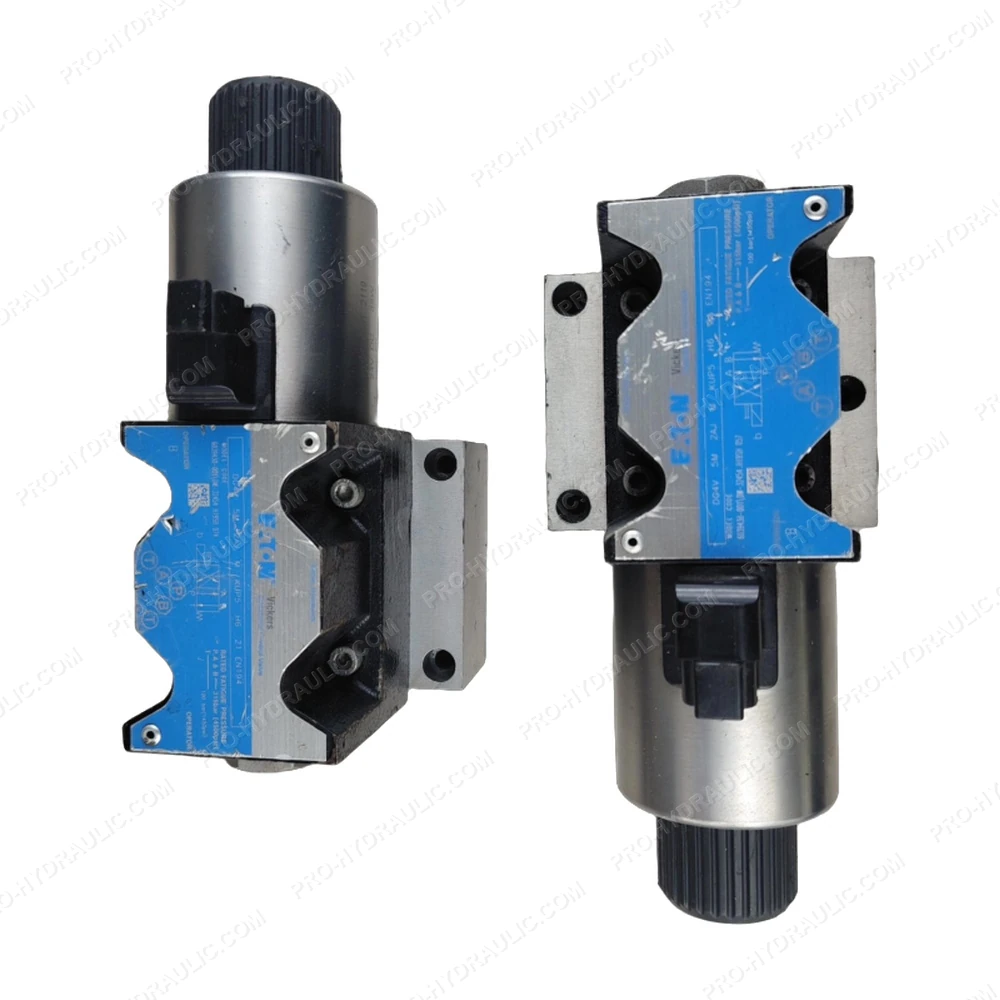

EATON DG4V 5M 2AJ M KUPS H6 EN194 Solenoid Directional Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the EATON DG4V 5M 2AJ M KUPS H6 EN194 Solenoid Directional Valve. This precision-engineered industrial component delivers reliable performance and tight fluid control for heavy-duty systems.
