Product Overview
The Eaton DPS2-16-F-F-0-160 is a high-performance proportional directional valve from the Vickers DPS2 series, engineered for precise electro-hydraulic control of flow direction and magnitude in demanding industrial hydraulic systems. Utilizing a robust spool-and-sleeve design with proportional solenoid actuation, this valve delivers infinitely variable flow control proportional to the electrical input signal, enabling smooth acceleration and deceleration of actuators without shock or pressure spikes. The DPS2-16-F-F-0-160 is a direct-operated, two-stage proportional directional valve with a nominal size of NG16 (CETOP 7 / ISO 4401-07), featuring a spring-centered spool with fail-safe return to neutral upon signal loss. With a rated flow capacity of 160 L/min and a maximum operating pressure of 315 bar, this valve is ideally suited for high-cycle industrial applications requiring accurate velocity and position control, including injection molding machines, hydraulic presses, and advanced motion control systems. As a genuine Vickers by Eaton component, it ensures drop-in compatibility with existing DPS2 series installations and is supported by Eaton’s global service network.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Proportional Directional Valve (Vickers Proportional Valve) |
| Model Designation | DPS2-16-F-F-0-160 |
| Series / Brand | Eaton Vickers DPS2 Series |
| Nominal Size | NG16 (CETOP 7 / ISO 4401-07) |
| Actuation Type | Proportional Solenoid, Direct-Operated, Spring-Centered |
| Rated Flow Capacity | 160 L/min (at Δp = 10 bar per land) |
| Maximum Operating Pressure | Up to 315 bar (P, A, B ports); 210 bar (T port) |
| Spool Configuration | 4-Way, 3-Position, Closed-Center (F-F spool type) |
| Hysteresis | ≤ 5% of rated signal |
| Response Time | Typically 30–60 ms (step response, depending on system) |
| Mounting & Connection | Subplate Mounting per ISO 4401-07 / CETOP 7; DIN 24V DC Solenoid</td |
Engineering Features & Advantages
- Precision Performance: The proportional directional valve (vickers proportional valve) delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Designed for dependable long-term operation in demanding industrial environments, with quality bearings and sealing systems ensuring extended maintenance intervals.
- Direct Fit Replacement: Precision-manufactured to original EATON specifications for direct replacement, minimising downtime and eliminating fitment issues.
- Rated Capability: Rated for pressure ratings up to 315 bar and flow rates up to 160 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
With a rated flow capacity of 160 L/min and a maximum operating pressure of 315 bar, this valve is ideally suited for high-cycle industrial applications requiring accurate velocity and position control, including injection molding machines, hydraulic presses, and advanced motion control systems.
PRODUCT IMAGES

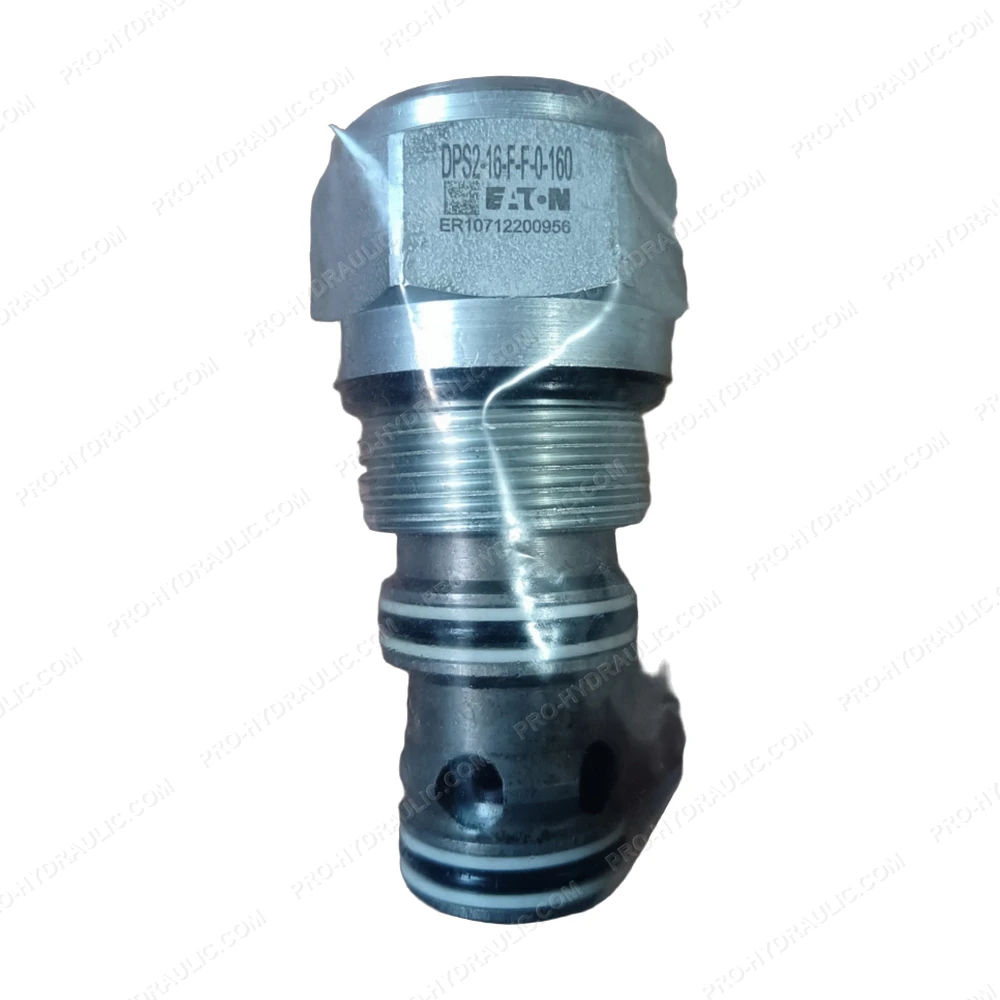

EATON DPS2-16-F-F-0-160 Proportional Directional Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine EATON DPS2-16-F-F-0-160 Proportional Directional Valve. This Germany-made 24V DC hydraulic component features a 4-way proportional design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
