The EATON FCV6-16-S-0-NV / SV2-20-C-0-00 is a heavy-duty industrial flow control and modular valve assembly engineered for precise regulation of hydraulic fluid in demanding circuits. This combination pairs a pressure-compensated flow control valve with a modular subplate, ensuring stable actuator speeds independent of load fluctuations.
EATON FCV6-16-S-0-NV / SV2-20-C-0-00 Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Flow Control & Modular Valve Assembly |
| Model Components | FCV6-16-S-0-NV (Flow Control) / SV2-20-C-0-00 (Modular Subplate) |
| Mounting Standard | CETOP / ISO 4401 (NG6 / NG10 compatible) |
| Flow Capacity | Up to 60 L/min (16 gpm) nominal |
| Max Operating Pressure | 350 bar (5075 psi) |
| Adjustment Type | Manual screw / knob (NV configuration) |
| Fluid Compatibility | Mineral oil, HFC, HFD, and synthetic fluids |
| Seal Material | NBR (standard), FKM optional |
| Operating Temperature | -20°C to +80°C (-4°F to +176°F) |
Key Engineering Features
- Pressure-compensated flow control maintains constant flow rate regardless of load or system pressure variations.
- Modular subplate design enables direct stacking with CETOP/ISO directional and pressure valves, reducing piping and leak points.
- Hardened, precision-ground spool and sleeve for minimal internal leakage and long service life.
- Manual adjustment with locknut for secure setting retention under vibration.
- Corrosion-resistant zinc-nickel plating on steel components for extended durability in harsh environments.
Industrial Applications
- Hydraulic power units for machine tools and injection molding machines.
- Mobile equipment: excavators, cranes, and agricultural machinery.
- Industrial automation: press systems, conveyor drives, and rotary actuators.
- Marine and offshore hydraulic control systems requiring reliable flow regulation.
- Test stands and simulation rigs where precise flow control is critical.
For technical inquiries, dimensional drawings, or replacement support for EATON FCV6-16-S-0-NV / SV2-20-C-0-00, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

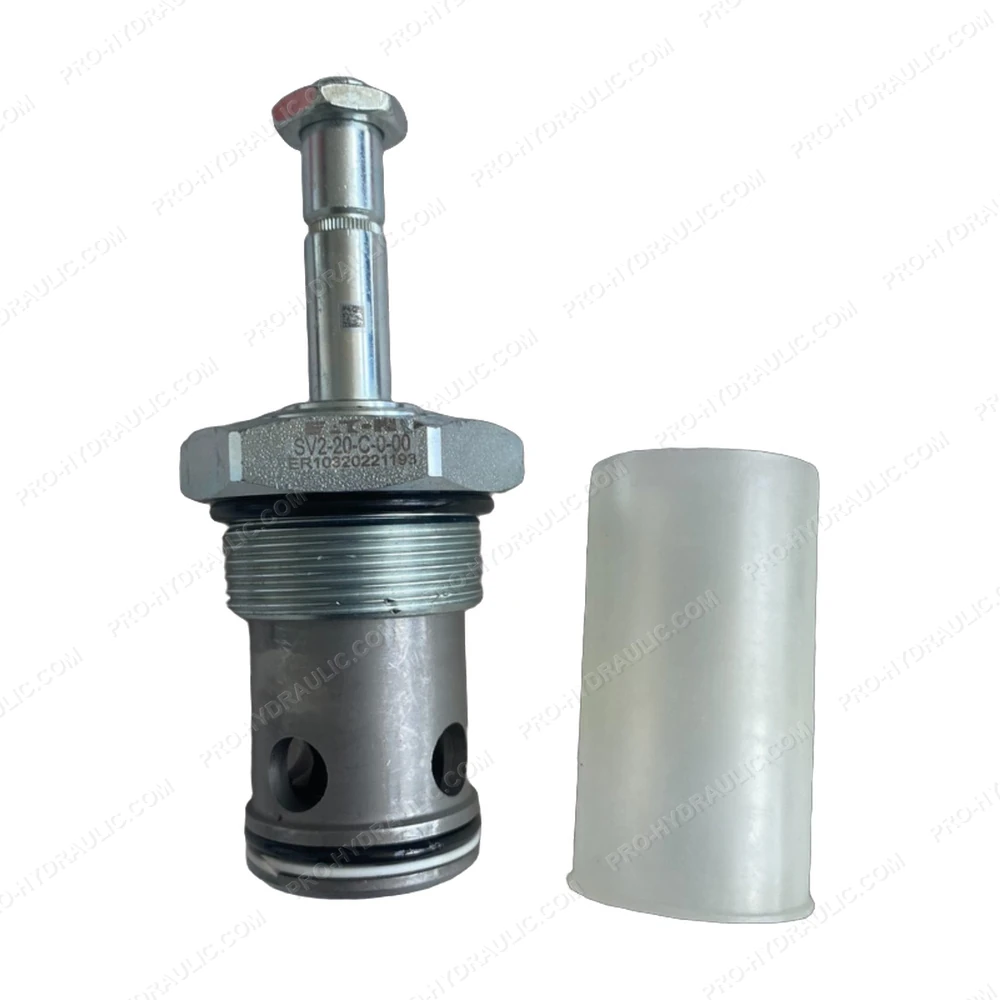

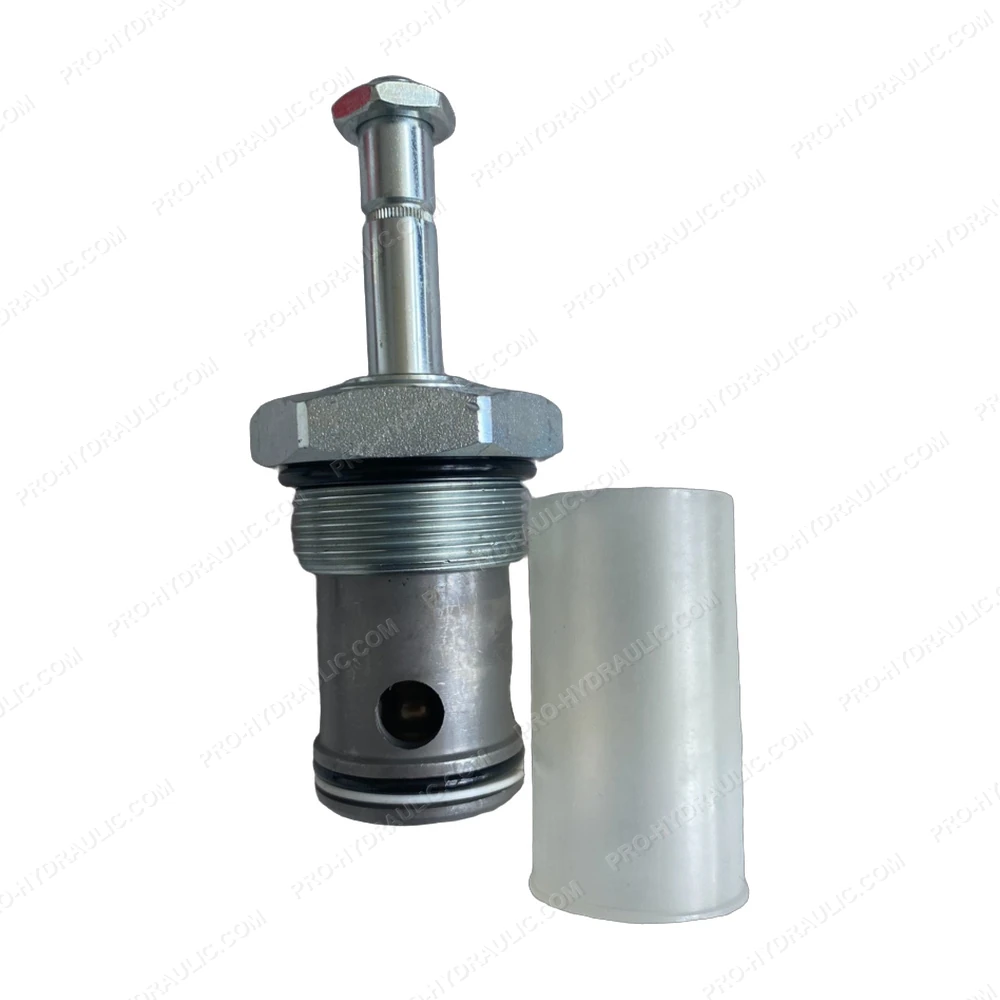

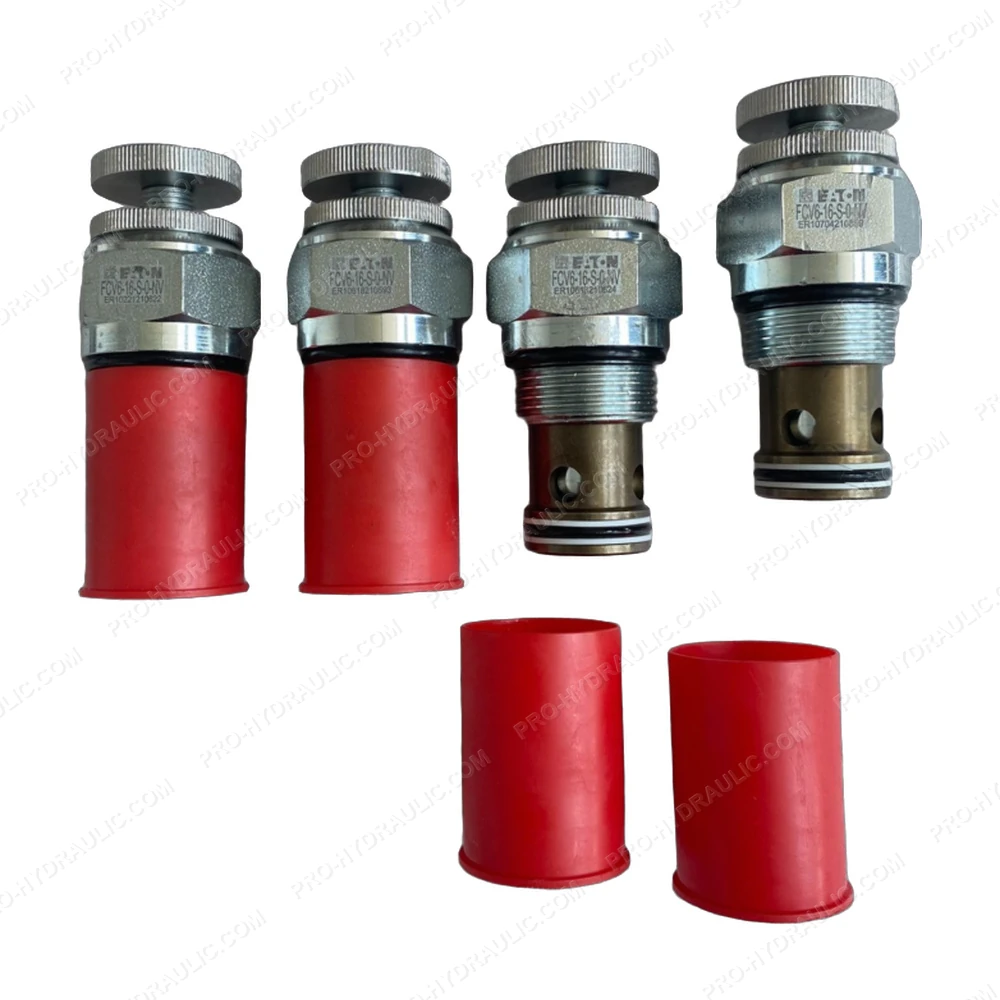

EATON FCV6-16-S-0-NV / SV2-20-C-0-00 Flow Control Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the EATON FCV6-16-S-0-NV / SV2-20-C-0-00 Flow Control Valve. This precision-engineered industrial component delivers reliable performance and tight fluid control for heavy-duty systems.
