The EATON LU1E05E1K1HE677-1408 is a heavy-duty industrial hydraulic power unit engineered for reliable fluid power supply in demanding hydraulic circuits. This standard power unit integrates a high-efficiency pump, electric motor, and reservoir into a compact assembly, delivering consistent flow and pressure for continuous industrial operation.
EATON LU1E05E1K1HE677-1408 Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Standard Hydraulic Power Unit |
| Brand | EATON |
| Model | LU1E05E1K1HE677-1408 |
| Pump Type | Internal Gear Pump |
| Displacement | 0.5 in³/rev (8.2 cm³/rev) |
| Motor Power | 1.5 kW (2 HP) |
| Voltage | 230/460 VAC, 3-Phase, 60 Hz |
| Reservoir Capacity | 10 Gallons (37.9 Liters) |
| Maximum Pressure | 3000 PSI (207 Bar) |
| Mounting | Horizontal, Foot Mount |
| Port Connections | SAE Straight Thread |
Key Engineering Features
- Integrated gear pump and AC motor assembly for compact installation
- High volumetric efficiency and low noise operation
- Durable cast iron pump construction for extended service life
- Steel reservoir with sight glass and filler/breather cap
- Internal relief valve protection for system safety
- Compatible with mineral-based hydraulic fluids
Industrial Applications
- Machine tool hydraulic systems
- Presses and forming equipment
- Material handling and lifting systems
- Industrial automation power packs
- Test stands and hydraulic power sources
For technical inquiries, dimensional drawings, or replacement support for EATON LU1E05E1K1HE677-1408, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

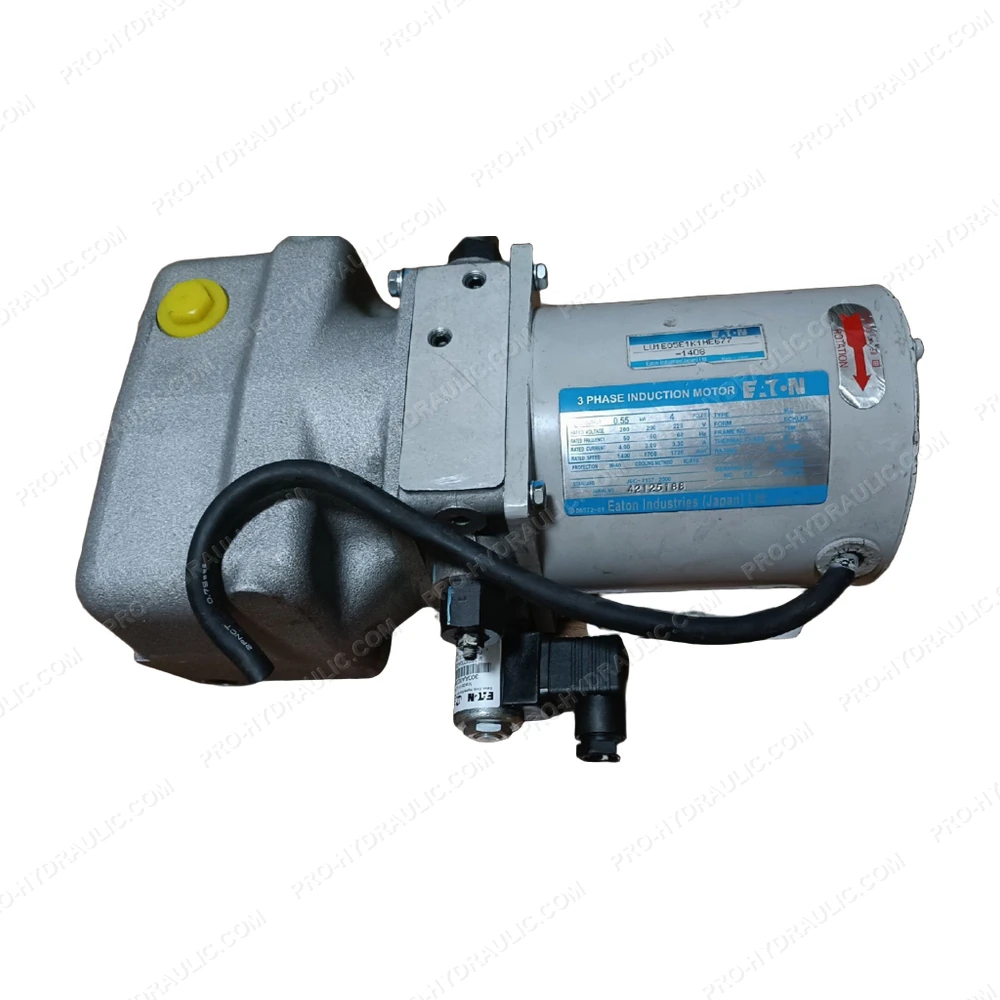

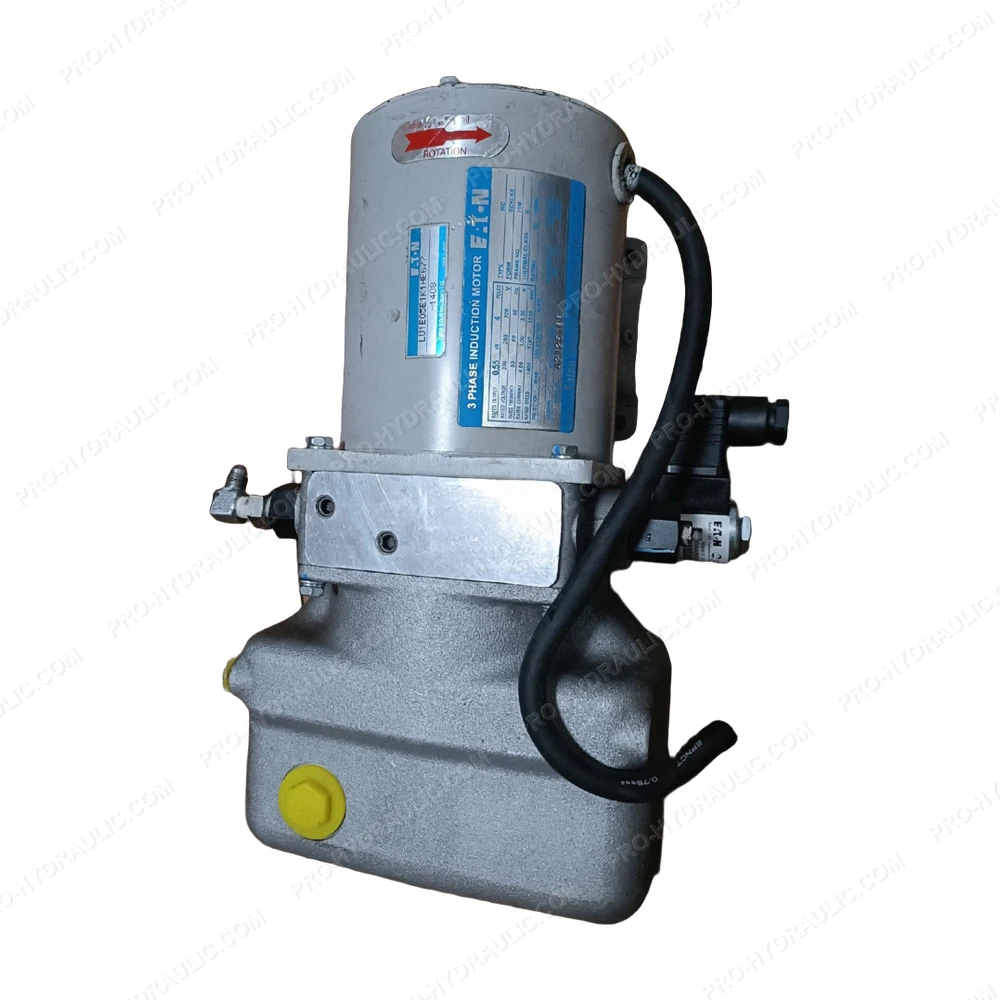

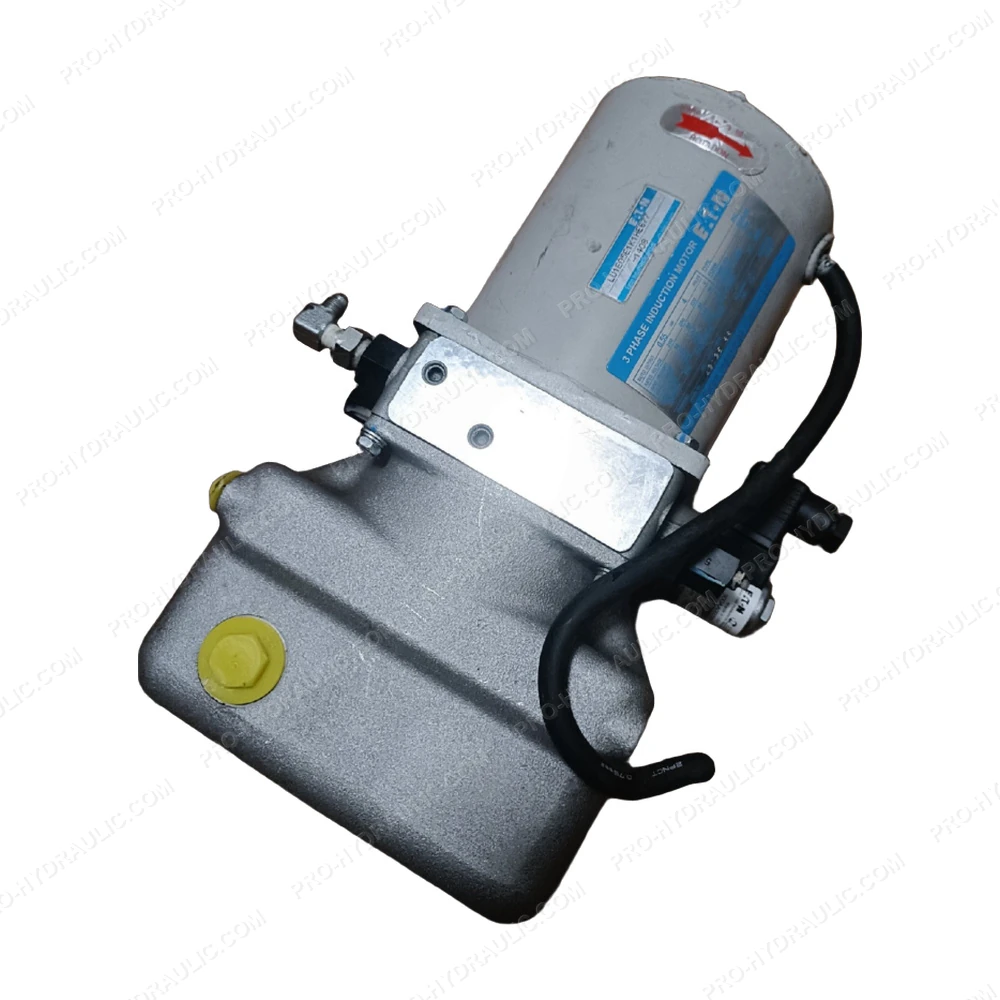

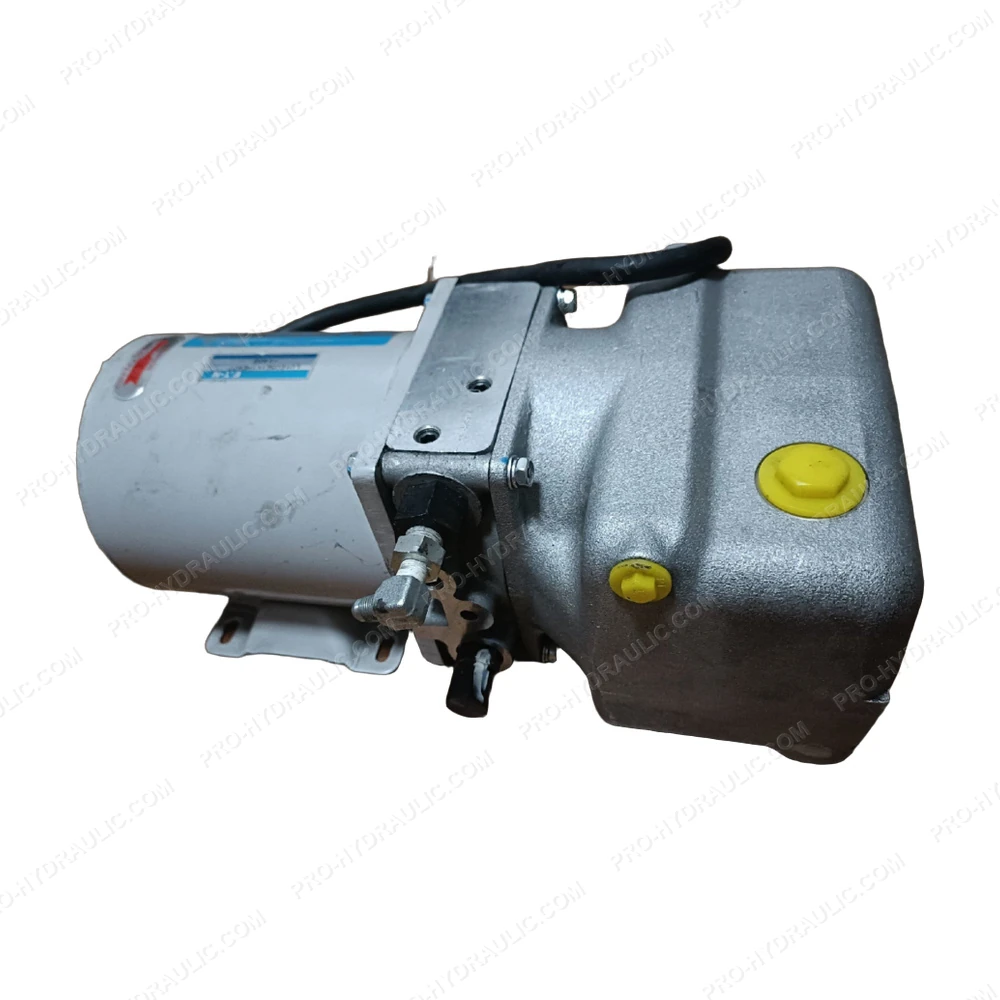

EATON LU1E05E1K1HE677-1408 Hydraulic Power Unit
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the EATON LU1E05E1K1HE677-1408 Hydraulic Power Unit. This precision-engineered industrial component delivers reliable fluid control for heavy-duty systems.
