Product Overview
The Eaton MCSCH230AW0B0010 (also referenced as 300AA00381A) is a high-performance solenoid-operated directional control valve engineered for precise hydraulic circuit switching in demanding industrial environments. Part of the Vickers MCS series, this valve utilizes a wet-armature solenoid design to shift a precision-machined spool within a hardened bore, directing hydraulic flow between ports with minimal internal leakage and fast response. Its robust construction and industry-standard mounting interface make it a direct-fit replacement for OEM Vickers directional valve installations, ensuring reliable actuation in continuous-duty hydraulic power and control systems.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Directional Control Valve |
| Model Designation | MCSCH230AW0B0010 / 300AA00381A |
| Operating Pressure | Standard Industrial Grade (Up to rated bar) |
| Mounting & Connection | Standard ISO / Manufacturer Interface |
Engineering Features & Advantages
- Precision Performance: Precision-ground spool and hardened sleeve deliver accurate flow metering, low internal leakage, and consistent directional control across the full pressure range.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with a wet-armature solenoid that withstands high duty cycles and contaminated environments.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM Vickers standards, allowing drop-in replacement without modification to manifolds or piping.
Typical Industrial Applications
This solenoid directional control valve is widely deployed in plastic injection molding machines, metallurgical presses, CNC machine tools, and construction and marine hydraulic systems where reliable directional flow control is critical to machine sequencing and safety.
PRODUCT IMAGES

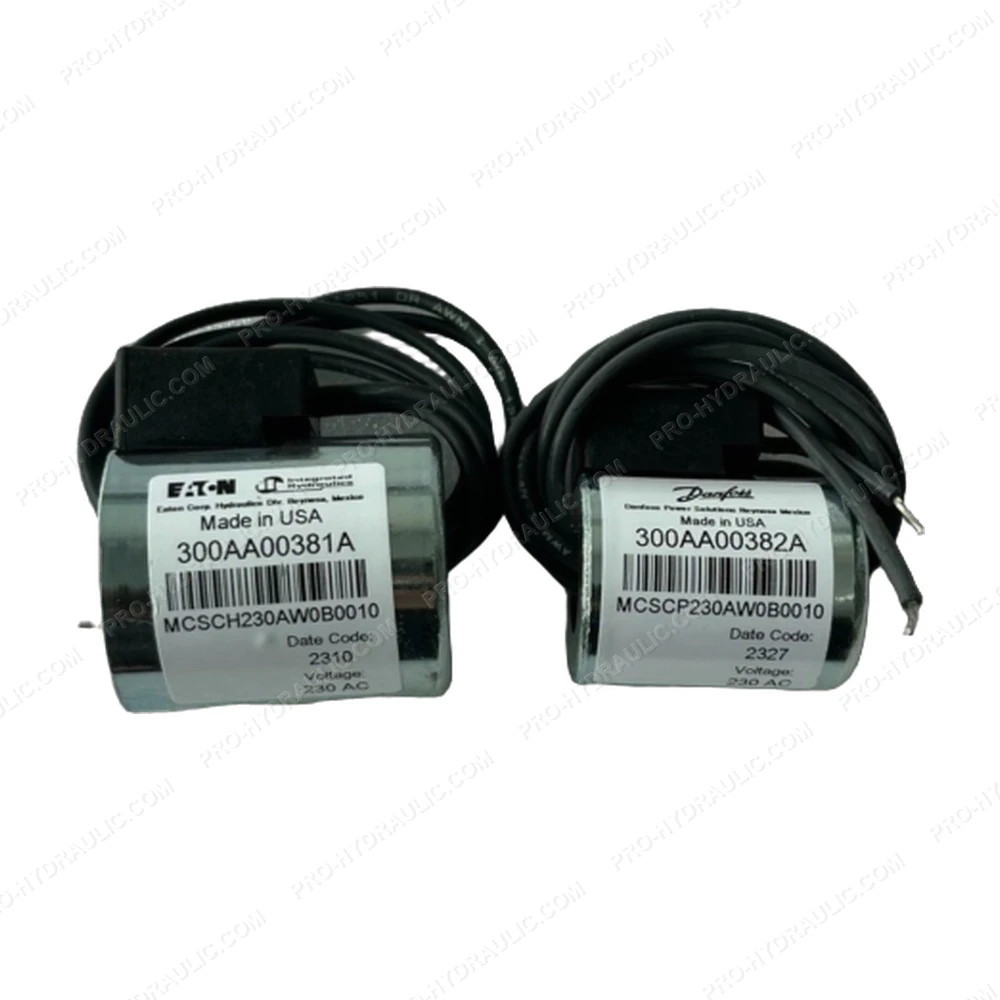

EATON MCSCH230AW0B0010 / 300AA00381A Solenoid Directional Control Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Eaton MCSCH230AW0B0010 / 300AA00381A Solenoid Directional Valve. This US-made 230V AC hydraulic component features a 4-way 3-position design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
