Product Overview
The Eaton MCSCJ024DG000010 is a high-performance solenoid-operated directional control valve from the Vickers by Eaton series, engineered to direct and manage hydraulic fluid flow in demanding industrial circuits. Utilizing a robust wet-armature solenoid design and a precision-machined spool, this valve provides reliable switching, holding, and flow-routing functions within complex hydraulic power units. Its direct-acting configuration ensures consistent response across the full rated pressure range, making it a critical control component for machine sequencing, actuator extension/retraction, and safety interlock circuits in heavy-duty industrial systems.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Directional Control Valve (Vickers Series) |
| Model Designation | MCSCJ024DG000010 |
| Operating Pressure | Standard Industrial Grade (Up to 350 bar rated) |
| Mounting & Connection | Standard ISO / Vickers Subplate Interface (CETOP / NFPA compatible) |
| Actuation Type | Solenoid Actuated, Spring Return / Detent Options |
| Spool Configuration | Precision-Machined Spool for Directional Flow Control |
| Solenoid Voltage | 24V DC (Standard Industrial Coil) |
| Flow Capacity | Optimized for High-Flow Industrial Circuits (Up to 80 L/min nominal) |
Engineering Features & Advantages
- Precision Spool Metering: The hardened, precision-ground spool delivers accurate flow direction and minimal internal leakage, ensuring consistent actuator control and repeatable machine cycles.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with a robust wet-armature solenoid that resists contamination and extends coil life in high-cycle applications.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Vickers OEM standards, allowing drop-in replacement without modification to existing manifolds or subplates.
- Fast Solenoid Response: High-force solenoid design provides rapid shifting and reliable holding, critical for safety interlocks and high-speed sequencing operations.
- Contamination Tolerance: Designed with generous internal clearances and durable sealing to maintain performance in real-world hydraulic systems with standard filtration.
Typical Industrial Applications
This Vickers solenoid directional control valve is widely deployed in plastic injection molding machines for mold open/close and injection sequencing, metallurgical presses for ram advance and return control, construction and marine hydraulic systems for boom and steering circuits, and CNC machine tools for tool clamping and pallet changing. Its robust construction and precise spool control make it equally suited for automated assembly lines, hydraulic power units, and any application requiring reliable directional flow management under continuous industrial duty.
PRODUCT IMAGES

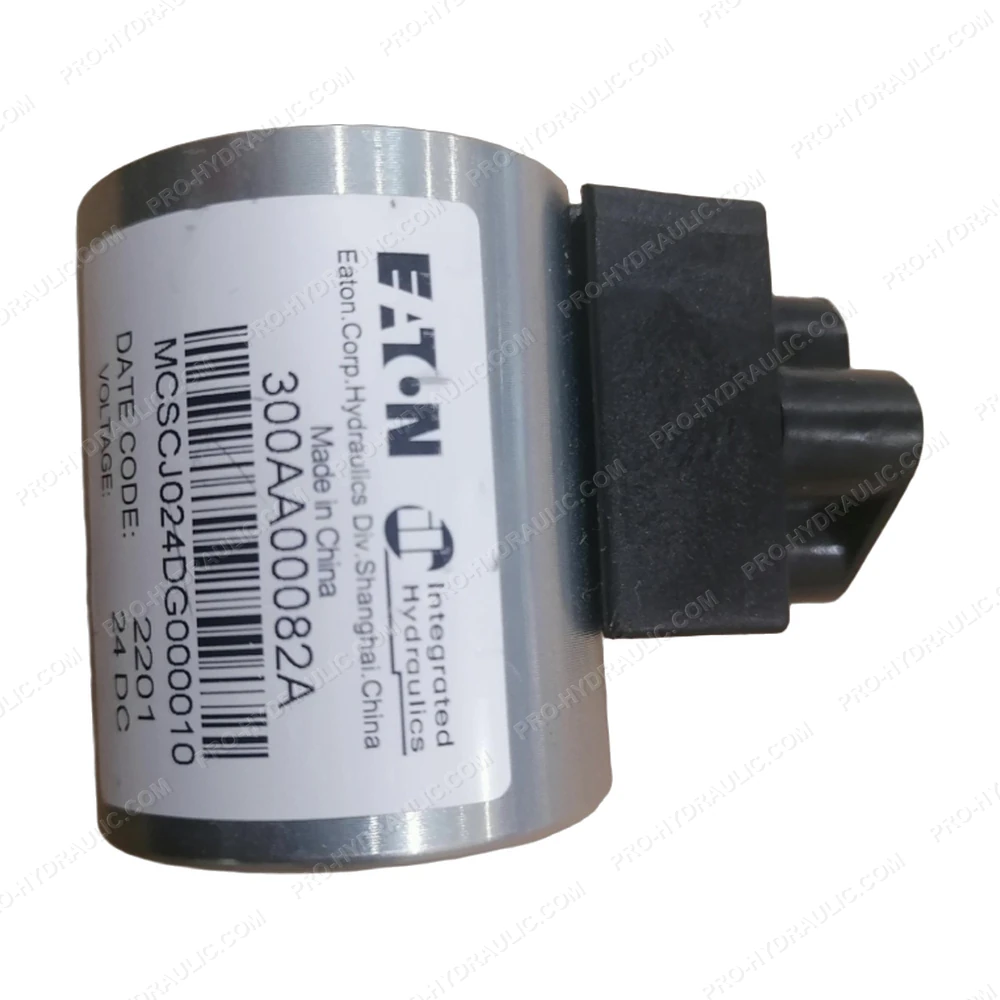

EATON MCSCJ024DG000010 Solenoid Directional Control Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine EATON MCSCJ024DG000010 Solenoid Directional Valve. This USA-made 24V DC hydraulic component features a 4-way 3-position design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
