Product Overview
The Eaton MCSCJ024DW0B0010 (300AA00096A) is a high-performance solenoid-operated directional control valve engineered for precise flow direction and load control in demanding industrial hydraulic circuits. Built on the proven Vickers valve platform, this unit utilizes a wet-armature solenoid design that shifts a hardened, precision-ground spool within a close-tolerance bore to route pressurized fluid between system ports. The valve serves as the central command element in a hydraulic power circuit, directing pump output to actuators, holding loads, and returning flow to tank with minimal internal leakage. Its robust construction and repeatable spool positioning make it suitable for continuous-duty applications where reliable directional control and long service life are essential.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Directional Control Valve (Vickers Series) |
| Model Designation | MCSCJ024DW0B0010 / 300AA00096A |
| Manufacturer | Eaton (Vickers) |
| Actuation Type | Solenoid Pilot / Wet Armature Solenoid |
| Operating Pressure | Standard Industrial Grade (Up to rated bar per Vickers DG4V platform) |
| Mounting & Connection | Standard ISO / Vickers Subplate Interface (NFPA / ISO 4401) |
| Spool Configuration | Spring-Centered / Spring-Offset Directional Spool |
| Electrical Rating | 24 VDC Solenoid Coil (per model code) |
Engineering Features & Advantages
- Precision Spool Metering: Hardened, precision-ground spool and matched bore deliver accurate flow direction control with minimal internal leakage and consistent shift response.
- Wet-Armature Solenoid Design: Solenoid operates in hydraulic fluid for efficient heat dissipation, reduced wear, and quiet, reliable actuation over extended duty cycles.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, including high cycle rates, elevated pressures, and contaminated fluid environments.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM Vickers solenoid directional valve standards, ensuring drop-in installation without modification.
- Fast Response & Repeatability: Optimized spool dynamics provide rapid shift times and repeatable positioning for precise actuator control.
Typical Industrial Applications
The Eaton MCSCJ024DW0B0010 directional control valve is widely deployed in heavy industrial hydraulic systems, including plastic injection molding machines, metallurgical presses, CNC machine tools, and construction and marine hydraulic equipment. It is equally suited to mobile hydraulic circuits, material handling systems, and general industrial power units where dependable solenoid-actuated directional control is required.
PRODUCT IMAGES

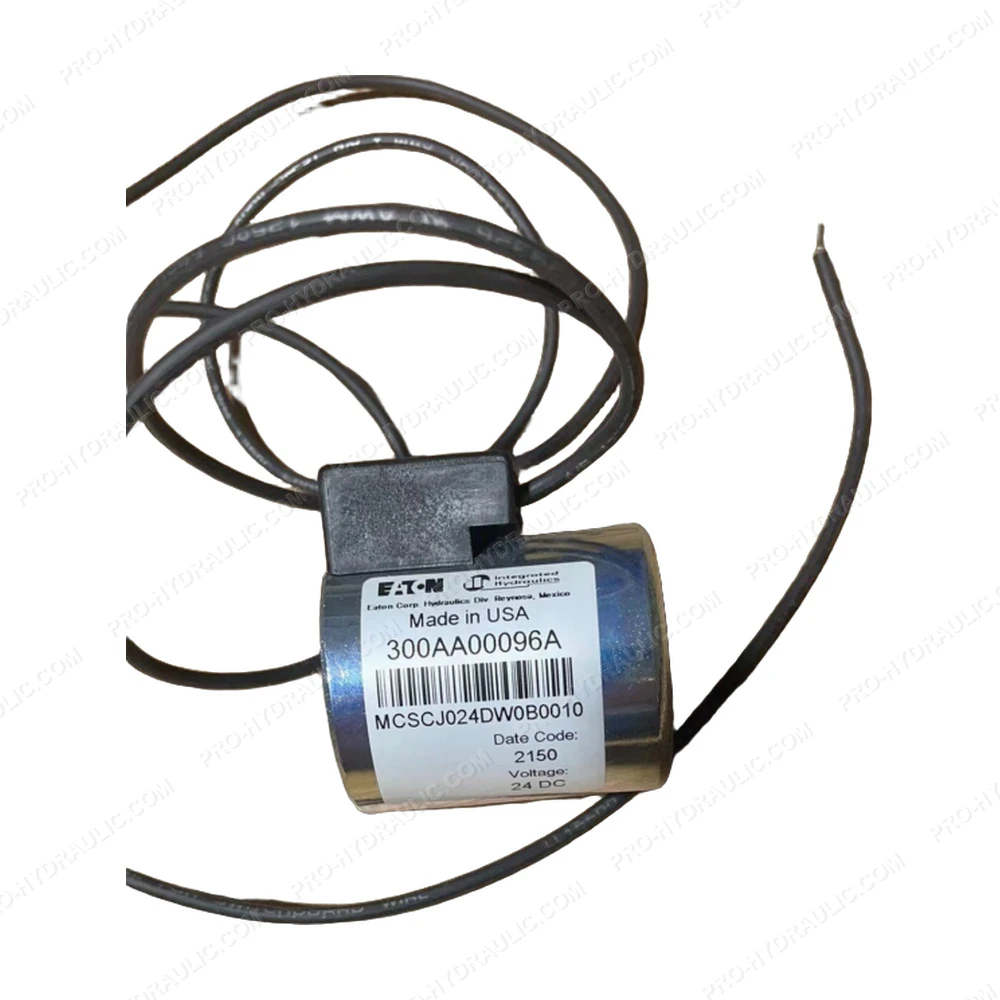

EATON MCSCJ024DW0B0010 / 300AA00096A Solenoid Directional Control Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Eaton MCSCJ024DW0B0010 / 300AA00096A Solenoid Directional Valve. This USA-made 24V DC hydraulic component features a 4-way 3-position design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
