Product Overview
The Eaton MCSCP012DN00010 (also referenced as 300AA00061A) is a high-performance solenoid-operated directional control valve from the Vickers by Eaton hydraulic valve family. Engineered around a precision-machined spool and sleeve assembly, this valve directs and controls the start, stop, and direction of hydraulic fluid flow within a circuit by shifting an internal spool via an electrical solenoid actuator. The “DN” designation indicates a spring-centered, solenoid-actuated configuration with a standard 12 VDC coil, providing reliable two-position or three-position directional control for demanding industrial hydraulic systems. As a direct-mount, subplate-style valve, it serves as a critical control element in circuits requiring precise flow routing, load holding, and rapid response to electrical command signals.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Directional Control Valve (Vickers Series) |
| Model Designation | MCSCP012DN00010 / 300AA00061A |
| Actuation Type | Solenoid Actuated, Spring Centered / Spring Offset |
| Coil Voltage | 12 VDC (DN Code) |
| Operating Pressure | Up to 350 bar (5,000 psi) rated working pressure |
| Flow Capacity | Up to 40 L/min (10.5 GPM) nominal |
| Mounting & Connection | Subplate Mounting, ISO 4401 / CETOP 3 (NG6) Interface |
| Spool Configuration | Standard Vickers Spool Type (All Ports Blocked in Center) |
| Seal Material | Nitrile (Buna-N) / FKM Optional |
| Electrical Connection | DIN 43650 Standard Connector |
Engineering Features & Advantages
- Precision Spool & Sleeve Design: The hardened, precision-ground spool and sleeve assembly ensures minimal internal leakage, precise metering characteristics, and consistent shift performance over millions of cycles.
- High-Pressure Capability: Rated for continuous operation up to 350 bar, making it suitable for high-pressure industrial circuits without compromising response time or sealing integrity.
- Fast Solenoid Response: The 12 VDC solenoid actuator delivers rapid, repeatable spool shifting for precise directional control in automated and semi-automated hydraulic systems.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and wear-resistant internal components for extended service life.
- Direct Fit Replacement: Precision-manufactured to original EATON specifications for direct replacement, minimising downtime and eliminating fitment issues.
Typical Industrial Applications
The “DN” designation indicates a spring-centered, solenoid-actuated configuration with a standard 12 VDC coil, providing reliable two-position or three-position directional control for demanding industrial hydraulic systems.
PRODUCT IMAGES

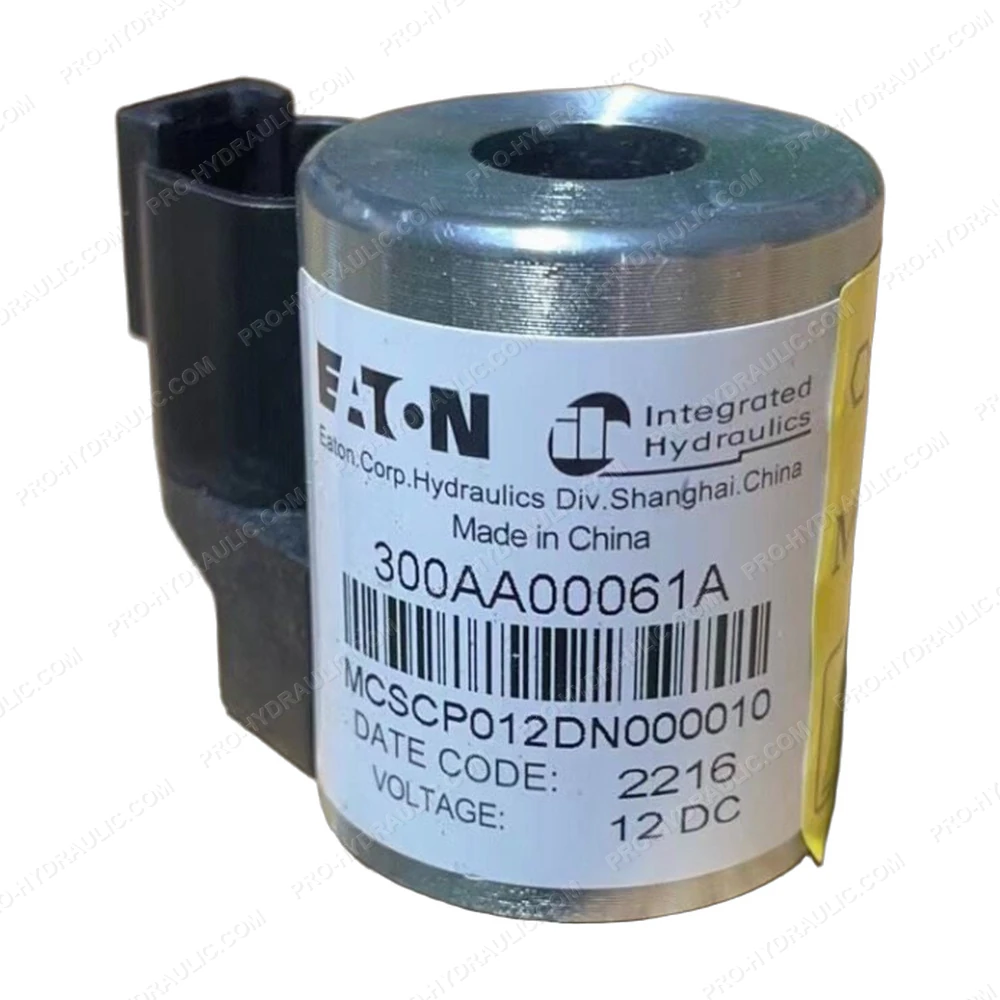

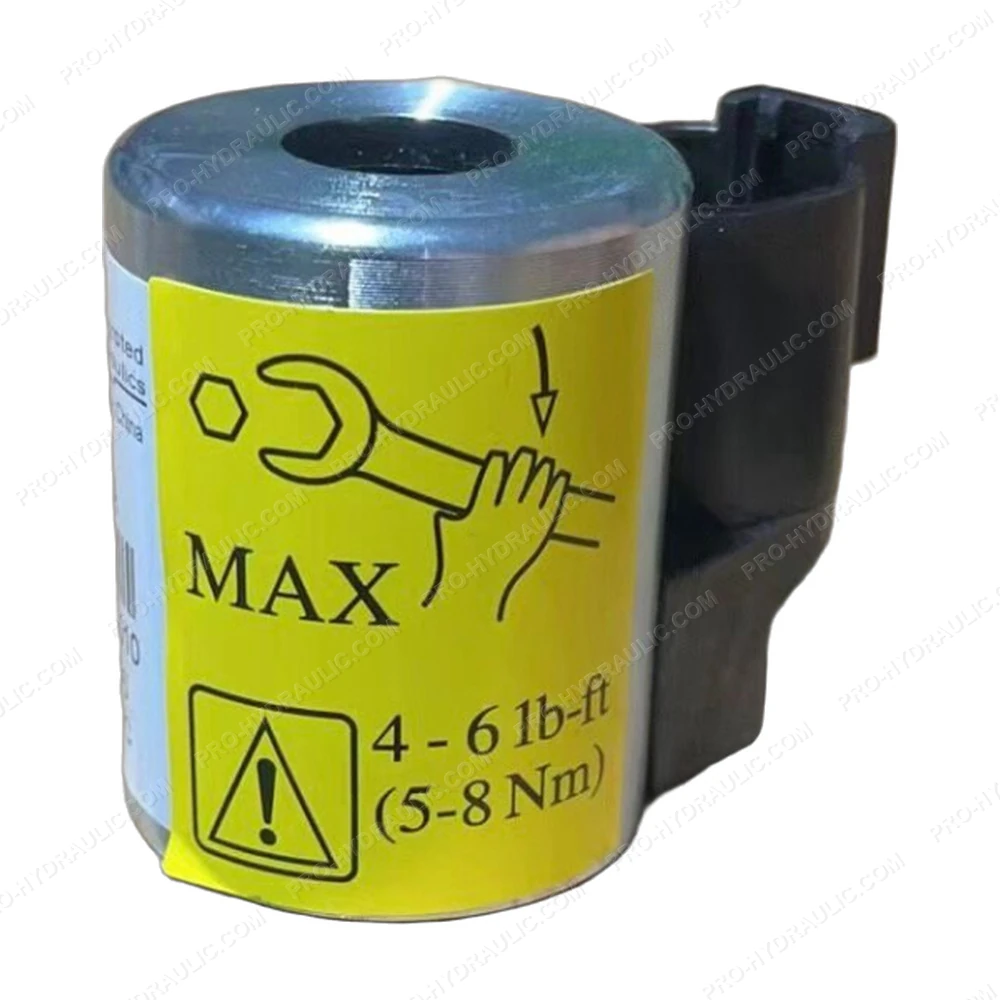

EATON MCSCP012DN00010 / 300AA00061A Solenoid Directional Control Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine EATON MCSCP012DN00010 / 300AA00061A Solenoid Directional Valve. This Germany-made 12V DC hydraulic component features a 4-way 3-position design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
