Product Overview
The Eaton PRV12-12-S-0-50 (OEM reference 02-170772) is a high-performance proportional pressure relief valve engineered within the Vickers proportional valve family. This pilot-operated, solenoid-controlled valve provides infinitely variable pressure regulation proportional to the electrical command signal supplied to its proportional solenoid. Unlike fixed-setting relief valves, the PRV12 series enables precise, dynamic pressure control across the full operating range, making it an essential component in electrohydraulic systems requiring smooth pressure ramp-up, controlled decompression, and programmable pressure profiles. The valve is designed for direct integration into industrial power units and manifold blocks, delivering reliable system overload protection while simultaneously serving as an active pressure-control element in closed-loop and open-loop hydraulic circuits.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Proportional Pressure Relief Valve (Pilot-Operated, Solenoid Controlled) |
| Model Designation | PRV12-12-S-0-50 / 02-170772 |
| Manufacturer | Eaton (Vickers) |
| Series / Size | PRV12 Series — NG12 / CETOP 5 / ISO 5781 Size 12 Interface |
| Actuation Type | Proportional Solenoid with Integrated Pressure Feedback |
| Operating Pressure | Standard Industrial Grade (Up to 315 bar rated) |
| Pressure Adjustment Range | Proportional, 0 to rated pressure via analog command signal |
| Mounting & Connection | Subplate Mounting — ISO 5781 / CETOP 5 / NG12 Standard Interface |
| Electrical Command | Analog Input (0–10 V DC or 4–20 mA via amplifier card) |
| Solenoid Rating | 24 V DC Proportional Solenoid (standard industrial) |
| Hydraulic Fluid | Mineral-based hydraulic oil per ISO 11158 / DIN 51524 |
| Fluid Temperature Range | -20 °C to +70 °C (standard seals) |
Engineering Features & Advantages
- Precision Performance: The proportional pressure relief valve (pilot-operated, solenoid controlled) delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Designed for dependable long-term operation in demanding industrial environments, with quality bearings and sealing systems ensuring extended maintenance intervals.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Eaton OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
- Rated Capability: Rated for pressure ratings up to 315 bar, supporting stable operation across the full working range.
Typical Industrial Applications
The valve is designed for direct integration into industrial power units and manifold blocks, delivering reliable system overload protection while simultaneously serving as an active pressure-control element in closed-loop and open-loop hydraulic circuits.
PRODUCT IMAGES

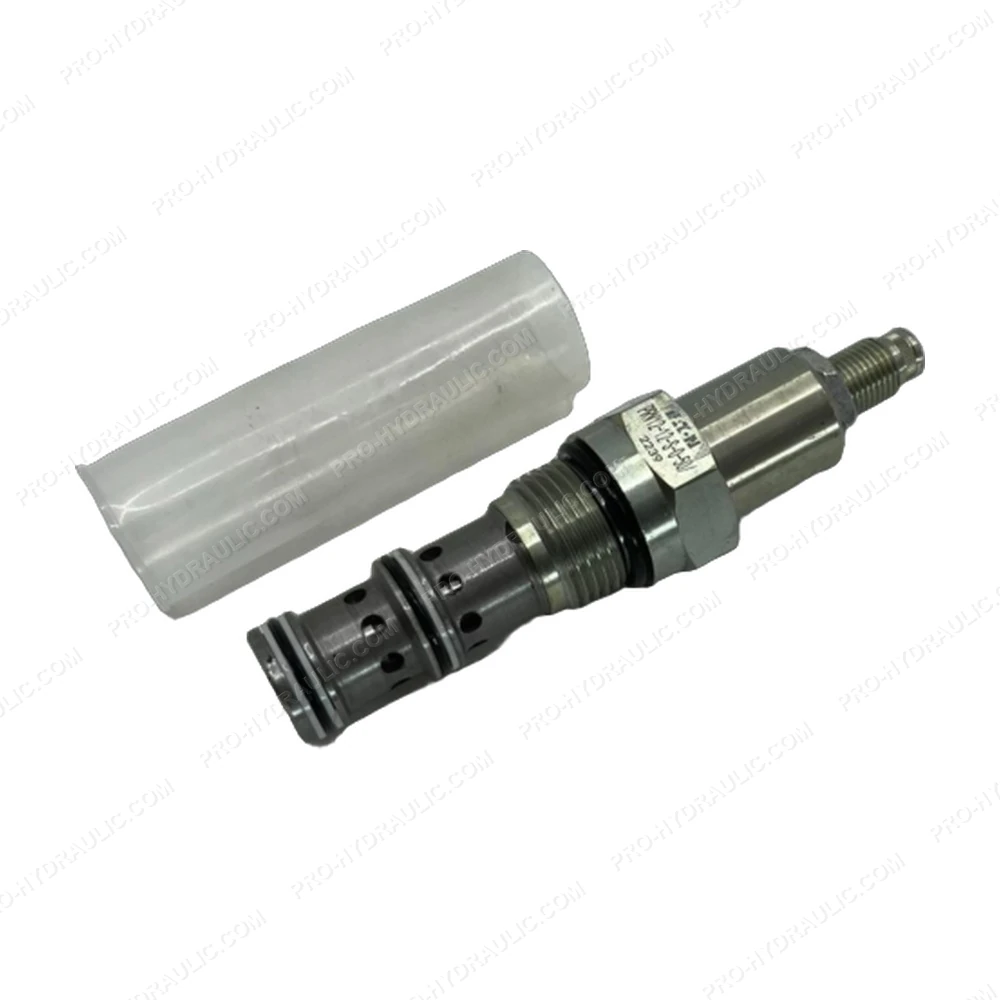

Eaton PRV12-12-S-0-50 / 02-170772 Proportional Pressure Relief Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Eaton PRV12-12-S-0-50 / 02-170772 Proportional Pressure Relief Valve. This US-made 12 VDC hydraulic component features a direct-acting proportional design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
