Product Overview
The EATON RV3-10-S-0-36 (part number 565568) is a direct-acting, spring-loaded pressure relief valve from the Eaton RV3 series, engineered to protect hydraulic circuits from overpressure conditions by diverting excess flow back to tank once the preset cracking pressure is reached. As a pressure control valve, it functions purely as a limiting and safety device within the system — it does not generate flow. The “10” size designation corresponds to a nominal 10-size (NG10 / CETOP 5) mounting interface, while the “S” suffix denotes the standard spring range for this frame size. The valve is designed for inline or subplate mounting in industrial power units, manifolds, and OEM hydraulic systems where reliable, repeatable pressure limitation is critical to protecting pumps, cylinders, and downstream components.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pressure Control Valve — Direct-Acting Pressure Relief Valve |
| Model Designation | RV3-10-S-0-36 / 565568 |
| Manufacturer | Eaton (Vickers) |
| Size / Interface | NG10 (CETOP 5 / ISO 4401 size 10) |
| Operating Pressure | Standard Industrial Grade (up to rated bar per spring range) |
| Adjustment Type | Manual adjustment via set screw / cap (spring-loaded poppet) |
| Mounting & Connection | Subplate / manifold mounting per ISO 4401, NG10 port pattern |
| Seal Material | Standard NBR (Buna-N) — compatible with mineral-based hydraulic fluids |
Engineering Features & Advantages
- Precision Pressure Limiting: Direct-acting poppet design provides fast, repeatable cracking and reseat characteristics, minimizing pressure overshoot and protecting sensitive downstream components.
- Stable Spring Performance: Calibrated spring range delivers consistent set pressure across the operating flow band, reducing nuisance cracking and drift over the service life of the valve.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with hardened internal metering elements resistant to contamination-induced wear.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Eaton/Vickers OEM standards, including the 565568 catalog reference, ensuring drop-in interchangeability.
- Compact NG10 Footprint: Space-efficient subplate mounting simplifies integration into new manifold designs and retrofit installations alike.
Typical Industrial Applications
The EATON RV3-10-S-0-36 is deployed as a system safety and pressure-limiting element across a wide range of heavy industrial hydraulic circuits, including plastic injection molding machines, metallurgical presses and rolling mill stands, construction and marine hydraulic power units, and CNC machine tool hydraulic systems. It is equally suited to
PRODUCT IMAGES

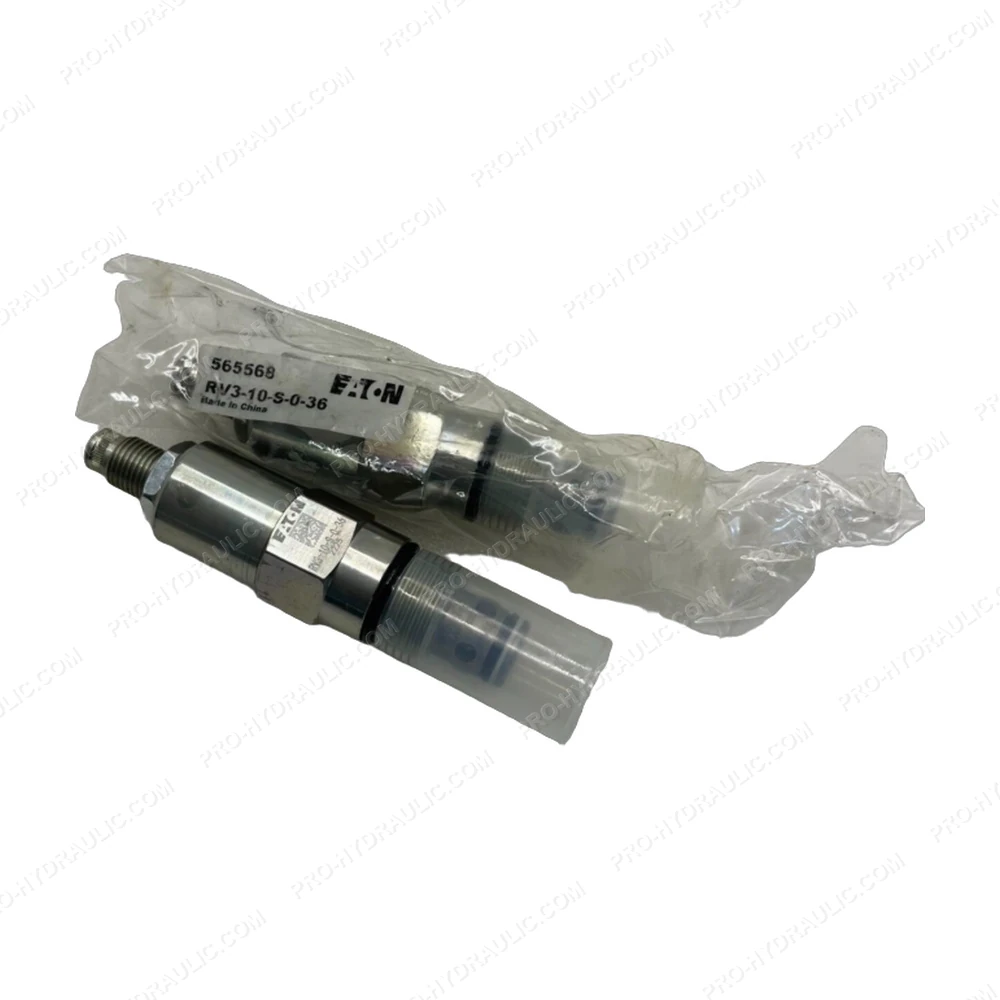

EATON RV3-10-S-0-36 / 565568 Pressure Relief Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Eaton RV3-10-S-0-36 / 565568 Pressure Relief Valve. This Germany-made hydraulic component features a direct-acting, spring-loaded design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
