Product Overview
The Eaton RV5-10-S-0-35 is a direct-acting, spring-loaded pressure relief valve from the Eaton RV5 series, engineered to protect hydraulic circuits from excessive pressure and to maintain system pressure at a predetermined safe level. As a pressure control valve, it operates by sensing inlet pressure against an adjustable spring force; when the set pressure is exceeded, the poppet lifts off its seat and diverts flow to the tank port, thereby limiting the maximum pressure in the circuit. The RV5-10-S-0-35 is a cartridge-style screw-in valve with a size 10 mounting interface and a nominal pressure setting of 35 bar, making it well suited to low-pressure clamping, pilot, and secondary relief functions in industrial hydraulic power units and machine tool systems.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Hydraulic Valve — Pressure Control Valve (Direct-Acting Pressure Relief Valve) |
| Model Designation | EATON RV5-10-S-0-35 |
| Series / Size | RV5 Series, Size 10 (NG10 / CETOP 5 interface class) |
| Pressure Setting | 35 bar nominal cracking pressure (spring-set, adjustable) |
| Operating Pressure | Standard Industrial Grade (up to rated bar per RV5 size 10 envelope) |
| Actuation Principle | Direct-acting poppet, spring-loaded, pressure-opposed |
| Mounting & Connection | Cartridge / screw-in style, Size 10 cavity interface |
| Adjustment | Adjustable spring preload (set point factory-configured to 35 bar) |
| Hydraulic Fluid | Mineral-based hydraulic oil per standard ISO VG grades |
Engineering Features & Advantages
- Precision Pressure Limiting: The direct-acting poppet design provides fast, repeatable response to pressure surges, holding circuit pressure at the 35 bar set point and protecting downstream components from overpressure damage.
- Stable Low-Pressure Control: Optimized spring and seat geometry deliver smooth, chatter-free operation at low relief settings, ideal for clamping, pilot, and secondary circuit protection where fine pressure control is required.
- Compact Cartridge Construction: The Size 10 screw-in cartridge format minimizes manifold space requirements and simplifies installation, service, and replacement in dense hydraulic power unit layouts.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with hardened poppet and seat surfaces for long service life and consistent reseat performance.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original EATON OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
Typical Industrial Applications
The RV5-10-S-0-35 is a cartridge-style screw-in valve with a size 10 mounting interface and a nominal pressure setting of 35 bar, making it well suited to low-pressure clamping, pilot, and secondary relief functions in industrial hydraulic power units and machine tool systems.
PRODUCT IMAGES

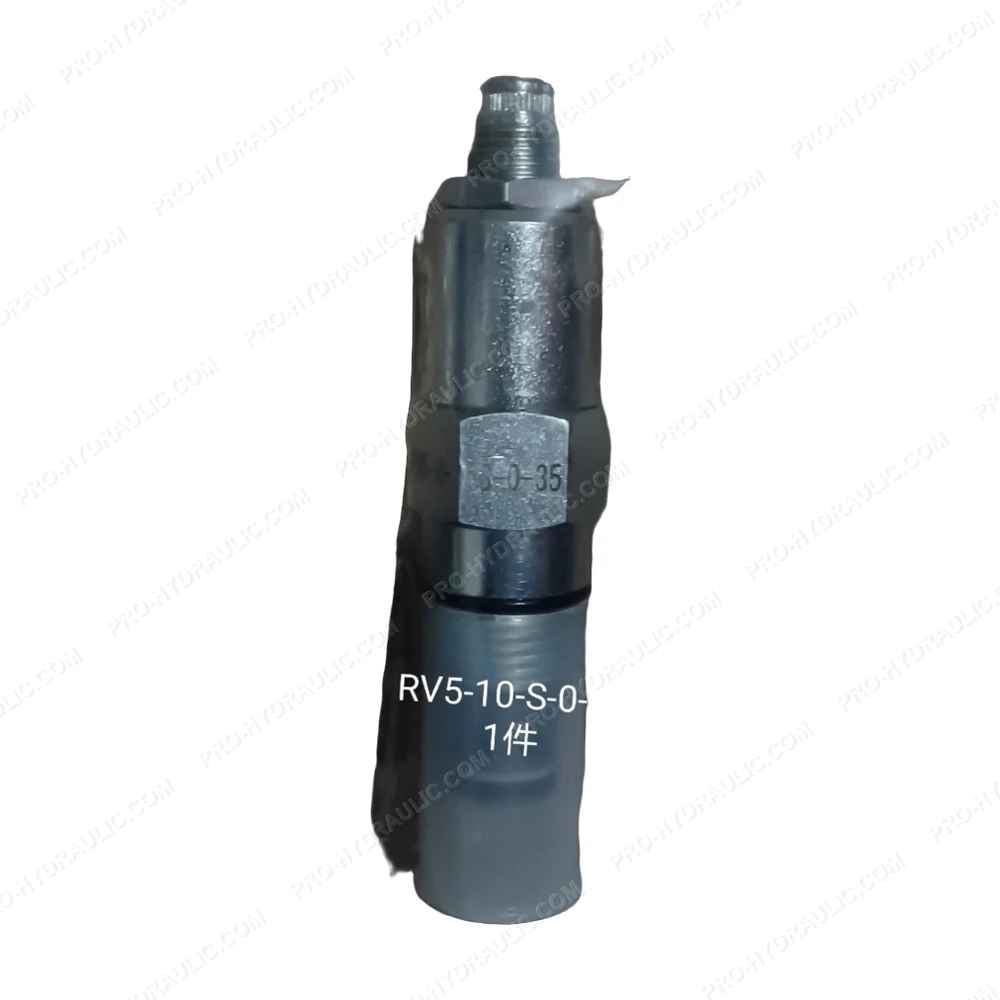

EATON RV5-10-S-0-35 Pressure Relief Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Eaton RV5-10-S-0-35 Pressure Relief Valve. This USA-made hydraulic component features a direct-acting, spring-loaded design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
