Product Overview
The Eaton RV5-16-C-0-60 (part number 565781) is a direct-acting pressure relief valve from the Eaton RV5 series, engineered to protect hydraulic circuits by limiting maximum system pressure and safely diverting excess flow to tank. As a pressure control valve, it operates on a balanced poppet-and-spring principle: when inlet pressure exceeds the adjustable spring setting, the poppet lifts off its seat and meters flow to the return line, maintaining a stable, repeatable pressure ceiling. The RV5-16-C-0-60 is a cartridge-style relief valve designed for manifold or housing installation in industrial power units, machine tools, and mobile hydraulic systems where precise overpressure protection and dependable response are essential to component and circuit integrity.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Hydraulic Pressure Control Valve — Direct-Acting Pressure Relief Valve |
| Model Designation | RV5-16-C-0-60 (Eaton Part No. 565781) |
| Series / Size | RV5 Series, Size 16 cartridge |
| Operating Pressure | Standard Industrial Grade (up to rated bar per RV5-16 pressure range) |
| Pressure Adjustment | Spring-loaded adjustable setting with locknut provision |
| Mounting & Connection | Standard ISO / Eaton cartridge cavity interface |
| Seal Type | Nitrile (NBR) / FKM options per configuration code |
| Fluid Compatibility | Mineral-based hydraulic oils, phosphate esters (per seal selection) |
Engineering Features & Advantages
- Precision Pressure Control: Balanced poppet design delivers accurate, repeatable cracking and reseat characteristics, minimizing pressure overshoot and protecting downstream components.
- Fast Dynamic Response: Direct-acting construction responds immediately to pressure transients, providing reliable overload protection in high-cycle industrial circuits.
- Stable Operation: Optimized spring and damping characteristics suppress chatter and instability across the full adjustment range.
- Industrial Reliability: Hardened, precision-machined internal components built for continuous operation under severe industrial conditions.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Eaton RV5-16 cartridge cavity and OEM standards.
Typical Industrial Applications
The Eaton RV5-16-C-0-60 is widely deployed as a system safety and pressure-limiting valve in plastic injection molding machines, metallurgical presses, hydraulic power units and manifolds, CNC machine tools, and construction or marine hydraulic systems where dependable overpressure protection is critical.
PRODUCT IMAGES

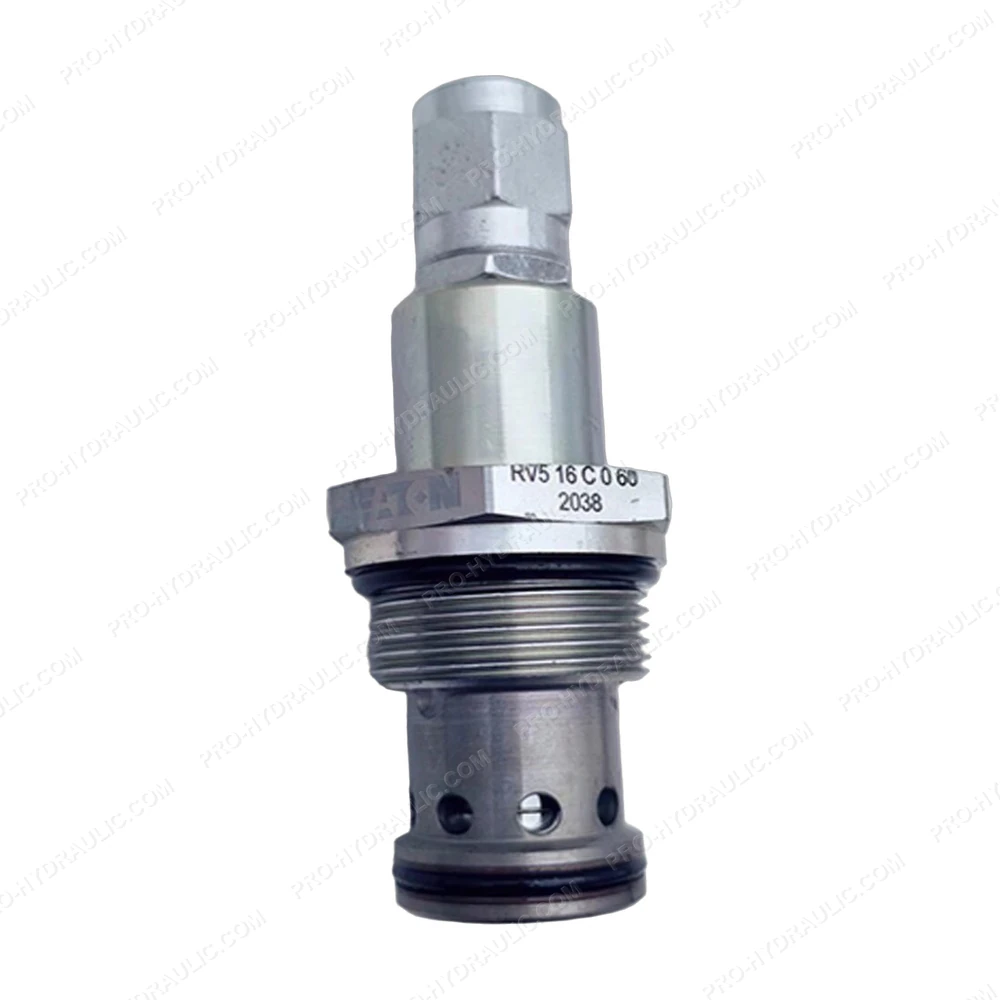

EATON RV5-16-C-0-60 / 565781 Pressure Relief Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Eaton RV5-16-C-0-60 / 565781 Pressure Relief Valve. This US-made hydraulic component features a direct-acting, spring-loaded design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
