Product Overview
The Eaton SBV11-8-0-U-00 (300AA00042A) is a high-performance solenoid-operated directional control valve engineered for precise hydraulic flow management in demanding industrial circuits. Part of the Vickers SBV11 series, this valve utilizes a robust wet-armature solenoid design to shift an internal spool, directing pressurized fluid to specified actuator ports for extension, retraction, or holding functions. With a nominal flow capacity of 11 GPM (approx. 40 L/min) and a standard 8-size (NG8 / CETOP 3 / NFPA D03) interface, it serves as a critical control component in manifold and subplate-mounted hydraulic power units, enabling reliable start, stop, and direction changes of cylinders and motors.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Directional Control Valve (Vickers SBV Series) |
| Model Designation | SBV11-8-0-U-00 / 300AA00042A |
| Operating Pressure | Up to 315 bar (4570 psi) rated; 350 bar (5075 psi) peak |
| Nominal Flow Rate | 11 GPM (40 L/min) at 1450 psi (100 bar) per NFPA D03 standard |
| Mounting & Connection | NG8 / CETOP 3 / NFPA D03 subplate or manifold mounting; ISO 4401-03 interface |
| Spool Configuration | “0” type center condition (all ports blocked in neutral) |
| Actuation | Single solenoid, spring return (U-00 designation) |
| Solenoid Voltage | Standard industrial coil (consult factory for specific voltage options) |
| Seal Material | Nitrile (Buna-N) standard; Viton available for high-temperature service |
Engineering Features & Advantages
- Precision Spool Metering: The hardened, precision-ground spool and sleeve assembly ensures minimal internal leakage and accurate flow control, delivering repeatable actuator positioning and consistent cycle times in high-cycle industrial applications.
- Wet-Armature Solenoid Design: The oil-immersed solenoid armature provides superior heat dissipation, reduced wear, and quiet operation compared to dry-armature designs, extending coil life and ensuring reliable shifting even under continuous duty.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with a ductile iron body and hardened internal components that resist contamination and withstand pressure spikes up to 350 bar.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original EATON standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
The Eaton SBV11-8-0-U-00 (300AA00042A) is a high-performance solenoid-operated directional control valve engineered for precise hydraulic flow management in demanding industrial circuits.
PRODUCT IMAGES

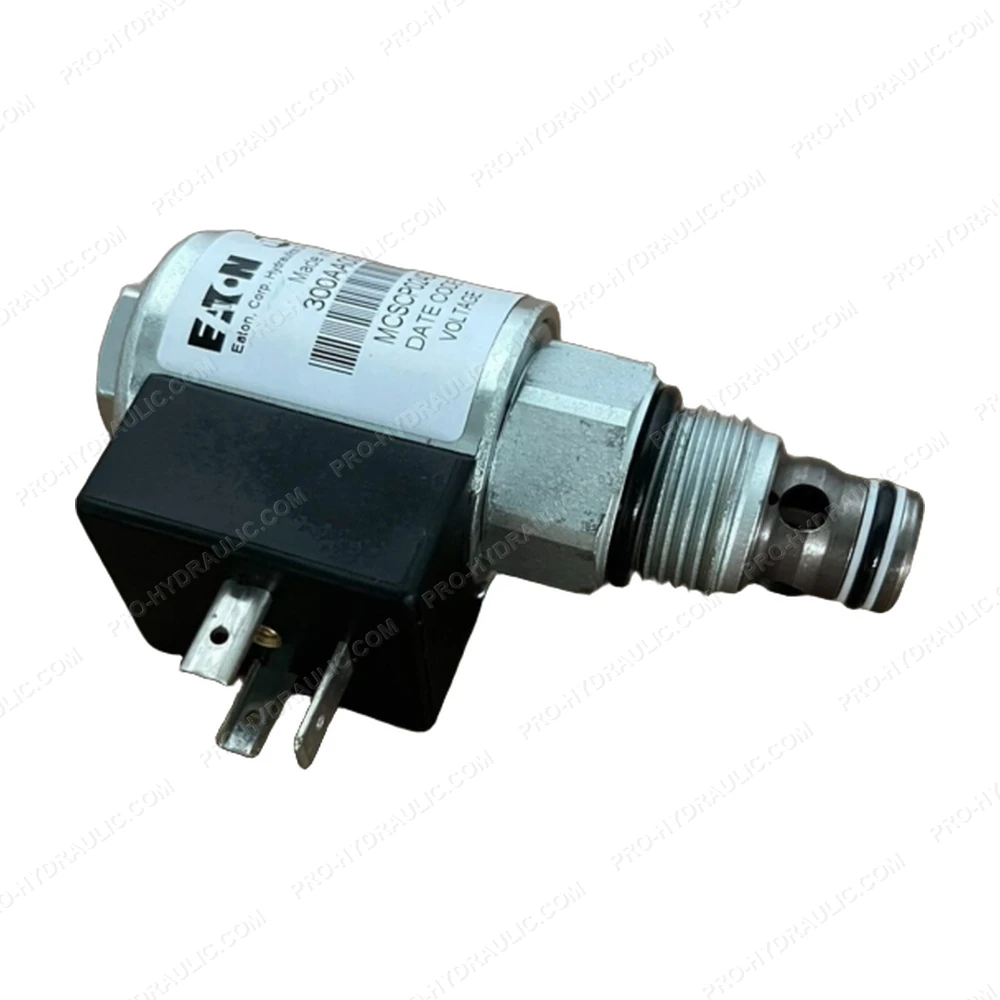

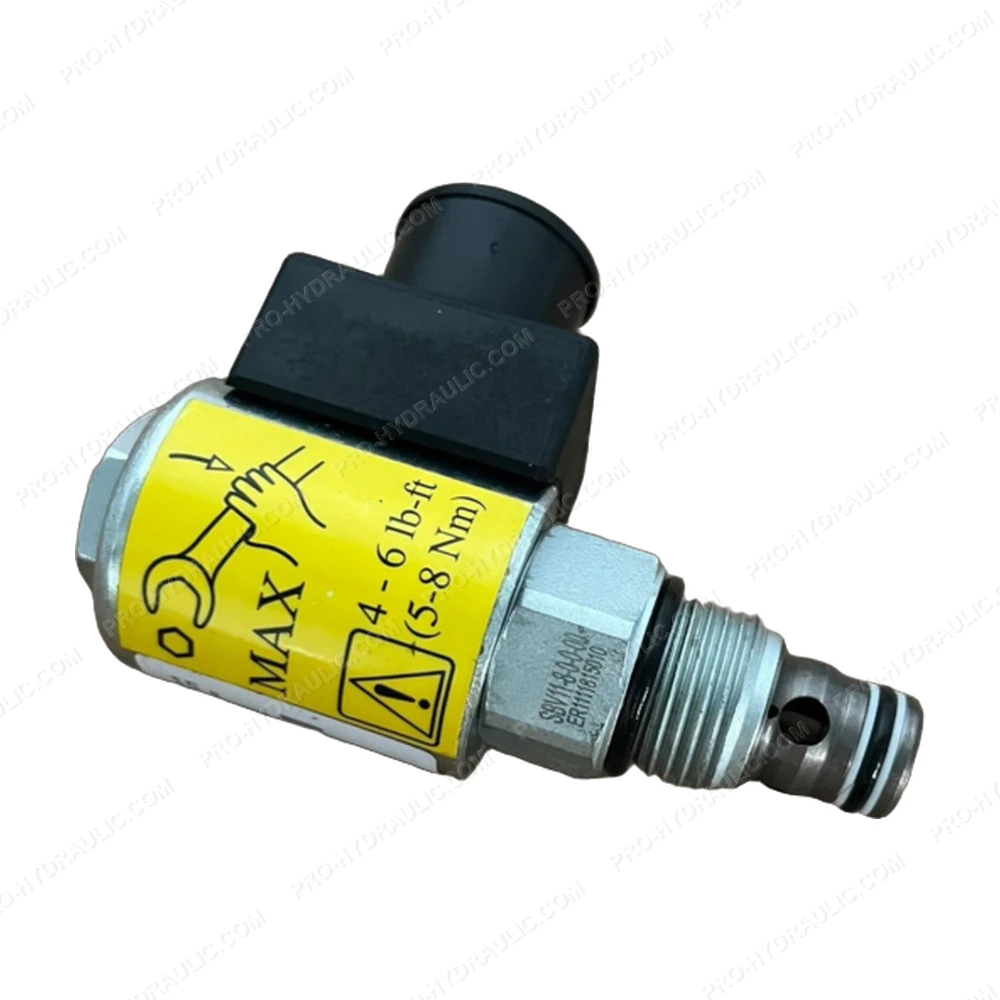

EATON SBV11-8-0-U-00 / 300AA00042A Solenoid Directional Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine EATON SBV11-8-0-U-00 / 300AA00042A Solenoid Directional Valve. This Germany-made 24V DC hydraulic component features a 4-way 3-position design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
