The EATON SM4-20(15)57-80/40-10-S182 / 3025047 is a heavy-duty industrial proportional valve engineered for precise electrohydraulic flow and pressure control in demanding hydraulic circuits. As part of the Vickers proportional valve series, it provides infinitely variable actuation via a wet-pin proportional solenoid, delivering smooth, responsive modulation without the complexity of servo-level filtration requirements.
EATON SM4-20(15)57-80/40-10-S182 / 3025047 Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Eaton (Vickers) |
| Model / Part Number | SM4-20(15)57-80/40-10-S182 / 3025047 |
| Valve Type | Proportional Directional Valve |
| Actuation | Proportional Solenoid, Wet-Pin Armature |
| Mounting Interface | ISO 4401 / CETOP 5 (NG10) |
| Nominal Flow Rate | Up to 80 L/min (dependent on spool configuration) |
| Maximum Operating Pressure | 350 bar (5075 psi) at P, A, B ports |
| Spool Type | Closed-Center, Meter-In / Meter-Out Control |
| Coil Voltage | 24 VDC (nominal), 10% duty cycle options available |
| Electrical Connection | DIN 43650 / ISO 4400 plug |
| Fluid Compatibility | Mineral oil, HLP/HLVP per DIN 51524; phosphate esters on request |
| Filtration Requirement | ISO 4406 18/16/13 or better |
| Operating Temperature Range | -20°C to +80°C (-4°F to +176°F) |
Key Engineering Features
- Proportional solenoid with wet-pin armature for precise, hysteresis-minimized force control
- High-resolution spool positioning for accurate flow and pressure modulation
- Robust housing and spool design rated for continuous industrial duty cycles
- Standard ISO 4401 / CETOP 5 mounting for direct drop-in replacement
- Compatible with Vickers proportional amplifier cards for closed-loop control
- Low leakage, closed-center spool minimizes energy loss during idle
Industrial Applications
- Injection molding machines – clamp and injection velocity control
- Hydraulic presses – proportional pressure and force regulation
- Machine tools – feed axis and spindle positioning
- Steel and metal forming – roll gap and tension control
- Test stands – dynamic flow and pressure simulation
- Material handling – smooth acceleration and deceleration of heavy loads
For technical inquiries, dimensional drawings, or replacement support for EATON SM4-20(15)57-80/40-10-S182 / 3025047, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

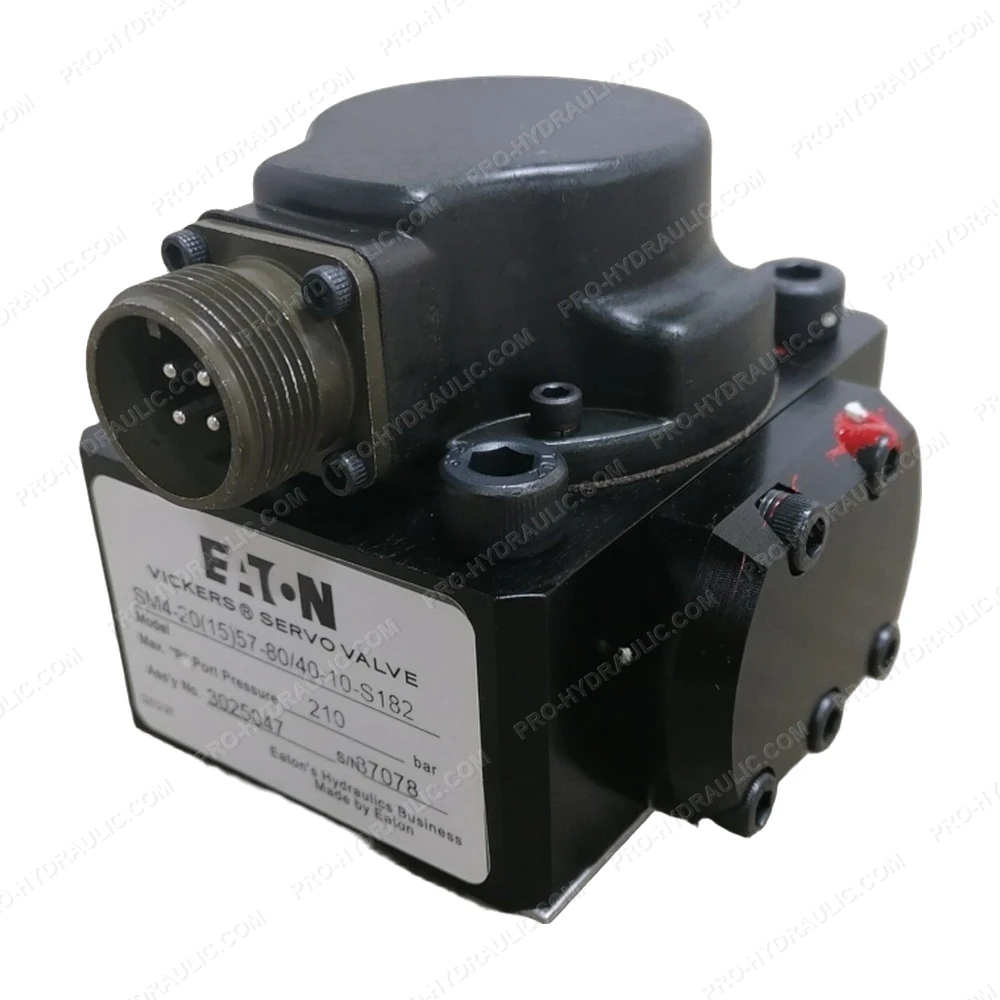

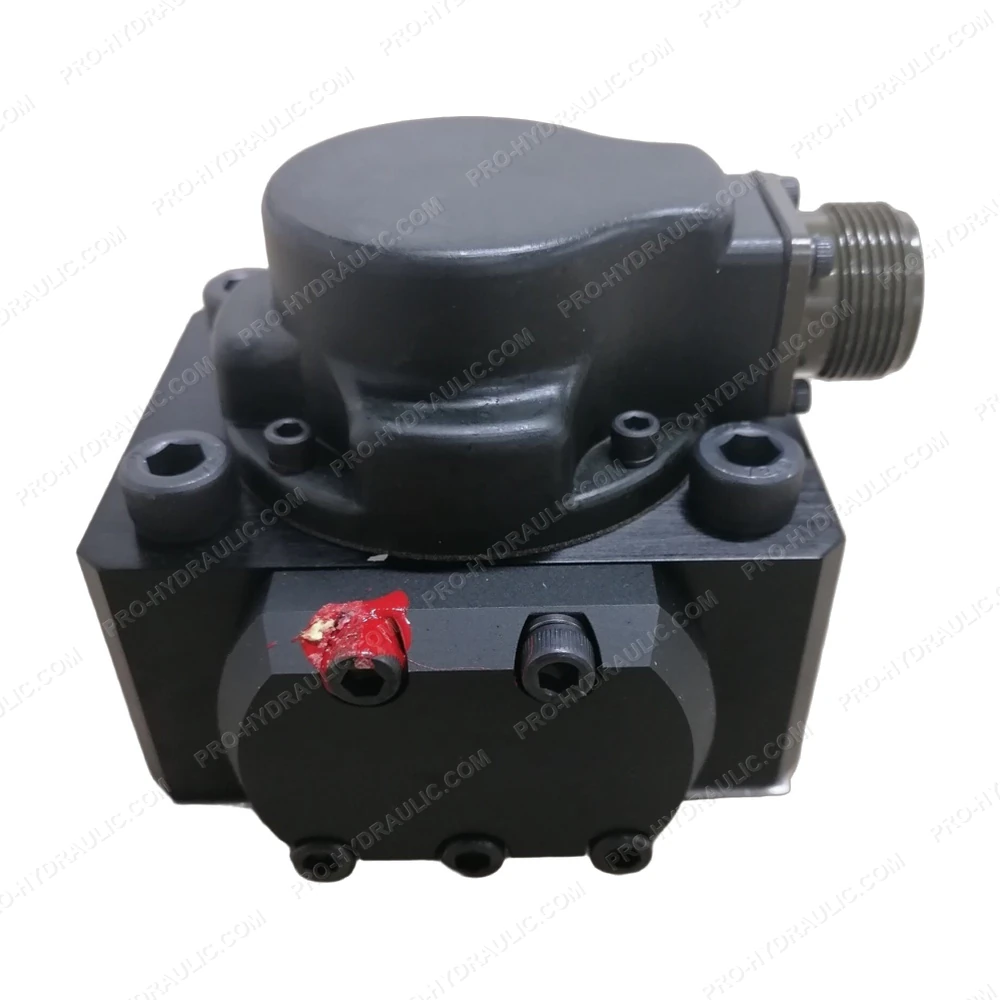

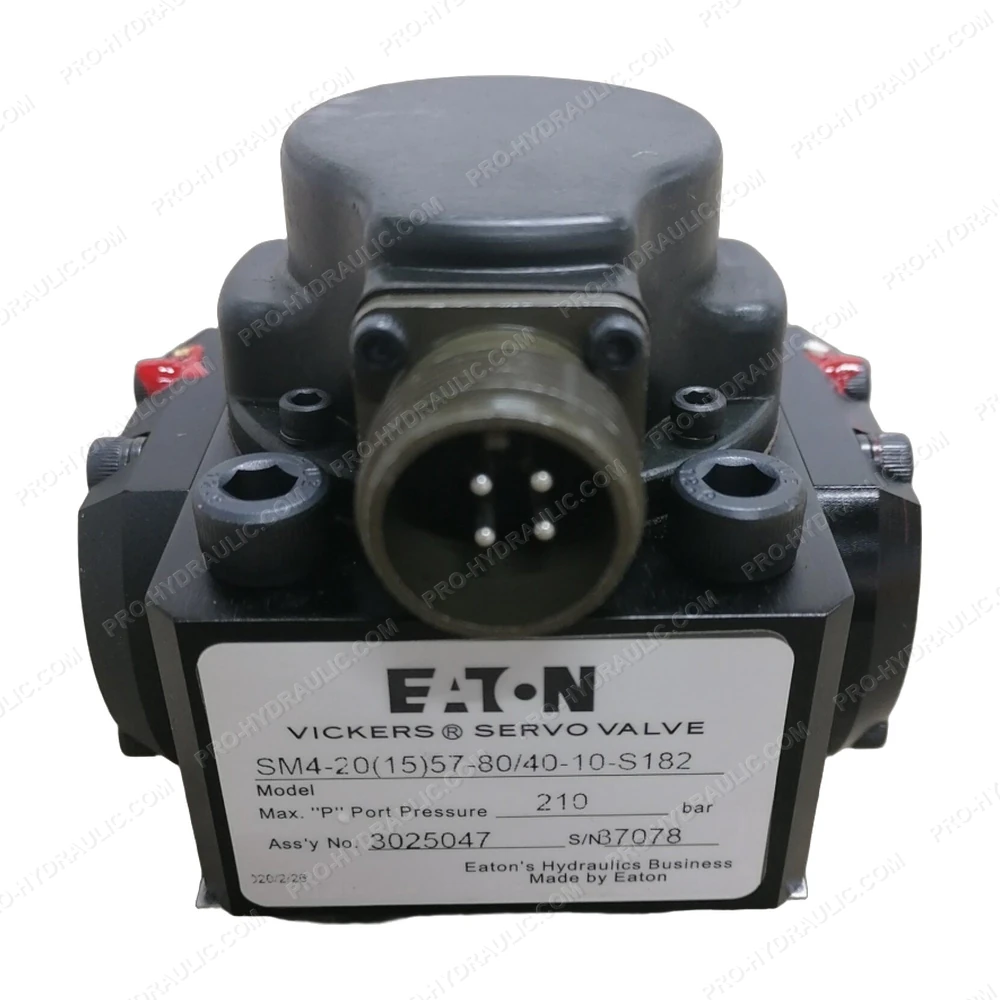

EATON SM4-20(15)57-80/40-10-S182 Proportional Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the EATON SM4-20(15)57-80/40-10-S182 / 3025047 Proportional Valve. This precision-engineered industrial component delivers reliable fluid control for heavy-duty systems.
