Product Overview
The EATON SV1-10-C-0-00 is a high-performance solenoid-operated directional control valve from the Vickers SV1 series, engineered to direct and control hydraulic fluid flow in demanding industrial circuits. Utilizing a robust wet-armature solenoid design and a precision-machined sliding spool, this valve provides reliable switching, holding, and unloading functions within a hydraulic power unit or actuator circuit. The SV1-10-C-0-00 is a direct-acting, two-position or three-position directional valve (per model configuration) designed for nominal flows up to approximately 40 L/min (10 US gpm) and continuous operating pressures up to 350 bar (5,000 psi), making it an ideal drop-in solution for OEM and MRO applications requiring precise spool actuation and long service life.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Directional Control Valve (Vickers SV1 Series) |
| Model Designation | SV1-10-C-0-00 |
| Nominal Flow Rating | Size 10 (approx. 40 L/min / 10 US gpm) |
| Operating Pressure | Up to 350 bar (5,000 psi) continuous duty |
| Spool Configuration | “C” type spool — closed-center, all ports blocked in neutral |
| Actuation | Single or dual wet-armature solenoid, spring return / spring offset |
| Mounting & Connection | Subplate / manifold mounting per ISO 4401 / CETOP 5 (NG10) interface |
| Electrical Supply | Standard industrial solenoid coil (12 VDC / 24 VDC / 110 VAC / 220 VAC options) |
| Seal Material | NBR / FKM (Viton) — compatible with mineral-based hydraulic fluids |
Engineering Features & Advantages
- Precision Spool Metering: The hardened, precision-ground spool and sleeve assembly delivers accurate flow control and minimal internal leakage, ensuring consistent actuator response in high-cycle industrial duty.
- Wet-Armature Solenoid Design: Oil-immersed solenoid armature provides smooth, quiet shifting, superior heat dissipation, and extended coil life compared to dry-armature alternatives.
- High Pressure Capability: Rated for continuous operation up to 350 bar, suitable for high-pressure hydraulic systems in injection molding, presses, and mobile equipment.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with rugged cast-iron body and corrosion-resistant finishes.
- Direct Fit Replacement: Precision-manufactured to original EATON specifications for direct replacement, minimising downtime and eliminating fitment issues.
Typical Industrial Applications
The SV1-10-C-0-00 is a direct-acting, two-position or three-position directional valve (per model configuration) designed for nominal flows up to approximately 40 L/min (10 US gpm) and continuous operating pressures up to 350 bar (5,000 psi), making it an ideal drop-in solution for OEM and MRO applications requiring precise spool actuation and long service life.
PRODUCT IMAGES

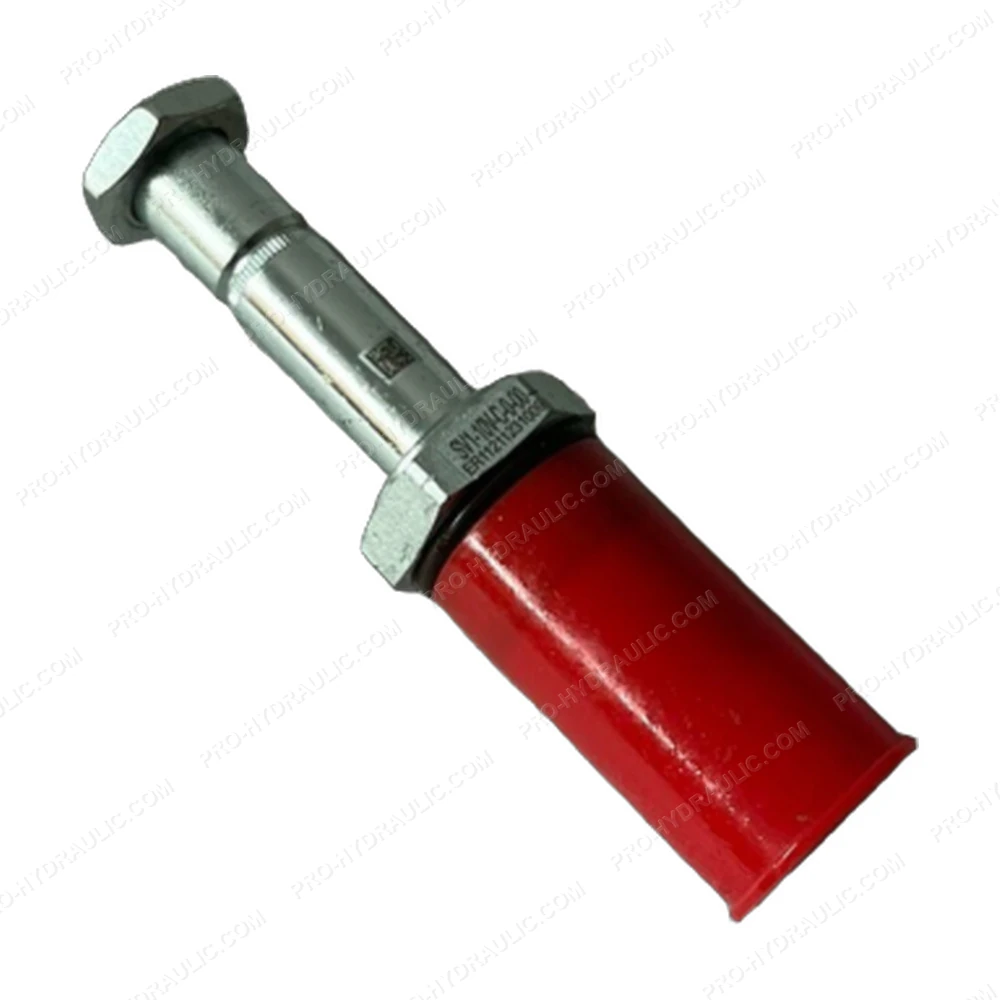

EATON SV1-10-C-0-00 Solenoid Directional Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Eaton SV1-10-C-0-00 Solenoid Directional Valve. This USA-made 10-size hydraulic component features a 2-position, spring-return design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
