Product Overview
The EATON SV13-10-0-0-00 / 02-175813 is a high-performance solenoid-operated directional control valve from the Vickers SV series, engineered for precise control of hydraulic fluid flow direction in industrial power systems. Utilizing a wet-armature solenoid design and a robust sliding spool mechanism, this valve directs, releases, and blocks fluid flow to actuate cylinders, motors, and other hydraulic actuators with exceptional repeatability. The SV13 series is recognized for its high flow capacity relative to its compact size, low pressure drop, and reliable shifting performance, making it a preferred choice for demanding industrial circuits requiring dependable directional control and long service life.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Directional Control Valve |
| Model Designation | SV13-10-0-0-00 / 02-175813 |
| Series | Vickers SV13 Series |
| Operating Pressure | Standard Industrial Grade (Up to 350 bar rated) |
| Actuation Type | Solenoid Operated (Wet Armature) |
| Mounting & Connection | Standard ISO / Manufacturer Interface (Subplate Mounting) |
| Spool Configuration | Spring-Centered / Spring-Offset Options Available |
| Flow Capacity | High Flow, Low Pressure Drop Design |
Engineering Features & Advantages
- Precision Spool Metering: The hardened, precision-ground sliding spool delivers accurate flow direction control with minimal internal leakage and consistent response across the full operating pressure range.
- Wet-Armature Solenoid Design: The solenoid armature operates immersed in hydraulic fluid, providing superior heat dissipation, reduced wear, and quieter, more reliable shifting compared to dry-armature alternatives.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction that withstands high cycle rates, pressure spikes, and contaminated fluid environments.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM Vickers SV13 series valves, ensuring drop-in installation without modification to existing manifolds or subplates.
- Low Pressure Drop: Optimized internal flow paths minimize energy loss and heat generation, improving overall system efficiency and reducing operating costs.
Typical Industrial Applications
This Vickers SV13 solenoid directional valve is widely deployed in demanding hydraulic circuits across multiple industries, including plastic injection molding machines requiring precise mold open/close and injection sequencing, metallurgical presses and rolling mills where reliable directional control under high pressure is critical, construction and marine hydraulic systems for boom, bucket, and steering actuation, and CNC machine tools and automated production lines where fast, repeatable valve response ensures accurate motion control and cycle consistency.
PRODUCT IMAGES

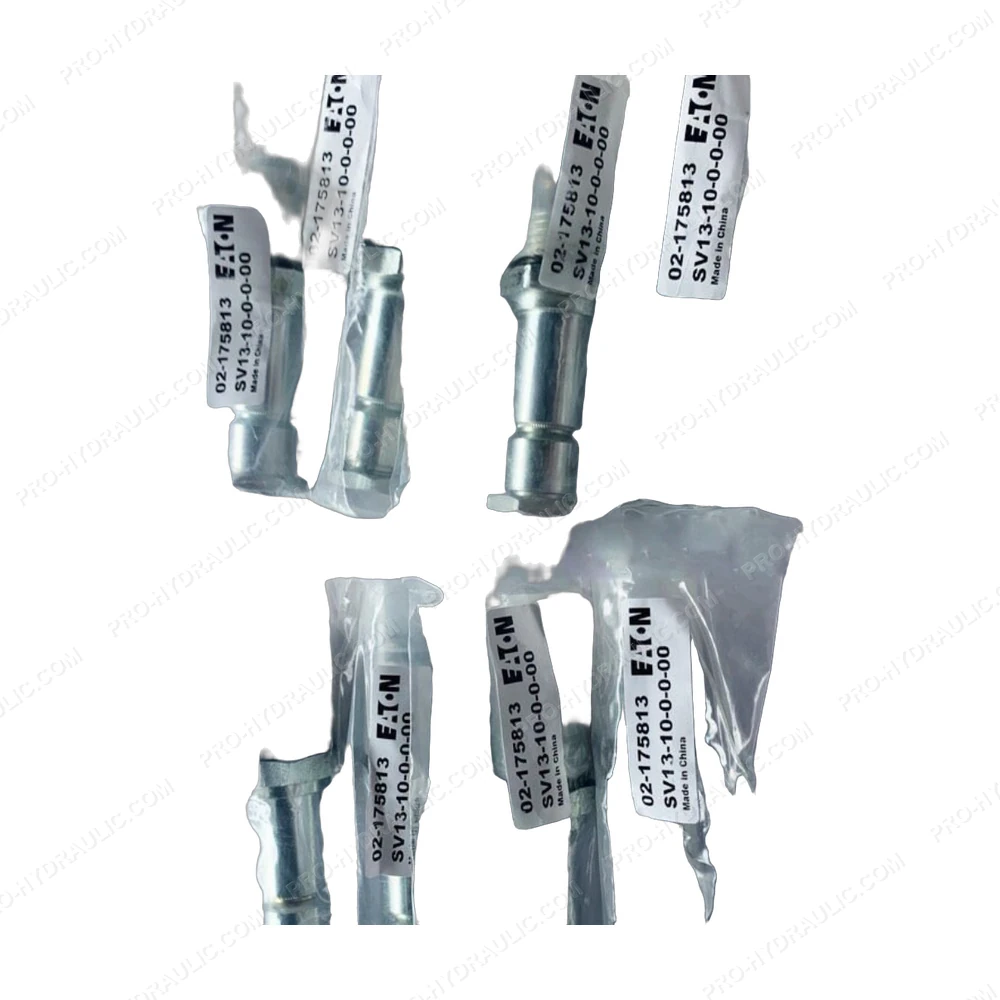

EATON SV13-10-0-0-00 / 02-175813 Solenoid Directional Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Eaton SV13-10-0-0-00 / 02-175813 Solenoid Directional Valve. This US-made 10-size hydraulic component features a direct-acting spool design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
