The EATON SV13-16-C-0-00 / SV2-20-C-0-00 is a heavy-duty industrial directional control valve engineered for precise flow management in demanding hydraulic circuits. This solenoid-operated, spool-type valve provides reliable switching and directional control of hydraulic fluid in mobile and industrial applications.
EATON SV13-16-C-0-00 / SV2-20-C-0-00 Technical Specifications
| Parameter | Specification |
|---|---|
| Valve Type | Directional Control Valve, Solenoid Operated |
| Model Numbers | SV13-16-C-0-00 / SV2-20-C-0-00 |
| Mounting Standard | CETOP / ISO 4401 (NG6 / NG10) |
| Spool Configuration | Closed Center, Spring Return |
| Actuation | Wet-pin armature solenoid with AC/DC coil options |
| Max Operating Pressure | Up to 350 bar (5075 psi) |
| Max Flow Rate | Up to 80 L/min (21 gpm) |
| Fluid Compatibility | Mineral oil, HFA/HFB/HFC, synthetic fluids |
| Seal Material | NBR / FKM (depending on fluid) |
| Operating Temperature | -20°C to +80°C (-4°F to +176°F) |
Key Engineering Features
- Wet-pin solenoid design for high switching reliability and long service life
- Precision-ground spool and bore for minimal leakage and consistent response
- CETOP / ISO 4401 mounting interface for direct integration into standard manifolds
- Robust construction with hardened components for high-pressure operation
- Multiple coil voltage options for AC and DC power supplies
- Spring return or detent configurations available for fail-safe or memory functions
Industrial Applications
- Mobile hydraulic systems: excavators, loaders, cranes
- Industrial machinery: presses, injection molding, machine tools
- Material handling equipment: lifts, conveyors, automated guided vehicles
- Agricultural equipment: tractors, harvesters, sprayers
- Marine and offshore hydraulic control circuits
For technical inquiries, dimensional drawings, or replacement support for EATON SV13-16-C-0-00 / SV2-20-C-0-00, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

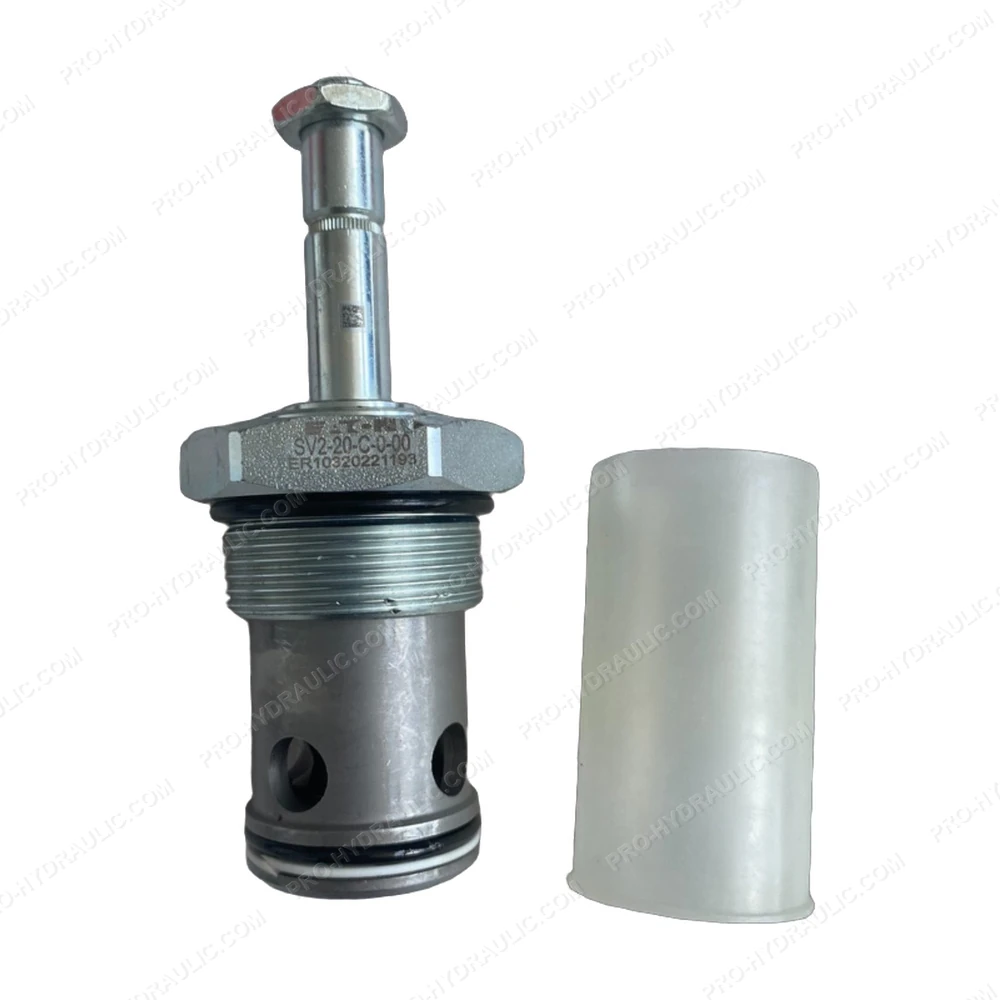

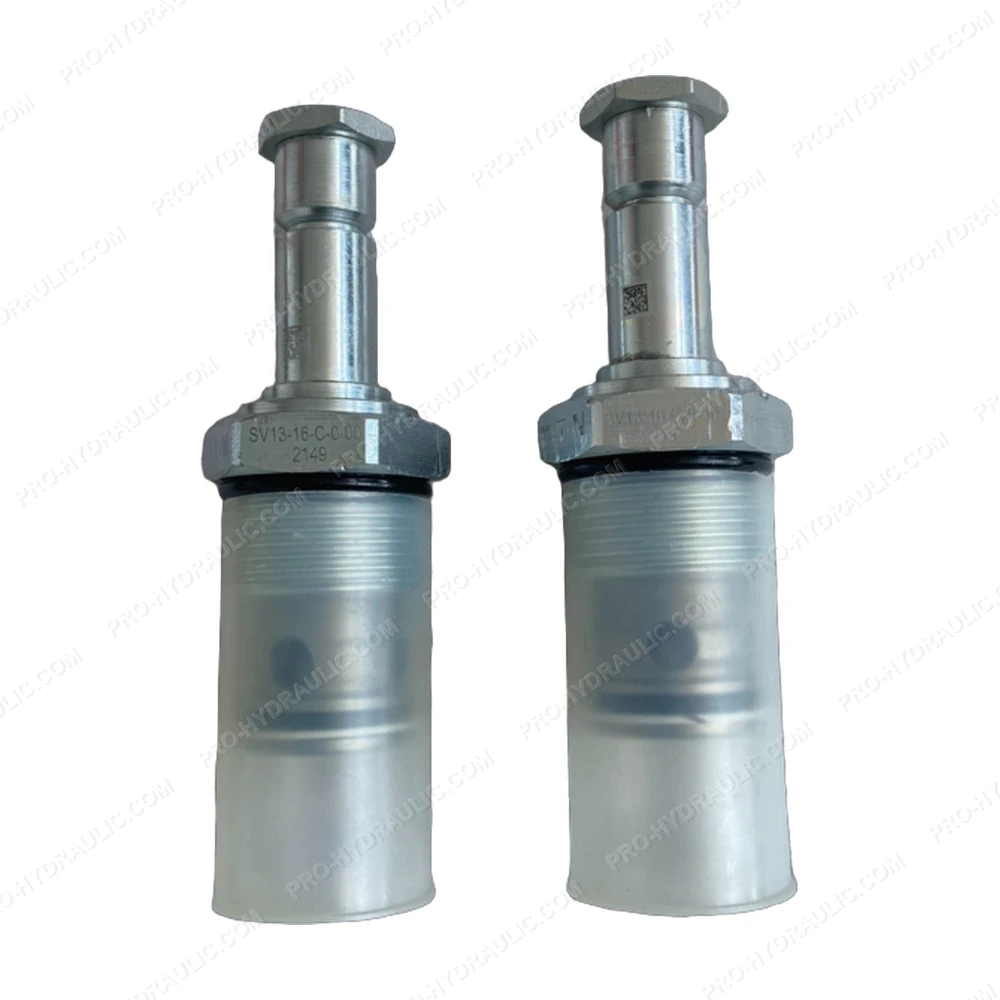

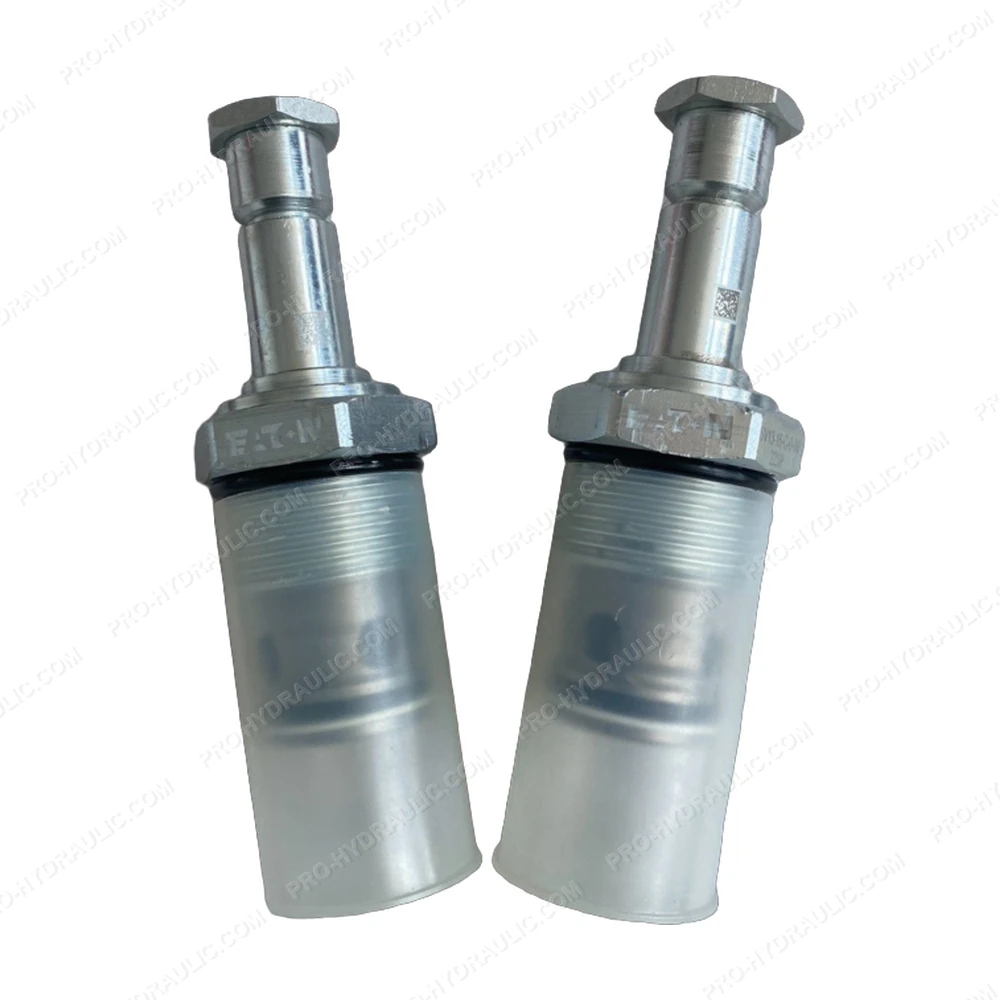

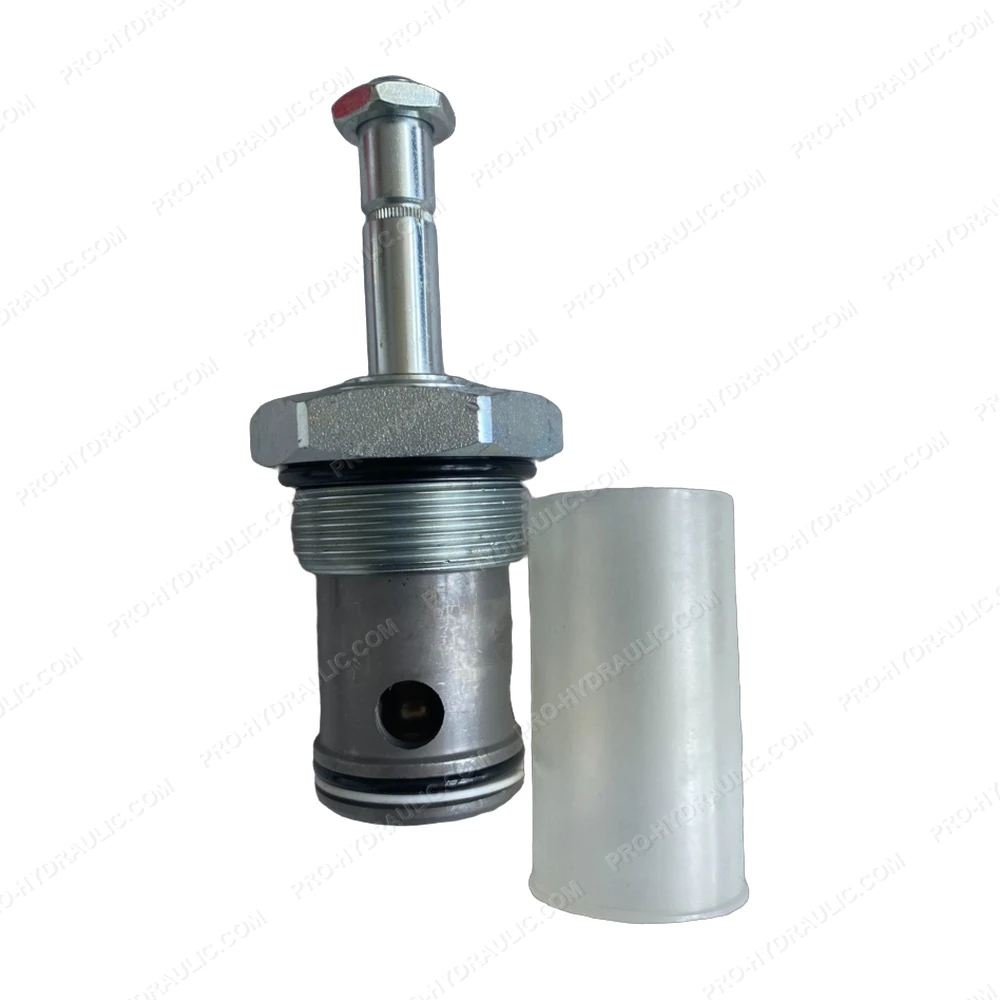

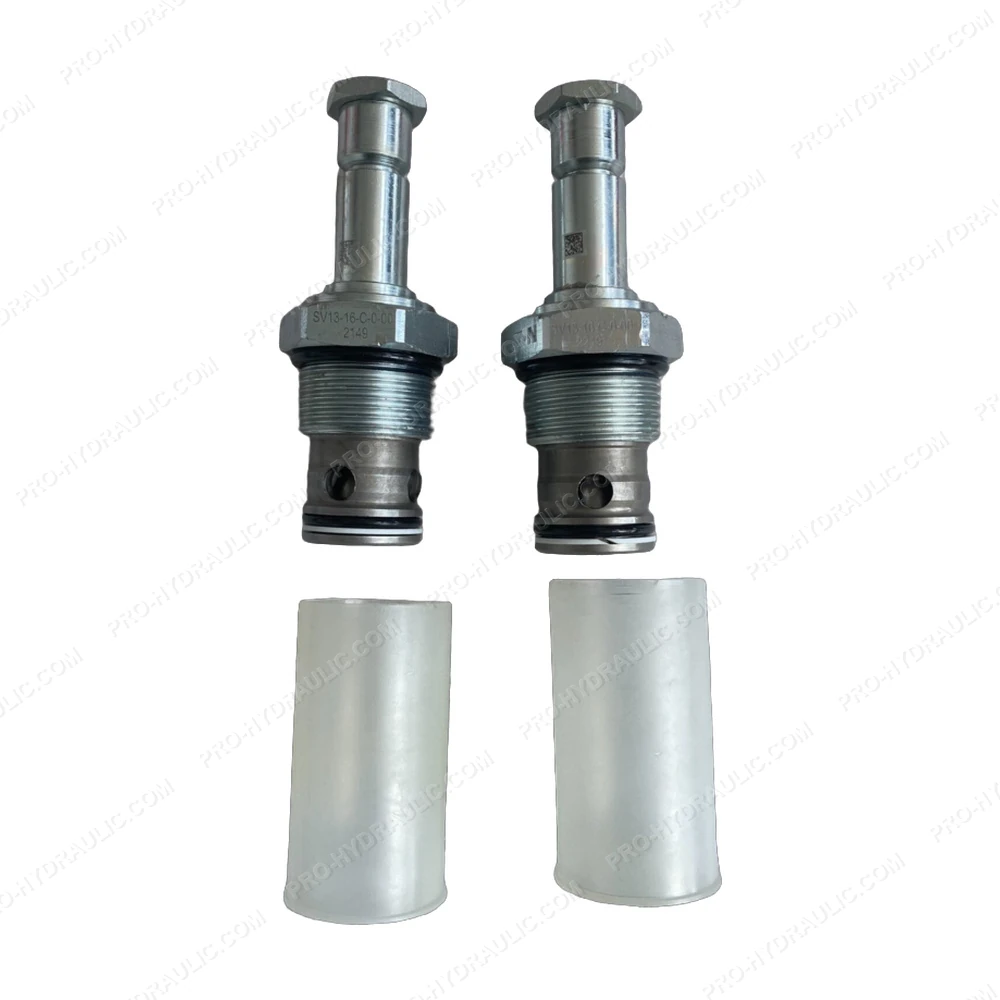

EATON SV13-16-C-0-00 / SV2-20-C-0-00 Directional Control Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the EATON SV13-16-C-0-00 / SV2-20-C-0-00 Directional Control Valve. This precision-engineered industrial component delivers reliable fluid control for heavy-duty systems.
