The EATON SV3-10-CM-0-24DG is a heavy-duty industrial directional control valve engineered for precise flow management in demanding hydraulic circuits. This solenoid-operated, 4-way, 3-position valve features a closed-center spool and a 24 VDC wet-pin armature coil, providing reliable shifting and leak-free load holding. Its robust construction and ISO 4401-05 (CETOP 5) mounting interface ensure drop-in compatibility with standard manifolds and subplates.
EATON SV3-10-CM-0-24DG Technical Specifications
| Parameter | Specification |
|---|---|
| Valve Type | Solenoid-operated directional control valve |
| Configuration | 4-way, 3-position (4/3) |
| Spool Type | Closed center (CM) |
| Actuation | 24 VDC wet-pin solenoid |
| Mounting Standard | ISO 4401-05 (CETOP 5) |
| Max Operating Pressure | 350 bar (5075 psi) |
| Max Flow Rate | 60 L/min (15.8 gpm) |
| Fluid Compatibility | Mineral oil, water glycol, synthetic fluids |
| Seal Material | NBR (Buna-N) |
| Operating Temperature | -20 °C to +80 °C |
Key Engineering Features
- Wet-pin solenoid design for efficient heat dissipation and long coil life
- Closed-center spool provides positive load holding and prevents drift
- Hardened, precision-ground spool and sleeve for minimal internal leakage
- High-strength cast iron body withstands severe pressure spikes
- Standard ISO 4401-05 mounting for easy integration into existing systems
- Manual override option available for emergency operation
Industrial Applications
- Mobile hydraulic systems (construction, agriculture, material handling)
- Industrial power units and test stands
- Presses, injection molding machines, and machine tools
- Marine and offshore hydraulic control circuits
- Automated assembly and clamping systems
For technical inquiries, dimensional drawings, or replacement support for EATON SV3-10-CM-0-24DG, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

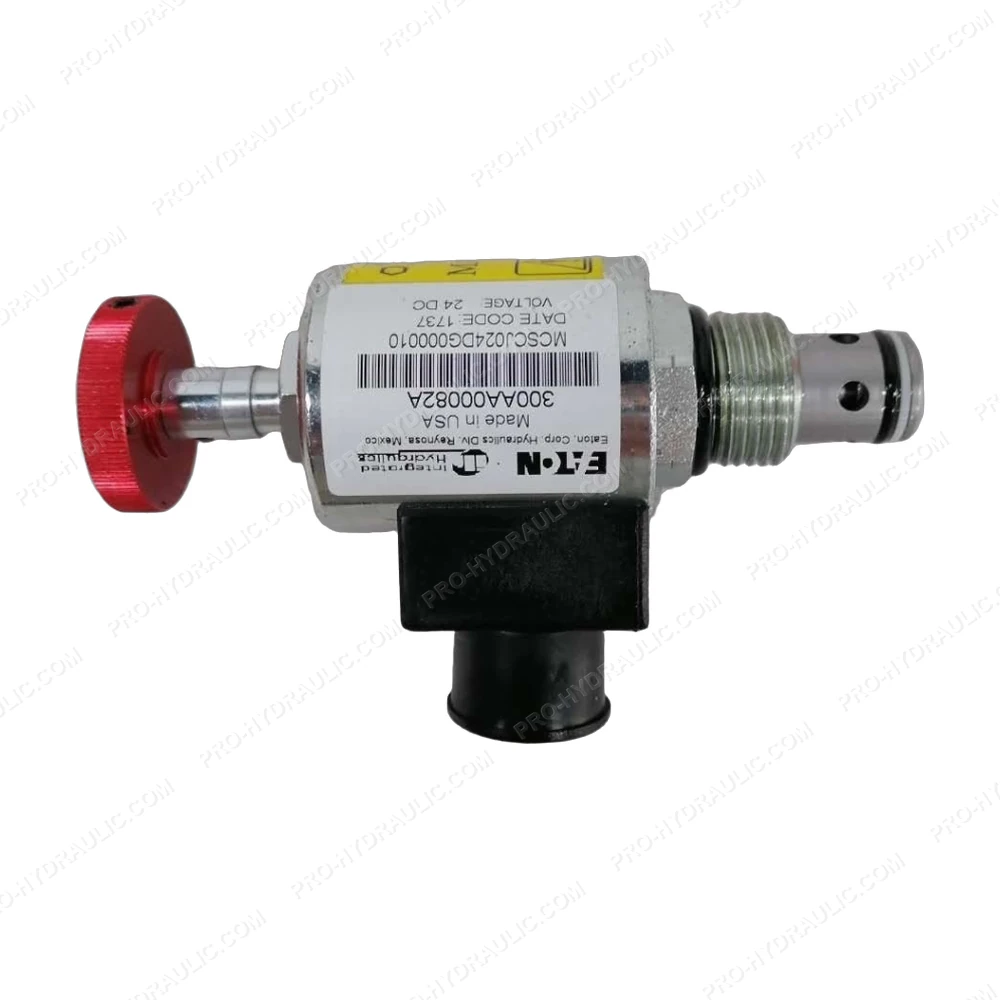

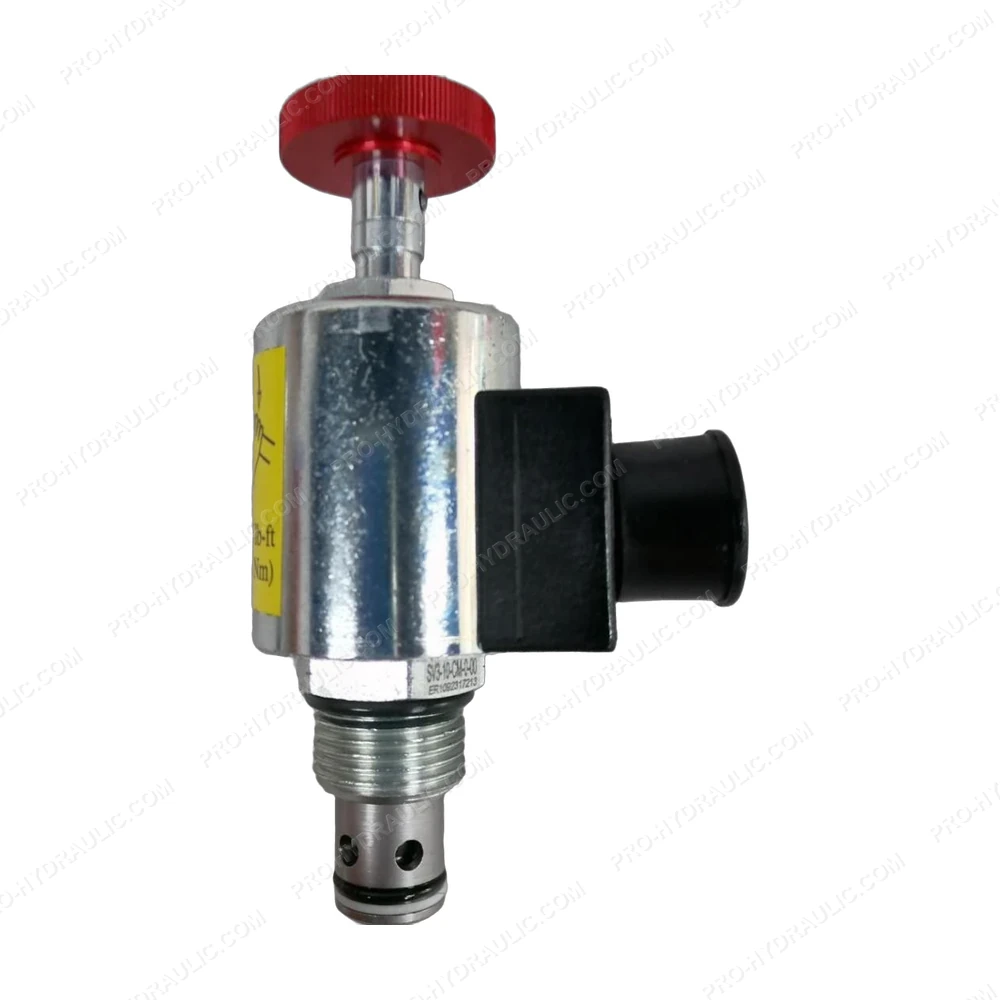

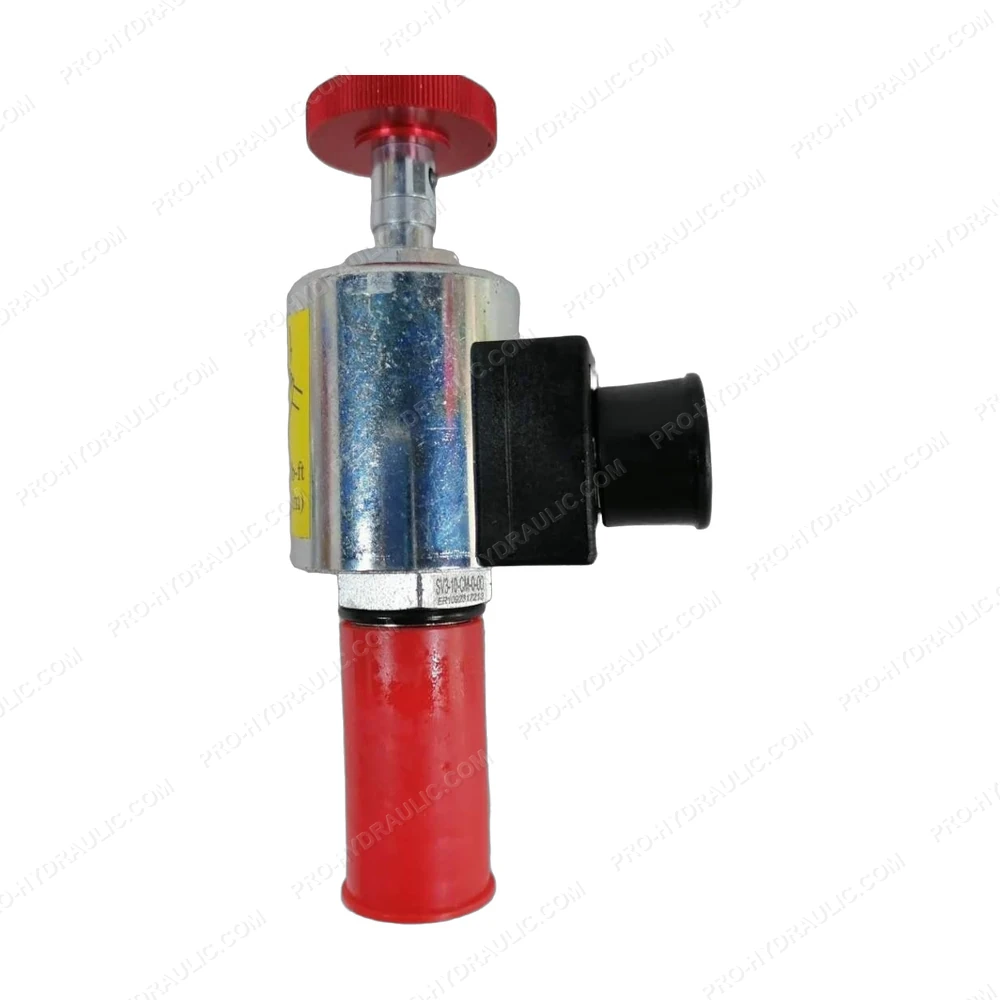

EATON SV3-10-CM-0-24DG Directional Control Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the EATON SV3-10-CM-0-24DG Directional Control Valve. This precision-engineered industrial component delivers reliable fluid control for heavy-duty systems.
