Product Overview
The EATON SV3-12-C-0-00 (also referenced as 02-161062) is a high-performance solenoid-operated directional control valve from the Vickers by Eaton hydraulic valve series. Engineered around a robust sliding spool design, this 4-way, 3-position (4/3) valve directs hydraulic flow to extend, hold, or retract a double-acting actuator by shifting its spool via a wet-armature AC or DC solenoid. The “C” spool configuration provides a closed-center condition, meaning all ports are blocked in the neutral position, allowing the actuator to hold position under load. This valve serves as a critical control element in industrial hydraulic circuits, delivering precise directional control, dependable load-holding capability, and rapid, repeatable response for demanding machine functions.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Directional Control Valve (4-Way, 3-Position) |
| Model Designation | SV3-12-C-0-00 / 02-161062 |
| Manufacturer | Eaton (Vickers Series) |
| Spool Type | “C” Spool — Closed Center (all ports blocked in neutral) |
| Actuation | Solenoid Pilot / Wet Armature Solenoid |
| Operating Pressure | Standard Industrial Grade (Up to rated bar per Vickers SV3 series) |
| Mounting & Connection | Standard ISO / Vickers Subplate Interface (NFPA / ISO 4401) |
| Seal & Fluid Compatibility | Petroleum-based hydraulic fluids, standard industrial seal compounds |
Engineering Features & Advantages
- Precision Spool Metering: The precision-ground sliding spool delivers accurate flow metering and smooth, controlled shifting, minimizing pressure spikes and ensuring repeatable actuator motion across the full operating envelope.
- Closed-Center Load Holding: The “C” spool blocks all ports in the neutral position, providing reliable load-holding capability and preventing actuator drift without the need for external pilot-operated check valves.
- Rapid Solenoid Response: The wet-armature solenoid design ensures fast, consistent actuation with low hysteresis, enabling high-cycle machine operation and precise sequencing in automated hydraulic circuits.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction that resists contamination, thermal cycling, and mechanical wear.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM Vickers SV3 series valves, ensuring drop-in replacement without modification to manifolds or subplates.
Typical Industrial Applications
This solenoid directional valve is widely deployed in demanding hydraulic systems, including plastic injection molding machines requiring precise clamp and injection sequencing, metallurgical presses and rolling mills operating under high-cycle loads
PRODUCT IMAGES

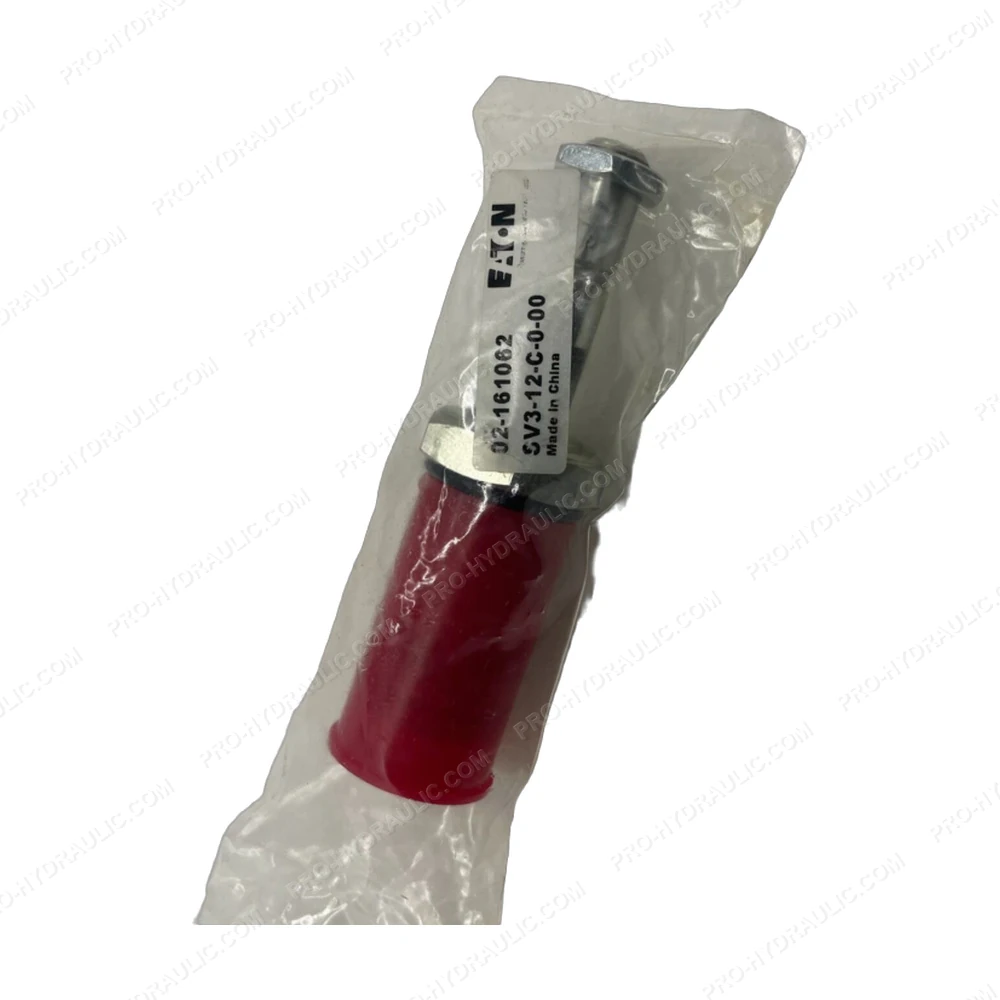

EATON SV3-12-C-0-00 / 02-161062 Solenoid Directional Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine EATON SV3-12-C-0-00 / 02-161062 Solenoid Directional Valve. This Germany-made 12 VDC hydraulic component features a 3-position 4-way design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
