The EATON SV4-8-0-0-00 / 300AA00001A is a heavy-duty industrial directional control valve engineered for precise flow management in demanding hydraulic circuits. This CETOP 3 (NG6) solenoid-operated valve features a robust spool design and wet-pin armature, ensuring consistent shifting and long service life under continuous duty cycles.
EATON SV4-8-0-0-00 / 300AA00001A Technical Specifications
| Mounting Standard | CETOP 3 / ISO 4401-03 / NG6 |
|---|---|
| Actuation Type | Solenoid, wet-pin armature |
| Spool Configuration | 4-way, 3-position, closed center |
| Max Operating Pressure | 350 bar (5075 psi) |
| Max Flow Rate | 80 L/min (21 gpm) |
| Coil Voltage | 24 VDC (other voltages available) |
| Electrical Connection | DIN 43650 connector |
| Seal Material | NBR (Buna-N) |
| Operating Temperature | -20°C to +70°C (-4°F to +158°F) |
| Filtration Requirement | ISO 4406 18/16/13 or better |
Key Engineering Features
- Wet-pin solenoid design eliminates dynamic seals, reducing wear and leakage risk.
- Hardened, ground spool and sleeve for precise metering and minimal internal leakage.
- High-strength cast iron body withstands pressure spikes and vibration.
- Manual override option available for emergency operation.
- Compatible with mineral oil and synthetic hydraulic fluids.
Industrial Applications
- Mobile hydraulic systems: excavators, loaders, cranes.
- Industrial power units and machine tool clamping circuits.
- Material handling equipment: lifts, conveyors, presses.
- Agricultural machinery: tractors, harvesters, sprayers.
- Marine and offshore hydraulic control panels.
For technical inquiries, dimensional drawings, or replacement support for EATON SV4-8-0-0-00 / 300AA00001A, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

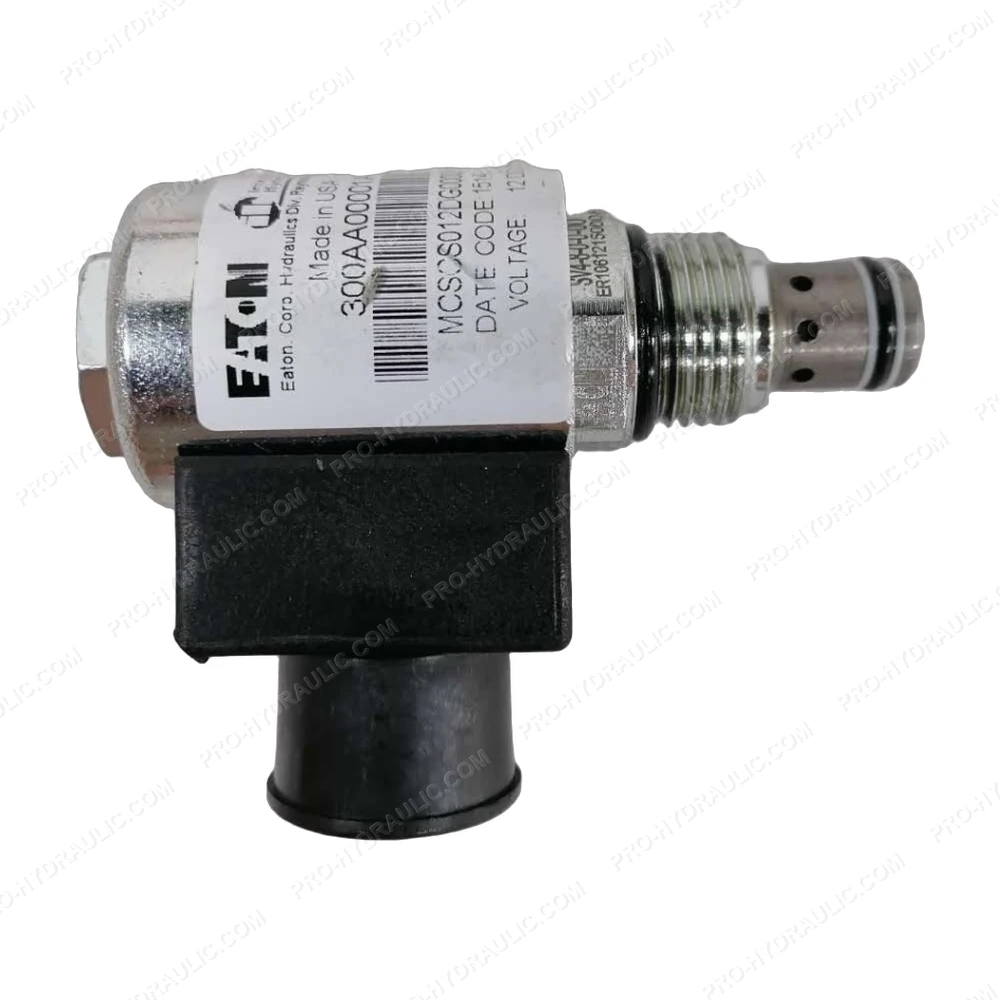

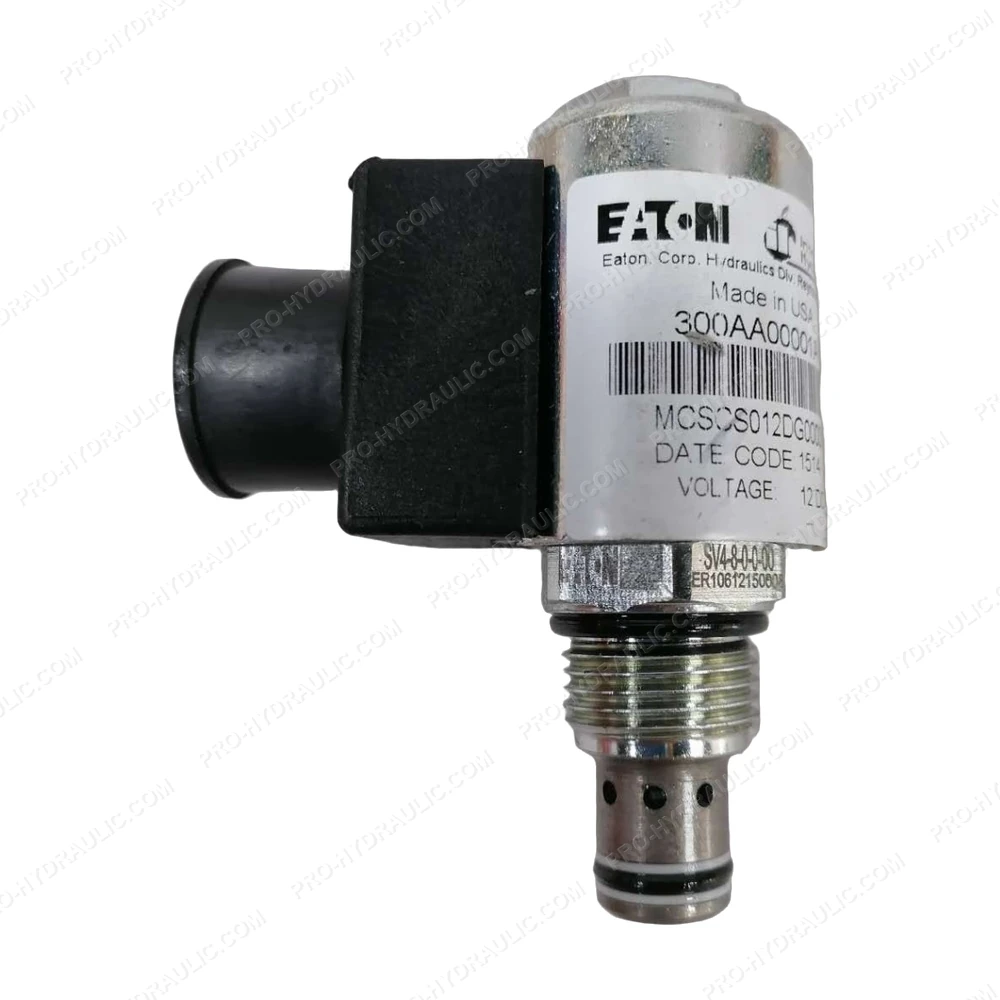

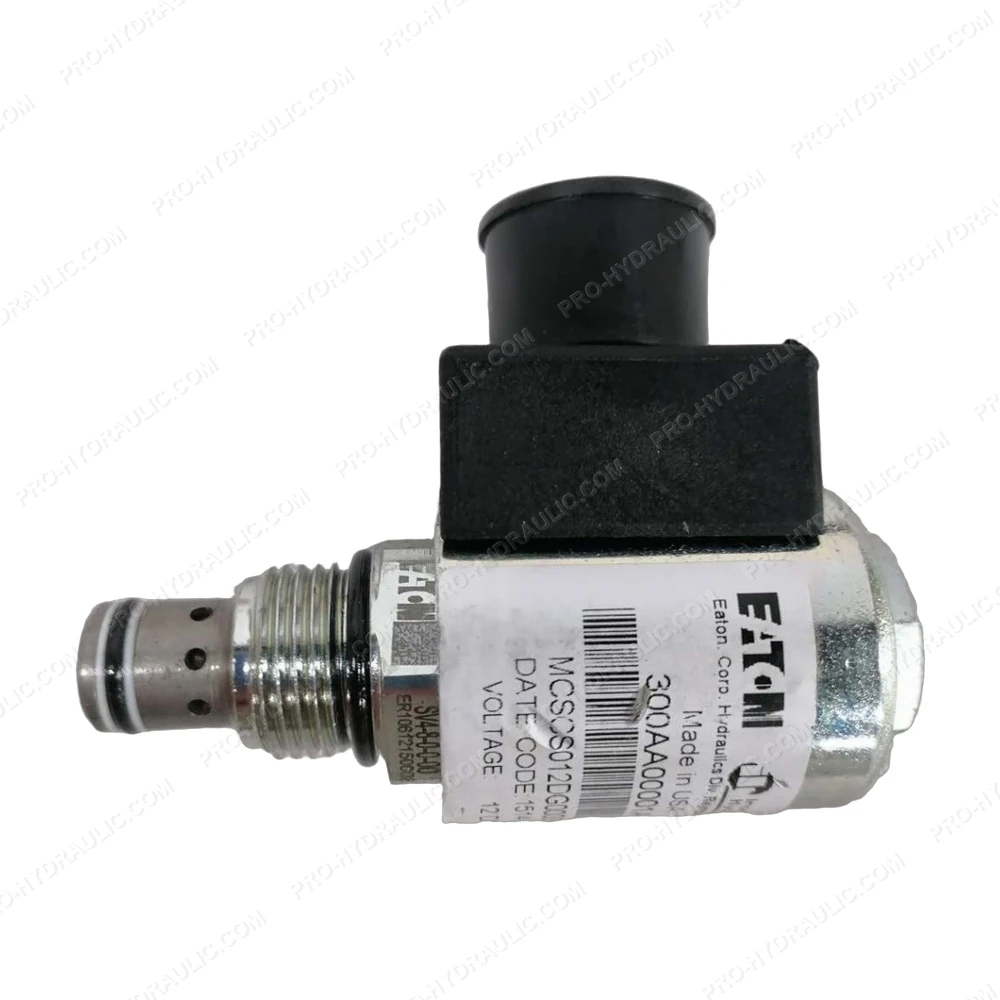

EATON SV4-8-0-0-00 Directional Control Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the EATON SV4-8-0-0-00 / 300AA00001A Directional Control Valve. This precision-engineered industrial component delivers reliable fluid control for heavy-duty systems.
