Product Overview
The Eaton Vickers DG4V-3C-2BL-M-U-H5-13 is a high-performance, solenoid-operated directional control valve from the globally recognized Vickers DG4V series. Engineered for precise control of hydraulic fluid flow direction, this 3-position, 4-way (3C spool) valve directs pressurized oil to actuate cylinders, motors, and other hydraulic actuators in industrial machinery. The DG4V-3 series is renowned for its robust construction, fast response, and reliable shifting performance, making it a standard choice for demanding industrial hydraulic systems requiring dependable directional control and long service life.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Operated Directional Control Valve |
| Model Designation | DG4V-3C-2BL-M-U-H5-13 |
| Spool Configuration | 3C Spool — 3-Position, 4-Way (P, T, A, B ports) |
| Actuation Type | Solenoid Actuated (Spring Centered / Spring Offset) |
| Operating Pressure | Up to 350 bar (5075 psi) — Standard Industrial Grade |
| Rated Flow | Up to 40 L/min (10.5 GPM) nominal at rated pressure drop |
| Mounting & Connection | Standard ISO 4401 / CETOP 3 (NG6) Subplate Interface |
| Electrical Connection | DIN 43650 Connector (H5 Terminal Box) |
| Seal Material | Nitrile (Buna-N) — Standard Industrial Hydraulic Fluid Compatible |
Engineering Features & Advantages
- Precision Spool Performance: The 3C spool design delivers accurate and repeatable directional control with minimal internal leakage, ensuring precise actuator positioning and consistent cycle performance in high-duty industrial applications.
- Fast Solenoid Response: High-efficiency solenoid operators provide rapid shifting times, enabling high-speed machine cycling and improved overall system productivity.
- Robust Wet-Armature Design: The solenoid armature operates in hydraulic fluid, providing superior lubrication, reduced wear, and quieter operation compared to dry-armature alternatives.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with a hardened spool and sleeve assembly that resists contamination and extends service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM Vickers DG4V-3 series valves, ensuring drop-in replacement without modification to manifolds or subplates.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Eaton standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
The DG4V-3 series is renowned for its robust construction, fast response, and reliable shifting performance, making it a standard choice for demanding industrial hydraulic systems requiring dependable directional control and long service life.
PRODUCT IMAGES

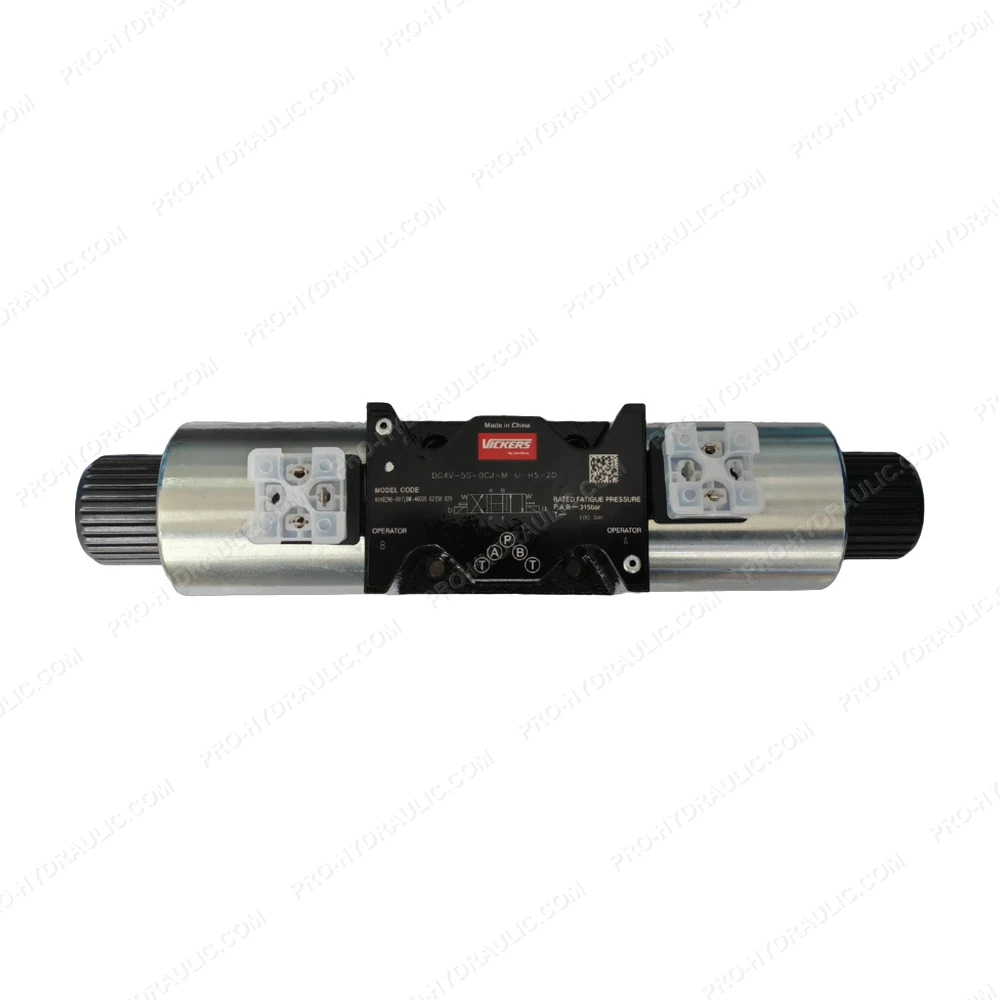

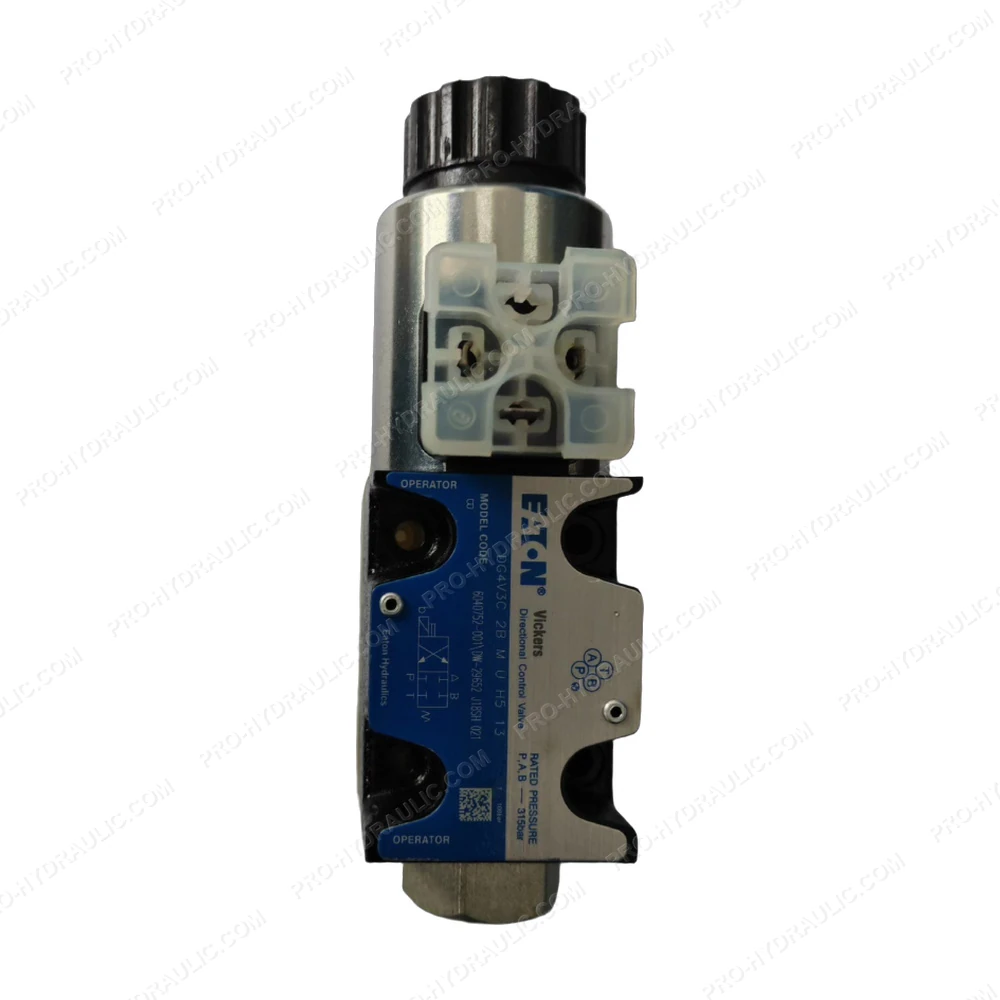

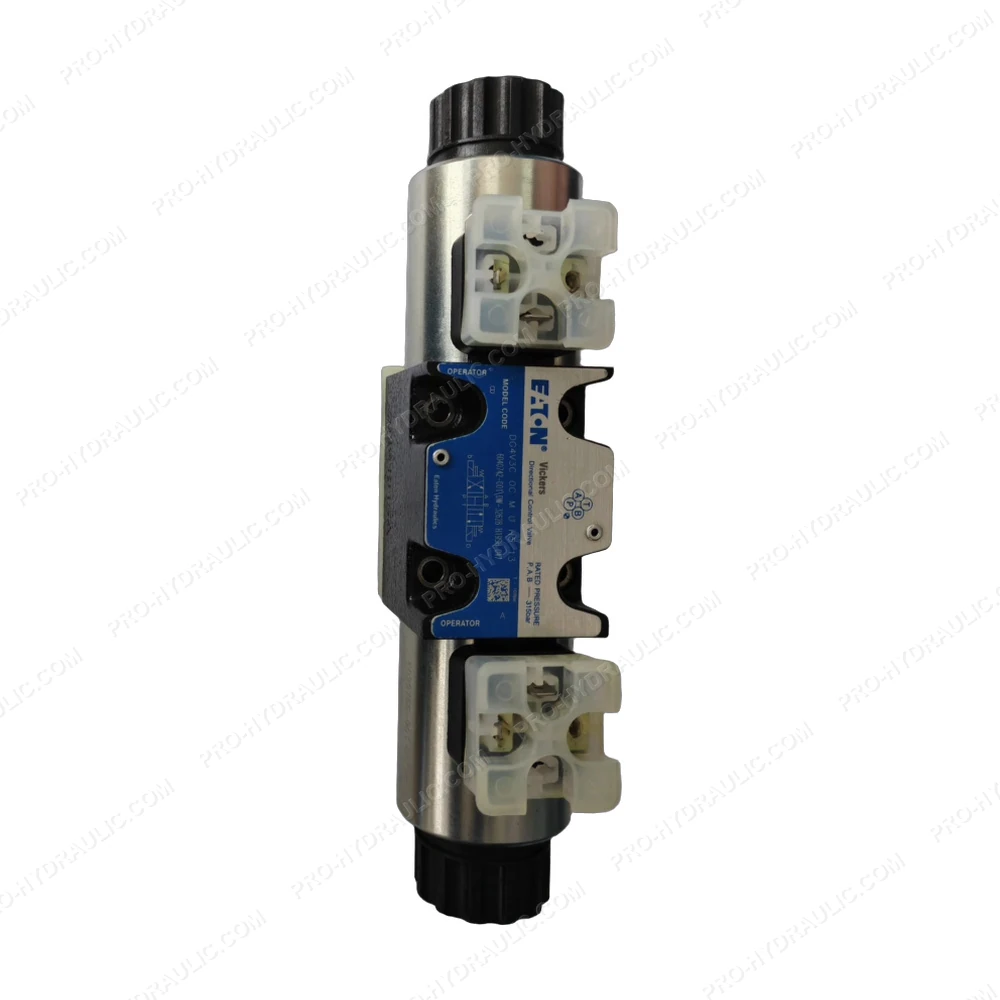

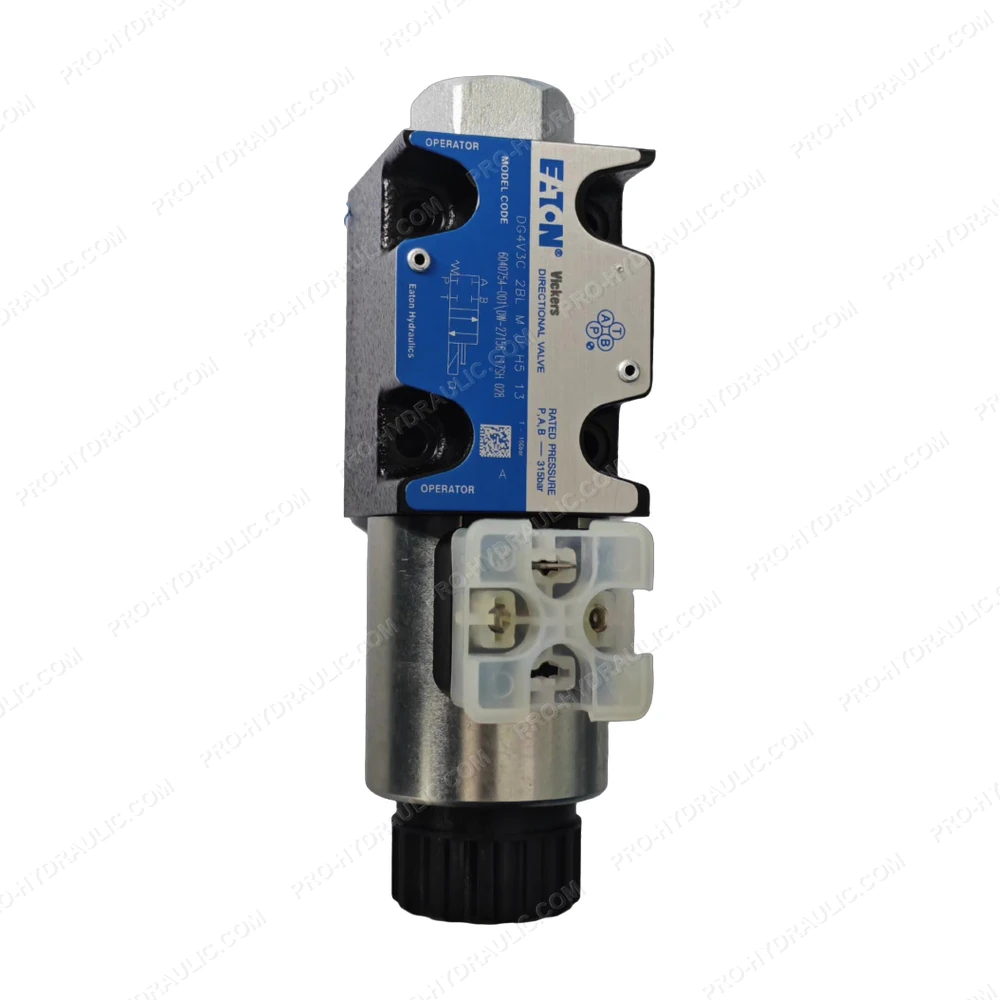

Eaton Vickers DG4V-3C-2BL-M-U-H5-13 Solenoid Operated Directional Control Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Eaton Vickers DG4V-3C-2BL-M-U-H5-13 Solenoid Operated Directional Valve. This UK-made 24V DC hydraulic component features a 4-way, 3-position design with spring return, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
