Product Overview
The Eaton Vickers DG5S4-042C-M-U-H5-71-EN624 is a high-performance solenoid controlled, pilot operated directional control valve engineered for precise management of hydraulic fluid flow direction in demanding industrial circuits. Part of the renowned Vickers DG5S4 series, this valve utilizes a two-stage design where a small solenoid pilot valve controls the larger main spool, enabling high flow capacity with minimal electrical power consumption. The “042C” spool configuration provides a closed-center, spring-centered function, ensuring the main spool returns to a neutral blocked position upon de-energization. Designed for manifold or subplate mounting per ISO 4401 / CETOP standards, this valve is a direct-fit replacement for original Vickers components and is ideal for controlling actuators in high-cycle industrial machinery.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Controlled Pilot Operated Directional Control Valve |
| Model Designation | DG5S4-042C-M-U-H5-71-EN624 |
| Spool Type | 042C — Closed Center, Spring Centered, All Ports Blocked in Neutral |
| Actuation | Single or Dual Solenoid Pilot Actuated (Wet Armature, High Force) |
| Operating Pressure | Up to 315 bar (Main Stage) / Pilot Pressure per Vickers Standard |
| Rated Flow | Up to 300 L/min (dependent on spool and pressure drop) |
| Mounting & Connection | Subplate / Manifold Mounting per ISO 4401, CETOP 8, NG25 Interface |
| Electrical Connection | DIN 43650 / EN 175301-803 Solenoid Plug (H5 Coil Rating) |
| Seal Material | Nitrile (Buna-N) / Fluorocarbon Options Available |
Engineering Features & Advantages
- Precision Pilot Operation: The two-stage pilot design allows low-power solenoid signals to control high-flow main stage spools, delivering fast, repeatable directional shifting with minimal pressure drop and excellent metering stability.
- Robust Solenoid Construction: Wet armature solenoids provide high magnetic force, efficient heat dissipation, and long service life under continuous duty cycles, with manual override options for emergency actuation.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, featuring hardened spool and sleeve assemblies that resist wear, contamination, and hydraulic shock.
- Direct Fit Replacement: Precision-manufactured to original Eaton specifications for direct replacement, minimising downtime and eliminating fitment issues.
Typical Industrial Applications
Designed for manifold or subplate mounting per ISO 4401 / CETOP standards, this valve is a direct-fit replacement for original Vickers components and is ideal for controlling actuators in high-cycle industrial machinery.
PRODUCT IMAGES

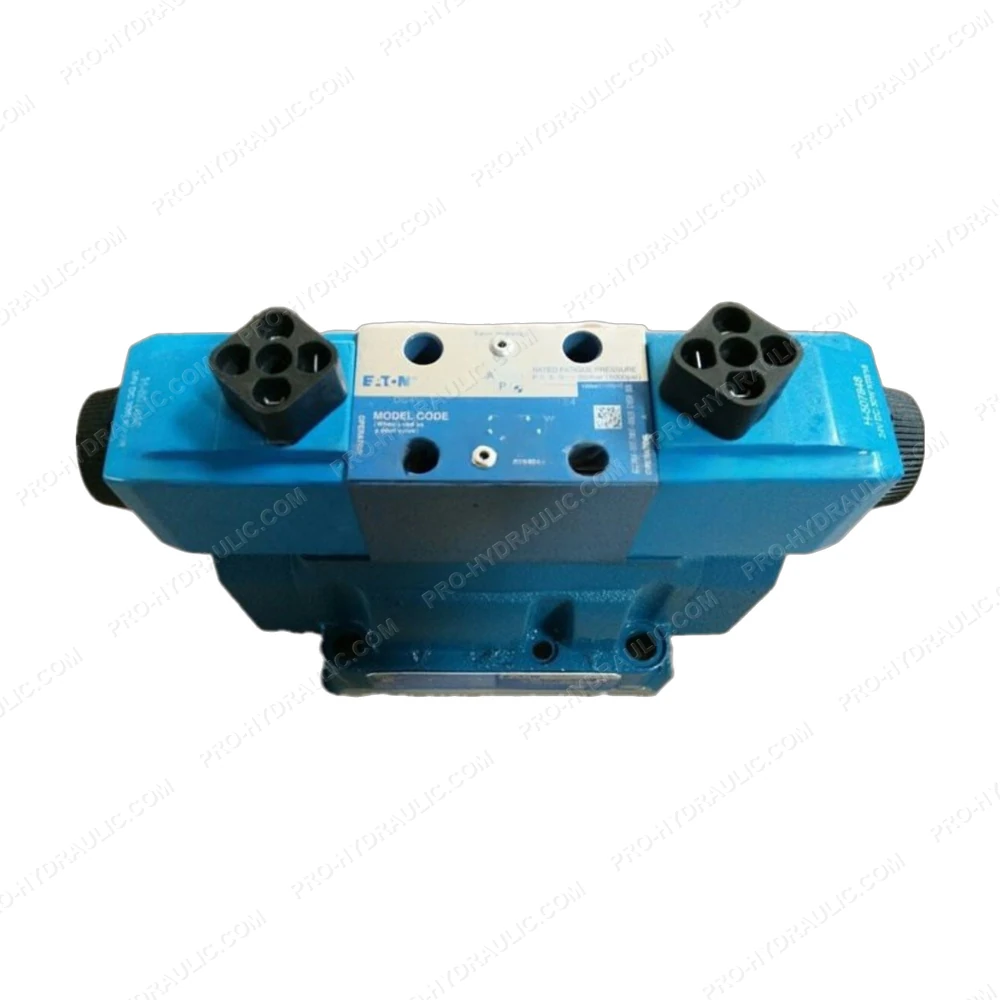

Eaton Vickers DG5S4-042C-M-U-H5-71-EN624 Solenoid Controlled Pilot Operated Directional Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine EATON VICKERS DG5S4-042C-M-U-H5-71-EN624 Solenoid Operated Directional Valve. This USA-made 110V AC hydraulic component features a 4-way, 3-position design with spring return, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
