Product Overview
The Eaton Vickers DGMFN-3-Y-A2W-B2W-41 (catalog number 694412) is a modular flow control valve from the proven DGMFN series, engineered for precise regulation of actuator speed within ISO 4401 / CETOP 3 (NG6) sandwich-style hydraulic manifolds. Operating on a pressure-compensated, two-way flow control principle, this valve maintains a constant set flow rate independent of load pressure fluctuations, ensuring stable and repeatable motion control in demanding industrial circuits. As a modular sandwich valve, it mounts directly between a directional control valve and the subplate, eliminating the need for inline piping and simplifying system integration. Manufactured to Eaton Vickers’ exacting tolerances, the DGMFN-3-Y-A2W-B2W-41 delivers dependable metering performance for both meter-in and meter-out configurations.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Modular Flow Control Valve (Sandwich / Sandwich Plate Design) |
| Model Designation | DGMFN-3-Y-A2W-B2W-41 / 694412 |
| Series | DGMFN Series Pressure-Compensated Flow Control |
| Nominal Size | NG6 / CETOP 3 / ISO 4401-03 |
| Operating Pressure | Up to 315 bar (standard industrial grade) |
| Flow Control Principle | Pressure-compensated, two-way flow regulation |
| Adjustment Type | Manual adjustment (spindle / set screw with locknut) |
| Mounting & Connection | ISO 4401-03 / CETOP 3 sandwich mounting interface |
| Seal Material | NBR (Buna-N) standard; FKM available on request |
| Fluid Compatibility | Mineral-based hydraulic oils, HL/HLP per DIN 51524 |
Engineering Features & Advantages
- Precision Flow Metering: Pressure-compensated design maintains a constant set flow rate regardless of load variations, delivering accurate and repeatable actuator speed control.
- Modular Sandwich Construction: Compact NG6 / CETOP 3 interface mounts directly between directional valve and subplate, reducing piping, leak points, and installation time.
- Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Eaton OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
Typical Industrial Applications
Operating on a pressure-compensated, two-way flow control principle, this valve maintains a constant set flow rate independent of load pressure fluctuations, ensuring stable and repeatable motion control in demanding industrial circuits.
PRODUCT IMAGES

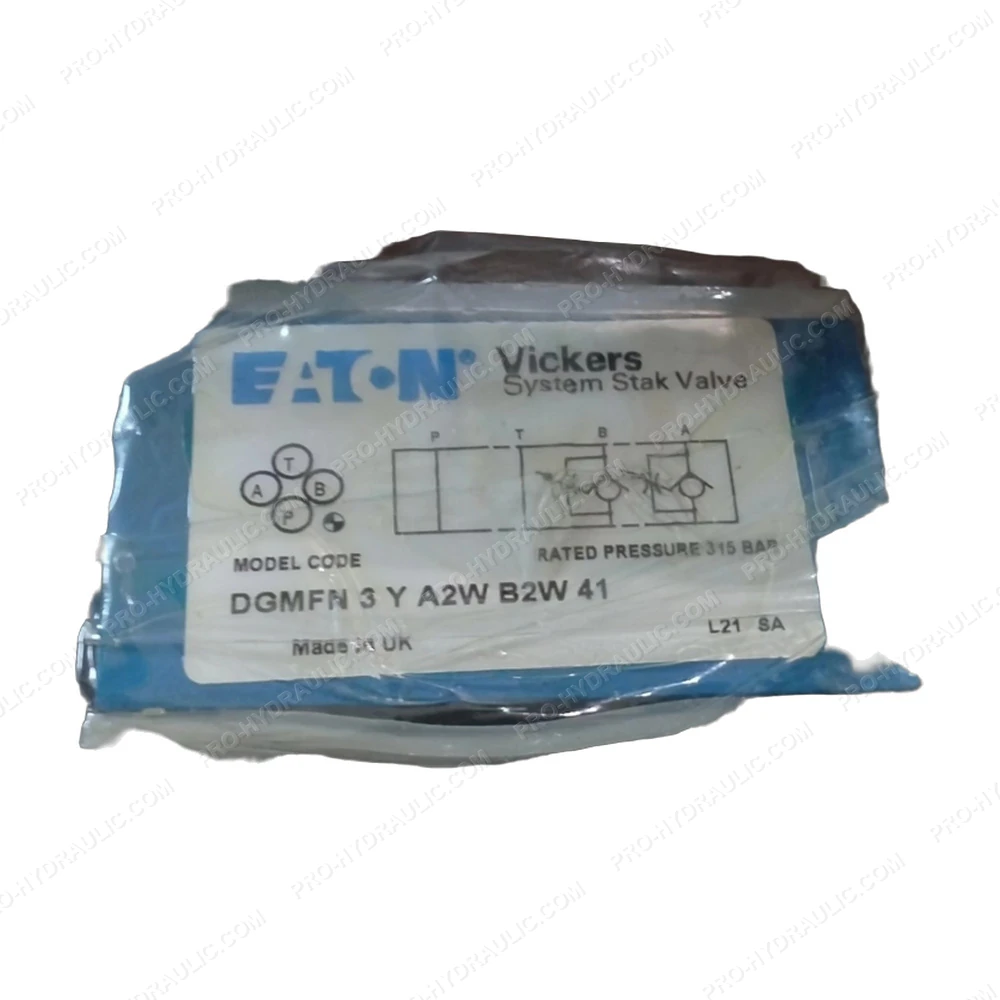

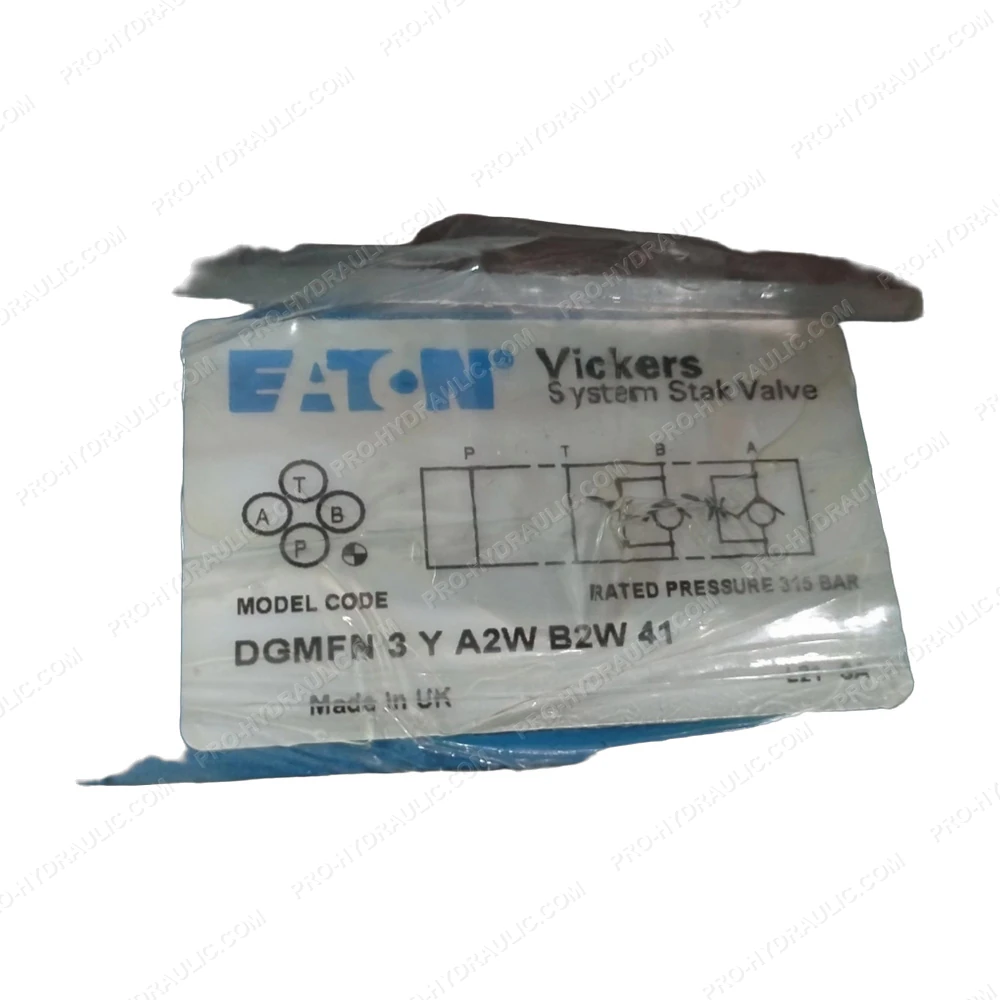

Eaton Vickers DGMFN-3-Y-A2W-B2W-41 / 694412 Modular Flow Control Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine EATON VICKERS DGMFN-3-Y-A2W-B2W-41 / 694412 Solenoid Operated Directional Control Valve. This Germany-made 24V DC hydraulic component features a 4-way 3-position spring-centered design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
