Product Overview
The Eaton Vickers DGMPC 3 ABM BAM 41 (Part No. 02-139087) is a modular pilot-operated check valve designed for sandwich (subplate) mounting within ISO 4401 / CETOP 3 (NG6) hydraulic valve stacks. Manufactured by Eaton under the Vickers brand, this dual pilot-operated check valve module provides leak-free load holding and controlled actuator locking in one or both service lines, with pilot pressure opening the check poppet to permit reverse flow on command. The DGMPC series is engineered for precise, repeatable blocking and release of hydraulic flow in manifold-based circuits, making it a critical safety and motion-control component in industrial power units and machine hydraulic systems.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Modular Pilot Operated Check Valve (Sandwich / Subplate Mounted) |
| Model Designation | DGMPC 3 ABM BAM 41 / 02-139087 |
| Manufacturer | Eaton Vickers |
| Size / Interface | NG6 (CETOP 3 / ISO 4401-03) modular interface |
| Function Configuration | Dual pilot-operated check — A and B line blocking with pilot release |
| Operating Pressure | Standard industrial grade, up to 315 bar rated working pressure |
| Pilot Ratio | Standard Vickers pilot ratio for reliable poppet opening under load |
| Mounting & Connection | Sandwich stack mounting, ISO 4401 / CETOP 3 port pattern |
| Sealing | NBR (Buna-N) seals, standard mineral hydraulic oil compatible |
Engineering Features & Advantages
- Precision Performance: Pilot-operated poppet design delivers near-zero internal leakage in the blocked direction, providing secure load holding and accurate actuator positioning without drift.
- Dual-Line Control: The ABM/BAM configuration blocks both A and B service ports, with pilot pressure from the opposite line releasing each check for controlled bidirectional motion.
- Modular Stack Integration: Sandwich construction mounts directly between directional valve and subplate, eliminating external piping, reducing leak points, and simplifying manifold design.
- Industrial Reliability: Hardened, precision-lapped poppet and seat geometry withstands continuous operation and pressure spikes in severe industrial duty cycles.
- Direct Fit Replacement: Exact dimensional and functional compatibility with the original Eaton Vickers DGMPC 3 series module and part number 02-139087.
Typical
PRODUCT IMAGES

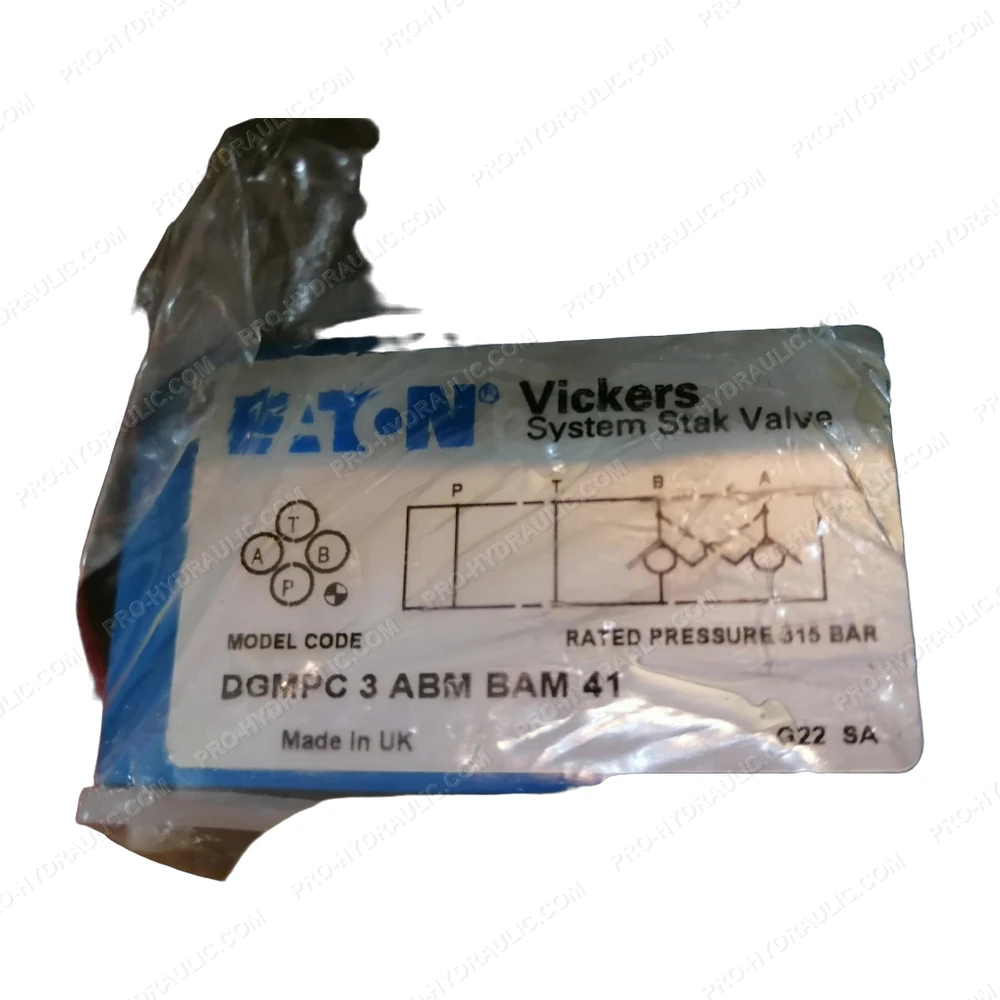

Eaton Vickers DGMPC 3 ABM BAM 41 / 02-139087 Modular Pilot Operated Check Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Eaton Vickers DGMPC 3 ABM BAM 41 / 02-139087 Solenoid Operated Directional Control Valve. This Germany-made 24V DC hydraulic component features a 4-way 3-position design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
