Product Overview
The Eaton Vickers DGMX2-3-PP-AH-B-40 (part number 02-157036) is a modular, sandwich-mounted pressure reducing valve from the proven DGMX2 series, engineered to deliver a stable, reduced secondary pressure from a higher primary system supply. Using a balanced spool and adjustable spring-loaded pilot mechanism, the valve regulates downstream pressure independently of flow and upstream pressure fluctuations, protecting actuators, logic circuits, and sub-systems from over-pressure conditions. Its modular CETOP/ISO 4401 interface allows direct sandwich mounting beneath directional control valves, eliminating additional piping and simplifying manifold design in high-performance industrial hydraulic power units.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Modular Pressure Reducing Valve (Pressure Control Valve) |
| Model Designation | DGMX2-3-PP-AH-B-40 / 02-157036 |
| Manufacturer | Eaton Vickers |
| Operating Pressure | Standard Industrial Grade (up to 315 bar rated inlet) |
| Pressure Adjustment | Adjustable spring-loaded pilot stage with locknut-protected setting screw |
| Mounting & Connection | Modular sandwich mounting, ISO 4401 / CETOP 3 (NG6) interface |
| Spool Configuration | Balanced spool design for reduced pressure regulation |
| Seal & Fluid Compatibility | Mineral oil based hydraulic fluids per DIN 51524 |
Engineering Features & Advantages
- Precision Pressure Regulation: Balanced spool and pilot-operated design maintain a constant reduced outlet pressure regardless of flow demand or inlet pressure variation, ensuring repeatable actuator performance.
- Modular Sandwich Construction: Direct CETOP 3 / ISO 4401 mounting eliminates external piping, reduces leak paths, and shortens assembly time in manifold-based systems.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with hardened internal components and contamination-tolerant clearances for long service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Eaton Vickers OEM standards, allowing drop-in replacement without manifold modification.
Typical Industrial Applications
Ideal for plastic injection molding machines, metallurgical presses, CNC machine tools, and general industrial hydraulic power units where a stable reduced pressure supply is required for clamping circuits, pilot lines, and secondary actuator control. Also suited to marine and offshore hydraulic systems demanding reliable pressure control in compact manifold assemblies.
PRODUCT IMAGES

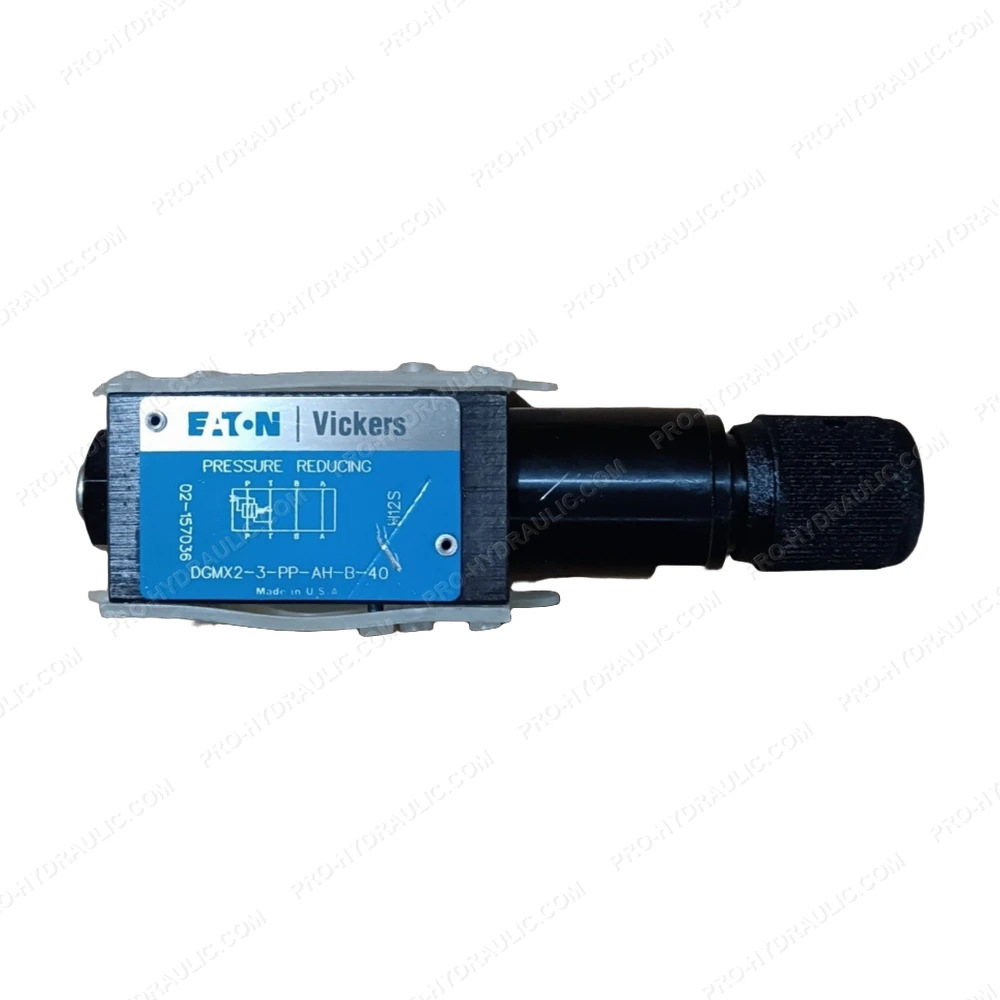

Eaton Vickers DGMX2-3-PP-AH-B-40 / 02-157036 Modular Pressure Reducing Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine EATON VICKERS DGMX2-3-PP-AH-B-40 / 02-157036 Solenoid Operated Directional Valve. This Germany-made 24V DC hydraulic component features a 4-way 3-position spring-centered design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
