Product Overview

The Eaton Vickers EPV16-A-16-24D-S-U-13 is a high-performance proportional flow control cartridge valve engineered for precise, infinitely variable regulation of hydraulic flow in demanding industrial systems. As part of the Vickers EPV series, this valve utilizes a proportional solenoid actuator acting on a precision-metered spool to deliver flow output that is directly proportional to the electrical input signal. This enables smooth, stepless control of actuator speed and direction without the complexity of servo-level feedback. The cartridge-style construction allows for compact, space-efficient integration into custom manifold blocks and integrated hydraulic circuits, making it an ideal solution for OEM machine builders and MRO replacement applications requiring reliable, repeatable flow control.

Technical Specifications

ParameterSpecification / Feature
Component TypeProportional Flow Control Cartridge Valve
Model DesignationEPV16-A-16-24D-S-U-13
Series / SizeEPV16 (NG16 / CETOP 7 equivalent cartridge size)
Actuation TypeProportional Solenoid, Single Solenoid Configuration
Coil Voltage24 VDC (24D designation)
Operating PressureUp to 350 bar (5075 psi) rated working pressure
Rated FlowUp to 160 L/min (nominal, dependent on pressure differential)
Control SignalAnalog proportional input (0–10 V or 4–20 mA via amplifier card)
Mounting & ConnectionCartridge-style, manifold-mounted per Vickers cavity standard
Seal MaterialNBR / FKM (standard industrial hydraulic fluids)
Fluid CompatibilityMineral-based hydraulic oils, HLP/HM per ISO 6743-4

Engineering Features & Advantages

  • Precision Proportional Metering: The precision-ground spool and proportional solenoid deliver flow output that is linearly proportional to the command signal, enabling accurate speed and motion control of hydraulic actuators across the full operating range.
  • Industrial Reliability: Designed for dependable long-term operation in demanding industrial environments, with quality bearings and sealing systems ensuring extended maintenance intervals.
  • Direct Fit Replacement: Exact dimensional and functional compatibility with original EATON OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.

Typical Industrial Applications

The cartridge-style construction allows for compact, space-efficient integration into custom manifold blocks and integrated hydraulic circuits, making it an ideal solution for OEM machine builders and MRO replacement applications requiring reliable, repeatable flow control.

PRODUCT IMAGES

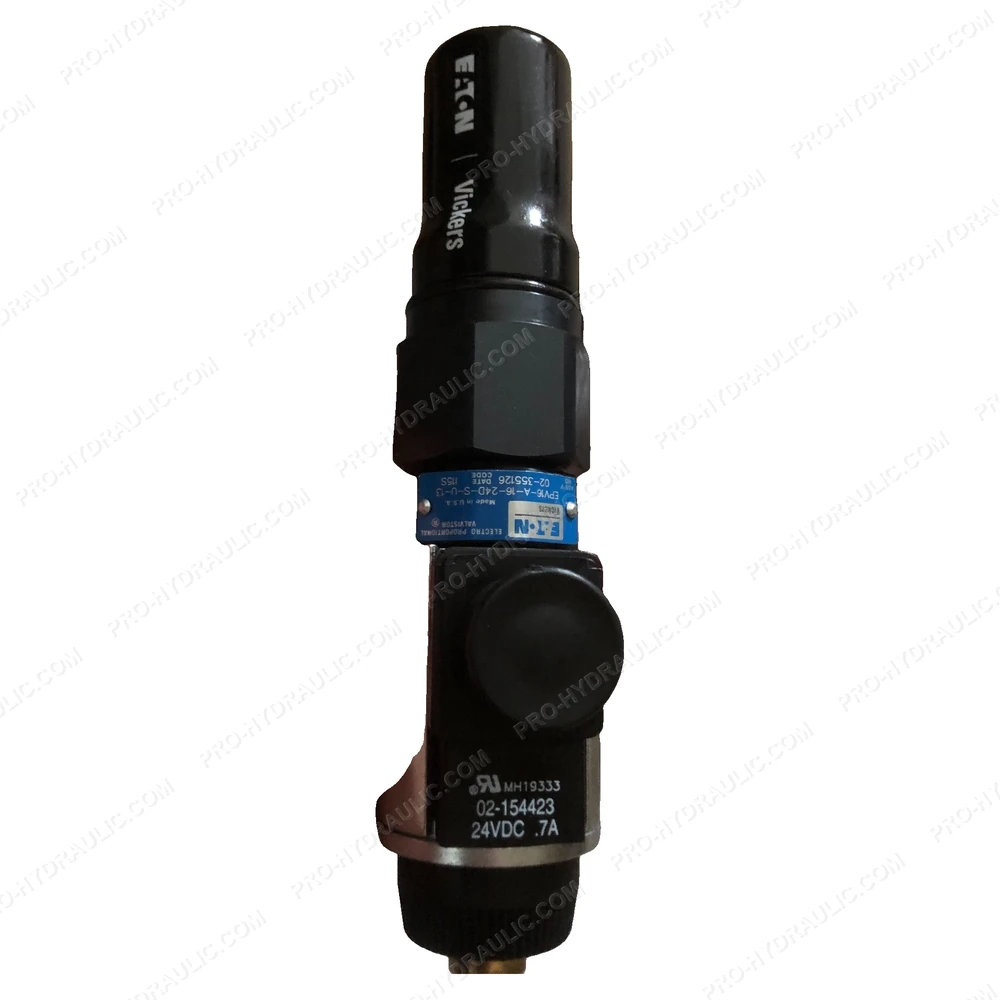

EATON VICKERS EPV16-A-16-24D-S-U-13

EATON VICKERS EPV16-A-16-24D-S-U-13 Proportional Flow Control Cartridge Valve

⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:

  • Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
  • Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
  • Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
  • Peace of Mind: Covered by our 12-Month Replacement Warranty.

Shop the genuine EATON VICKERS EPV16-A-16-24D-S-U-13 Solenoid Operated Directional Control Valve. This US-made 24V DC hydraulic component features a robust spool design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
