Product Overview
The Eaton Vickers KBDG5V-5-33C80N-E-M2-PE7-H1-10 (02-124030) is a high-performance proportional directional valve from the Vickers KBDG series, engineered for precise electro-hydraulic control of flow direction and magnitude in demanding industrial systems. Utilizing a rugged four-way, five-chamber spool design with an integral proportional solenoid, this valve delivers infinitely variable flow control proportional to the electrical input signal, enabling smooth acceleration and deceleration of actuators without pressure spikes or shock. The KBDG5V platform is widely recognized for its fast dynamic response, excellent repeatability, and low hysteresis, making it the preferred choice for closed-loop position, velocity, and force control applications where precise metering and reliable directional switching are critical.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Proportional Directional Valve (Four-Way, Spool Type) |
| Model Designation | KBDG5V-5-33C80N-E-M2-PE7-H1-10 / 02-124030 |
| Manufacturer | Eaton Vickers |
| Spool Configuration | 5-Chamber, 4-Way, 3-Position, Closed Center |
| Actuation Type | Proportional Solenoid with Integrated Position Feedback |
| Operating Pressure | Up to 350 bar (5075 psi) rated working pressure |
| Rated Flow | 80 L/min nominal at 70 bar pressure drop per land |
| Hysteresis | ≤ 3% of rated signal (with dither) |
| Response Time | Typical 20–40 ms step response (dependent on system) |
| Electrical Interface | Proportional solenoid, 24 VDC nominal, with PE7 amplifier card interface |
| Mounting & Connection | ISO 4401 / CETOP 5 (NG10) subplate mounting, standard Vickers interface |
| Seal Material | Nitrile (NBR) standard; Viton available |
Engineering Features & Advantages
- Precision Performance: The proportional directional valve (four-way, spool type) delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Eaton OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
- Rated Capability: Rated for pressure ratings up to 350 bar and flow rates up to 80 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
The KBDG5V platform is widely recognized for its fast dynamic response, excellent repeatability, and low hysteresis, making it the preferred choice for closed-loop position, velocity, and force control applications where precise metering and reliable directional switching are critical.
PRODUCT IMAGES

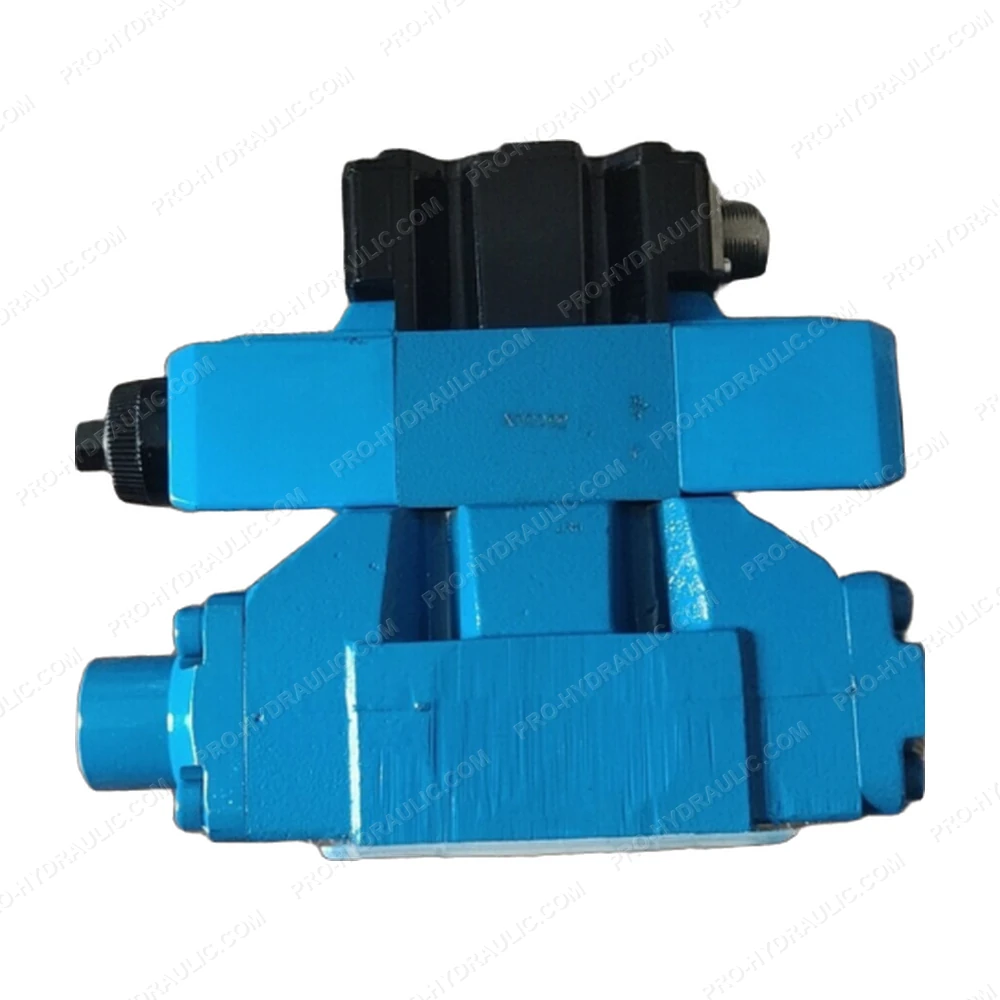

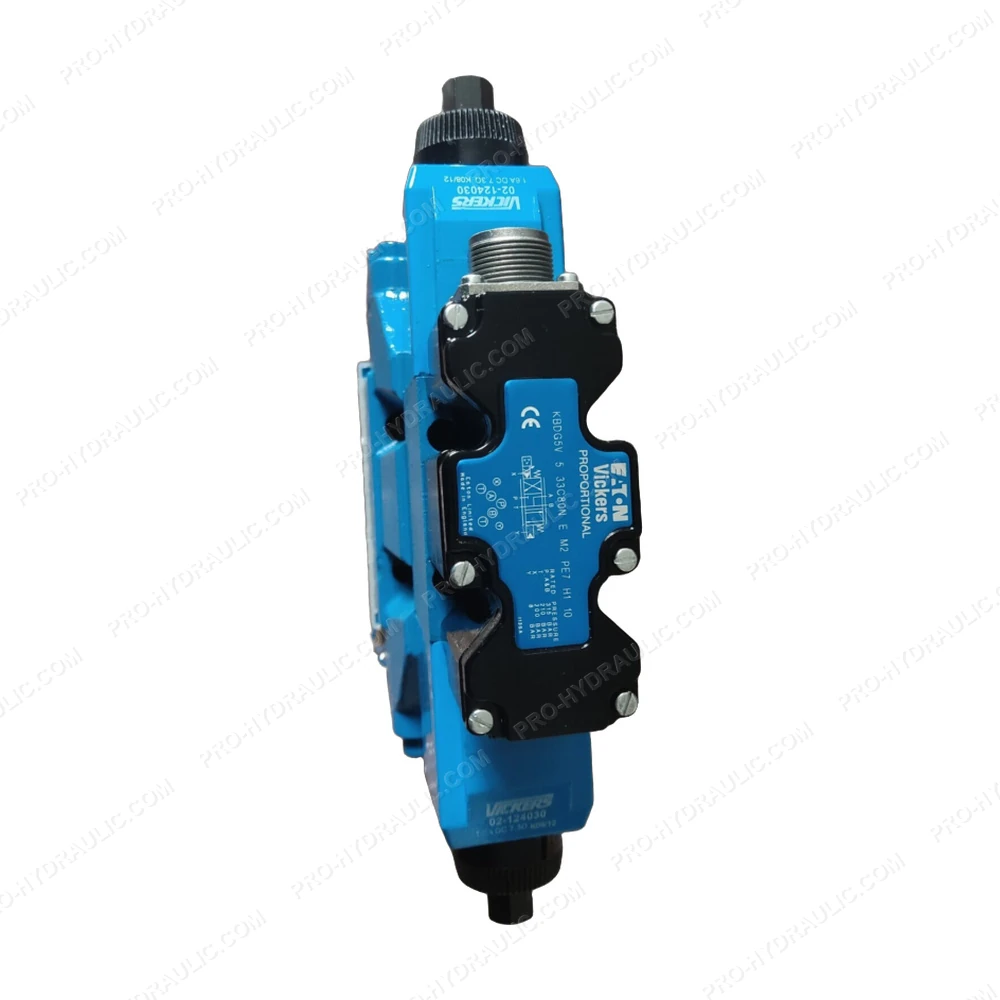

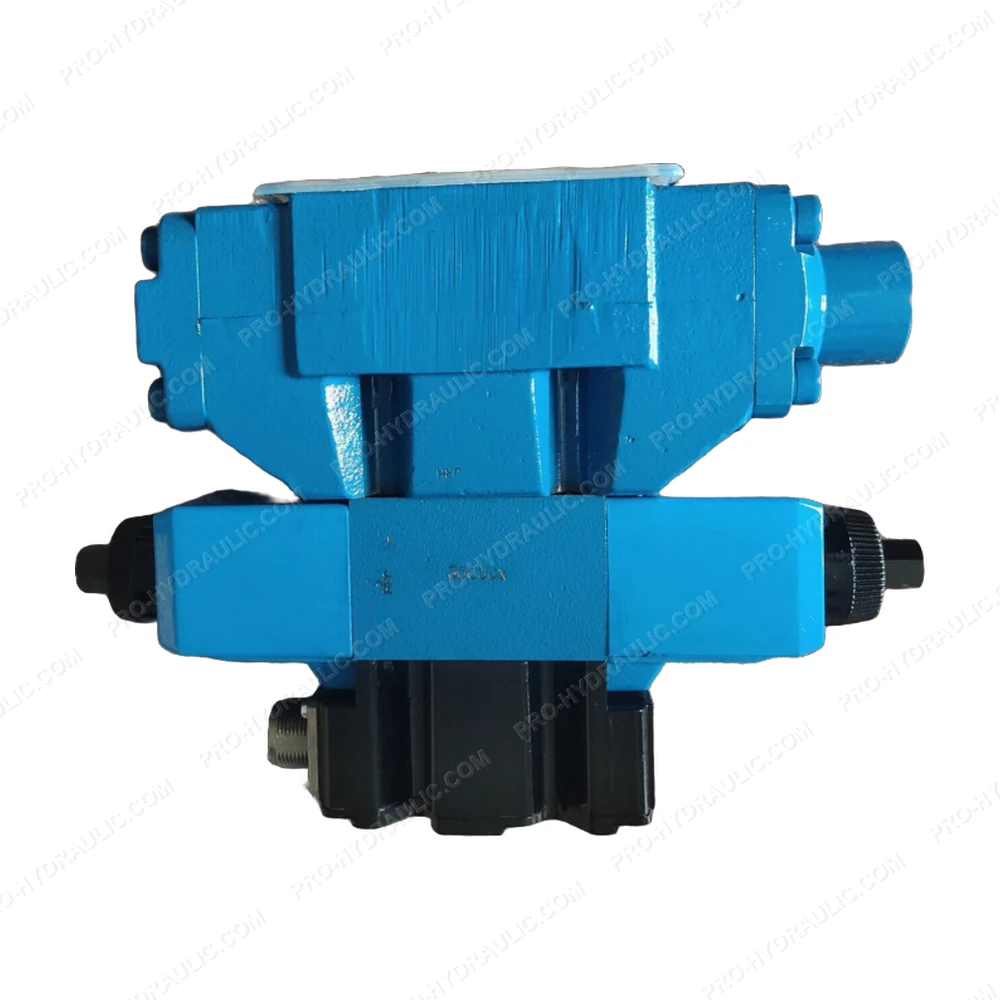

Eaton Vickers KBDG5V-5-33C80N-E-M2-PE7-H1-10 / 02-124030 Proportional Directional Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine EATON VICKERS KBDG5V-5-33C80N-E-M2-PE7-H1-10 / 02-124030 Proportional Directional Valve. This US-made 24V DC hydraulic component features a 4-way, 3-position design with integrated electronics, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
