Product Overview
The EBRO Z011-A DN80 is a pneumatically actuated butterfly valve engineered for reliable isolation and flow control in industrial process and pneumatic systems. Manufactured by EBRO Armaturen, a recognized brand in valve technology, this valve combines a wafer-style butterfly valve body with a pneumatic rotary actuator for automated on/off or modulating service. The Z011-A series is designed with a centric disc and elastomeric seat, providing bubble-tight shutoff and low operating torque. The DN80 (3-inch) nominal bore makes it suitable for medium-flow pipelines in a wide range of industrial applications. The pneumatic actuator enables remote, fast, and repeatable operation, making this valve an ideal choice for automated process lines requiring dependable shutoff and minimal maintenance.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Actuated Butterfly Valve (Process & Pneumatic Valve) |
| Model Designation | EBRO Z011-A DN80 |
| Nominal Diameter | DN80 (3″) |
| Operating Pressure | Up to 16 bar (PN16) depending on seat material |
| Actuation Type | Pneumatic rotary actuator (double-acting or spring-return) |
| Mounting & Connection | Wafer-style body, ISO 5211 actuator mounting pad, flange connection to EN 1092-1 / ANSI / JIS standards |
| Body Material | Cast iron / ductile iron / aluminum (depending on variant) |
| Disc Material | Stainless steel / nickel-plated ductile iron |
| Seat Material | EPDM / NBR / PTFE (depending on media compatibility) |
| Temperature Range | -10°C to +120°C (dependent on seat material) |
Engineering Features & Advantages
- Precision Performance: Centric disc and resilient seat design ensures bubble-tight shutoff and low torque operation, enabling precise flow control and reliable isolation.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust body construction and corrosion-resistant wetted parts.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards, including ISO 5211 mounting interface for easy actuator interchange.
- Direct Fit Replacement: Precision-manufactured to original EBRO specifications for direct replacement, minimising downtime and eliminating fitment issues.
Typical Industrial Applications
The DN80 (3-inch) nominal bore makes it suitable for medium-flow pipelines in a wide range of industrial applications.
PRODUCT IMAGES

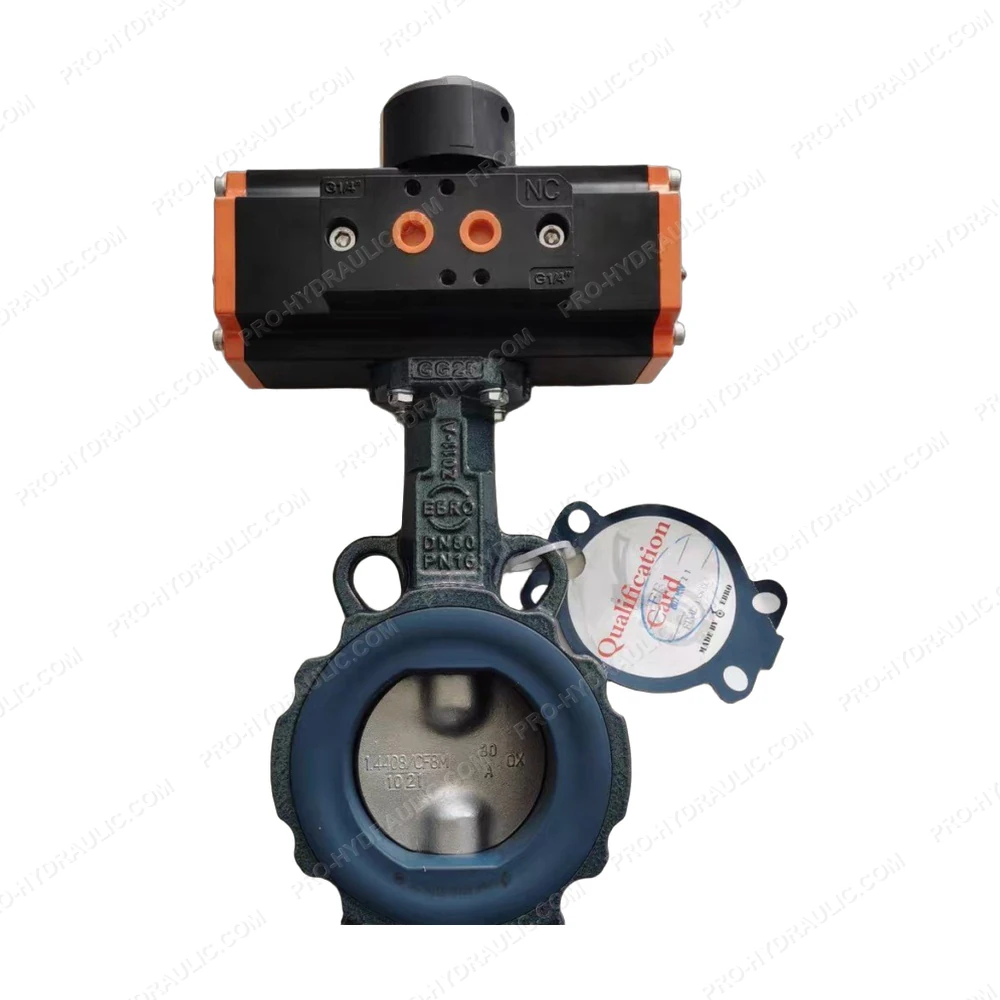

EBRO Z011-A DN80 Pneumatic Actuated Butterfly Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine EBRO Z011-A DN80 Pneumatic Actuated Butterfly Valve. This Germany-made DN80 valve features a wafer-style design with a double-acting pneumatic actuator, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
