Product Overview
The EFD 736HPA is a high-pressure dispense valve engineered for precision dispensing of fluids, pastes, and viscous materials in demanding industrial process environments. Manufactured by EFD (a Nordson company), this pneumatically actuated valve utilizes a balanced spool and diaphragm-free sealing architecture to deliver accurate, repeatable shot volumes at elevated working pressures. Unlike hydraulic pumps, the 736HPA functions strictly as a flow-control and metering valve, responding to controlled air-pilot signals to open and close the dispensing orifice with minimal dead volume. Its robust stainless steel body and chemically resistant wetted path make it a reliable component in automated dispensing systems, offering consistent deposit control for adhesives, sealants, lubricants, and thermal interface materials.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | High-Pressure Dispense Valve (Process & Pneumatic Valve) |
| Model Designation | EFD 736HPA |
| Operating Pressure | Up to 2,500 psi (172 bar) fluid inlet; 70–100 psi (4.8–6.9 bar) actuation air |
| Mounting & Connection | 1/4 NPT fluid inlet/outlet; 1/8 NPT pilot air; manifold or bracket mount |
Engineering Features & Advantages
- Precision Performance: Balanced spool design ensures fast, consistent open/close response with minimal dead volume, enabling accurate shot-to-shot repeatability for high-viscosity media.
- Industrial Reliability: Constructed from passivated stainless steel and engineered polymers for continuous operation under severe industrial conditions, with a cycle life exceeding millions of actuations.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original EFD 736HPA valve standards, including nozzle, seat, and air-pilot interfaces.
Typical Industrial Applications
This valve is widely deployed in automated dispensing and process control systems, including: electronics and semiconductor packaging (underfill, encapsulants, thermal grease), automotive assembly (adhesives, sealants, gasketing), medical device manufacturing (UV-cure adhesives, silicone), and general industrial bonding and potting where precise, high-pressure fluid placement is critical.
PRODUCT IMAGES

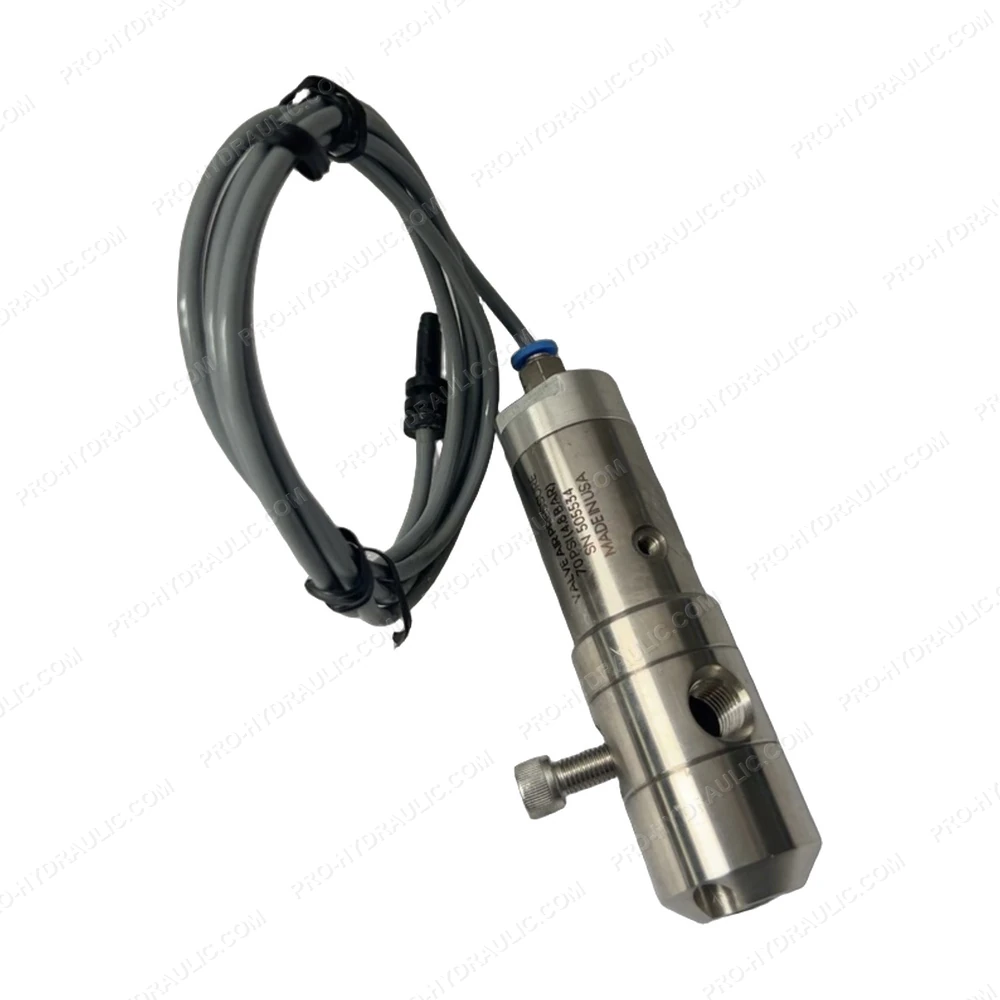

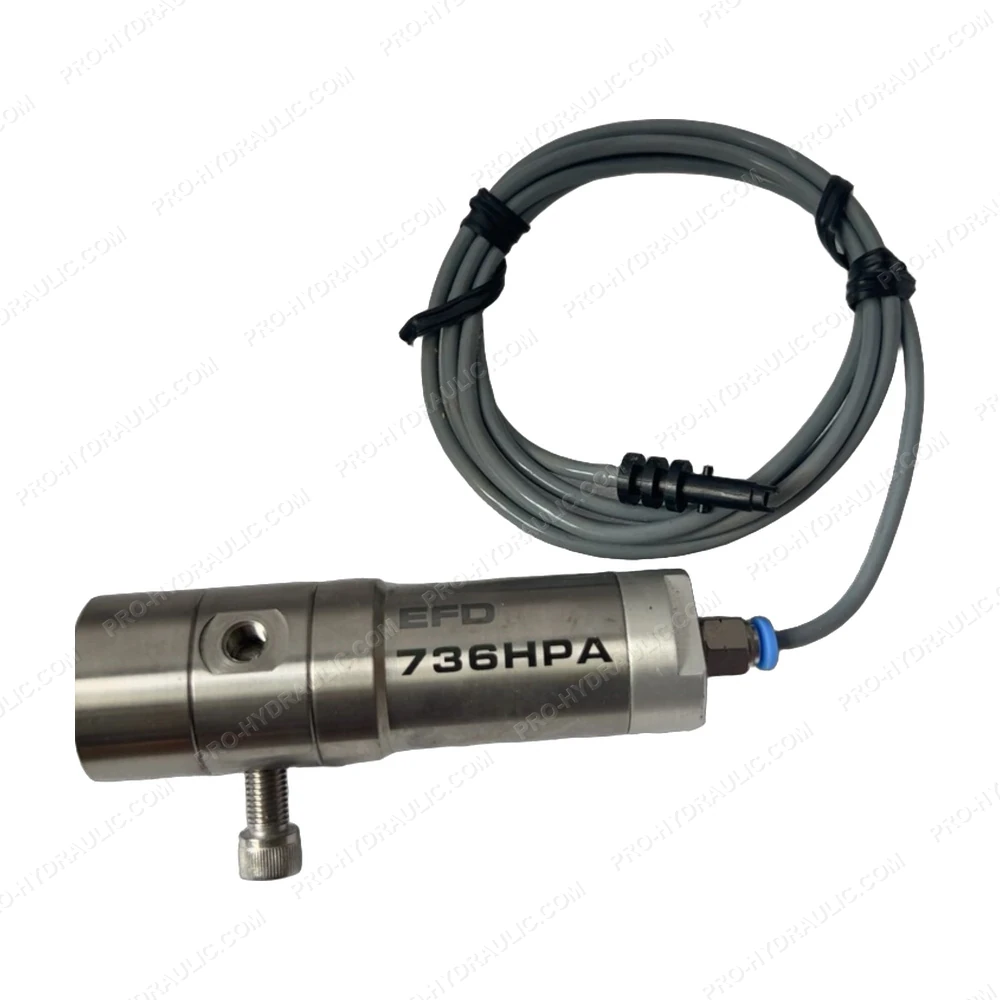

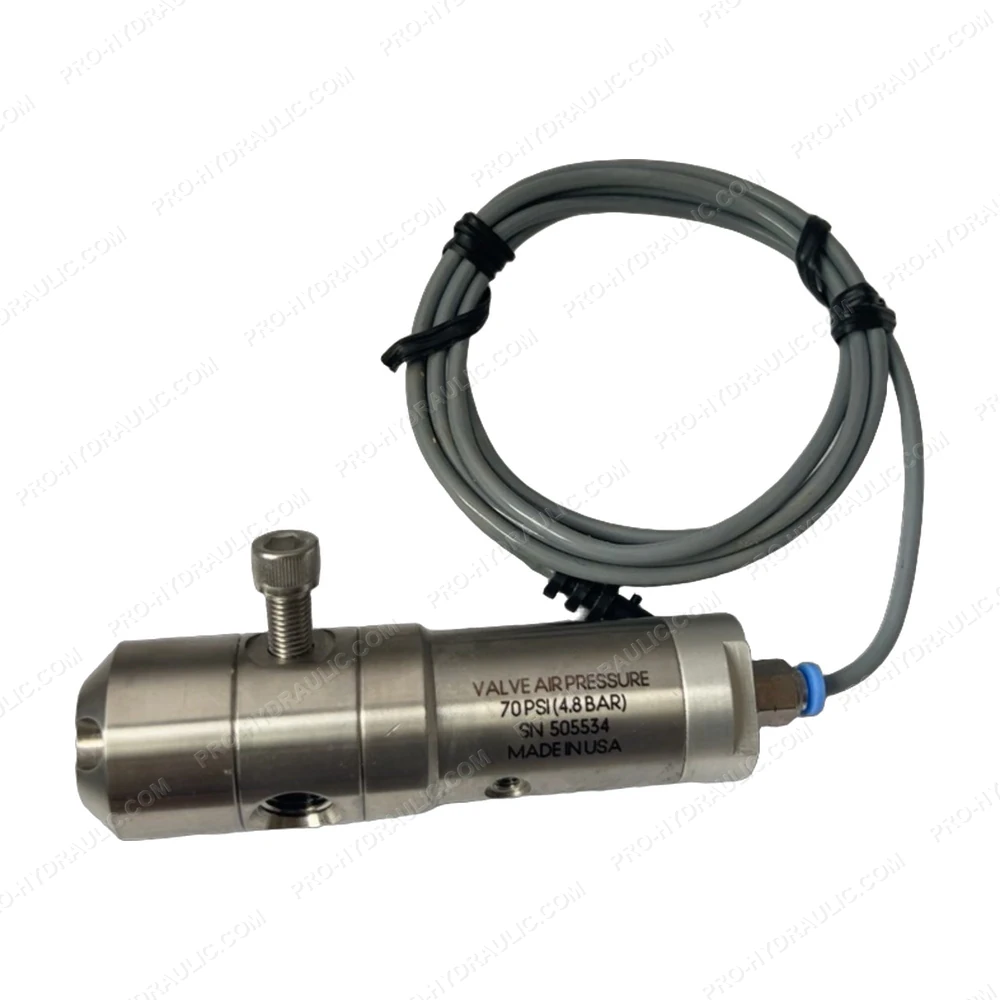

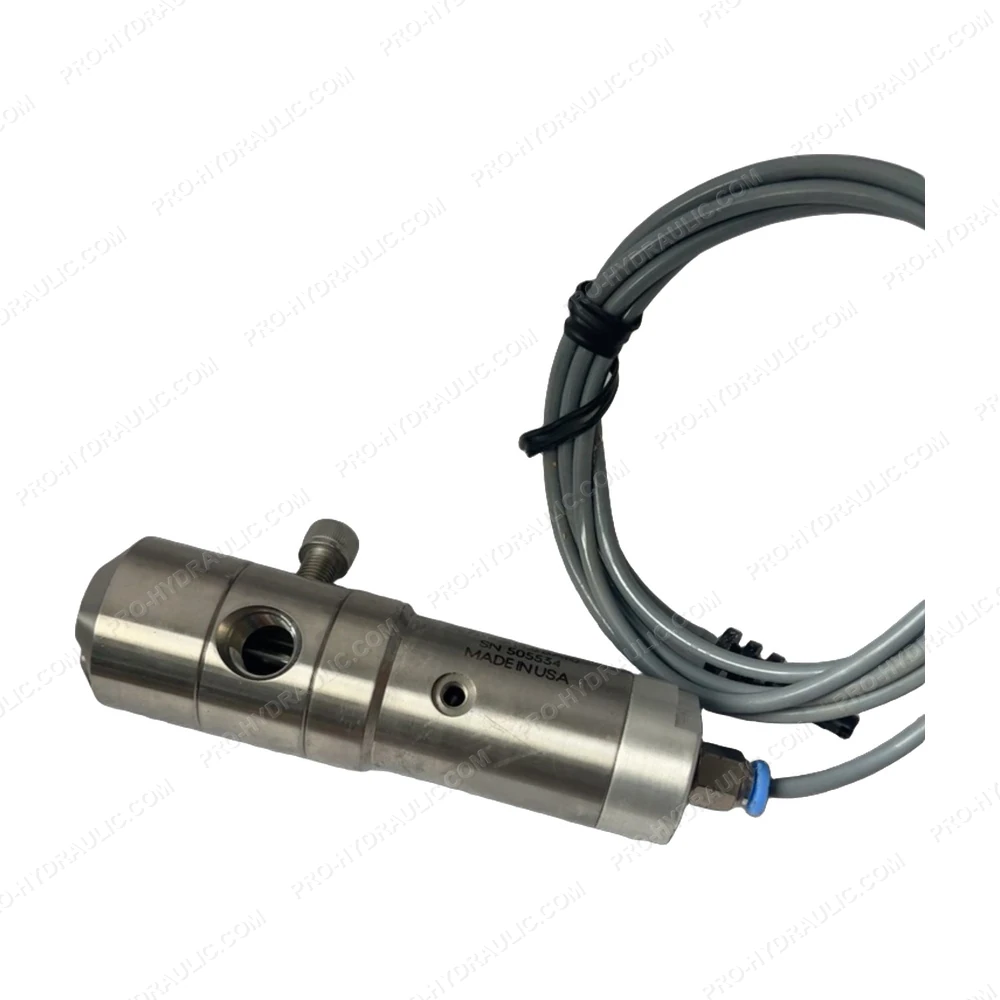

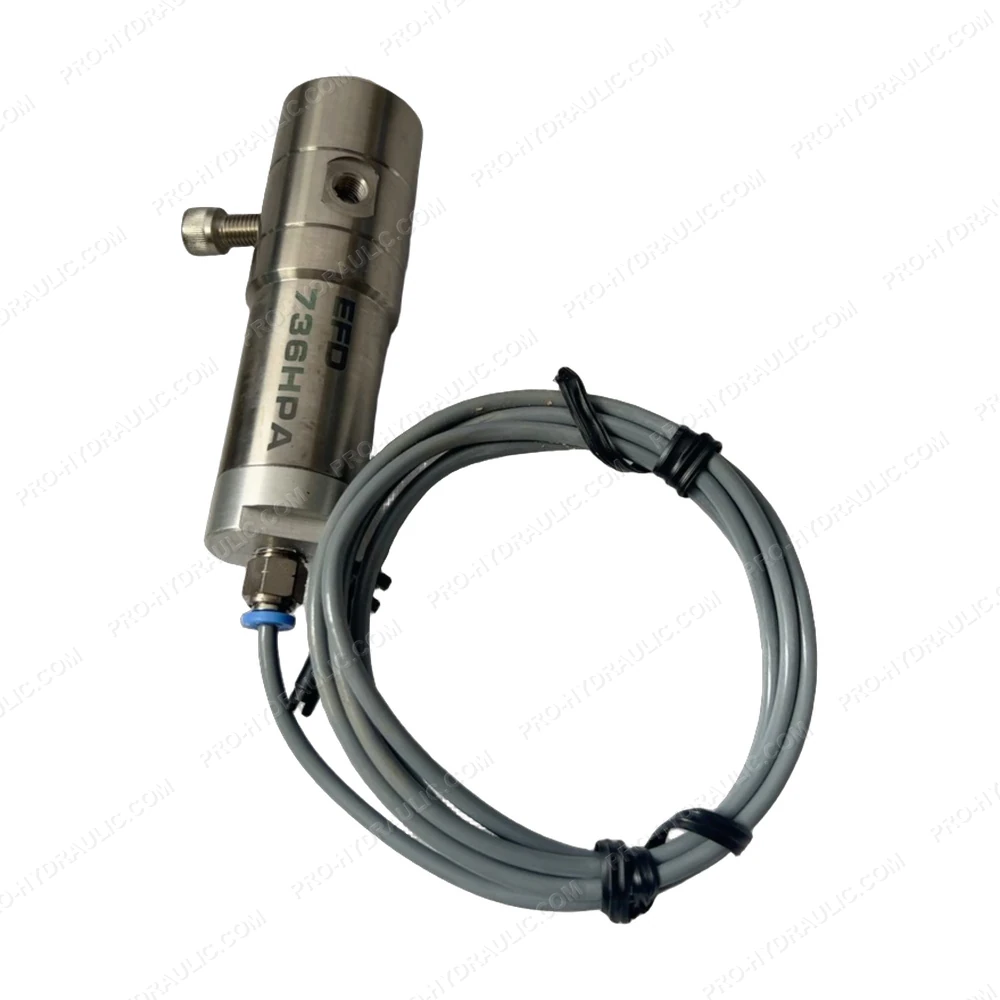

EFD 736HPA High-Pressure Dispense Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine EFD 736HPA High-Pressure Hydraulic Solenoid Valve. This USA-made 24 VDC hydraulic component features a 2-way normally closed poppet design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
