Product Overview
The EMG SV 1-10/8/315/6 (Part No. 226694) is a high-response, two-stage electro-hydraulic servo valve engineered by EMG Automation for precision closed-loop control of position, velocity, force, and pressure in demanding industrial hydraulic systems. The unit operates on a nozzle-flapper, force-feedback torque motor principle: an electrical command signal drives the torque motor armature, which deflects the flapper between twin nozzles to modulate differential pilot pressure across the main spool. The resulting spool displacement is fed back mechanically to the torque motor, producing a high-resolution, hysteresis-free output flow proportional to the input current. With a rated operating pressure of 315 bar and an NG10 (Size 10) interface, this valve is purpose-built for fast, accurate actuation of cylinders and rotary actuators where dynamic response and repeatability are critical.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Precision Proportional & Servo Valve (Electro-Hydraulic Servo Valve) |
| Model Designation | EMG SV 1-10/8/315/6 / 226694 |
| Manufacturer | EMG Automation |
| Valve Design | Two-stage, nozzle-flapper pilot with force-feedback torque motor |
| Nominal Size | NG10 (Size 10) spool interface |
| Operating Pressure | Up to 315 bar (rated system pressure) |
| Control Signal | Analog current command (torque motor actuation) |
| Mounting & Connection | Standard ISO 4401 / CETOP subplate interface, NG10 pattern |
| Hydraulic Fluid | Mineral-based hydraulic oil, ISO VG 32–68 (filtration per servo-grade cleanliness) |
Engineering Features & Advantages
- Precision Performance: Nozzle-flapper pilot stage with mechanical force feedback delivers high-resolution spool positioning, low hysteresis, and excellent repeatability for closed-loop control of position, velocity, and force.
- Fast Dynamic Response: High-response torque motor and low-inertia pilot stage enable rapid spool actuation, making the valve suitable for high-cycle servo applications and fast transient correction.
- High-Pressure Capability: Rated for continuous operation at system pressures up to 315 bar, supporting demanding industrial circuits without derating.
- Industrial Reliability: Robust two-stage construction engineered for continuous duty under severe industrial conditions, with stable performance across the full operating temperature range.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original EMG OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
Typical Industrial Applications
226694) is a high-response, two-stage electro-hydraulic servo valve engineered by EMG Automation for precision closed-loop control of position, velocity, force, and pressure in demanding industrial hydraulic systems.
PRODUCT IMAGES

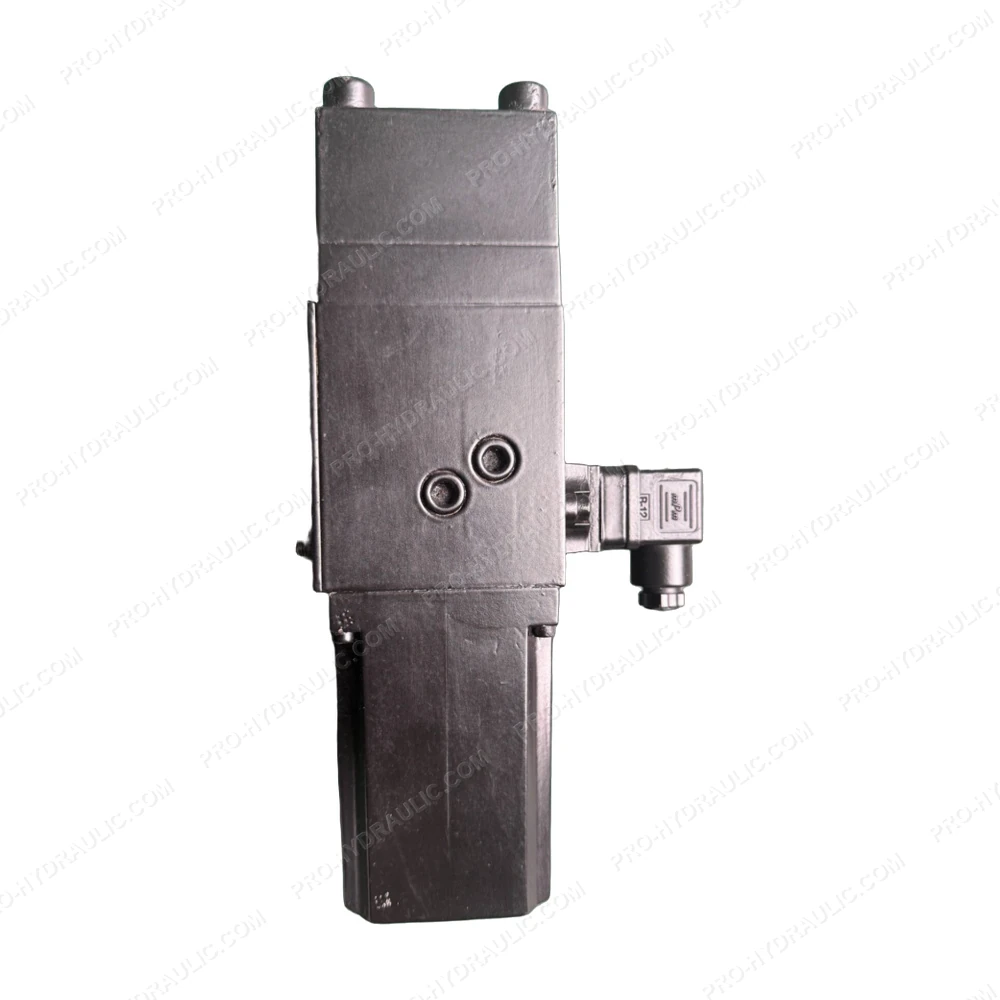

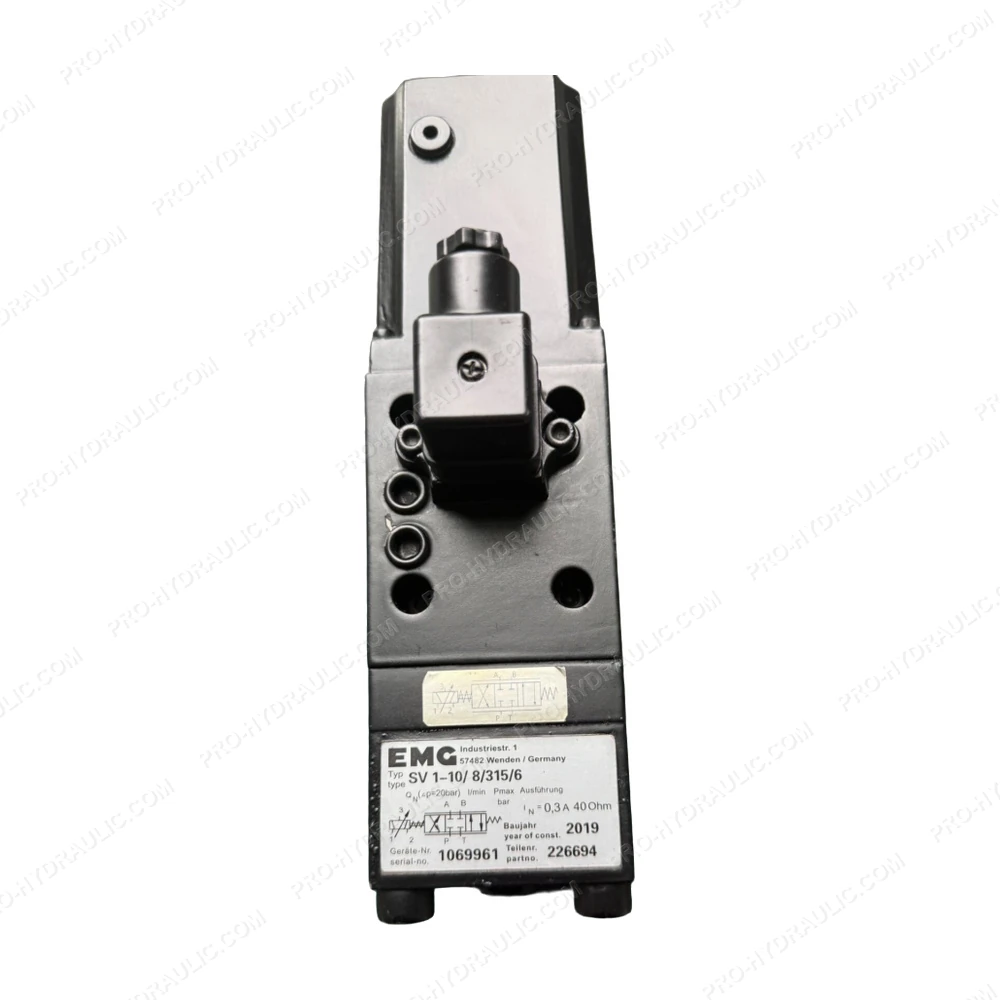

EMG SV 1-10/8/315/6 / 226694 Servo Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine EMG SV 1-10/8/315/6 / 226694 Solenoid Directional Valve. This Germany-made 315 V hydraulic component features a 4/3-way design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
